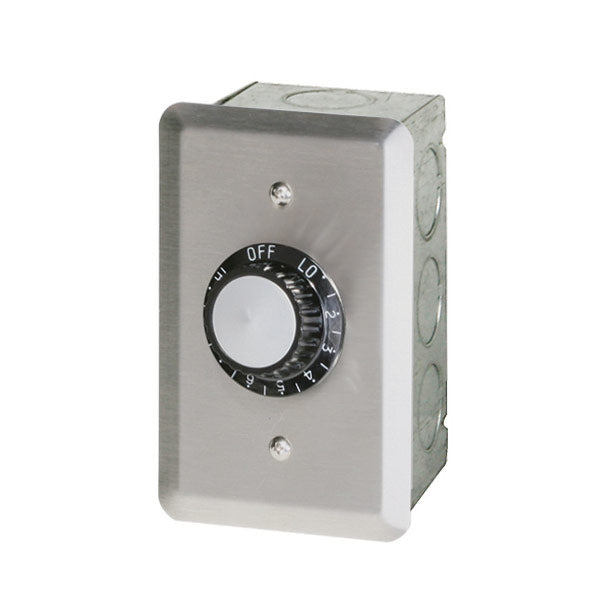

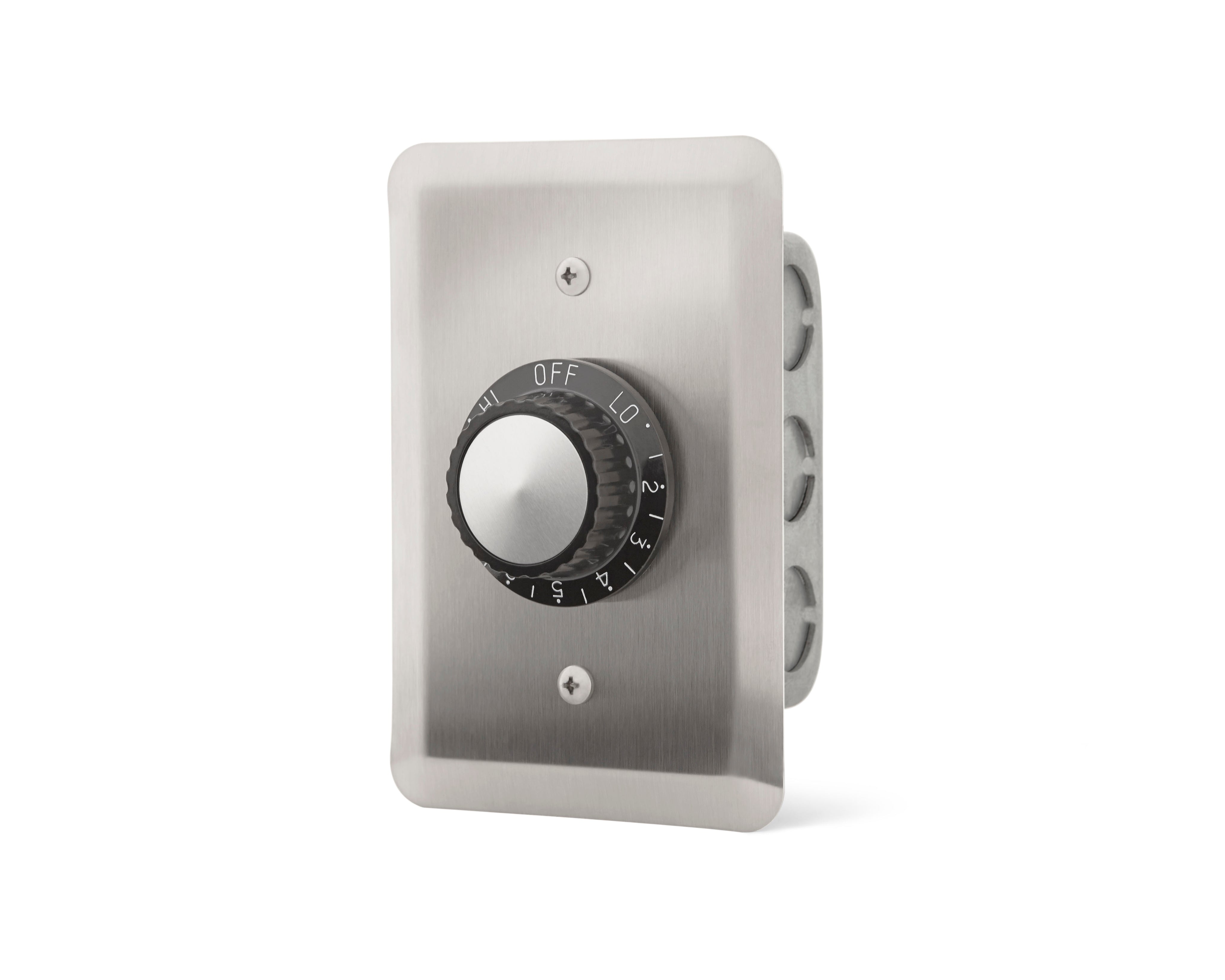

INFRATECH INF Input Regulator for 120 & 240 Volt With Stainless Steel Wall Plate and Gang Box

Infratech

Regular price $111.00

Free Shipping! calculated at checkout.

120 & 240 Volt Input Regulator

Single in-wall heat control assemblies for indoor or protected outdoor areas. For 120-volt applications must use item #14-4100. For 240 volt applications must use #14-4200. Each heater must have its own INF Input Regulator.

Includes gang box and stainless steel faceplate.

  • 15 amp maximum load.

How does it work?

The INF input regulator is considered an "Infinite Switch" which operates with a bi-metal contact. It pulses the heater on and off as the internal contact heats up and cools down. It is considered a coarse form of control and is commonly used for electric heaters.

#14-4100 and #14-4200 Control Dimensions and features:
  • Gang Box: 4" h x 2 1/8" w x 2 1/4" d
  • SS Plate: 5 1/2" h x 3 5/8" w
  • 15 amp maximum load
  • #14-4100 for 120 volt
  • #14-4200 for 240 volt
  • Stainless Steel Face Plate
  • UL Listed
  • 3 Year Warranty

Custom Heating Controls

Enjoy climate-controlled comfort in any residential or commercial indoor/outdoor setting. We can match controls to any heating configuration, setting or budget. Low-cost control option for single element heaters up to 3000 watts (maximum 15 amps).
