INFRATECH Universal Control Panels


Regular price $2,108.00

Free Shipping! calculated at checkout.

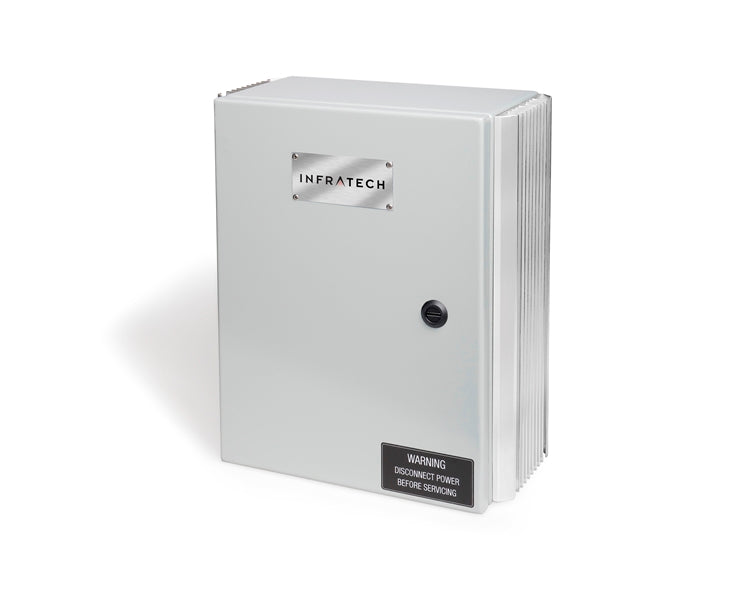

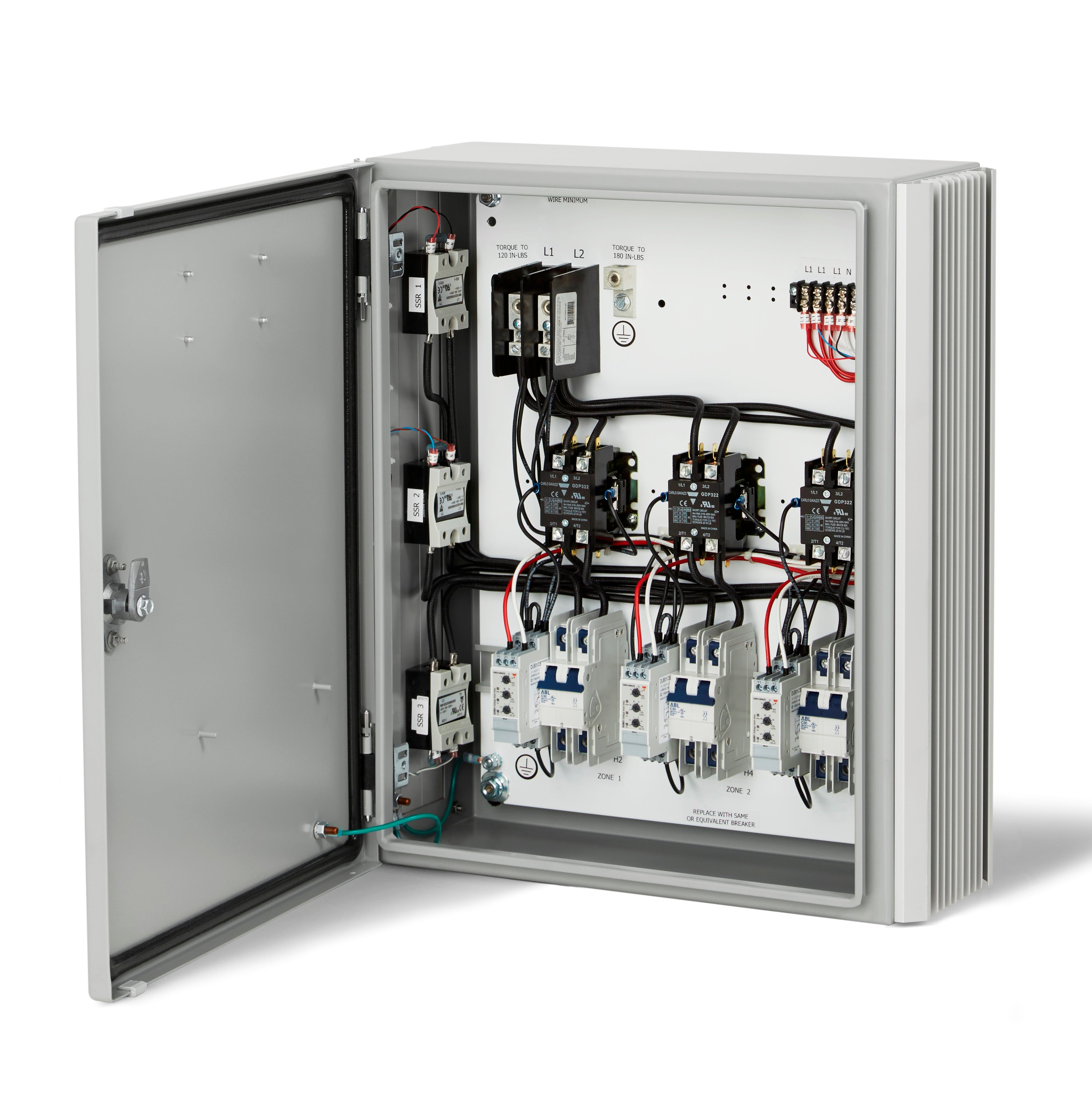

As a pioneer and leader in infrared comfort heat, Infratech has designed a Universal Control Panel. It gives you the unique ability to specify the switches of your choice for your Infratech heating system, for a seamless look that complements your decor.
Here is how it works:
  • Install and control your Infratech heaters using the switches of your choice. This will allow you to coordinate controls with your property's style.

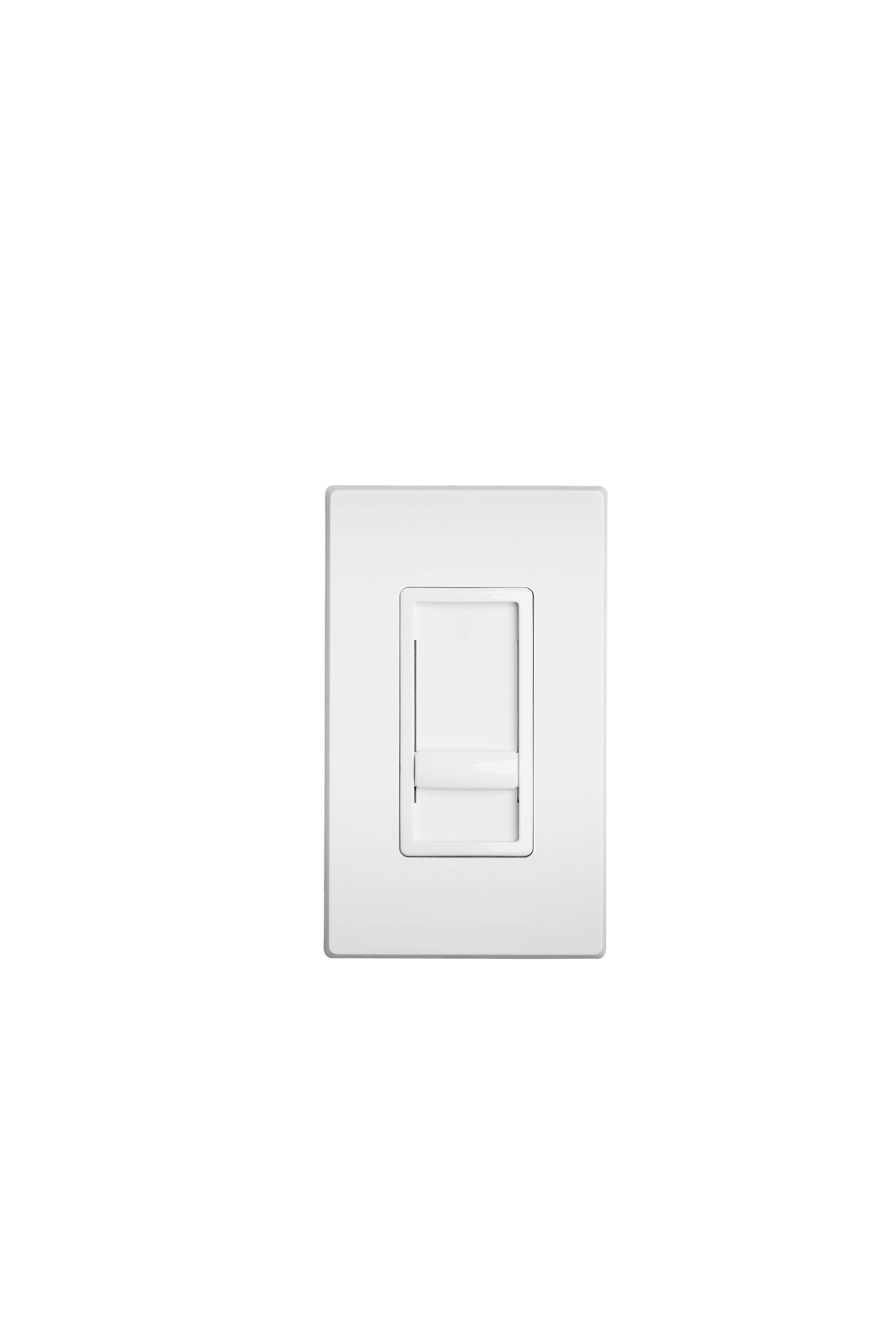

  • The Universal Panel comes with a standard dimmer switch, which can be easily replaced to match your current switches or offer additional features such as Bluetooth dimmer control options, motion sensor dimmer option and more!
  • Infratech exclusive, no other outdoor comfort heat provider offers this.


  • 9,000 watt maximum (for 240 volt)
  • 8,000 watt maximum (for 208 volt)
  • NEMA 4 enclosure:
    • Interior measurement: 20" h x 14" w x 6" d
    • Exterior measurement: 20" h x 16" w x 7" d
  • 120-volt universal slide dimmer provided, timer optional (Item# 15 1705)

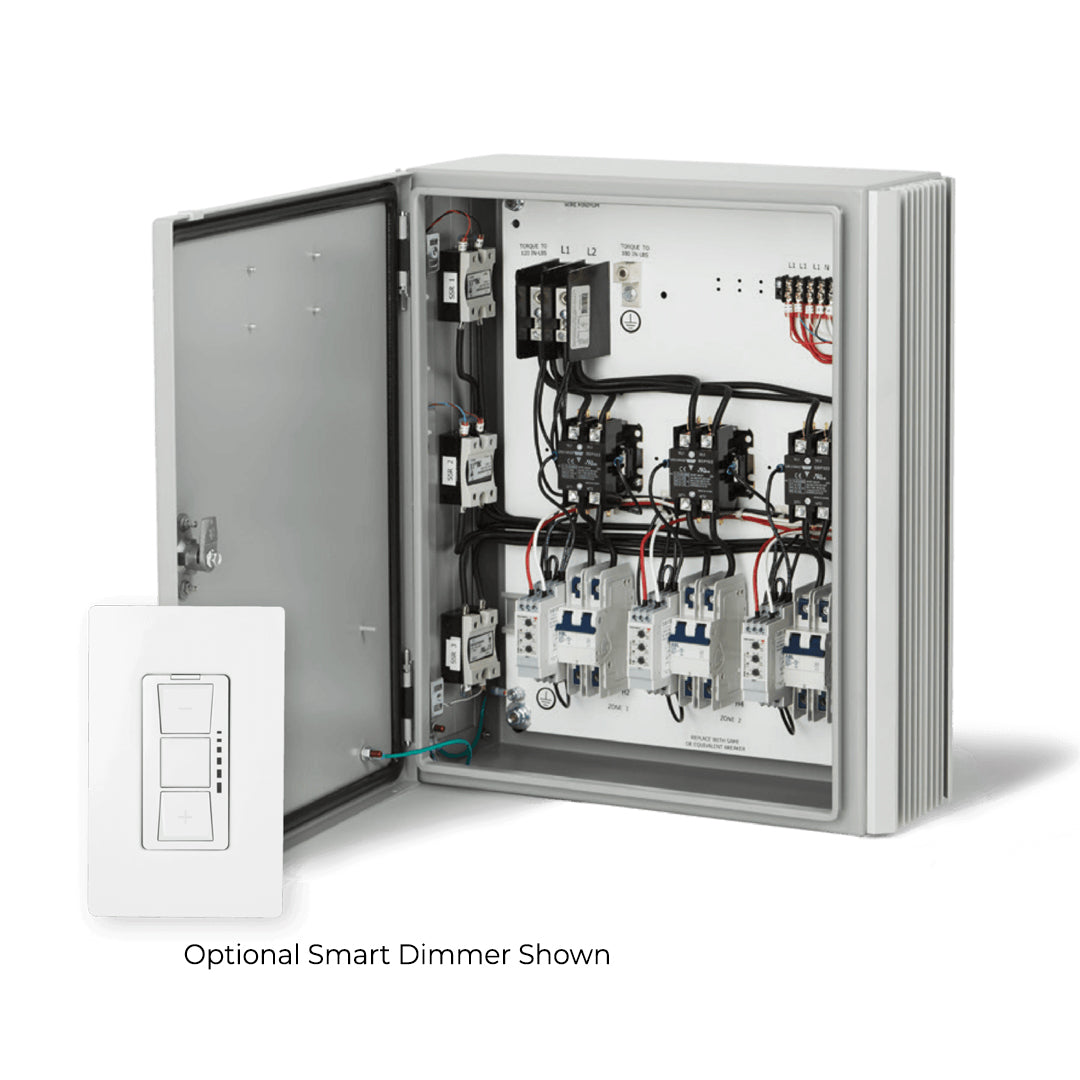

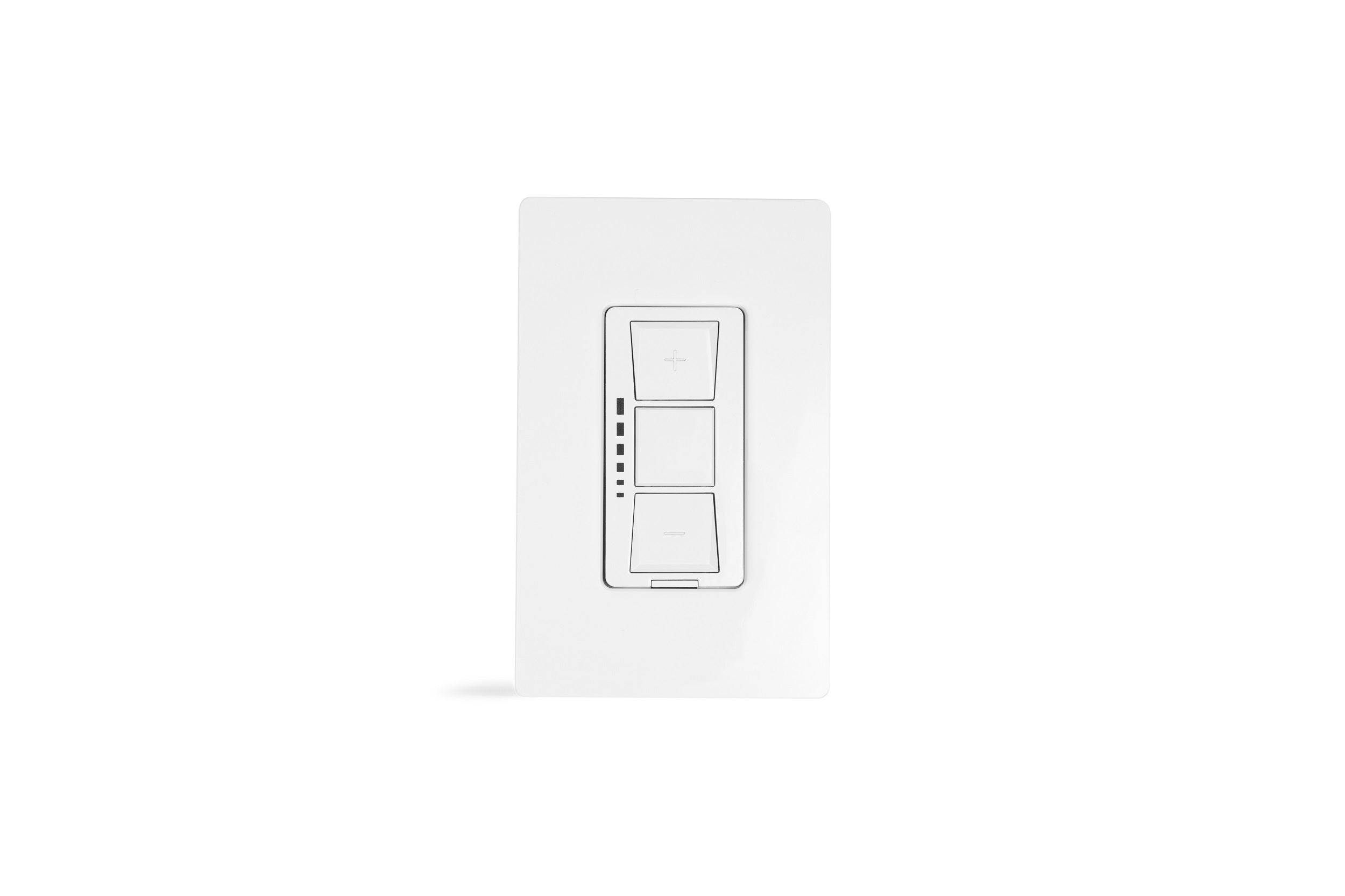

  • 120-volt Wi-Fi/Bluetooth compatible devices can be purchased separately
  • UL Listed
  • Made in the USA
  • 3 Year Warranty
  • These are custom made special order est. 2 - 4 weeks lead time.

Universal Control Panels Wiring Diagram
