Summit NOVA45GDC 53″ Wide 14.1 cu. ft. Commercial Ice Cream Dipping Cabinet – White Cabinet with Glass Sneezeguard
Customer service
Features
- SKU SA-NOVA45GDC
Summit Commercial's line offers the industry's best value on European ice cream storage and display, with a full series of chest freezers and matching glass sneezeguards.

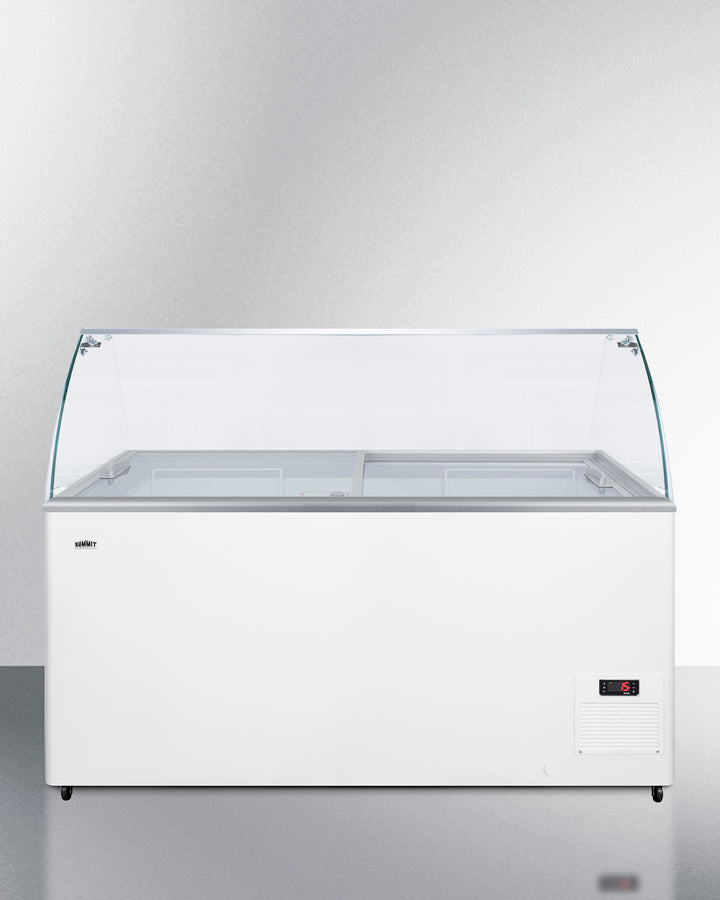

Made for us by Elcold in Denmark, the NOVA45GDC is a 53" wide flat top ice cream freezer and compatible glass sneezeguard with a curved design and aluminum work surface. The sneezeguard is packaged unassembled with the freezer for safer shipping and is easy to install for fast use.

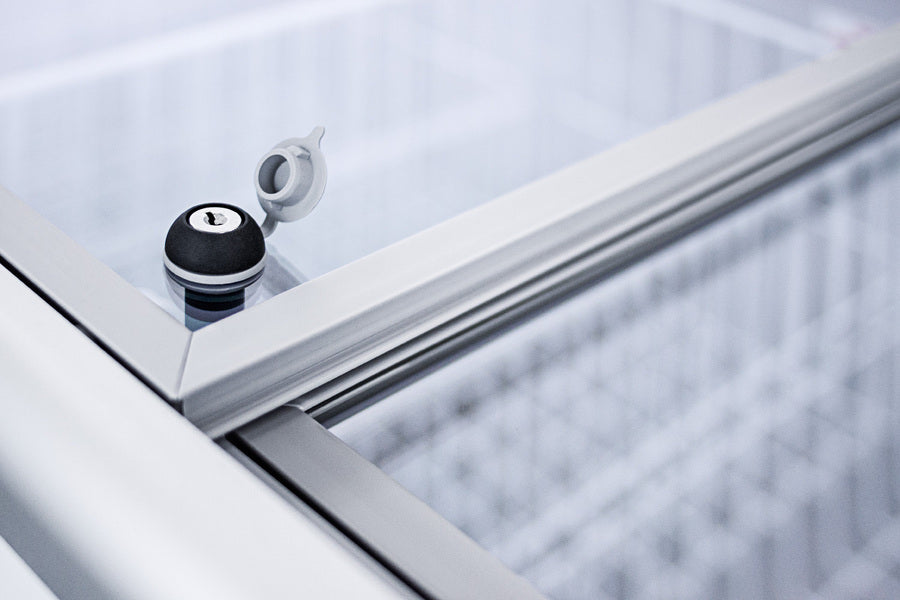

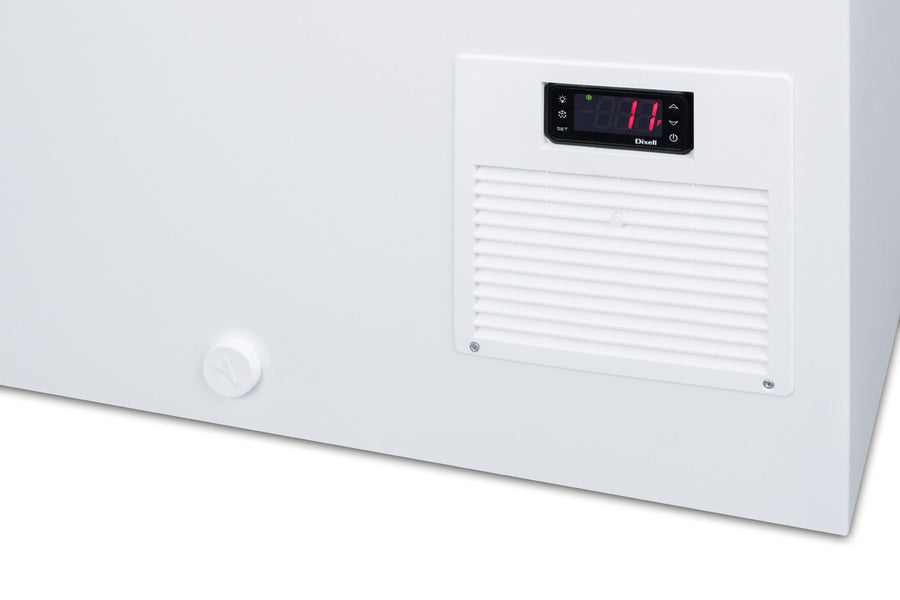

The NOVA45 freezer features 14.1 cu.ft. of storage. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.

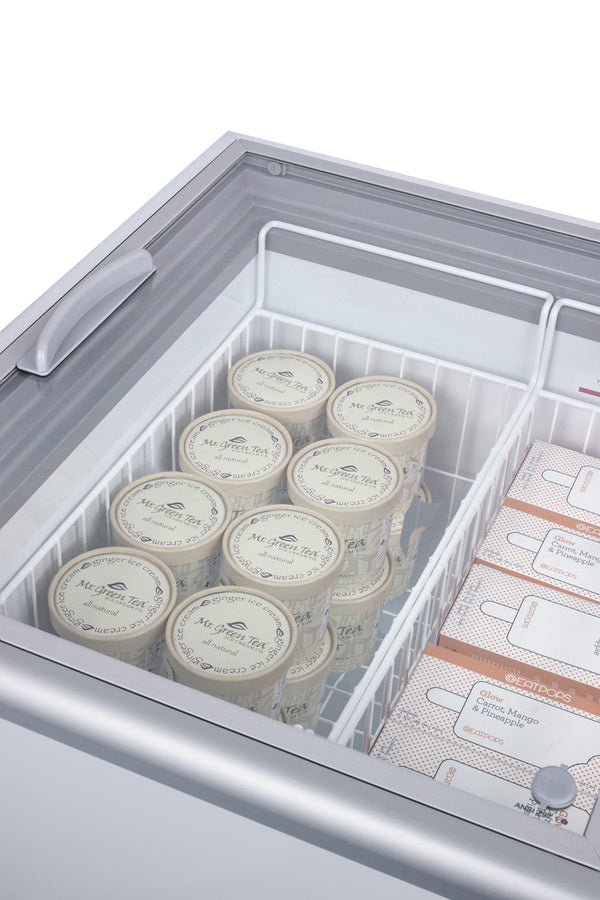

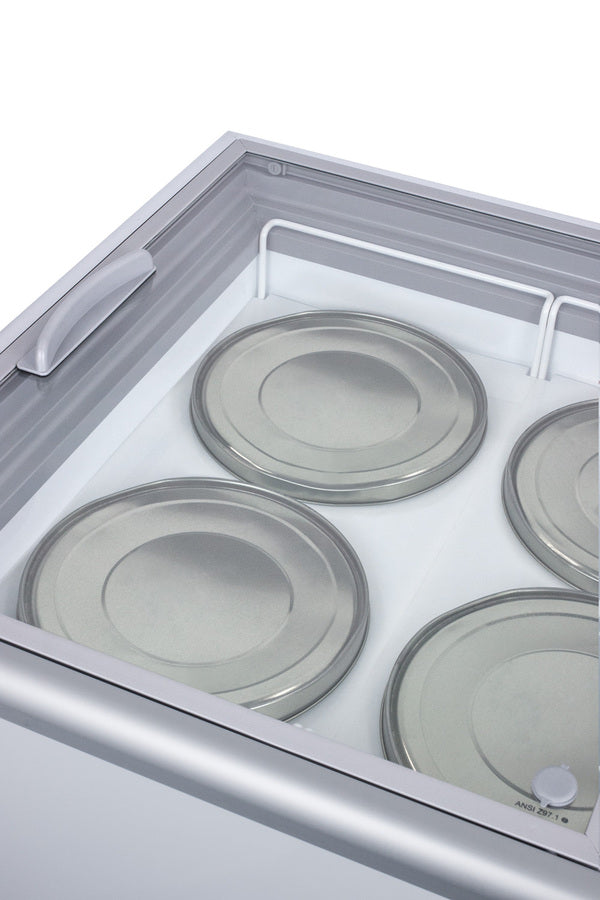

Inside, the NOVA45 freezer features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 4 wire tub holder baskets with plastic lids to hold 8 11" round/3 gallon ice cream tubs, with room to store an additional 6 under the baskets. Extra novelty baskets are also packaged inside for alternate storage. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.
The NOVA45GDC is UL-S listed to NSF-7 commercial standards. Additional sizes are available.
Note: Gelato pan holders are also available. To substitute the baskets, add complimentary upgrade "GLTO" or contact our sales team at 718-893-3900 ext. 507.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 50.0" (127 cm) | Door Swing | Sliding |
| Height of Cabinet | 49.5" (126 cm) | Interior Height | 26.0" (66 cm) |
| Nominal Width | 53.0" (135 cm) | Interior Width | 46.75" (119 cm) |
| Width | 53.0" (135 cm) | Interior Depth | 21.0" (53 cm) |
| Nominal Depth | 28.0" (71 cm) | Thermostat Type | Digital |
| Depth | 27.25" (69 cm) | Refrigerant Type | R290 |
| Capacity | 14.1 cu.ft. (399 L) | Refrigerant Amount | 3.03 oz. |
| Defrost Type | Manual | High Side PSI | 345.0 |
| Door | Glass | Low Side PSI | 140.0 |
| Cabinet | White | Wheels | 4 |
| US Electrical Safety | UL | Compressor Step Height | 9.75" (25 cm) |
| Canadian Electrical Safety | ULC | Compressor Step Width | 7.88" (20 cm) |
| Sanitation | UL-S | Compressor Step Depth | 21.0" (53 cm) |
| Amps | 7.2 | Temperature Range | -13 to 23ºF |
| Voltage/Frequency | 115 V AC/60 Hz | ||
| Weight | 250.0 lbs. (113 kg) | ||
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101065021 |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
