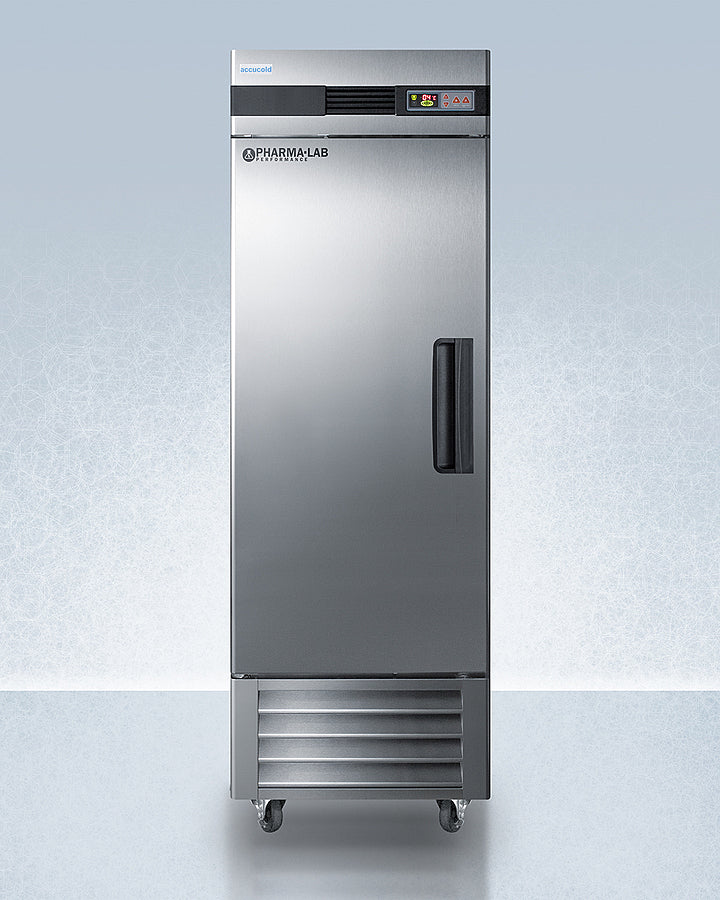

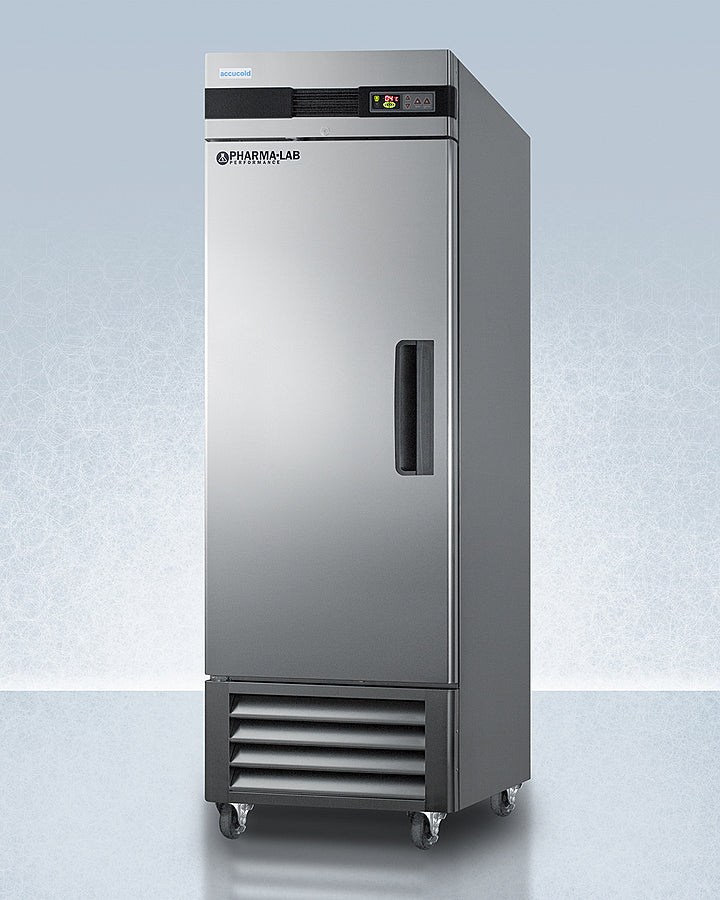

Accucold ARS23MLLH 23 cu ft Upright Medical/Pharmacy Refrigerator – Stainless Steel, +2 °C to +10 °C Control
Customer service
Features
- SKU SA-ARS23MLLH
Accucold's Pharma-Lab Performance Series features reach-in refrigerators and matching freezers designed and purpose-built to meet the demanding needs for pharmacy, medication, vaccine, laboratory, and life science applications.
The ARS23MLLH is a 23 cu.ft. all-refrigerator with an adjustable control range from +2 to +10ºC. The microprocessor temperature controller features a large digital LED display viewable in Celsius or Fahrenheit, making it easy for staff to manage and monitor the temperature. The unit is equipped with an air sensor for rapid control response and a product sensor for a more accurate reading of the interior, including a display of the min/max temperature in 15 minute increments The audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.

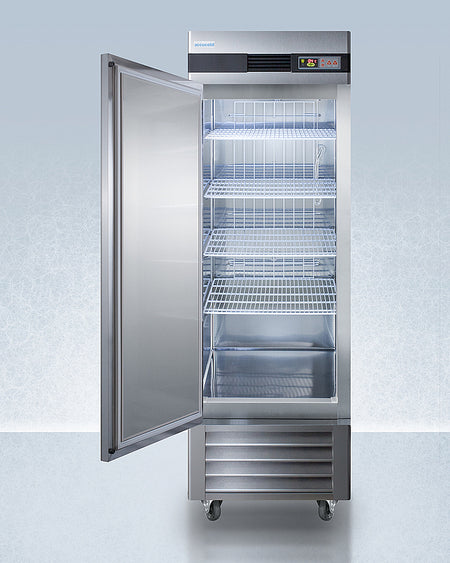

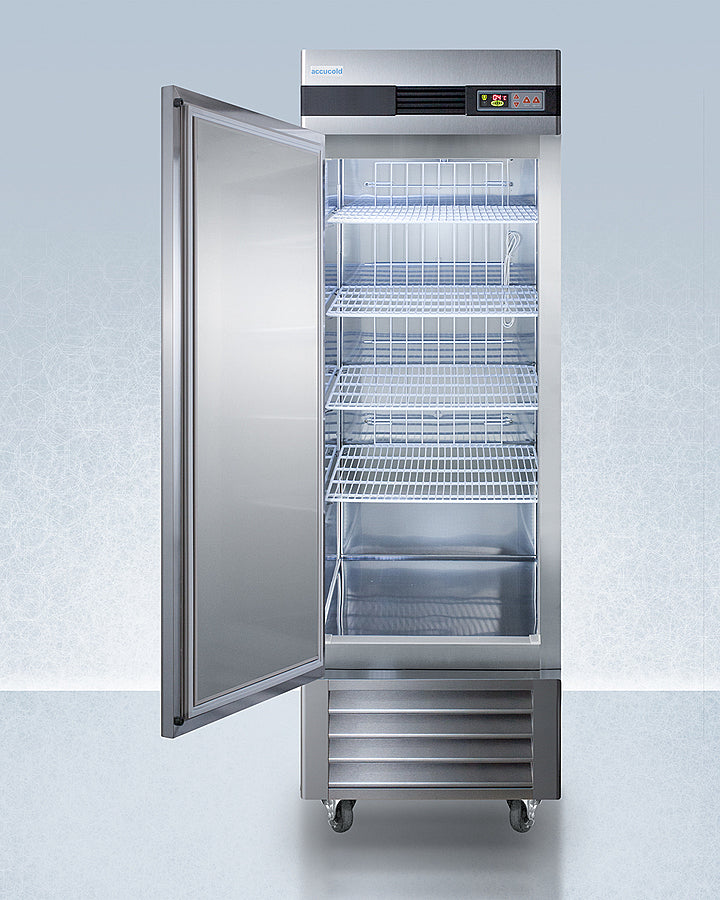

Inside, the ARS23MLLH utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. Four vinyl-coated wire shelves on cantilevered clips allow you to accommodate virtually any sized item. The LED lighting displays automatically when the door is open, providing a full and energy efficient display.
The ARS23MLLH features a durable stainless steel cabinet and interior, with a sealed back for easier cleanup. We include a set of casters (2 locking) for optional installation. A factory-installed lock offers added security, with two keys included for your facility. Magnetic door gaskets ensure a strong seal. The door is self-closing to help protect contents, but will remain open at 90º for easier loading. This unit has a left hand door swing. For the same model with the door opening from the other side, see the ARS23ML.
Designed with hydrocarbon refrigerant, the ARS23MLLH provides an energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching frost-free freezer, see the ARF23ML. A glass door refrigerator version is also available (model ARG23ML).
NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 84.0" (213 cm) | Door Swing | LHD |
| Height of Cabinet | 83.75" (213 cm) | Reversible | No |
| Nominal Width | 28.0" (71 cm) | Shelf Type | Wire |
| Width | 27.5" (70 cm) | Shelf Qty | 4 |
| Nominal Depth | 31.0" (79 cm) | Adjustable Shelves | Yes |
| Depth | 31.0" (79 cm) | Thermostat Type | Digital |
| Depth with Handle | 32.75" (83 cm) | Fan Type | Interior |
| Depth with door at 90° | 56.5" (144 cm) | Refrigerant Type | R290 |
| Capacity | 23.0 cu.ft. (651 L) | Refrigerant Amount | 2.5oz. |
| Defrost Type | Automatic | High Side PSI | 290.0 |
| Door | Stainless Steel | Low Side PSI | 155.0 |
| Cabinet | Stainless Steel | Wheel Qty | 4 |
| US Electrical Safety | UL | Interior Light | Yes |
| Canadian Electrical Safety | ULC | Temperature Range | 2 to 10ºC |
| Sanitation | ETL-S |
Dimensions
|
|
|---|---|---|---|
| Amps | 7.5 | Interior Height | 51.5" (131 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Interior Width | 23.5" (60 cm) |
| Weight | 282.0 lbs. (128 kg) | Interior Depth | 27.0" (69 cm) |
| Parts & Labor Warranty | 2 Years | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101066752 | ||
|
ASSEMBLY DRAWING |
