Accucold ARS2PVDL2B 1.94 cu ft Compact Vaccine/Medication Refrigerator – White Cabinet

SKU: SA-ARS2PVDL2B
Regular price $1,948.60
Built for hygiene and security in professional environments – Features an antimicrobial silver-ion coated handle, factory-installed lock with two keys, hospital-grade cord, and self-closing door to maintain secure storage.
Energy-efficient & eco-friendly design – Uses hydrocarbon refrigerant (R600a), automatic defrosting cycle to avoid temperature spikes, durable powder-coated interior, and compatibility with common clinical cabinet systems.
Advanced monitoring & alarm suite – Includes audible & visual alarms for temperature excursions, power failure, door-open and sensor failure; also remote alarm contacts and a ½″ probe port for external monitoring.
22.25" H x 18.5" W x 23.25" D
(57cm H x 47cm W x 59cm D)
5 years - Compressor Warranty
2 year - Parts & Labor Warranty
Free shipping at checkout!

Features

  • SKU SA-ARS2PVDL2B

Purpose-built design:
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines

+/-1ºC Variation:
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Digital data logger (DDL) included:
Accucold DL2B data logger is NIST calibrated in our ISO/IEC 17025:2017 laboratory, with user-set logging intervals, a large LCD readout of the current and high/low temperature, and virtually unlimited storage through internal memory and a convenient USB drive; for additional information on this logger's features, view the DL2BKit on our website

Adjustable temperature:
Intuitive controls let you adjust the interior temperature between +2 to +8ºC

Temperature alarm:
Visual and audible alarms alert if the interior temperature rises or falls out of set range

Remote alarm contacts:
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle defrost:
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Access port:
Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Open door alarm:
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarm:
Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm:
Audible and visual alarm warns if the sensor is disrupted

Password protection:
Control panel requires password entry to adjust the parameters beyond the set point

Microprocessor control panel:
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display:
Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock:
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Antimicrobial silver ion-coated handle:
Powder-coated handle with naturally occurring silver ions to help reduce germ spread

Adjustable plastic-coated wire shelves for improved circulation:
Multiple shelf positions spaced at 1/2" to accommodate virtually any size

Durable interior:
Walls are constructed from white powder coated metal for added strength and improved temperature retention

Interior light:
Energy efficient LED lighting with internal on/off switch

Hospital grade cord with 'green dot' plug:
Secure three-pronged cord for added unit safety

Self-closing door:
Added protection in busy settings

Magnetic door gasket:
Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty:
2 years parts and labor/5 years compressor

Eco-Friendly:
Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers:
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Additional choices:
Solid and glass door choices available from 1 to 18 cu.ft. Browse the Pharma-Vac series for more information

Versatile design:
Compatible with Pyxis®, Omnicell®, and AcuDose RX®

Matching freezer:
Pair with Accucold AFZ1PVDL2B solid door freezer to create a matching set

100% CFC free:
Environmentally friendly design without ozone-damaging chemicals

CARB Compliant:
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's Pharma-Vac Performance Series are upright all-refrigerators designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines.

The ARS2PVDL2B is a 1.94 cu.ft. all-refrigerator with an adjustable control range from +2 to +8ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. This refrigerator includes a high/low temperature alarm, as well as a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

We also include our DL2B digital data logger to be mounted to the door, a feature recommended by the CDC, VFC and VFA for vaccine storage. This password-protected DDL is NIST calibrated in our ISO/IEC 17025:2017 accredited laboratory and offers a large LCD display of the current and high/low temperature, recording up to 32,000 data groups to its internal memory or even more on the included 4GB USB flash drive. Data can be viewed through a PC or Mac in Microsoft Excel or any .CSV compatible program. Users can set their own recording intervals starting at increments of 10 seconds to best meet a facility's specific logging needs. We include a 2-year certificate of calibration beginning the date of manufacture. The logger can be re-calibrated in our laboratories after the certificate expires. (For additional information on the DDL, see the DL2BKit listing on our website.)

Inside, the ARS2PVDL2B utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan to ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

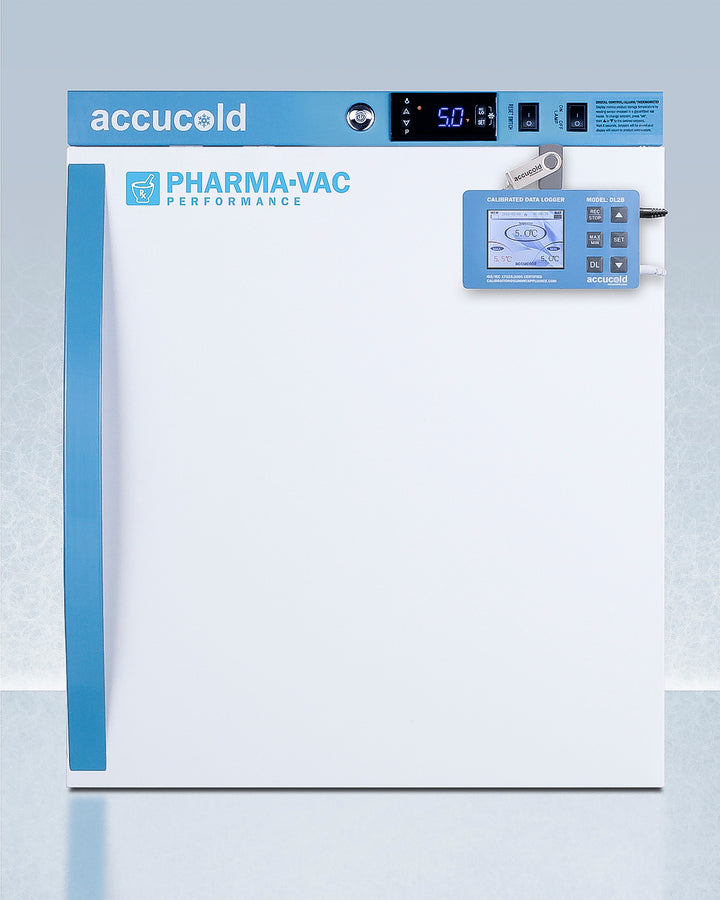

The ARS2PVDL2B comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, the ARS2PVDL2B provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac.

Note: The DL2B data logger adds 1 1/2" to the depth of the upper right hand corner of the door (not included in the listed specifications on this page).

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. Units that end in suffix "456" have been certified to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which is included on this unit.

Overview
Refrigerator/Freezer
Nominal Height 23.0" (58 cm) Door Swing RHD
Height of Cabinet 22.25" (57 cm) Reversible Factory Reversible
Nominal Width 19.0" (48 cm) Shelf Type Wire
Width 18.5" (47 cm) Shelf Qty 2
Width with Door Open 18.88" (48 cm) Adjustable Shelves Yes
Nominal Depth 24.0" (61 cm) Thermostat Type Digital
Depth 23.25" (59 cm) Fan Type Interior
Depth with Handle 24.75" (63 cm) Refrigerant Type R600a
Depth with door at 90° 42.5" (108 cm) Refrigerant Amount 0.84oz.
Capacity 1.94 cu.ft. (55 L) High Side PSI 280.0
Defrost Type Automatic Low Side PSI 90.0
Door White Interior Light Yes
Cabinet White Temperature Range 2 to 8ºC
US Electrical Safety ETL Sound Level 44.2 dB
Canadian Electrical Safety ETL-C
Dimensions
Amps 0.6 Interior Height 16.5" (42 cm)
Voltage/Frequency 115 V AC/60 Hz Interior Width 15.25" (39 cm)
Weight 80.0 lbs. (36 kg) Interior Depth 15.75" (40 cm)
Parts & Labor Warranty 2 Years Compressor Step Height 8.25" (21 cm)
Compressor Warranty 5 Years Compressor Step Width 15.25" (39 cm)
UPC 761101107448 Compressor Step Depth 4.25" (11 cm)
