Summit FS605SSVH 22″ Wide Upright All-Freezer – 5.04 cu. ft., Stainless Steel Door
Customer service
Features
- SKU SA-FS605SSVH
Summit's selection of North American refrigeration includes the largest capacity all-freezer in a counter height size.

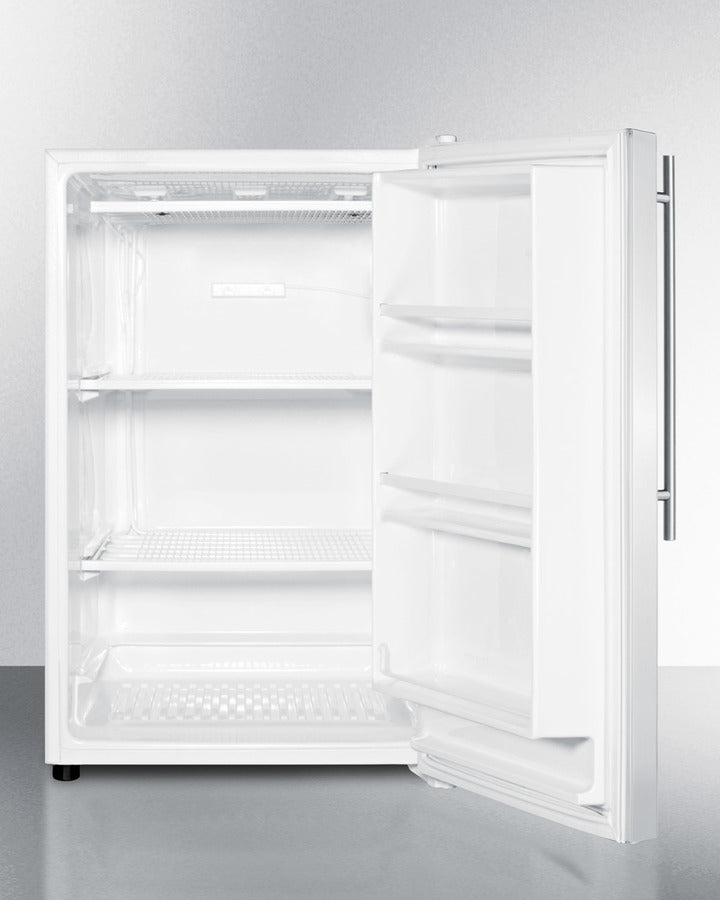

Model FS605SSVH is a freestanding residential upright freezer with a full 5 cu.ft. interior capacity. Two fixed wire shelves feature built-in cooling coils to ensure stored items are stored under the right temperature conditions. Three door racks offer additional storage convenience. This unit utilizes a static manual defrost system and unobtrusive technology with our simple and intuitive dial temperature controls.

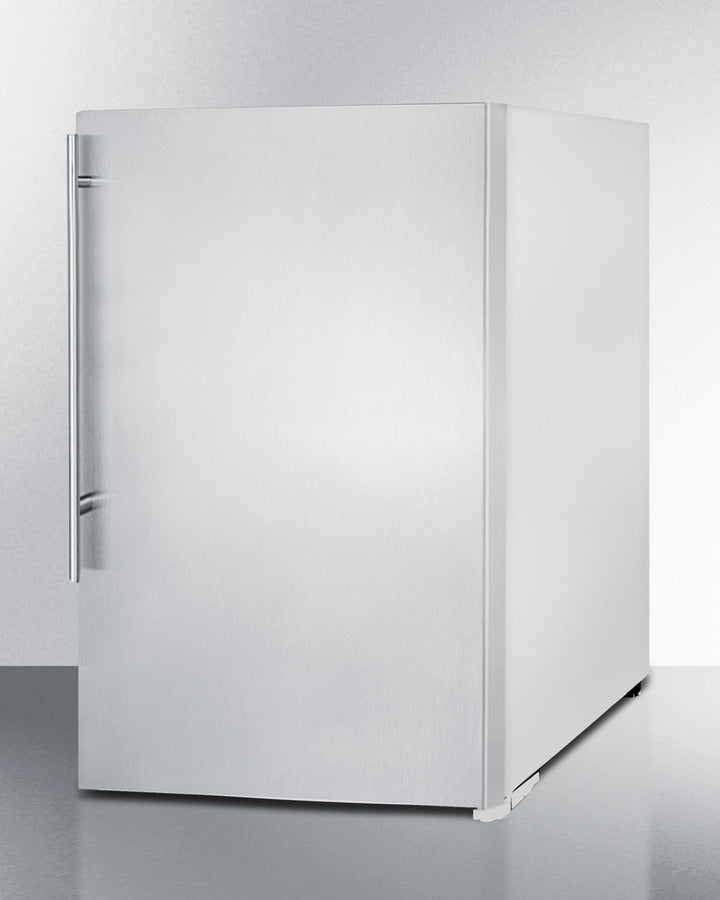

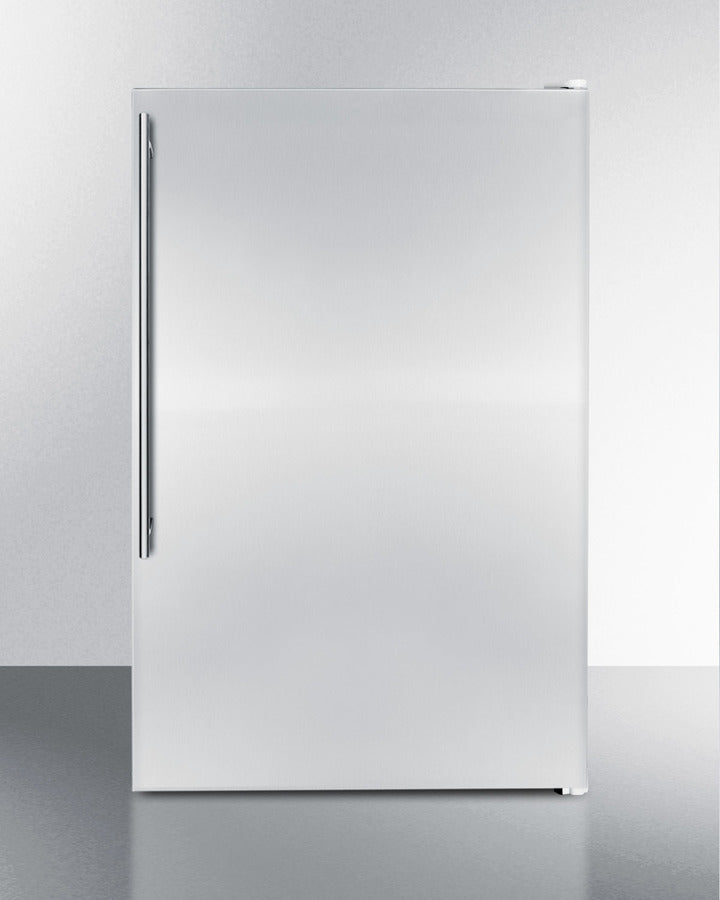

The FS605SSVH comes with a stainless steel wrapped door and sleek vertically mounted handle with a thin 14mm diameter, a popular to style to match many cabinets. The cabinet is a textured white finish. This unit has a non-reversible right hand door swing.
With its generous storage capacity and easy-fitting size, the FS605SSVH is the perfect solution for adding extra frozen storage to shared spaces, laundry rooms, second kitchens, offices, and other settings.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 34.0" (86 cm) | Door Swing | RHD |
| Height of Cabinet | 33.13" (84 cm) | Reversible | No |
| Height to Hinge Cap | 33.63" (85 cm) | Interior Height | 29.5" (75 cm) |
| Nominal Width | 22.0" (56 cm) | Interior Width | 18.63" (47 cm) |
| Width | 21.38" (54 cm) | Interior Depth | 19.0" (48 cm) |
| Nominal Depth | 26.0" (66 cm) | Shelf Type | Wire |
| Depth | 25.75" (65 cm) | Shelf Qty | 2 |
| Depth with door at 90° | 44.5" (113 cm) | Full Door Shelves | 3 |
| Capacity | 5.04 cu.ft. (143 L) | Thermostat Type | Dial |
| Defrost Type | Manual | Refrigerant Type | R600a |
| Door | Stainless Steel | Refrigerant Amount | 1.94 oz. |
| Cabinet | White | Compressor Step Height | 7.5" (19 cm) |
| US Electrical Safety | UL | Compressor Step Width | 18.63" (47 cm) |
| Canadian Electrical Safety | ULC | Compressor Step Depth | 4.0" (10 cm) |
| Energy Usage/Year | 301.0kWh/year | Sound Level | 32.8 dB |
| Amps | 1.4 | ||
| Voltage/Frequency | 115 V AC/60 Hz | ||
| Weight | 100.0 lbs. (45 kg) | ||
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101087030 |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
