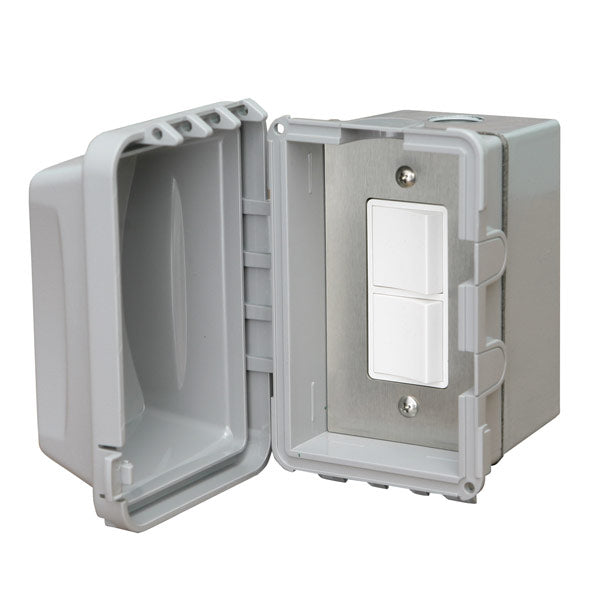

INFRATECH 14-4320 Single Duplex Switch with Weatherproof Box for Surface Mount Installation

Infratech

Regular price $138.00

Free Shipping! calculated at checkout.

WD Heater Duplex Switch

This duplex/stack switch can be used to control your WD Series heater easily and independently. It features high / low / on / off settings. This switch comes with a stainless steel faceplate and gang box for in-wall indoor or protected outdoor area installs.

Custom Heating Control

Infratech’s Duplex Stack Switches are user-friendly and compatible with almost any budget. Infratech provides a variety of heating control options. You may choose different configurations, including In-Wall or Surface Mount installs, as well as with or without weatherproof covers.

Indoor & Outdoor Heating

These Duplex Switches are designed for use with WD-Series dual element heaters and provide a low-cost control option for all dual element heaters. These custom controls give you the ability to turn on and off each element independently, providing effectively half power/full power capabilities.

#14-4320 Dimensions and features:
(Due to supply shortages, please contact our Customer Service to confirm availability and lead times @800-626-0854 or sales@hegemonsupply.com)
  • Weatherproof Box: 4 9/16" h x 2 3/4" w x 2" d
  • SS Plate: 4 3/8" h x 2 5/8" w
  • Weatherproof Cover: 5 1/2" h x 3 3/4" w x 2 3/4" d (Tab on covers extends 1/4")
  • Threaded Knock Out: 1/2"
  • Two Single Pole Single Throw (DPST) Switches
  • Range: 120/277 VAC
  • Recommended not to exceed:
  • 208/220 VAC = 3000 Watts Max per Switch
  • 240/277 VAC = 4000 Watts Max per Switch
  • 20 Amps Max per Pole
  • Made in the USA
  • 3 Year Warranty

              Value Controls

              From Simple On/Off Switches to Duplex Stack Switches to INF Input Regulators, Infratech offers an assortment of value controls, to help you enjoy the efficient ease of use that’s compatible with any budget. All assemblies are available in different configurations, including In-Wall or Surface Mount options, with or without weatherproof covers.

              Control Options Brochure

              Duplex Switch Wiring Diagram
