INFRATECH 14-4420 Simple On/Off Switch with Weatherproof Box for Surface Mount Installation

Infratech

Regular price $125.00

Free Shipping! calculated at checkout.

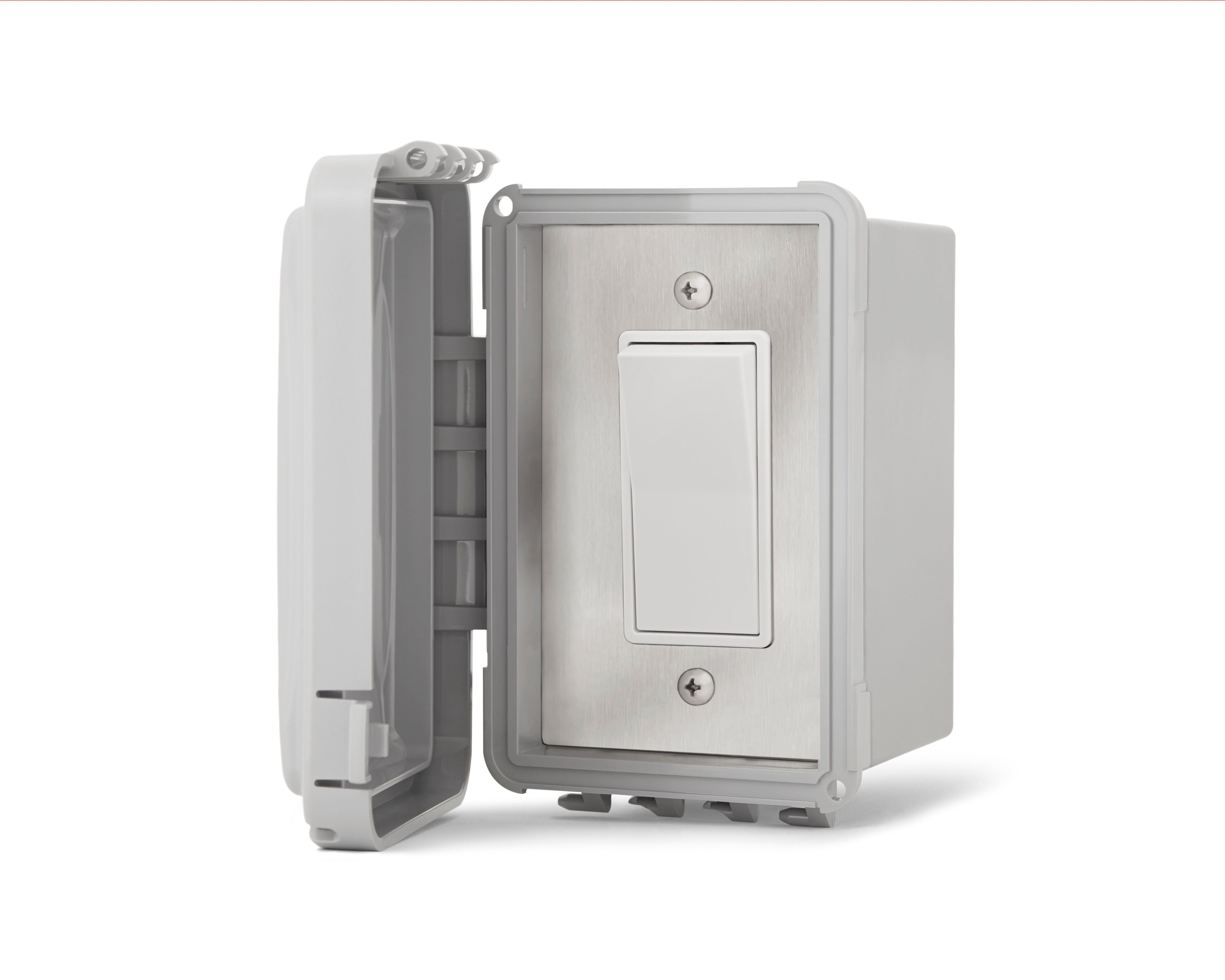

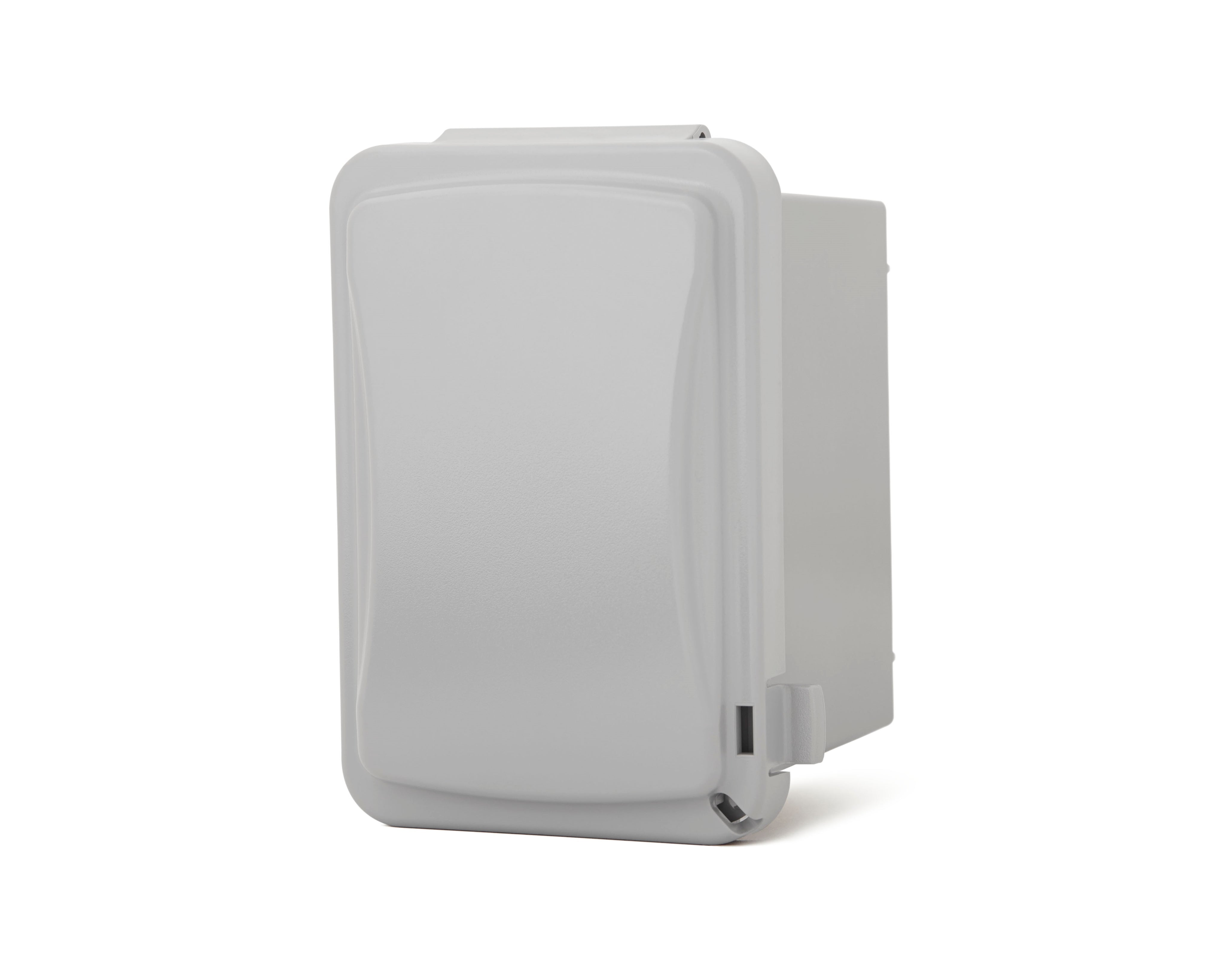

On/Off Switch with Weatherproof Cover

This simple On/Off switch can be used to control your W Series heater. This switch comes with a weatherproof cover, stainless steel faceplate, and gang box for in-wall exposed exterior locations.

Custom Heat Controls

We offers a variety of control options, at a low cost, with easy installation and use. Choose from different configurations, including In-Wall or Surface Mount options, available with or without weatherproof covers.

#14-4420 Dimensions and features:
  • Weatherproof Box: 4 9/16" h x 2 3/4" w x 2" d
  • SS Plate: 4-3/8" h x 2-5/8" w
  • Weatherproof Cover: 5-1/2" h x 3-3/4" w x 2-3/4" d (Tab on covers extends 1/4")
  • Threaded Knock Out: 1/2"
  • Range: 120/277 VAC
  • Recommended not to exceed:
  • 208/220 VAC = 3000 Watts Max per Switch
  • 240/277 VAC = 4000 Watts Max per Switch
  • 20 Amps Max Load
  • Made in the USA
  • 3 Year Warranty

        Indoor & Outdoor Heating Solutions

        Now you can enjoy enhanced, climate-controlled comfort in any residential or commercial setting. We can provide a wide range of control options, for convenience, and optimum performance. These control options range from simple on & off switches, to comprehensive solid state controls that can also provide zoning and timer functions.

        Control Options Brochure

        Simple On/Off Switch Wiring Diagram
