Summit ACR1601WNSF456 24″ Wide Upright Medical Refrigerator – 15.53 cu. ft Capacity, NSF/ANSI 456 Vaccine-Storage Certification, Digital Controls – White
Customer service
Features
- SKU SA-ACR1601WNSF456
EQTemp introduces a new series of NSF/ANSI 456 certified medical refrigeration designed to store a variety of materials in healthcare facilities.

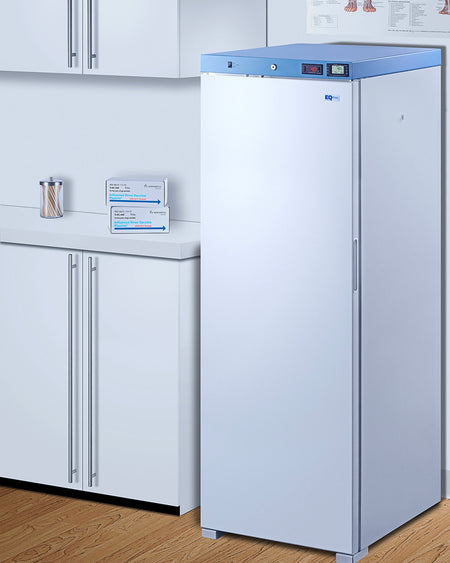

Model ACR1601WNSF456 is an upright 15.53 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The solid door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas. This unit features a front-breathing design for safe built-in installation under counters. The fully finished cabinet also allows freestanding use.
The ACR1601WNSF456 includes an external readout of the interior temperature, as well as the high/low temperature as required for data records. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy and calibrated to NIST standards in our in-house ISO/IEC 17025:2017 certified laboratory. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred. The interior includes one wire shelf in the center to hold the temperature probe, as well as additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance and an internal fan ensures powerful temperature recovery after door openings.
EQTemp's series of ACR refrigeration is certified to the NSF/ANSI 456 Vaccine Storage Standard. All models feature hydrocarbon refrigerant for a greener footprint. Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the full product line to explore our extensive selection.
Note: EQTemp's ACR Series refrigerators are intended for a wide variety of healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 77.0" (196 cm) | Door Swing | RHD/LHD |
| Height of Cabinet | 76.75" (195 cm) | Reversible | Factory Reversible |
| Nominal Width | 24.0" (61 cm) | Height Adjustable | No |
| Width | 23.38" (59 cm) | Shelf Type | Wire |
| Width with Door Open | 23.63" (60 cm) | Shelf Qty | 6 |
| Nominal Depth | 29.0" (74 cm) | Adjustable Shelves | Yes |
| Depth | 28.13" (71 cm) | Thermostat Type | Digital |
| Depth with door at 90° | 28.38" (72 cm) | Fan Type | Interior |
| Capacity | 15.53 cu.ft. (440 L) | Refrigerant Type | R600a |
| Defrost Type | Automatic | Refrigerant Amount | 2.0oz. |
| Door | White | High Side PSI | 1.45 |
| Cabinet | White | Low Side PSI | 0.85 |
| US Electrical Safety | ETL | Level Legs Qty | 2 |
| Canadian Electrical Safety | ETL-C | Interior Light | Yes |
| Sanitation | ETL-S to NSF 456 | Temperature Range | 2º to 8ºC |
| Amps | 2.0 | Sound Level | 35.3 dB |
| Voltage/Frequency | 115 V AC/60 Hz |
Dimensions
|
|
|---|---|---|---|
| Weight | 143.0 lbs. (65 kg) | Interior Height | 68.25" (173 cm) |
| Parts & Labor Warranty | 1 Year | Interior Width | 20.0" (51 cm) |
| Compressor Warranty | 5 Years | Interior Depth | 21.5" (55 cm) |
| UPC | 761101083117 | Compressor Step Height | 9.0" (23 cm) |
| Compressor Step Width | 20.0" (51 cm) | ||
| Compressor Step Depth | 8.0" (20 cm) | ||
|
