Summit ADA302RFZ 20″ Wide Built-In ADA Refrigerator-Freezer — White Cabinet
Customer service
Features
- SKU SA-ADA302RFZ
Accucold offers a wide range of built-in undercounter refrigeration for general purpose storage in healthcare institutions. The ADA302RFZ is a refrigerator-freezer designed for use in settings complying with ADA guidelines.

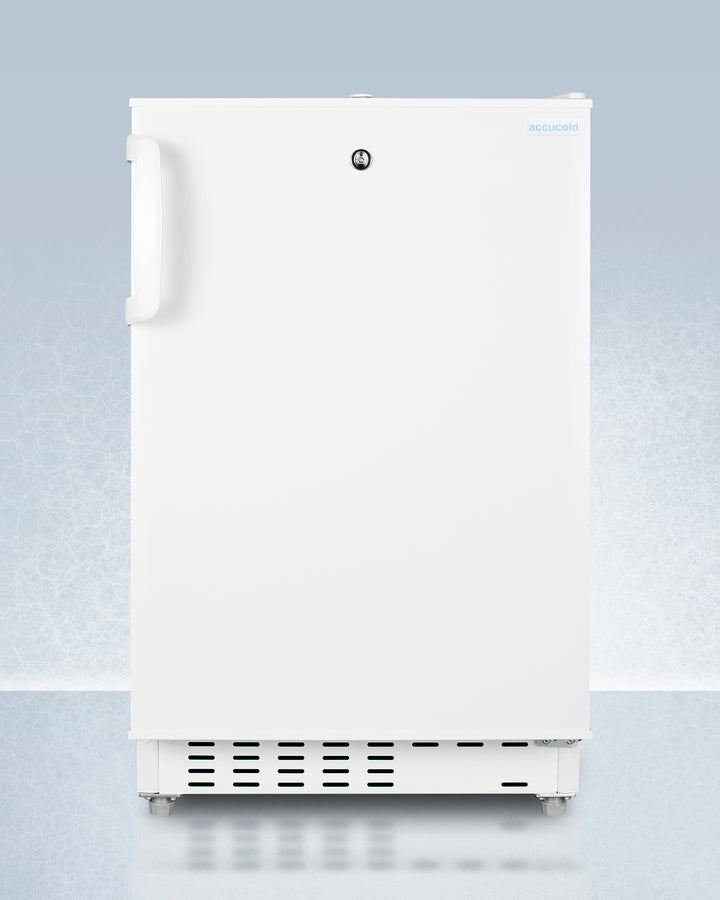

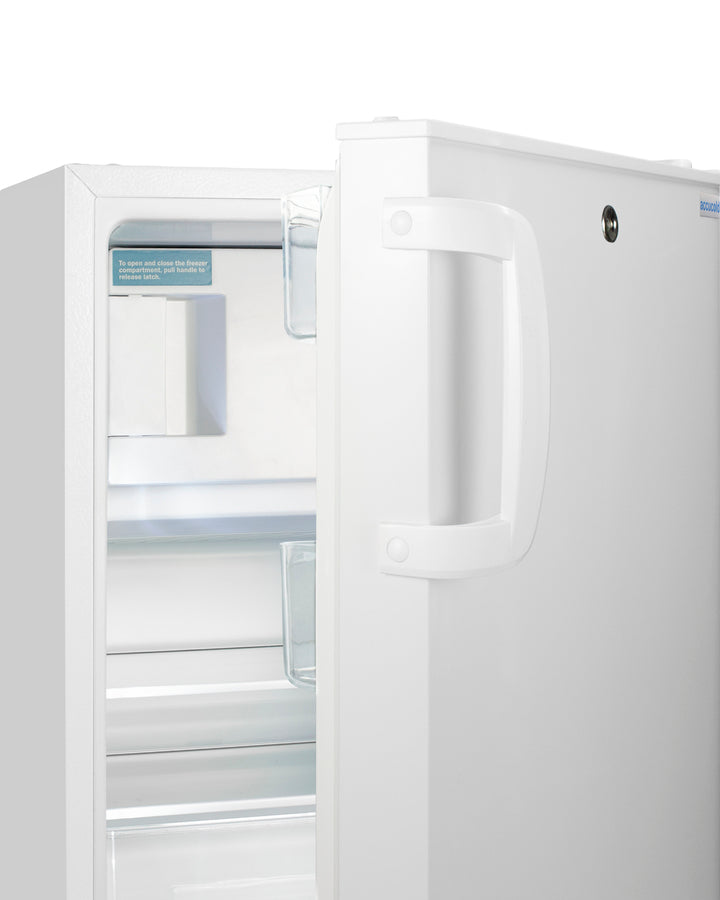

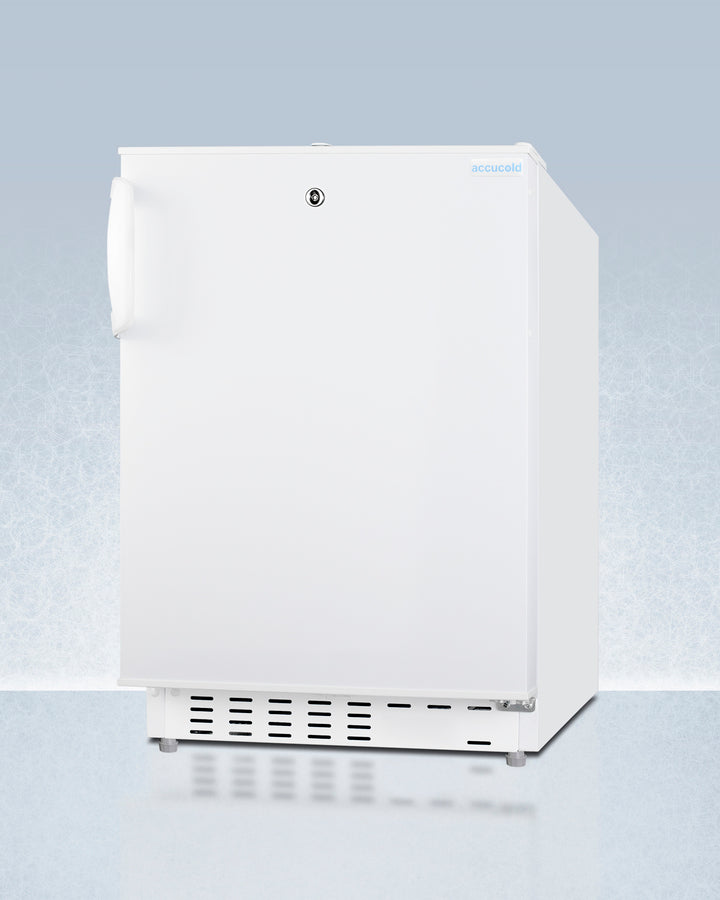

The ADA302RFZ is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. A factory-installed lock is located towards the top of the door for convenient access and security, perfect for high-traffic environments. The user-reversible door is 3" thick to ensure proper insulation and unit efficiency, with a handle included for added convenience. This unit comes with a right angle cord to allow for added placement options without added depth.

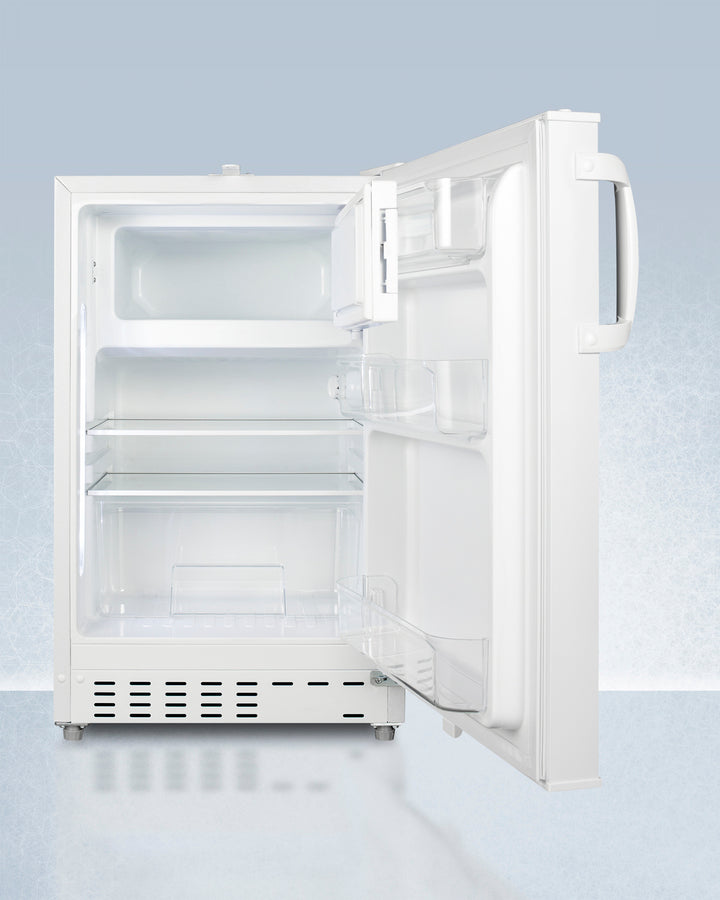

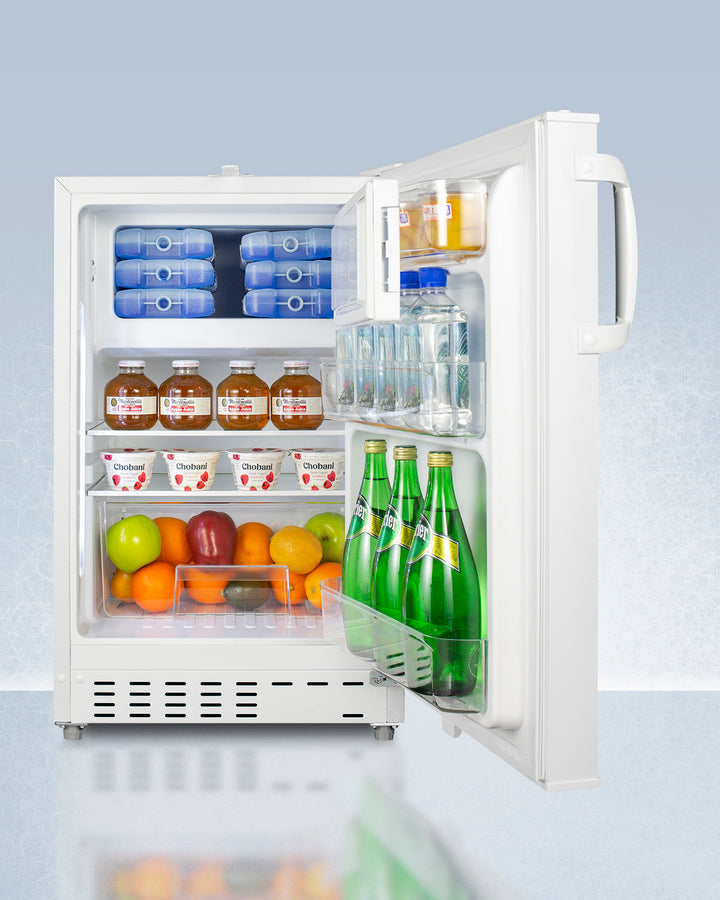

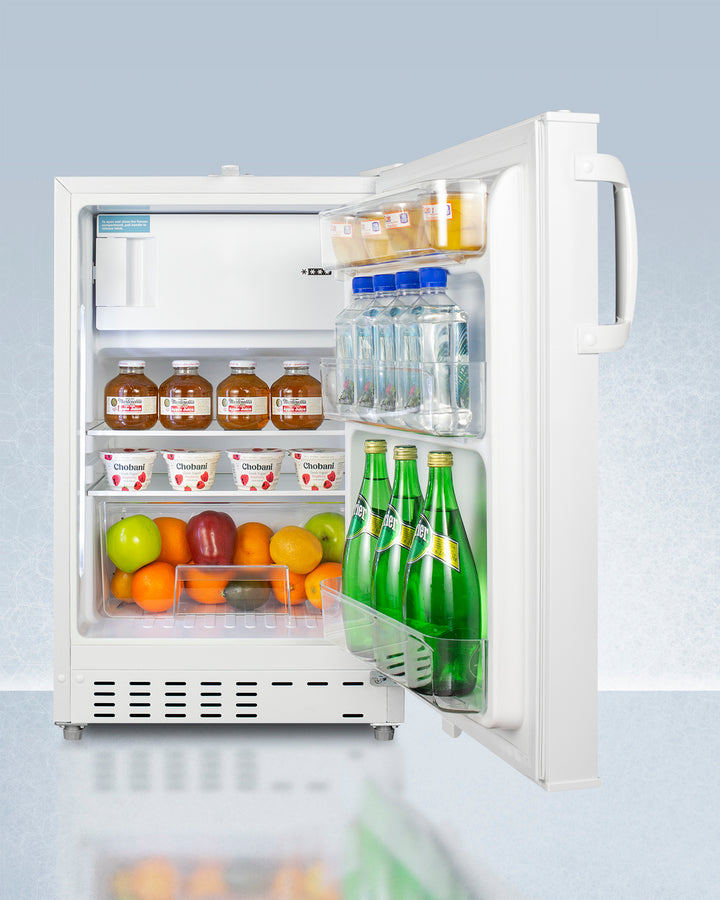

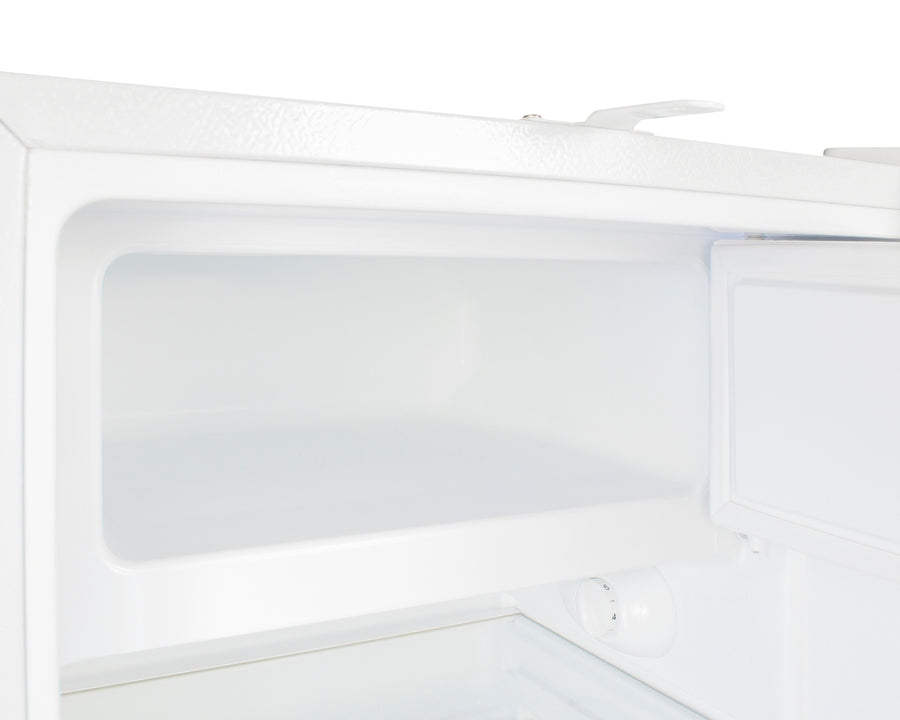

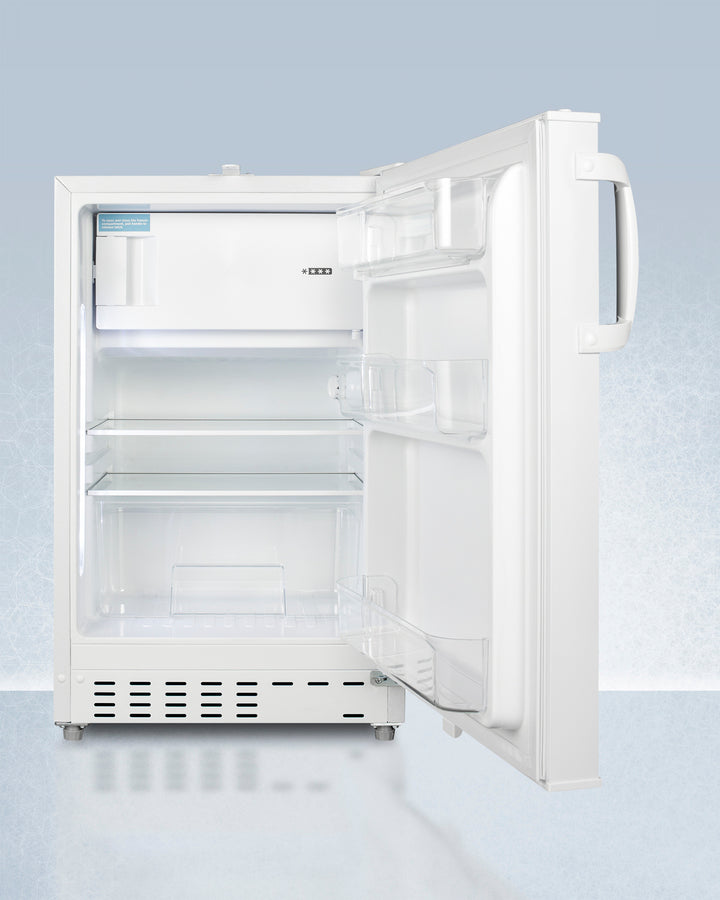

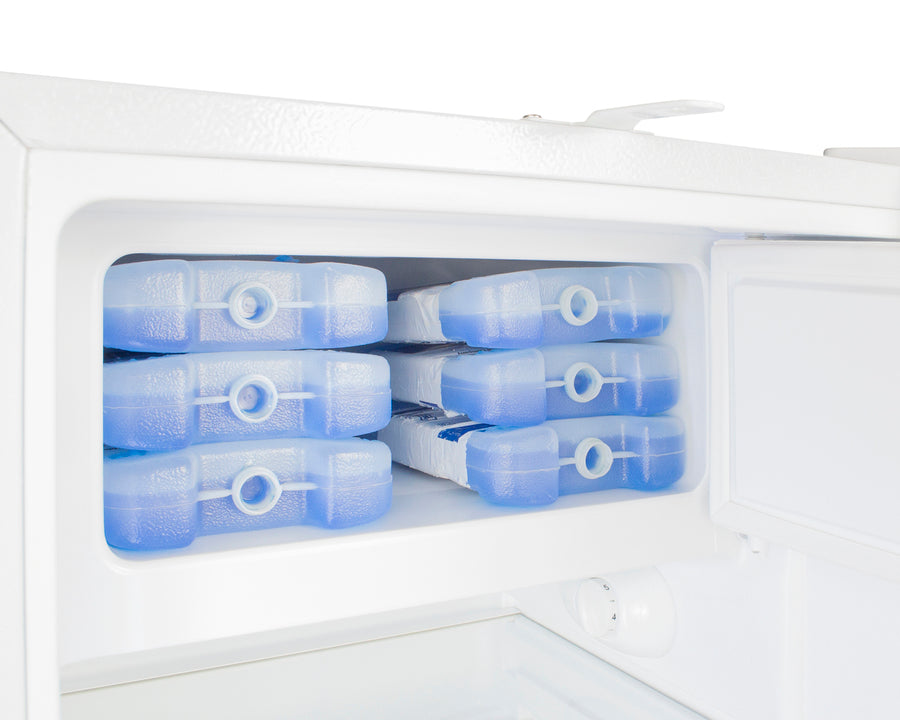

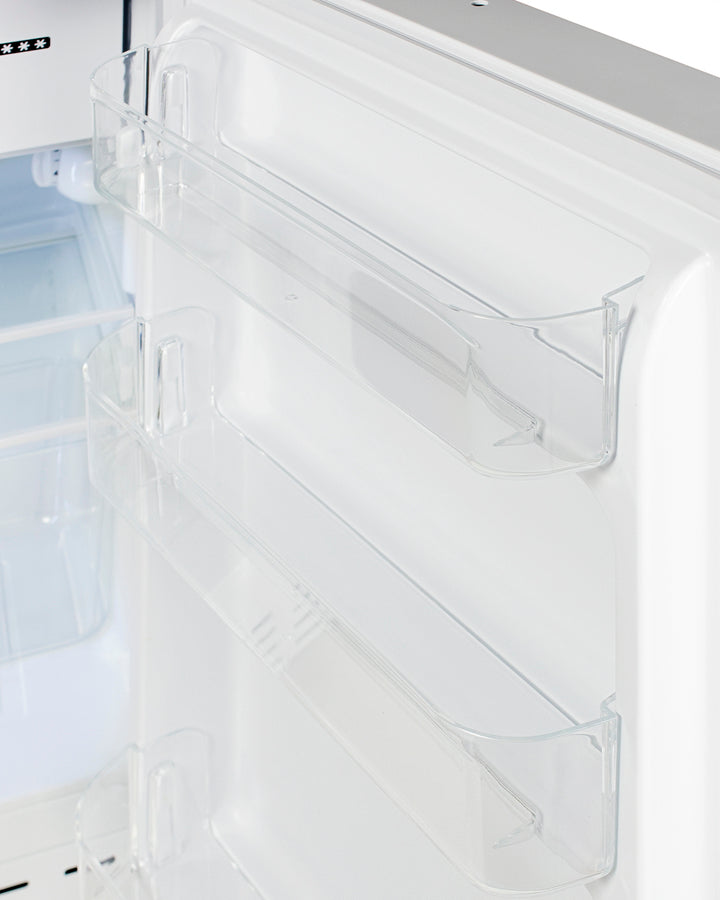

Inside, the ADA302RFZ features an all-white 2.68 cu.ft. interior for easy cleaning, with static manual defrost operation and a dial thermostat. An automatic LED light located toward the front of the unit illuminates the interior for full visibility. Three spill-proof adjustable glass shelves offer flexible storage options and a removable clear crisper drawer holds additioal items as needed. The door includes three removable racks. This unit includes a compact freezer compartment with an interior swing door, perfect for ice cube trays, ice packs, or additional supplies in need of freezing.
With its compact size and convenient features, the ADA302RFZ is the perfect unit for doctor's offices, nurses' stations, clinics, and other healthcare settings in need of an easy-fitting ADA compliant refrigerator-freezer.
Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.0" (81 cm) | Adjustable Shelves | Yes |
| Nominal Width | 20.0" (51 cm) | Crisper Qty | 1 |
| Width | 19.75" (50 cm) | Crisper Finish | Transparent |
| Width with Door Open | 20.25" (51 cm) | Crisper Cover | Glass |
| Nominal Depth | 23.0" (58 cm) | Interior Light | Yes |
| Depth | 22.5" (57 cm) | Refrigerator - Interior Height | 17.5" (44 cm) |
| Depth with Handle | 24.38" (62 cm) | Refrigerator - Interior Width | 16.25" (41 cm) |
| Depth with door at 90° | 40.25" (102 cm) | Refrigerator - Interior Depth | 17.0" (43 cm) |
| Capacity | 2.68 cu.ft. (76 L) | Refrigerator - Shelf Type | Glass |
| Defrost Type | Manual | Refrigerator - Shelf Qty | 3 |
| Door | White | Refrigerator - Full Door Shelves | 3 |
| Cabinet | White | Refrigerator - Temperature Range | 35-46º F |
| US Electrical Safety | ETL | Refrigerator - Refrigerant Type | R600a |
| Canadian Electrical Safety | ETL-C | Refrigerator - Refrigerant Amount | 0.92 oz. |
| Energy Usage/Year | 259.0kWh/year | Freezer - Interior Height | 5.75" (15 cm) |
| Amps | 1.1 | Freezer - Interior Width | 16.25" (41 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Freezer - Interior Depth | 11.25" (29 cm) |
| Weight | 65.0 lbs. (29 kg) | Thermostat Type | Dial |
| Parts & Labor Warranty | 1 Year | Refrigerant Type | R600a |
| Compressor Warranty | 5 Years | Refrigerant Amount | 0.92 oz. |
| UPC | 761101067957 | High Side PSI | 180.0 |
| Low Side PSI | 80.0 | ||
| Level Legs | 2 | ||
| Compressor Step Height | 6.25" (16 cm) | ||
| Compressor Step Width | 16.25" (41 cm) | ||
| Compressor Step Depth | 6.0" (15 cm) |
