Summit ADA404REF 20″ Wide Built-In ADA Healthcare All-Refrigerator — White Cabinet
Customer service
Features
- SKU SA-ADA404REF
Accucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

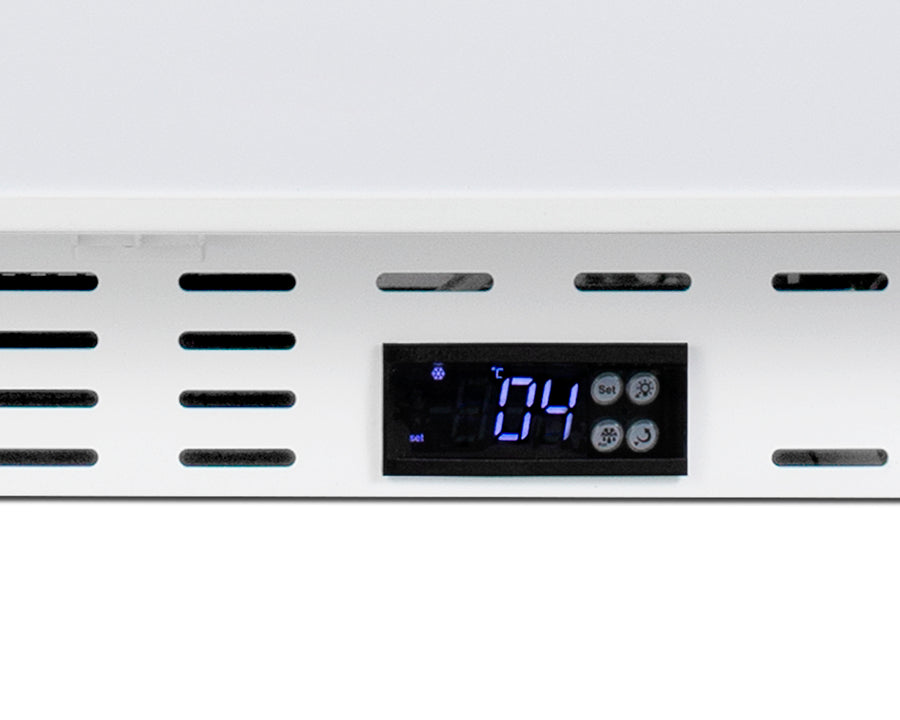

The ADA404REF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal.

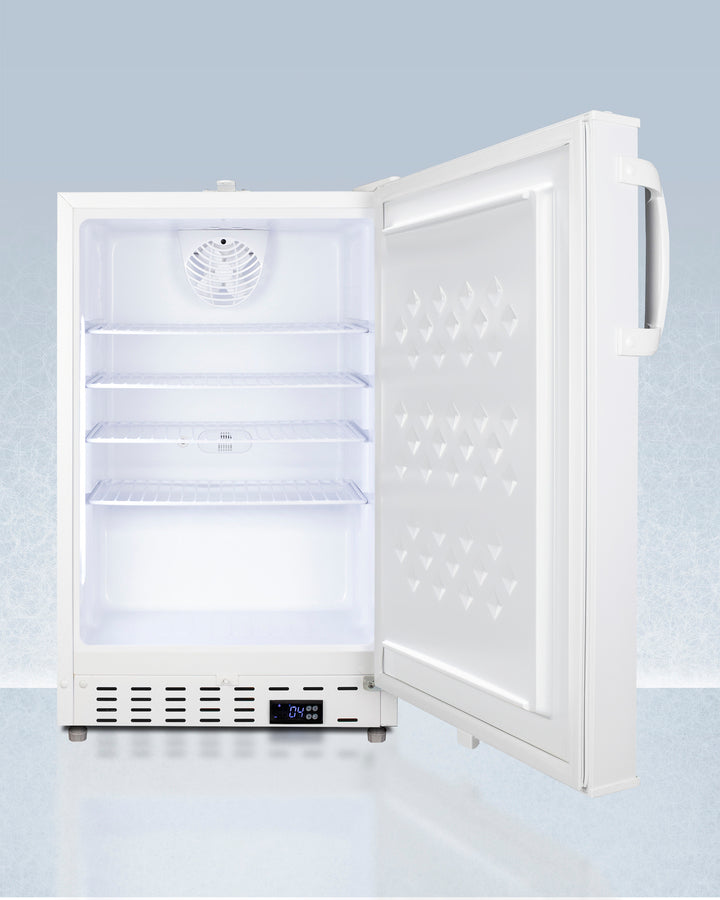

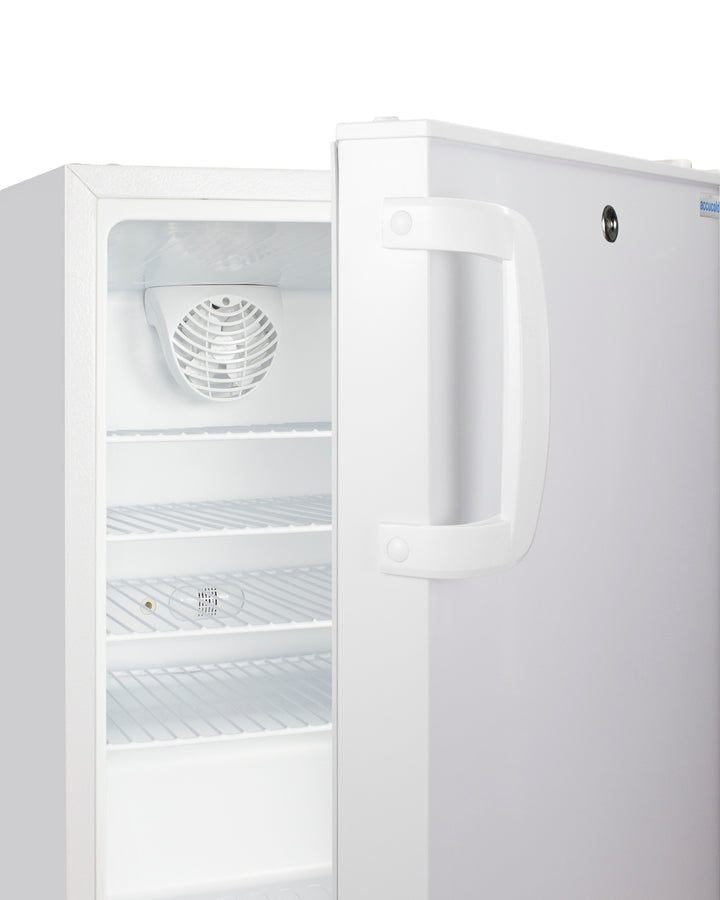

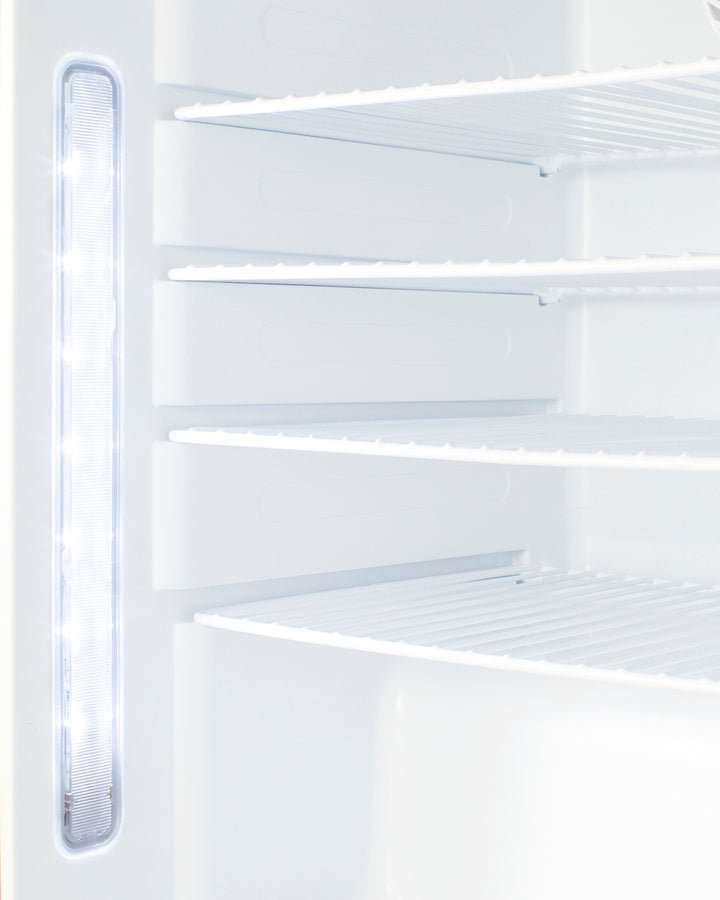

Inside, the ADA404REF is designed to operate between +2°C and +8°C as recommended for the storage of select pharmaceuticals and other medical supplies. An LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu.ft. interior. Adjustable wire shelves allow you to rearrange the interior to best suit your storage needs. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
With its slim dimensions and user-friendly features, it makes an ideal choice for various facilities. For a complete set, pair this unit with the matching -20ºC ADA305AF all-freezer.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.0" (81 cm) | Shelf Type | Wire |
| Nominal Width | 20.0" (51 cm) | Shelf Qty | 4 |
| Width | 19.75" (50 cm) | Thermostat Type | Digital |
| Width with Door Open | 20.25" (51 cm) | Fan Type | Interior |
| Nominal Depth | 23.0" (58 cm) | Refrigerant Type | R600a |
| Depth | 22.5" (57 cm) | Refrigerant Amount | 0.99oz. |
| Depth with Handle | 24.38" (62 cm) | High Side PSI | 180.0 |
| Depth with door at 90° | 40.25" (102 cm) | Low Side PSI | 80.0 |
| Capacity | 3.32 cu.ft. (94 L) | Level Legs Qty | 2 |
| Defrost Type | Automatic | Interior Light | Yes |
| Door | White | Temperature Range | 2 to 8°C |
| Cabinet | White |
Dimensions
|
|
|---|---|---|---|
| US Electrical Safety | ETL | Interior Height | 23.5" (60 cm) |
| Canadian Electrical Safety | ETL-C | Interior Width | 16.25" (41 cm) |
| Amps | 1.1 | Interior Depth | 17.0" (43 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 6.25" (16 cm) |
| Weight | 59.0 lbs. (27 kg) | Compressor Step Width | 16.25" (41 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 6.0" (15 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101063058 | ||
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
