Summit ALFZ37B 20″ Wide ADA-Height All-Freezer – Black Cabinet
Customer service
Features
- SKU SA-ALFZ37B
Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

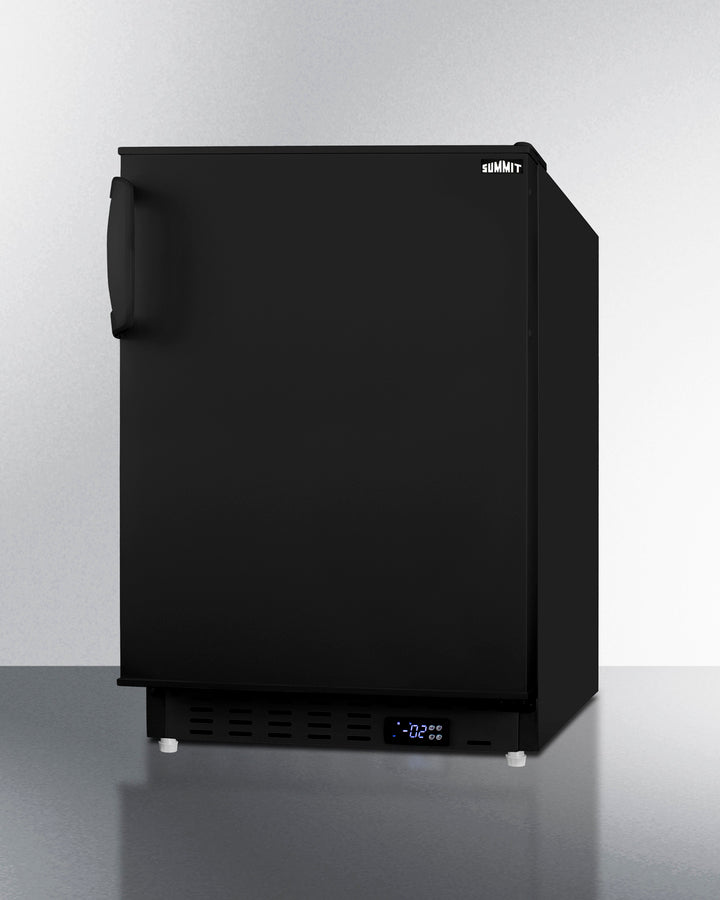

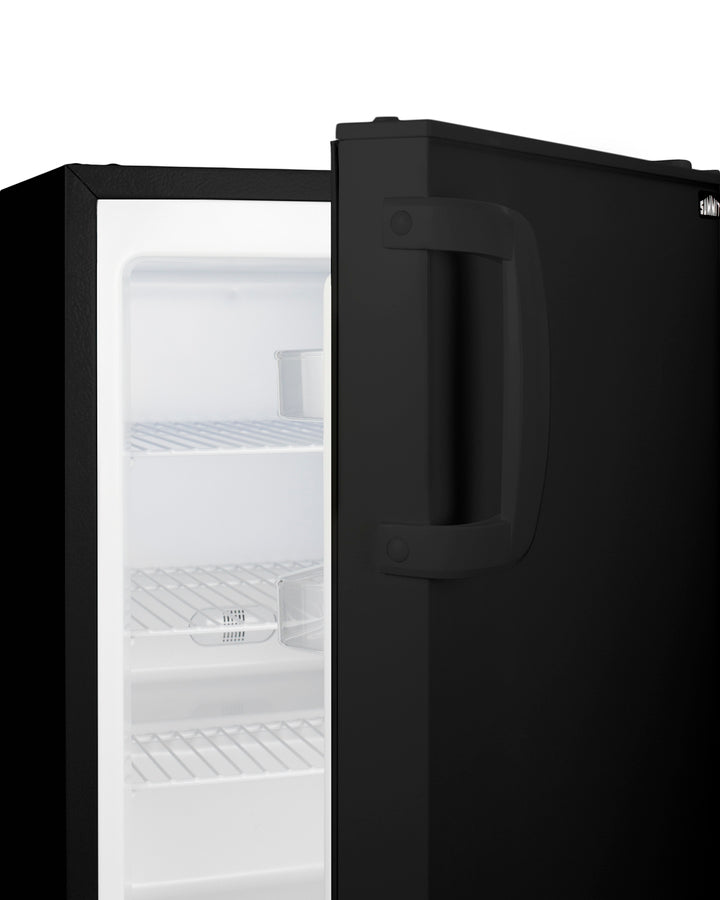

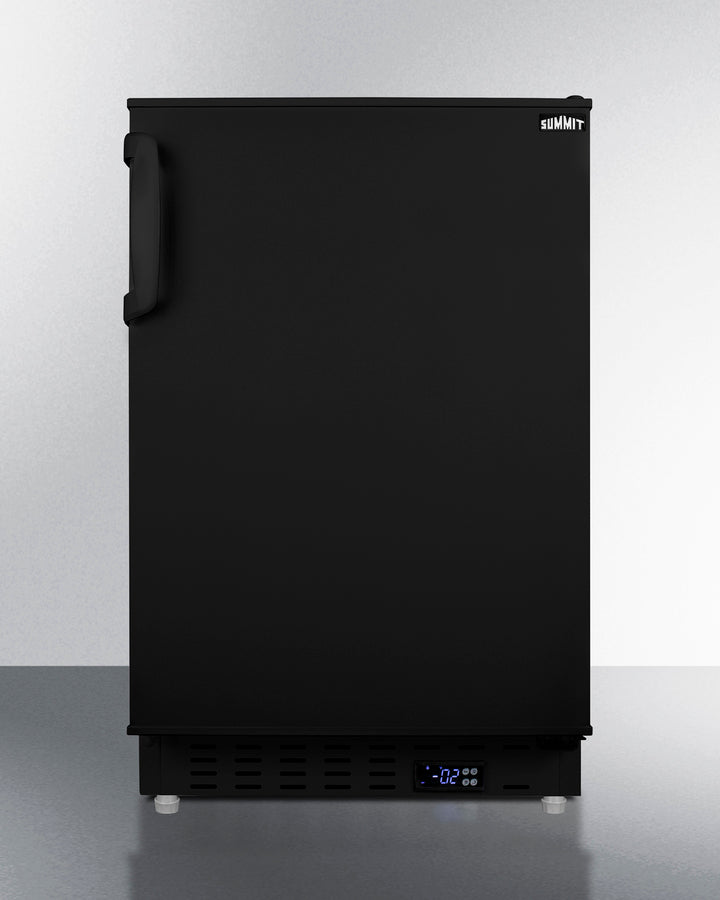

The ALFZ37B is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

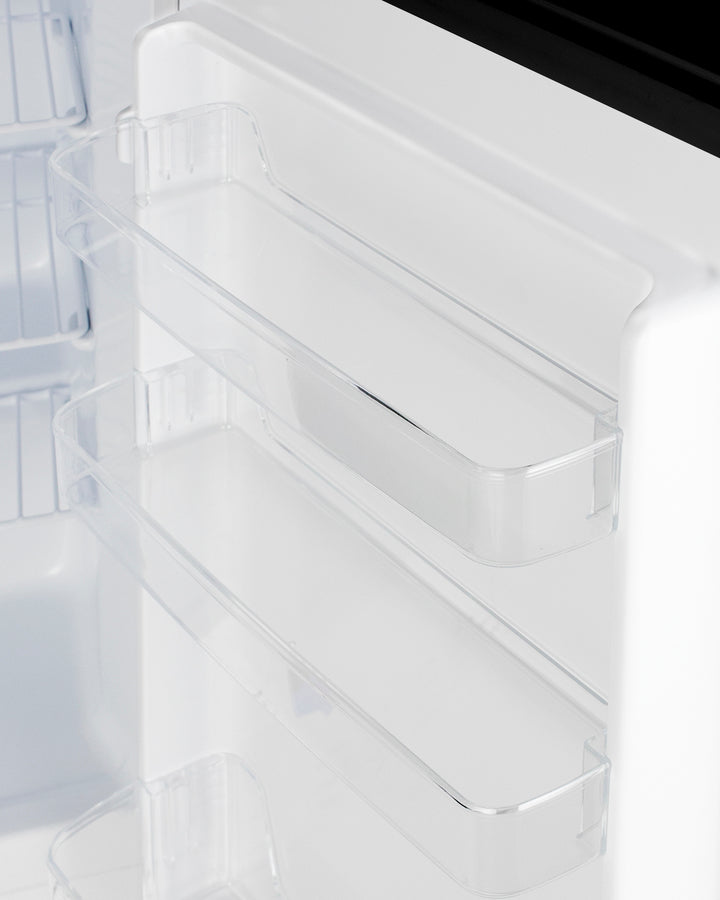

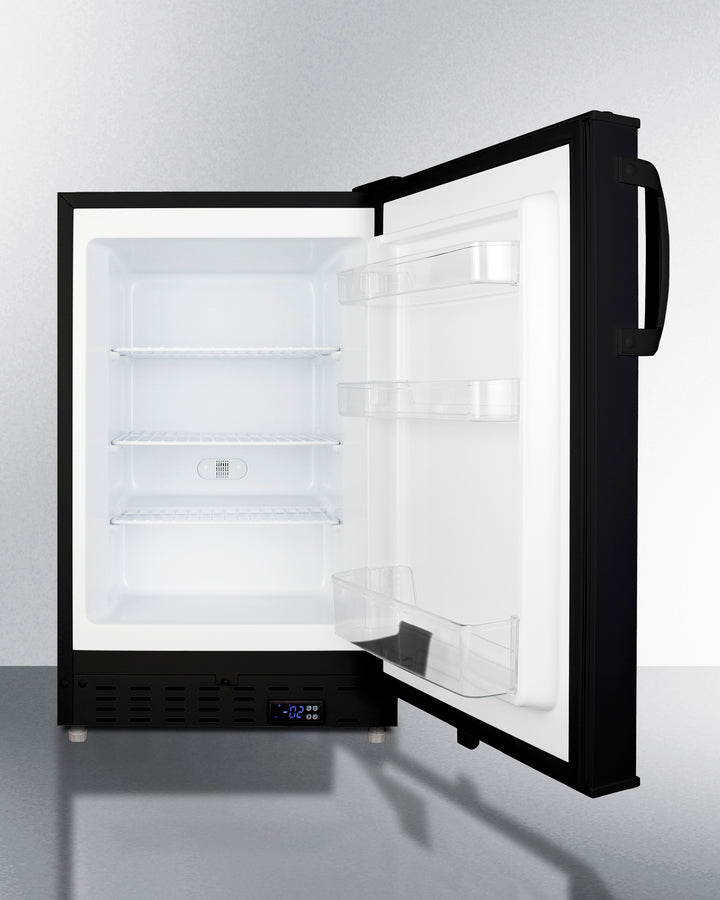

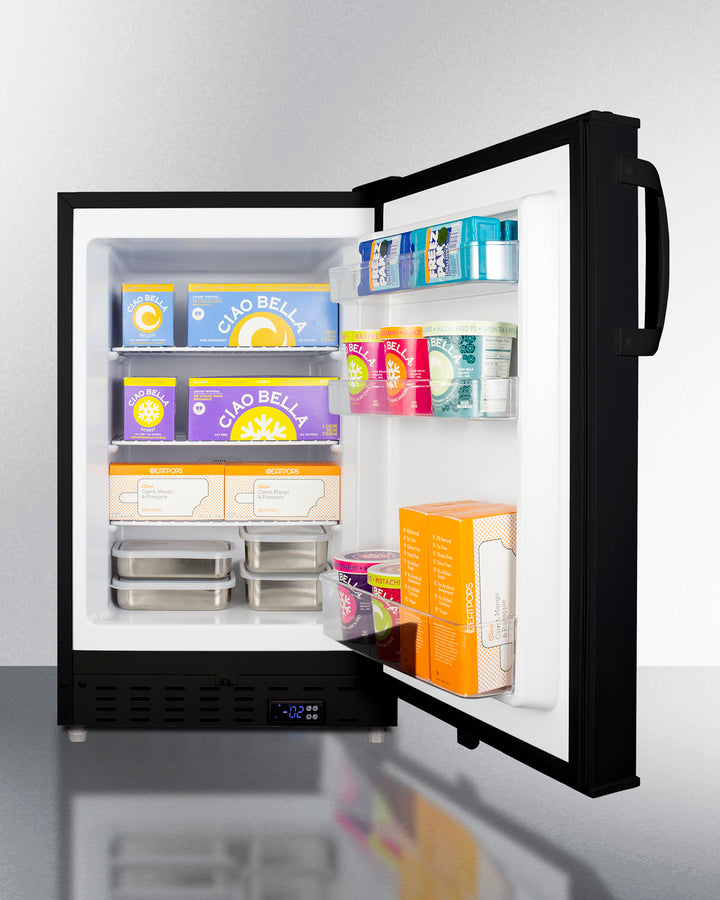

Inside, the ALFZ37B features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

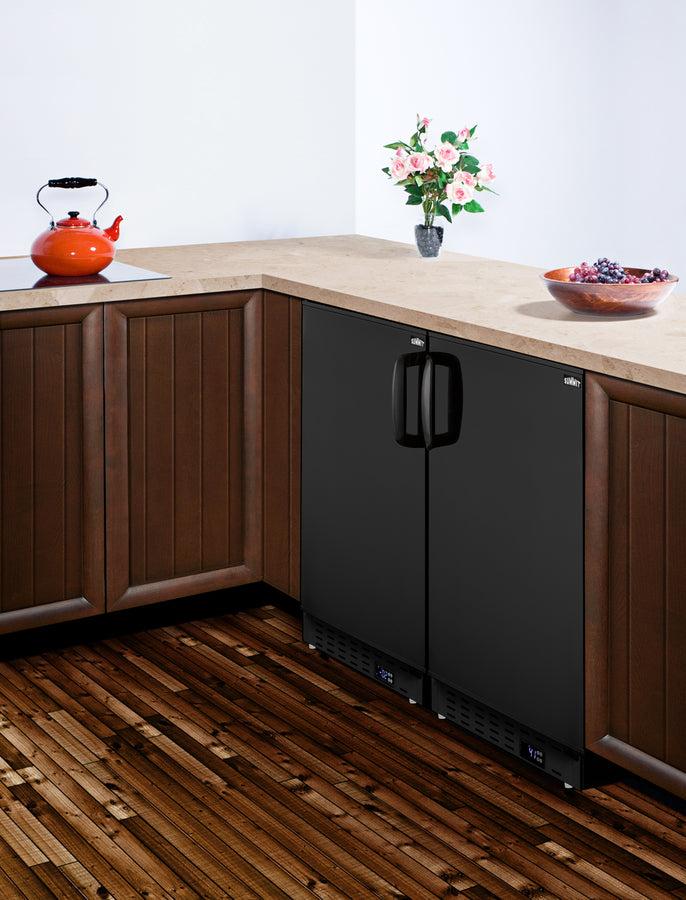

Sized at just 20" wide, the ALFZ37B is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR47B all-refrigerator. Additional choices with a stainless steel cabinet and panel-ready styles are available.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.0" (81 cm) | Interior Height | 23.75" (60 cm) |
| Nominal Width | 20.0" (51 cm) | Interior Width | 14.5" (37 cm) |
| Width | 19.75" (50 cm) | Interior Depth | 17.0" (43 cm) |
| Width with Door Open | 20.25" (51 cm) | Shelf Type | Wire |
| Nominal Depth | 23.0" (58 cm) | Shelf Qty | 3 |
| Depth | 22.5" (57 cm) | Full Door Shelves | 3 |
| Depth with Handle | 24.38" (62 cm) | Adjustable Shelves | Yes |
| Depth with door at 90° | 40.25" (102 cm) | Thermostat Type | Digital |
| Capacity | 2.68 cu.ft. (76 L) | Fan Type | Exterior |
| Defrost Type | Manual | Refrigerant Type | R600a |
| Door | Black | Refrigerant Amount | 1.83 oz. |
| Cabinet | Black | High Side PSI | 180.0 |
| US Electrical Safety | ETL | Low Side PSI | 80.0 |
| Canadian Electrical Safety | ETL-C | Level Legs | 2 |
| Energy Usage/Year | 266.0kWh/year | Wheels | 2 |
| Amps | 0.6 | Compressor Step Height | 5.75" (15 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Width | 14.5" (37 cm) |
| Weight | 65.0 lbs. (29 kg) | Compressor Step Depth | 6.0" (15 cm) |
| Parts & Labor Warranty | 1 Year | Temperature Range | -13 to 5ºF |
| Compressor Warranty | 5 Years | Sound Level | 33.1 dB |
| UPC | 761101074016 |
|
ASSEMBLY DRAWING |
