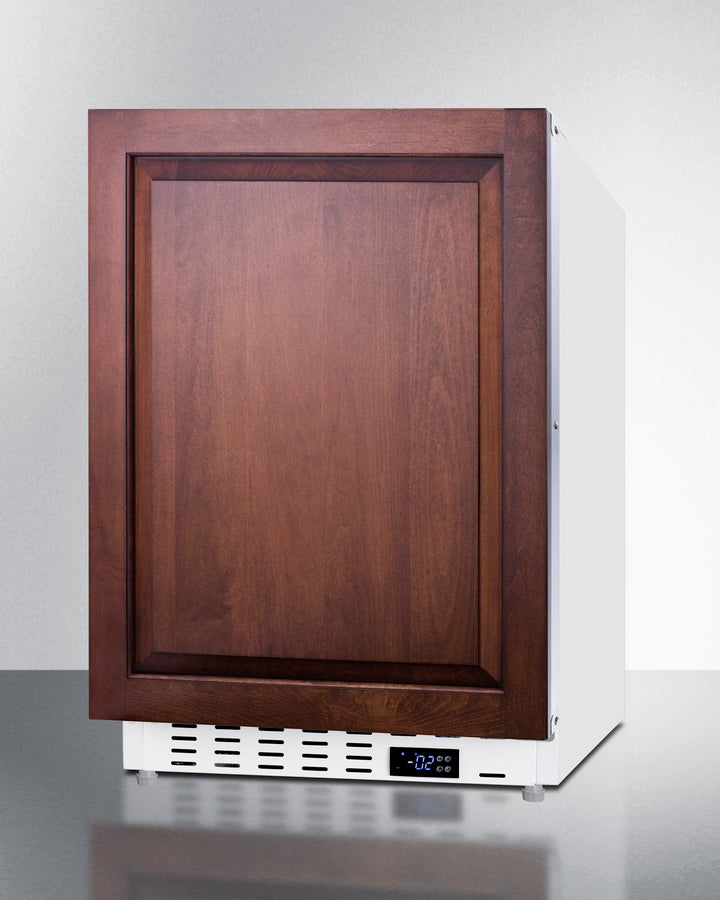

Summit ALFZ36IF 20″ Wide Built-In ADA-Height All-Freezer – Panel-Ready Door
Customer service
Features
- SKU SA-ALFZ36IF
Summit Appliance offers a quality selection of 21" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

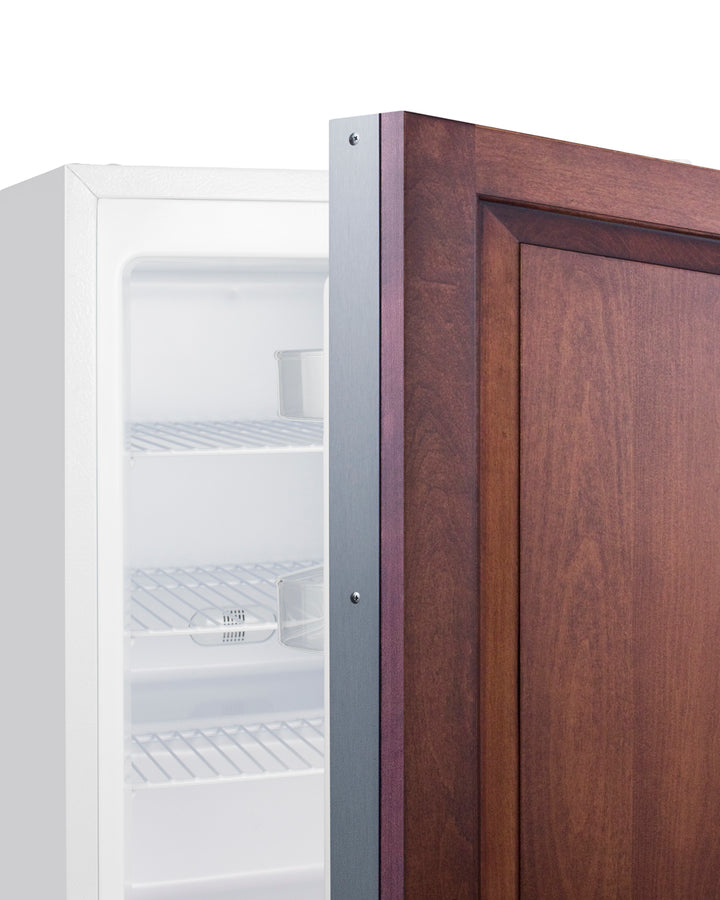

The ALFZ36IF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

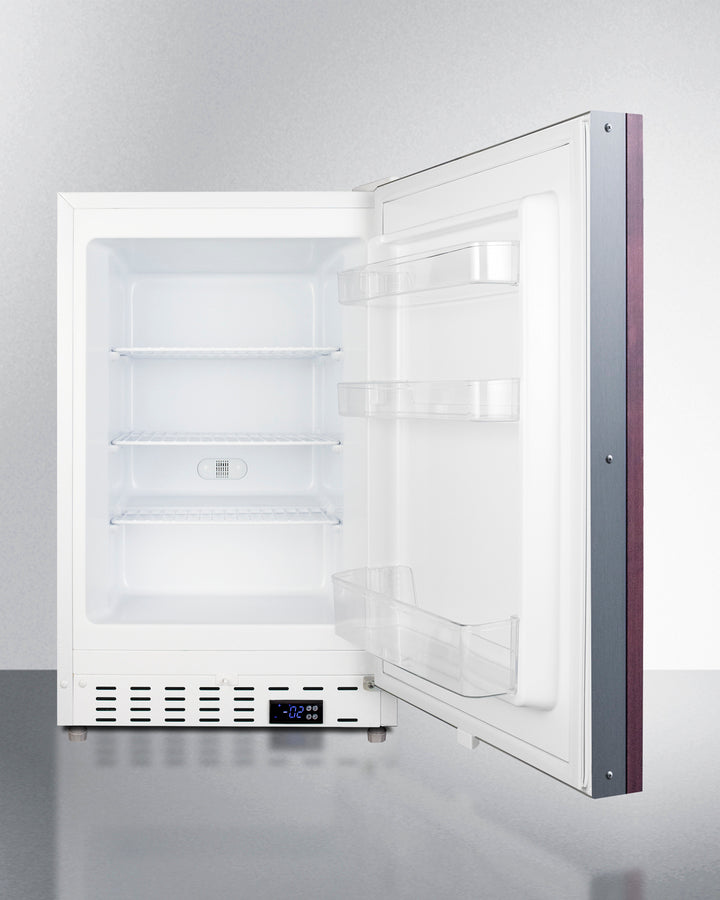

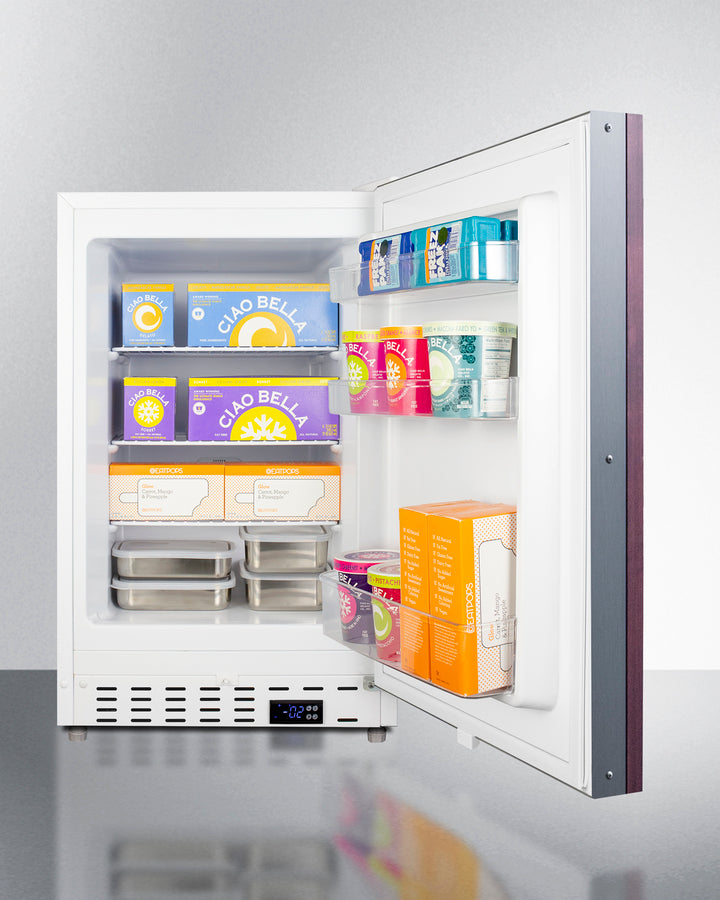

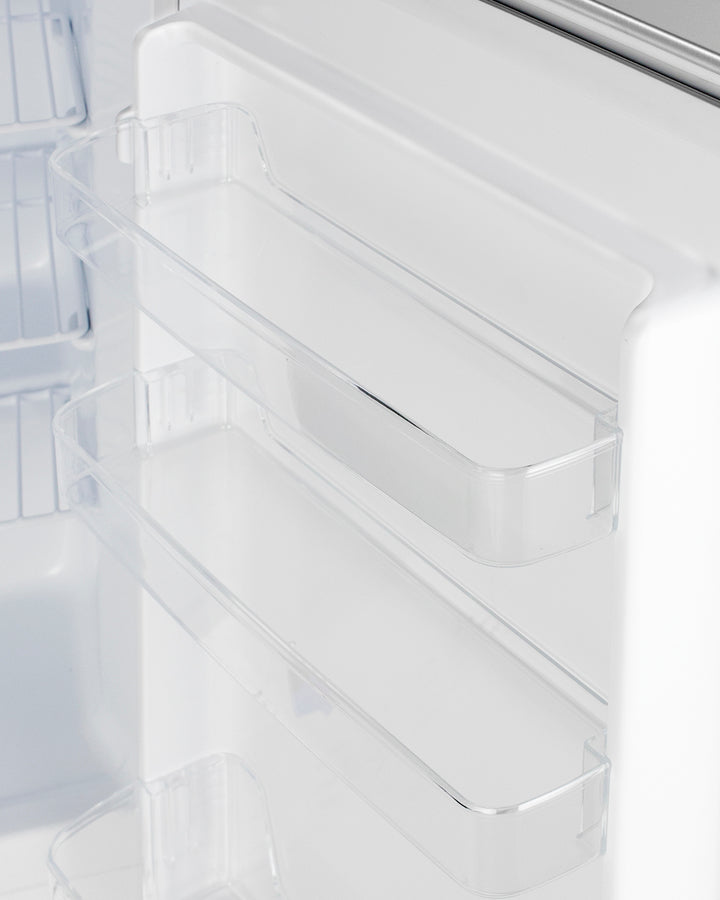

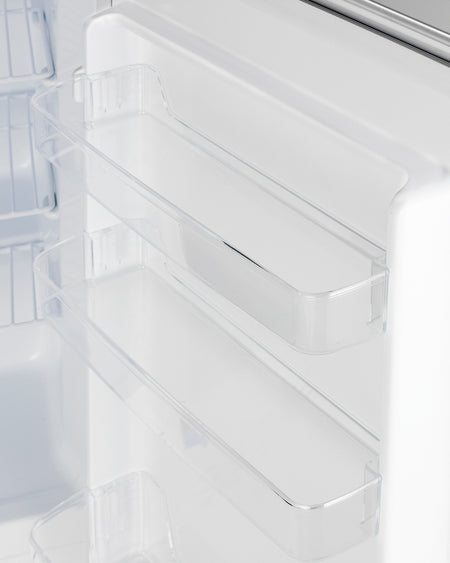

Inside, the ALFZ36IF features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.
Sized at just 21" wide, the ALFZ36IF is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR46WIF all-refrigerator. Additional choices are available in complete stainless steel and white exterior finishes.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 32.0" (81 cm) | Interior Height | 23.75" (60 cm) |
| Nominal Width | 21.0" (53 cm) | Interior Width | 14.5" (37 cm) |
| Width | 20.25" (51 cm) | Interior Depth | 17.0" (43 cm) |
| Nominal Depth | 23.0" (58 cm) | Shelf Type | Wire |
| Depth | 23.0" (58 cm) | Shelf Qty | 3 |
| Depth with Handle | 24.38" (62 cm) | Full Door Shelves | 3 |
| Depth with door at 90° | 40.25" (102 cm) | Adjustable Shelves | Yes |
| Capacity | 2.68 cu.ft. (76 L) | Thermostat Type | Digital |
| Defrost Type | Manual | Fan Type | Exterior |
| Door | Panel-Ready | Refrigerant Type | R600a |
| Cabinet | White | Refrigerant Amount | 1.83 oz. |
| US Electrical Safety | ETL | High Side PSI | 180.0 |
| Canadian Electrical Safety | ETL-C | Low Side PSI | 80.0 |
| Energy Usage/Year | 266.0kWh/year | Level Legs | 2 |
| Amps | 0.6 | Wheels | 2 |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 5.75" (15 cm) |
| Weight | 75.0 lbs. (34 kg) | Compressor Step Width | 14.5" (37 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 6.0" (15 cm) |
| Compressor Warranty | 5 Years | Temperature Range | -13 to 5ºF |
| UPC | 761101076720 | Sound Level | 33.1 dBa |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
