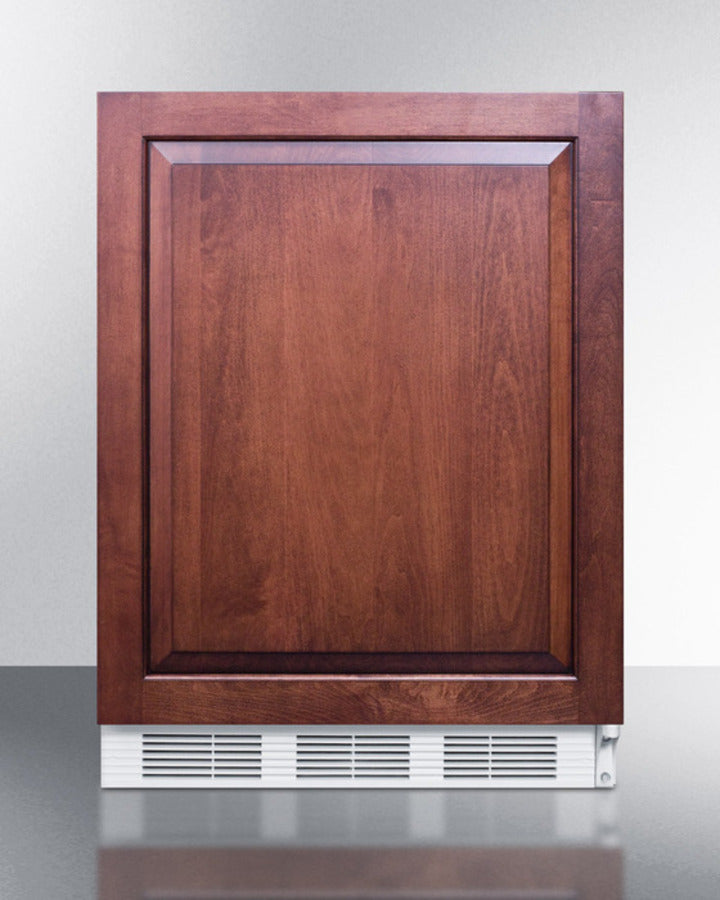

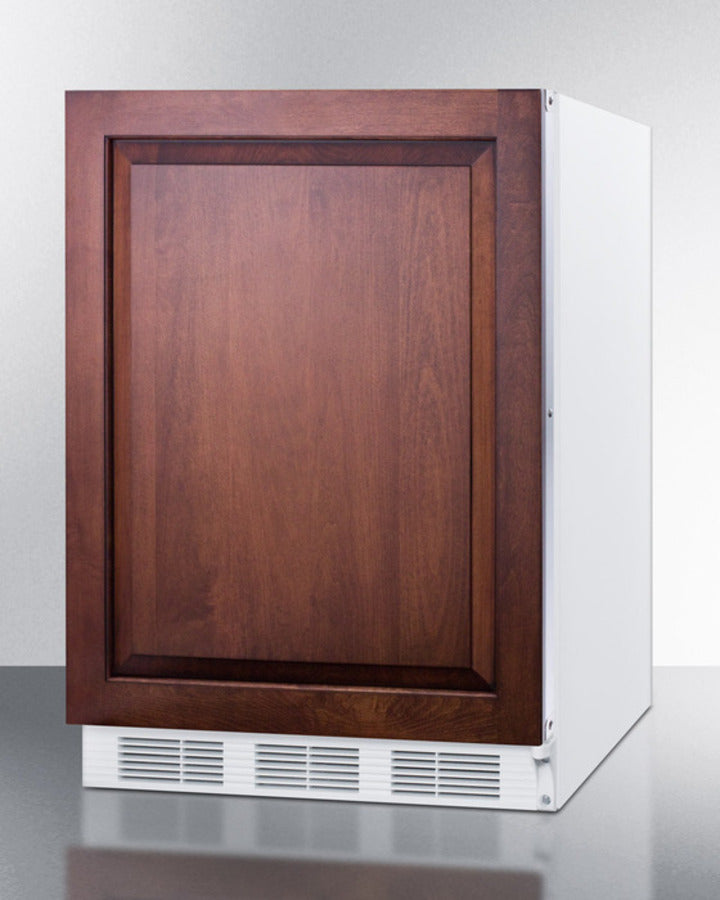

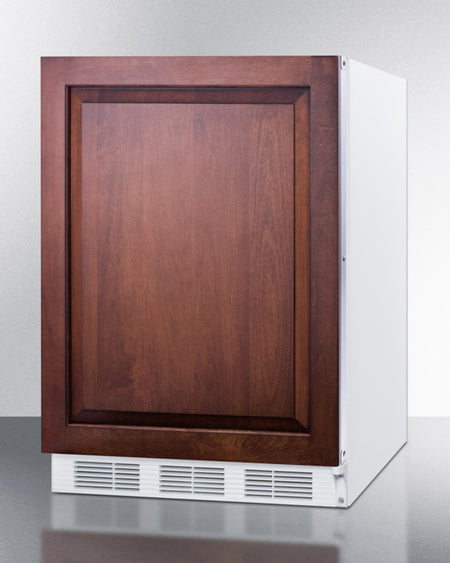

Summit CT661WIFADA 24″ Wide ADA-Height Refrigerator-Freezer – Panel-Ready Door, White Cabinet
Customer service
Features
- SKU SA-CT661WIFADA
Summit's Peak24 series of undercounter European-made refrigeration features energy efficient, ADA height choices that offer the largest capacity in the industry for recessed installation in 24" openings.
Sized with a 24” footprint, the ENERGY STAR certified CT661WIFADA refrigerator-freezer offer a generous 5 cu.ft. storage capacity, larger than many units in this size class. The 32” height allows use in settings complying with ADA guidelines for lower counter height. This unit comes in a white exterior finish. The integrated stainless steel door frame is designed to accept overlay panels (sized 23 5/16" W x 28 1/4" H), allowing you to customize the front to seamlessly match your own cabinetry style. Customers provide their own handle.

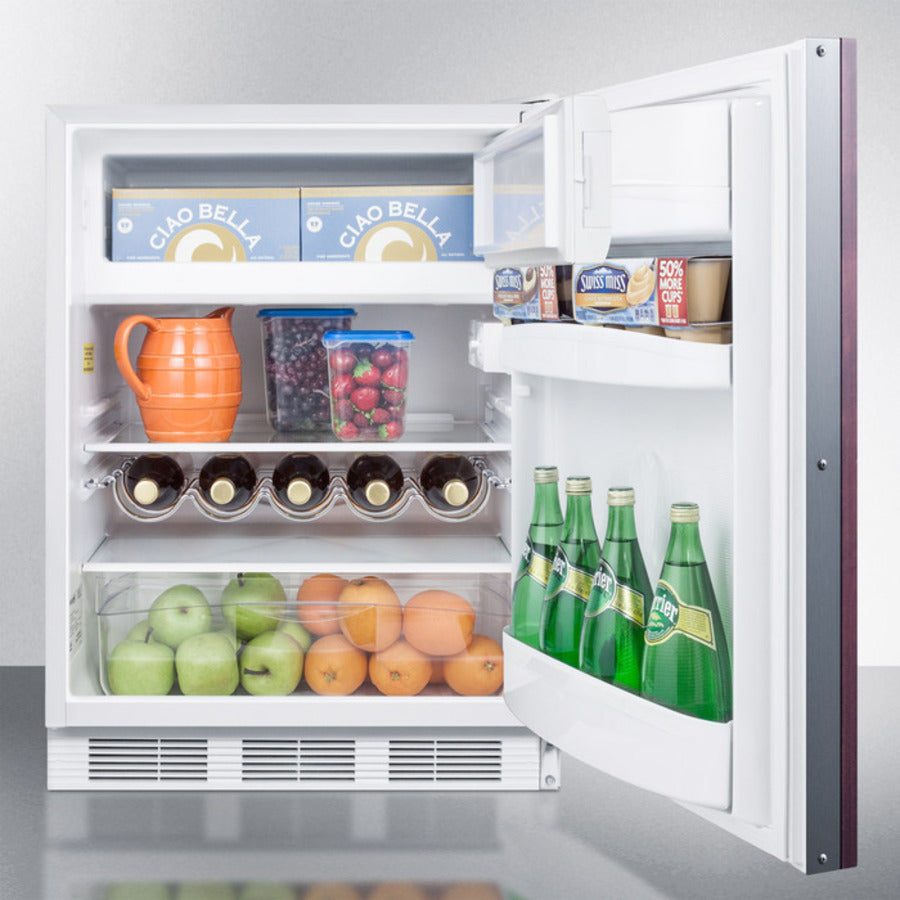

Inside, the CT661WIFADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat.
The CT661WIFADA is UL listed for residential use. With its large capacity and user-friendly features, this unit is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage. Additional choices are available in standard counter height. Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 32.38" (82 cm) | Adjustable Shelves | Yes |
| Nominal Width | 24.0" (61 cm) | Crisper Qty | 1 |
| Width | 23.63" (60 cm) | Crisper Finish | Transparent |
| Nominal Depth | 23.0" (58 cm) | Crisper Cover | Glass |
| Depth | 23.0" (58 cm) | Wine Bottle Shelving | Yes |
| Depth with door at 90° | 45.38" (115 cm) | Interior Light | Yes |
| Capacity | 5.04 cu.ft. (143 L) | Refrigerator - Interior Height | 18.0" (46 cm) |
| Defrost Type | Cycle | Refrigerator - Interior Width | 21.0" (53 cm) |
| Door | Panel-Ready | Refrigerator - Interior Depth | 18.0" (46 cm) |
| Cabinet | White | Refrigerator - Capacity | 4.5 cu.ft |
| US Electrical Safety | ETL | Refrigerator - Shelf Type | Glass |
| Canadian Electrical Safety | ETL-C | Refrigerator - Shelf Qty | 2 |
| Energy Usage/Year | 330.0kWh/year | Refrigerator - Full Door Shelves | 3 |
| Amps | 1.2 | Freezer - Interior Height | 5.25" (13 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Freezer - Interior Width | 19.0" (48 cm) |
| Weight | 100.0 lbs. (45 kg) | Freezer - Interior Depth | 11.5" (29 cm) |
| Parts & Labor Warranty | 1 Year | Freezer - Capacity | 0.6 cu.ft |
| Compressor Warranty | 5 Years | Thermostat Type | Dial |
| UPC | 761101109008 | Fan Type | Exterior |
| Refrigerant Type | R600a | ||
| Refrigerant Amount | 0.92 oz. | ||
| High Side PSI | 180.0 | ||
| Low Side PSI | 80.0 | ||
| Compressor Step Height | 5.5" (14 cm) | ||
| Compressor Step Width | 21.0" (53 cm) | ||
| Compressor Step Depth | 6.0" (15 cm) |
|
ASSEMBLY DRAWING |
