Summit ADFD243OS 24″ Wide Outdoor 2-Drawer All-Freezer – ADA-Height, Panel-Ready Stainless Steel Drawers
Customer service
Features
- SKU SA-ADFD243OS
Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens.

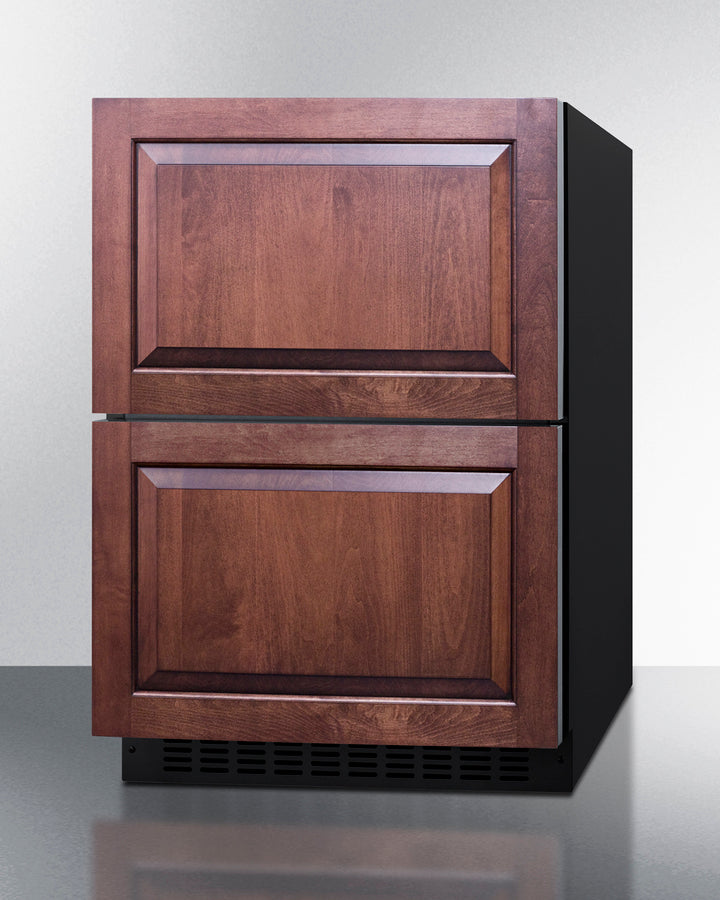

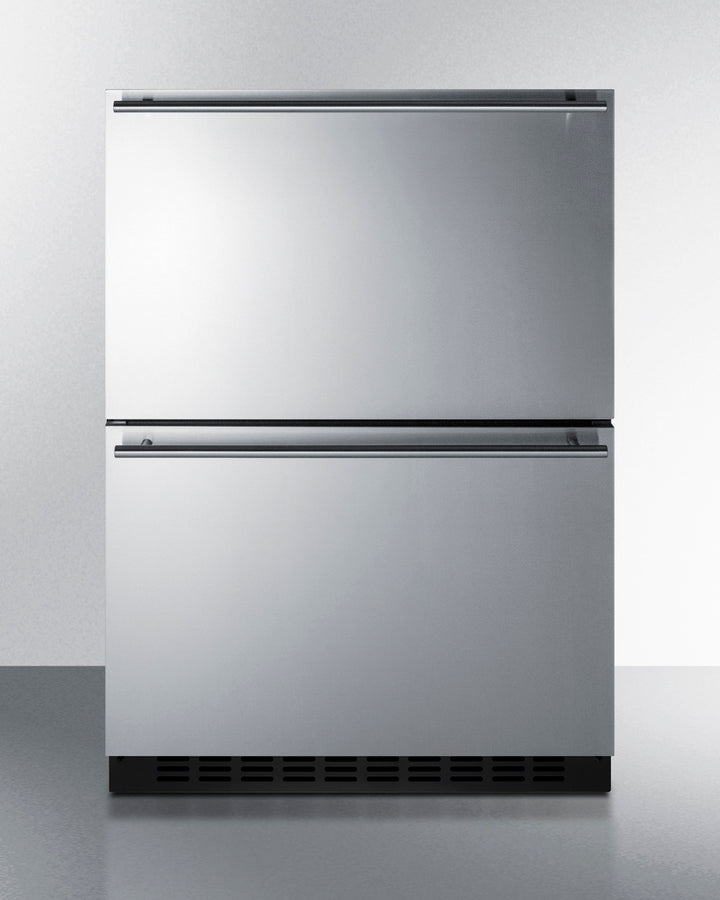

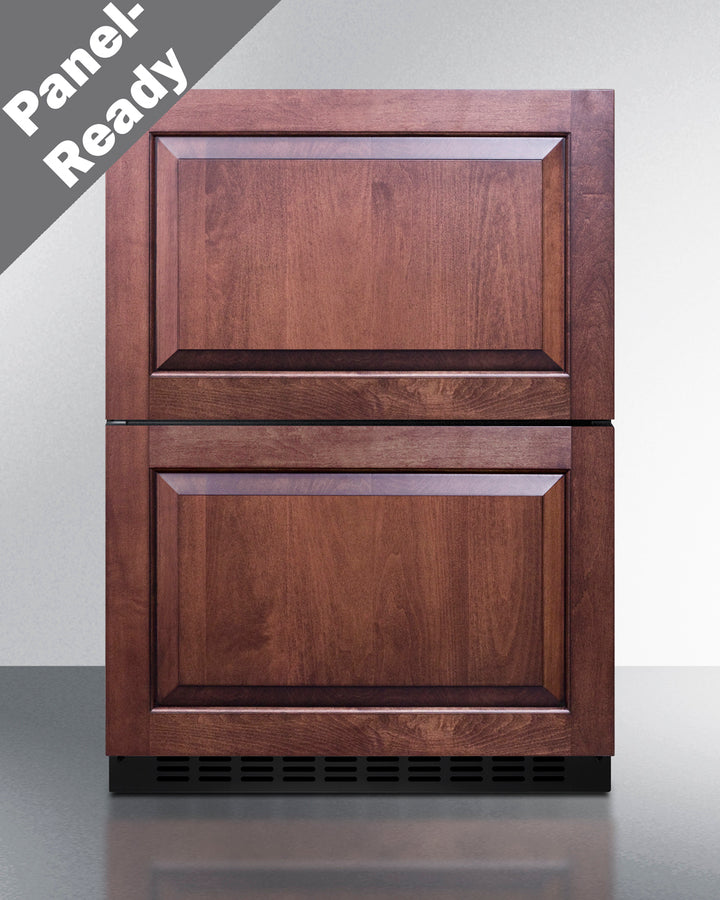

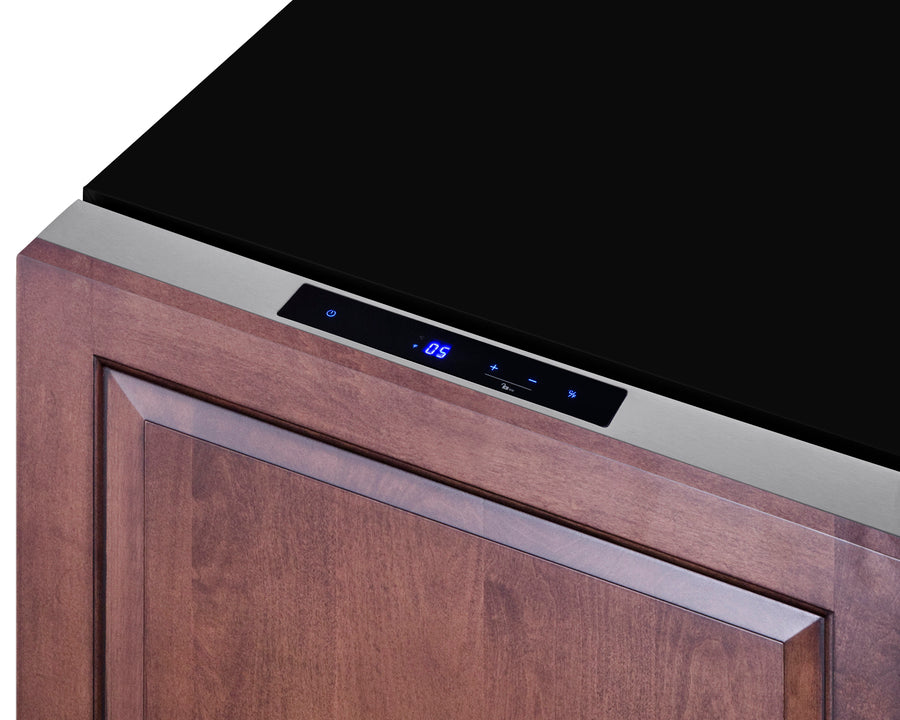

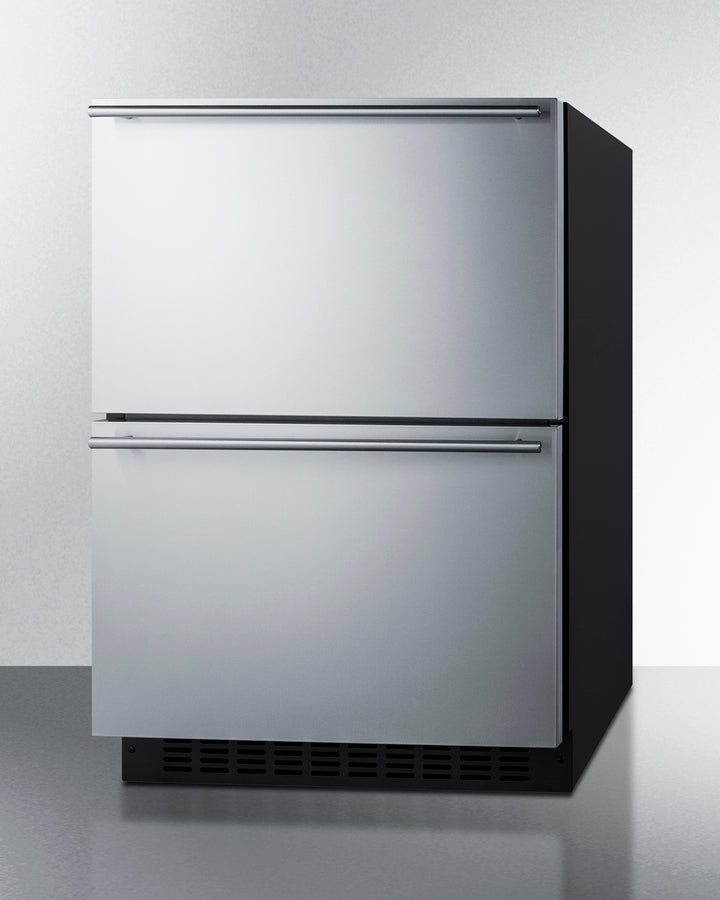

Sized at just under 24" wide and 32" high, model ADFD243OS is a 2-drawer freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The weatherproof construction allows safe use in outdoor settings, with a sealed back to ensure all components are protected from the elements. This unit comes with a jet black cabinet and stainless steel drawers. Sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick).

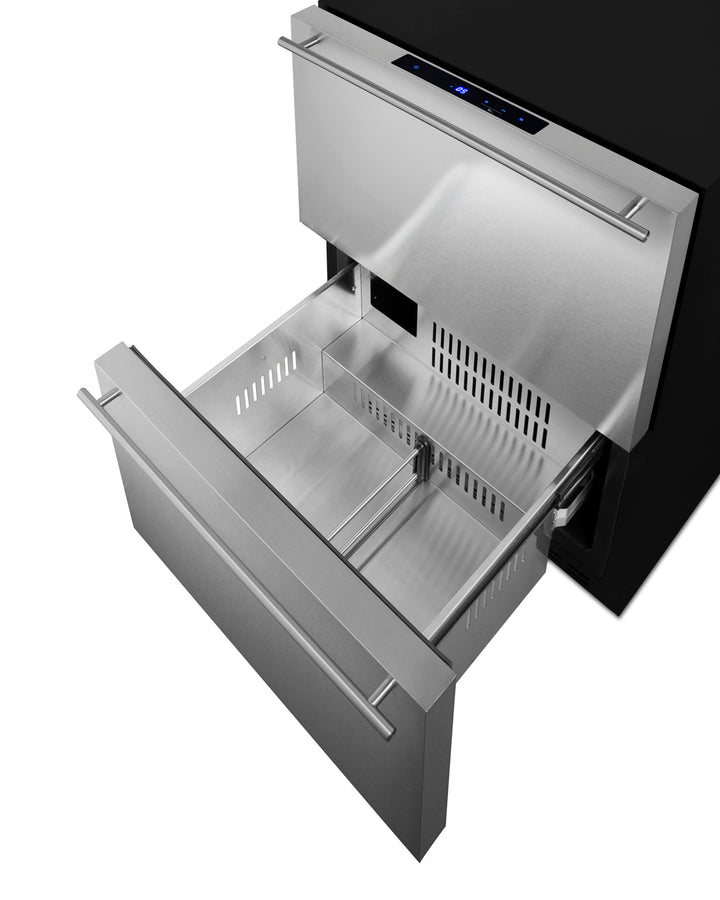

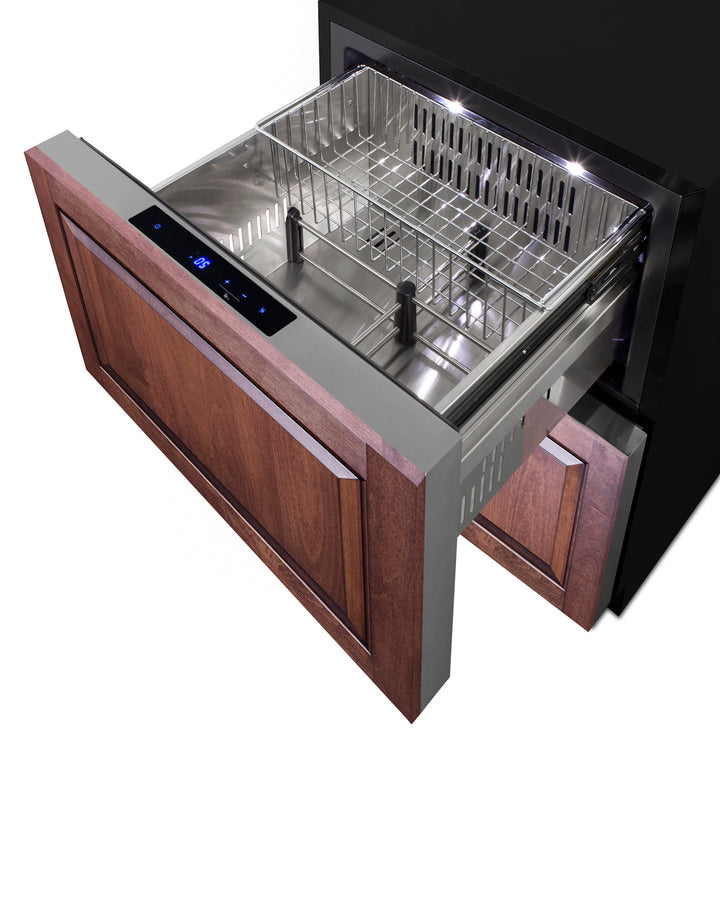

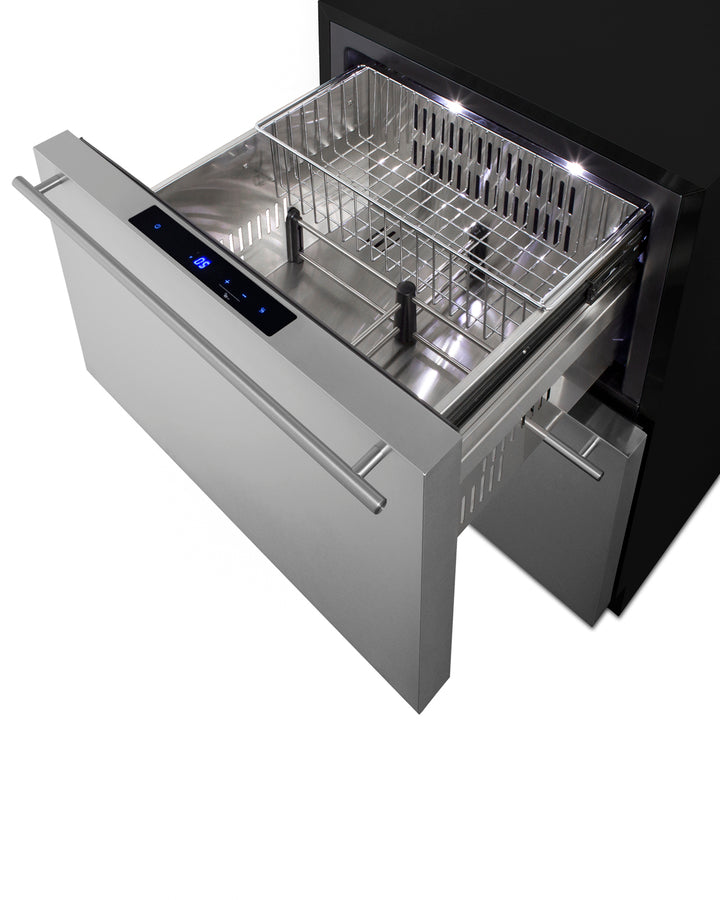

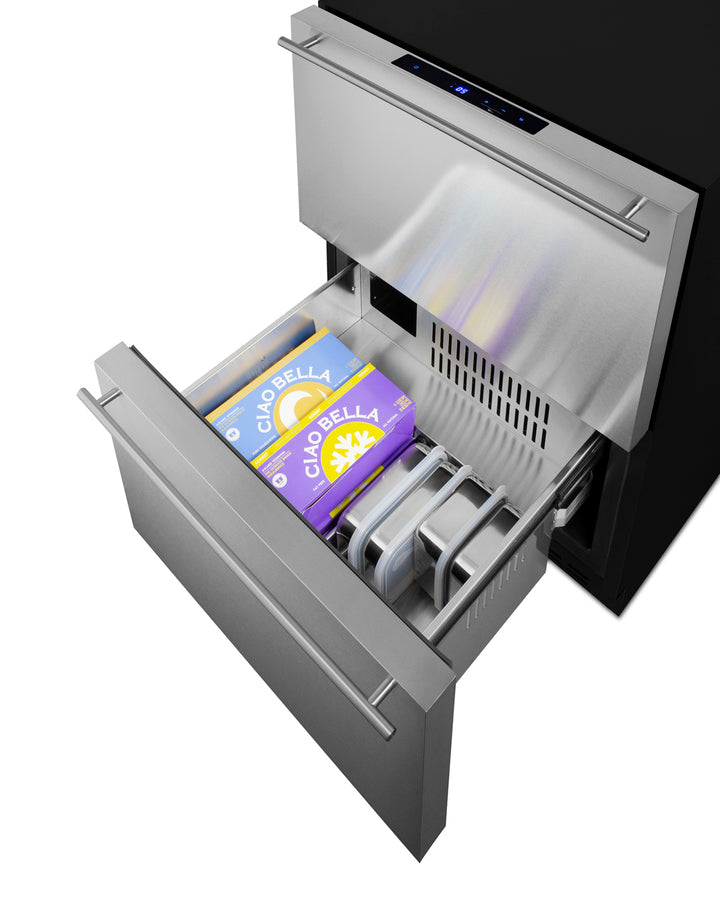

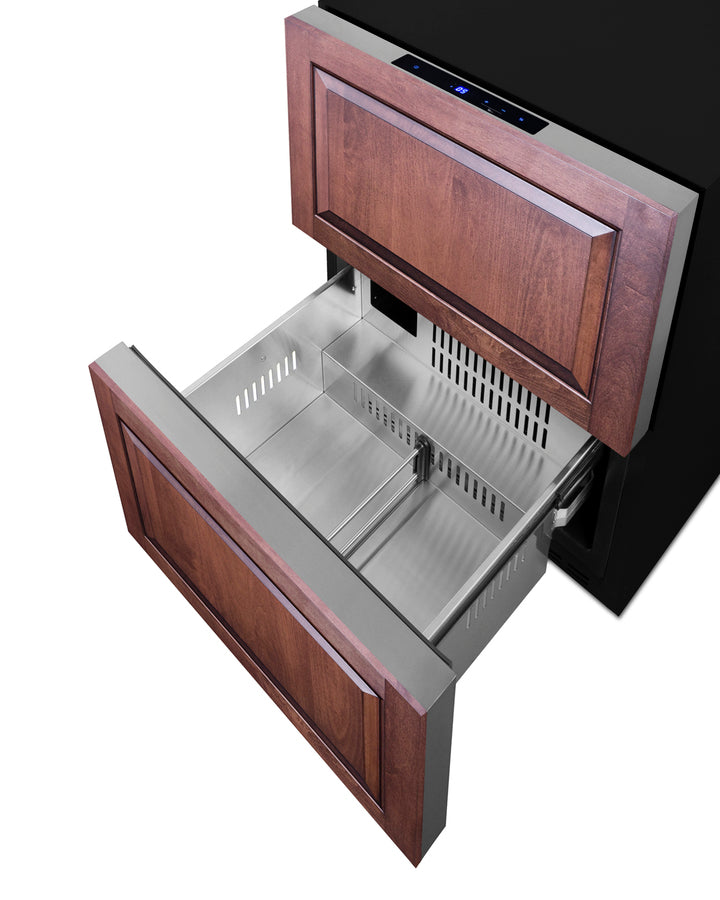

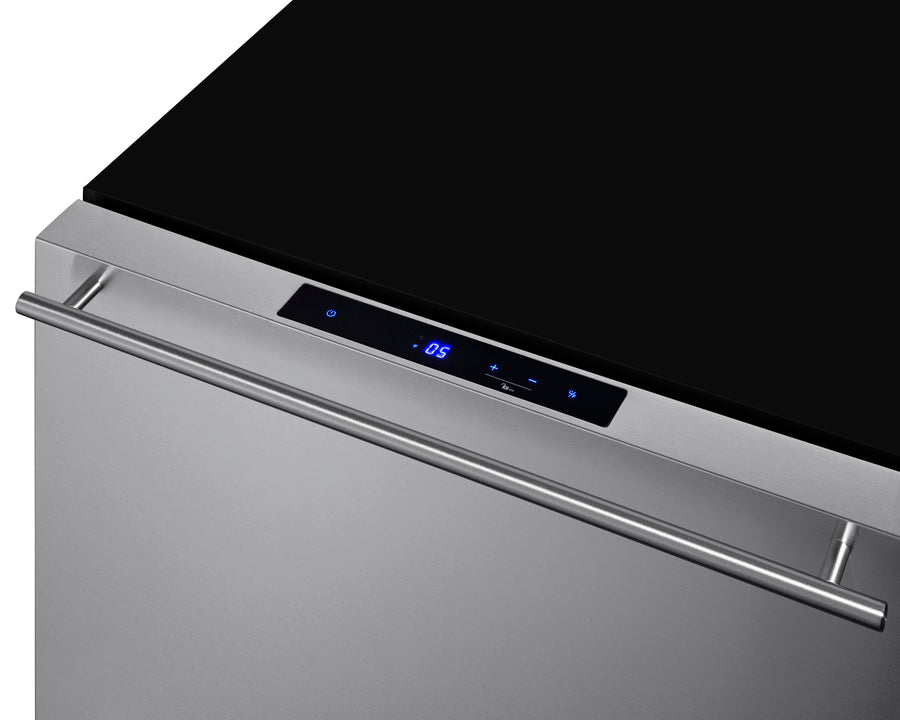

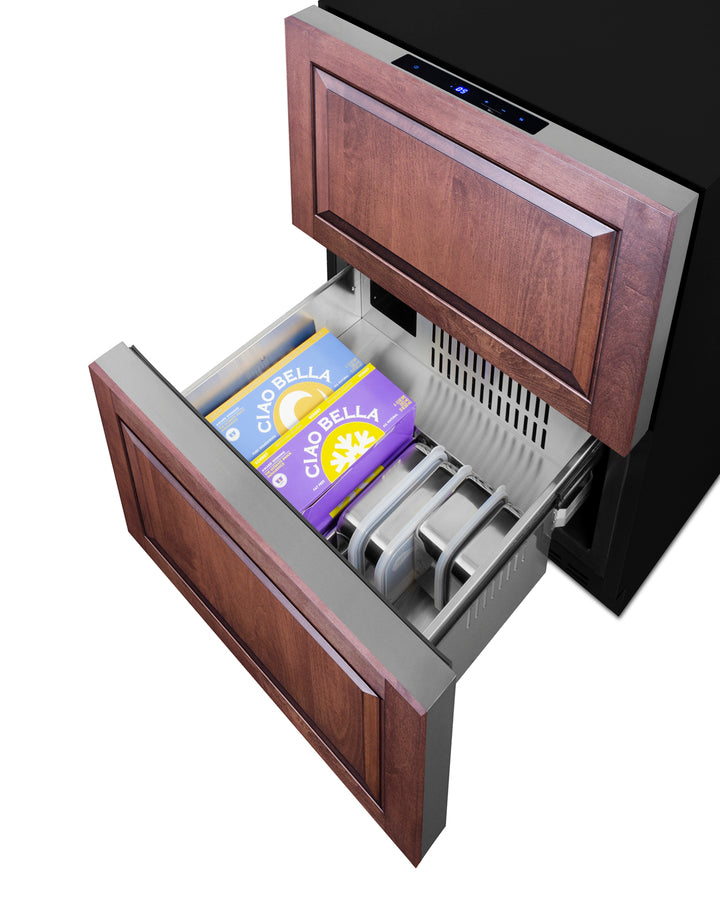

Inside, the ADFD243OS has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.
The ADFD243OS is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching outdoor refrigerator drawer (model ADRD241OS) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244OS). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide outdoor refrigerator drawers.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Thermostat Type | Digital |
| Height of Cabinet | 31.88" (81 cm) | Interior Light | Yes |
| Nominal Width | 24.0" (61 cm) | Fan Type | Interior and Exterior |
| Width | 23.38" (59 cm) | Refrigerant Type | R600a |
| Nominal Depth | 23.0" (58 cm) | Refrigerant Amount | 1.31 oz. |
| Depth | 22.5" (57 cm) | High Side PSI | 270.0 |
| Depth with Handle | 23.88" (61 cm) | Low Side PSI | 105.0 |
| Depth with door at 90° | 34.25" (87 cm) | Level Legs | 4 |
| Capacity | 3.7 cu.ft. (105 L) | Interior Drawers | Yes |
| Defrost Type | Frost-Free | Drawers Qty | 2 |
| Door | Stainless Steel/Panel-Ready | Interior Height - Drawer 1 | 8.0" (20 cm) |
| Cabinet | Black | Interior Width - Drawer 1 | 17.0" (43 cm) |
| US Electrical Safety | ETL | Interior Depth - Drawer 1 | 14.5" (37 cm) |
| Canadian Electrical Safety | ETL-C | Interior Height - Drawer 2 | 8.0" (20 cm) |
| Sanitation | ETL-S | Interior Width - Drawer 2 | 17.0" (43 cm) |
| Energy Usage/Year | 395.0kWh/year | Interior Depth - Drawer 2 | 14.5" (37 cm) |
| Amps | 1.5 | Compressor Step Height | 4.0" (10 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Width | 17.0" (43 cm) |
| Weight | 106.0 lbs. (48 kg) | Compressor Step Depth | 3.5" (9 cm) |
| Parts & Labor Warranty | 1 Year | Temperature Range | -11°F to 11°F |
| Compressor Warranty | 5 Years | Sabbath Mode | Yes |
| UPC | 761101088174 | Sound Level | 33.8 dB |
