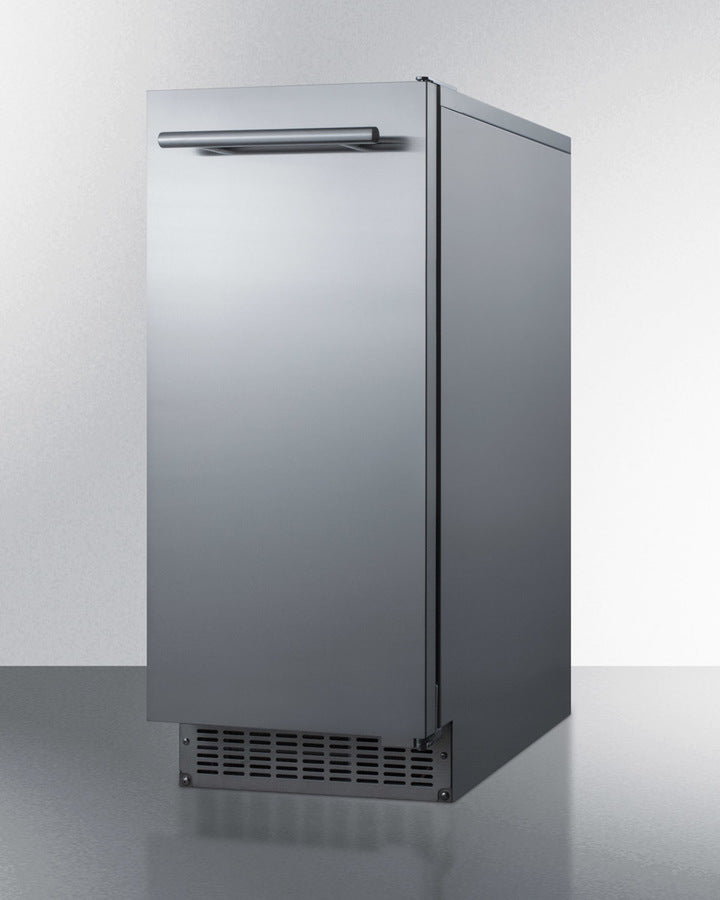

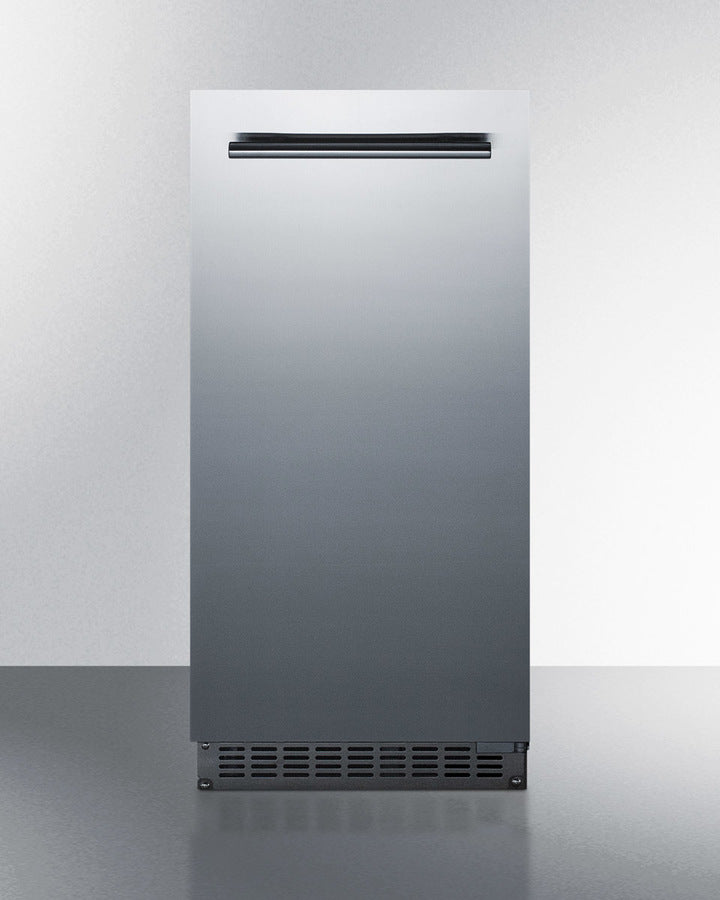

Summit BIM68OSPUMP 15″ Wide Outdoor/Indoor Clear-Ice Maker with Internal Drain Pump – Stainless Steel
Customer service
Features
- SKU SA-BIM68OSPUMP
Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location.

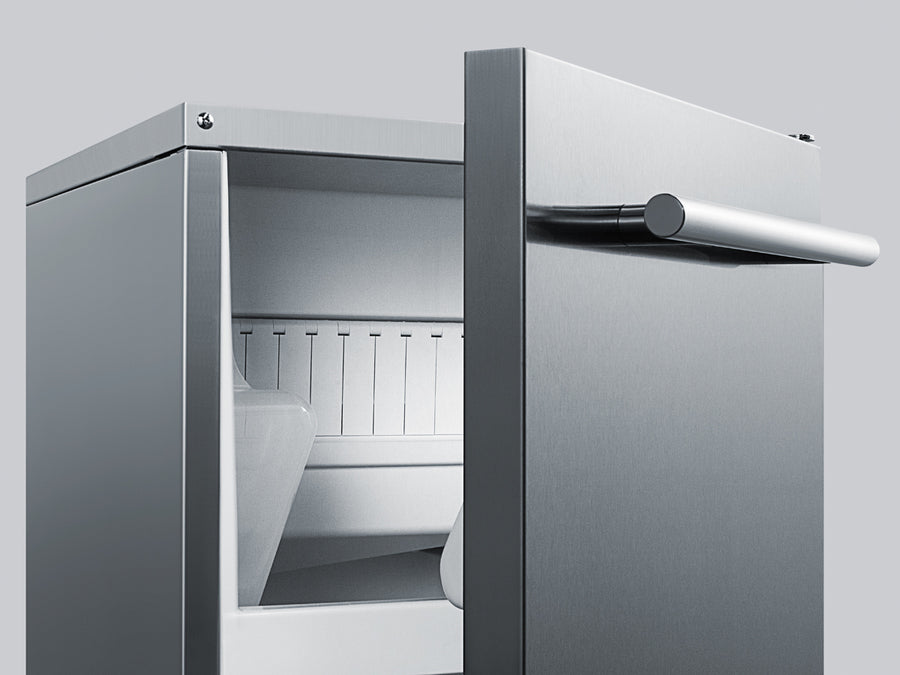

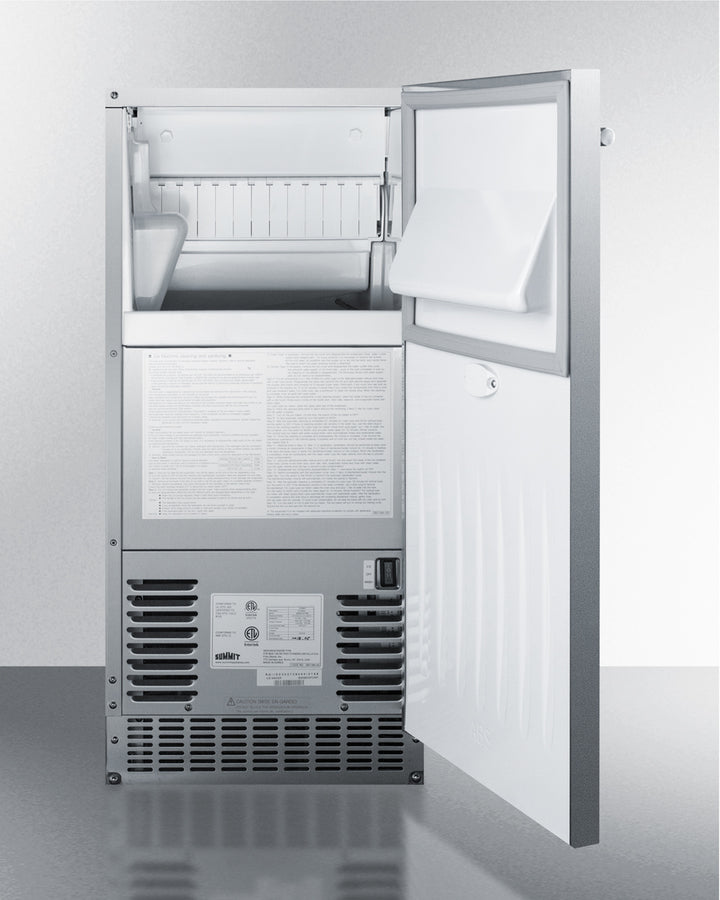

Sized at 15" wide, the BIM68OSPUMP features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The user-reversible door is designed with a powerful magnetic gasket to ensure proper insulation, with a stainless steel handle mounted horizontally for a modern look. The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use. The internal pump allows more flexibility in where you choose to place the unit. This unit has a sealed back to ensure added outdoor protection and easier cleanup.

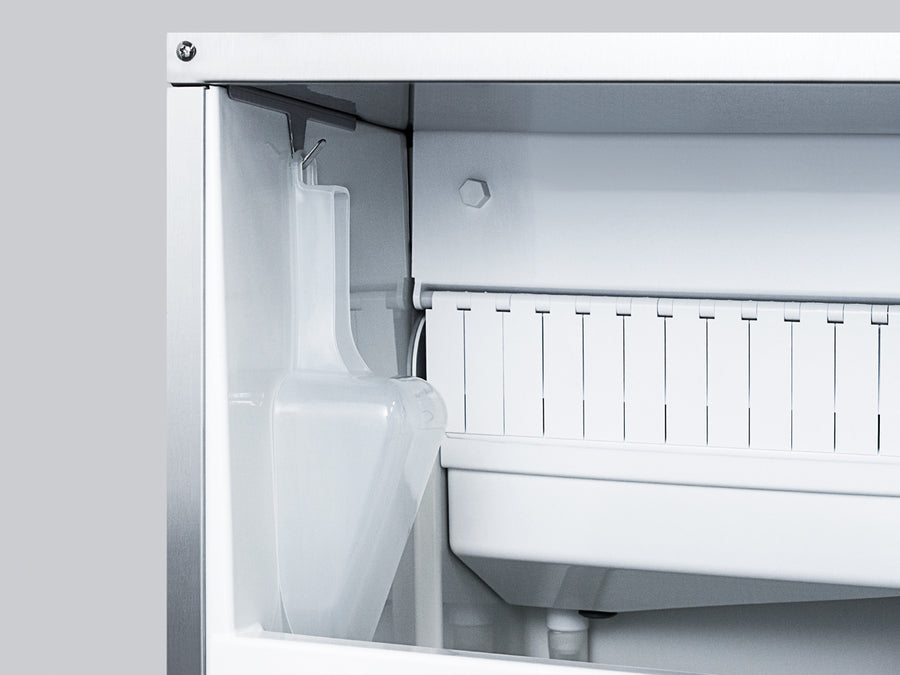

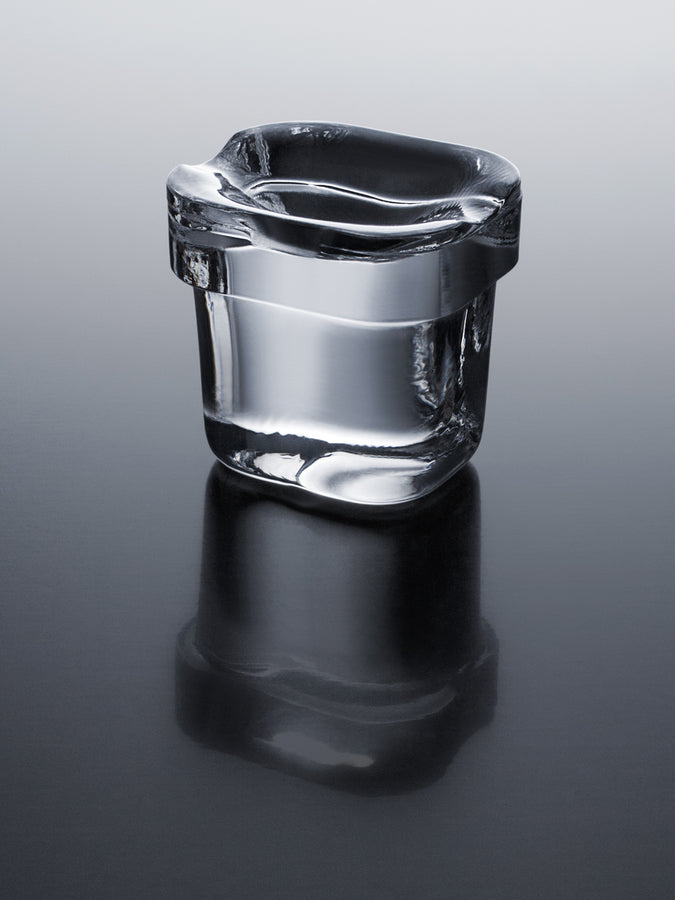

The BIM68OSPUMP produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 47 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use. Frost-free operation eliminates the need to defrost the interior.
Designed and manufactured for us in South Korea, the BIM68OSPUMP is UL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. A panel-ready version (BIM68OSPUMP) is also available.
NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 34.0" (86 cm) | Door Swing | RHD |
| Height of Cabinet | 33.5" (85 cm) | Reversible | Yes |
| Height to Hinge Cap | 33.63" (85 cm) | Daily Ice Production | 47.0 lbs. (21 kg) |
| Nominal Width | 15.0" (38 cm) | Ice Storage Capacity | 26.0 lbs. (12 kg) |
| Width | 14.88" (38 cm) | Ice Shape | Top hat |
| Nominal Depth | 23.0" (58 cm) | Size of Cube | 1 1/4" H x 1 1/8" W x 1 1/8" D |
| Depth | 22.63" (57 cm) | Number of Ice Cube Sizes | 1 |
| Depth with Handle | 24.5" (62 cm) | Fan Type | Exterior |
| Depth with door at 90° | 37.25" (95 cm) | Refrigerant Type | R600a |
| Capacity | 0.98 cu.ft. (28 L) | Refrigerant Amount | 3.5 oz. |
| Defrost Type | Frost-Free | High Side PSI | 127.0 |
| Door | Stainless Steel | Low Side PSI | 40.0 |
| Cabinet | Stainless Steel | Interior Height | 12.75" (32 cm) |
| US Electrical Safety | UL | Interior Width | 12.75" (32 cm) |
| Canadian Electrical Safety | ULC | Interior Depth | 9.25" (23 cm) |
| Sanitation | UL-S | Level Legs | 4 |
| Amps | 1.7 | ||
| Voltage/Frequency | 115 V AC/60 Hz | ||
| Weight | 105.0 lbs. (48 kg) | ||
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101057095 |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
