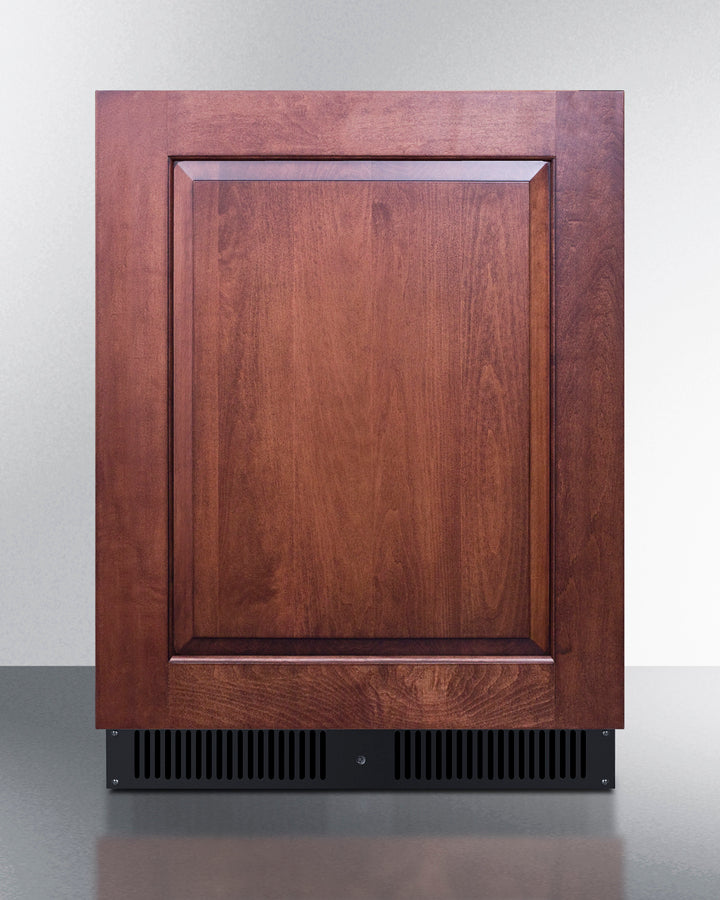

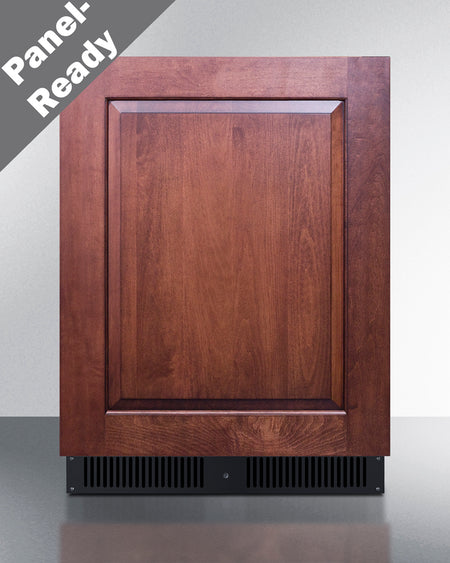

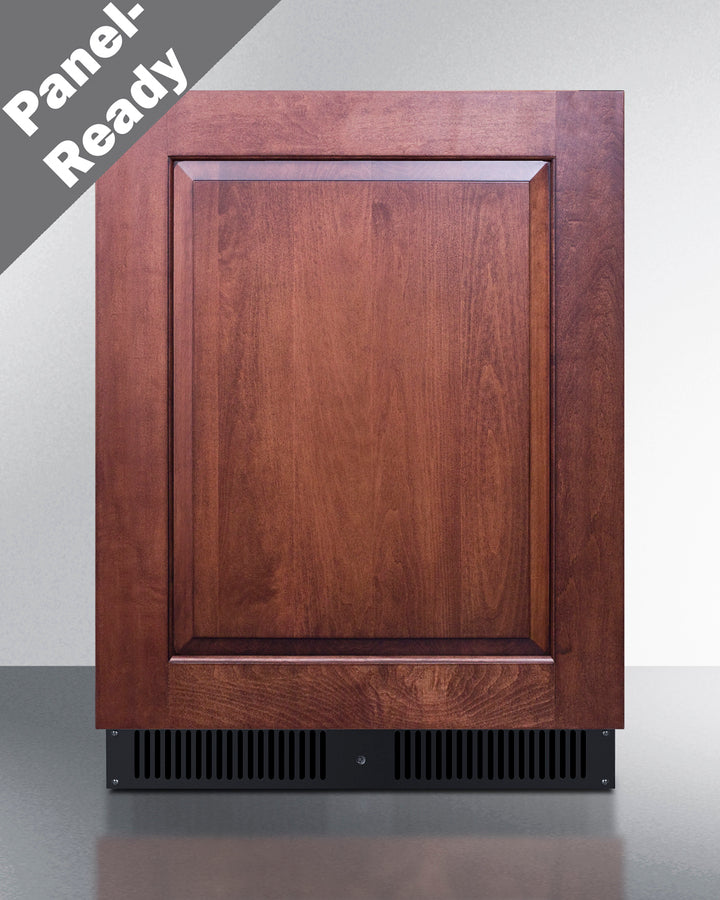

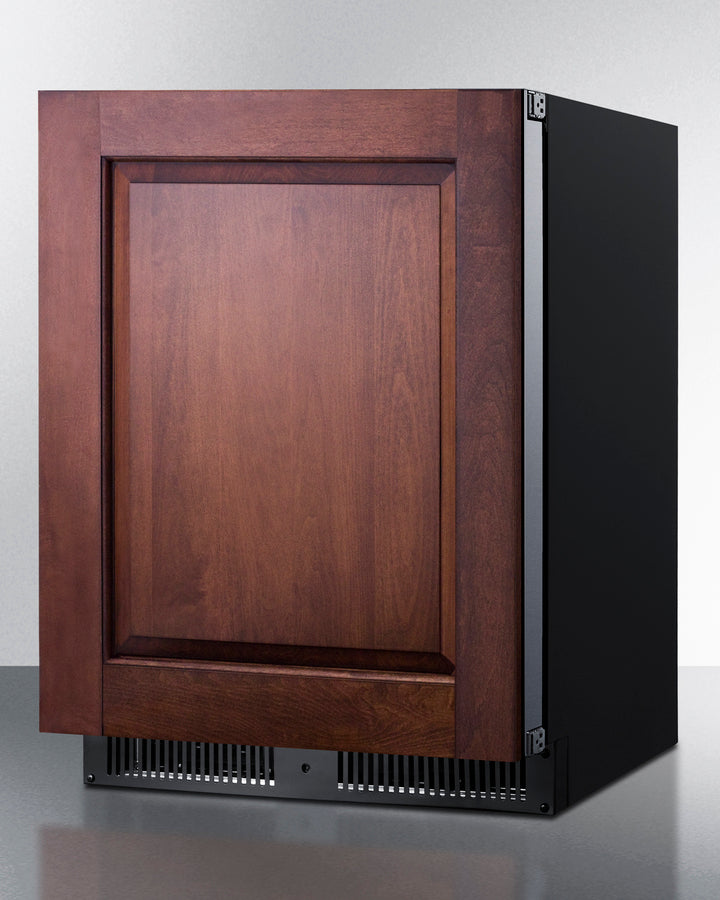

Summit AL54PNR 24″ Wide ADA-Height Built-In All-Refrigerator – Panel-Ready, 4.4 cu ft, Frost-Free
Customer service
Features
- SKU SA-AL54PNR
SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

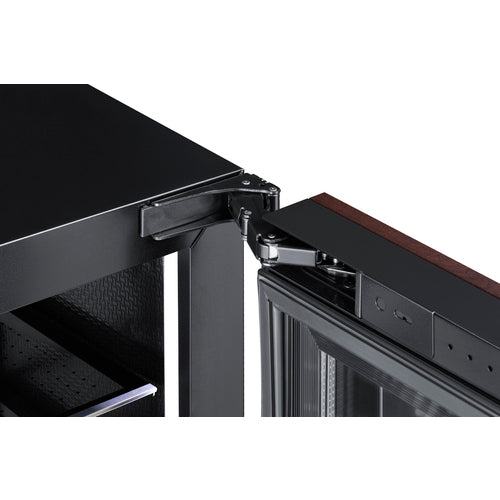

Sized with a convenient 24" footprint, the AL54PNR is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The reversible stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. A factory-installed lock is located in the kickplate.

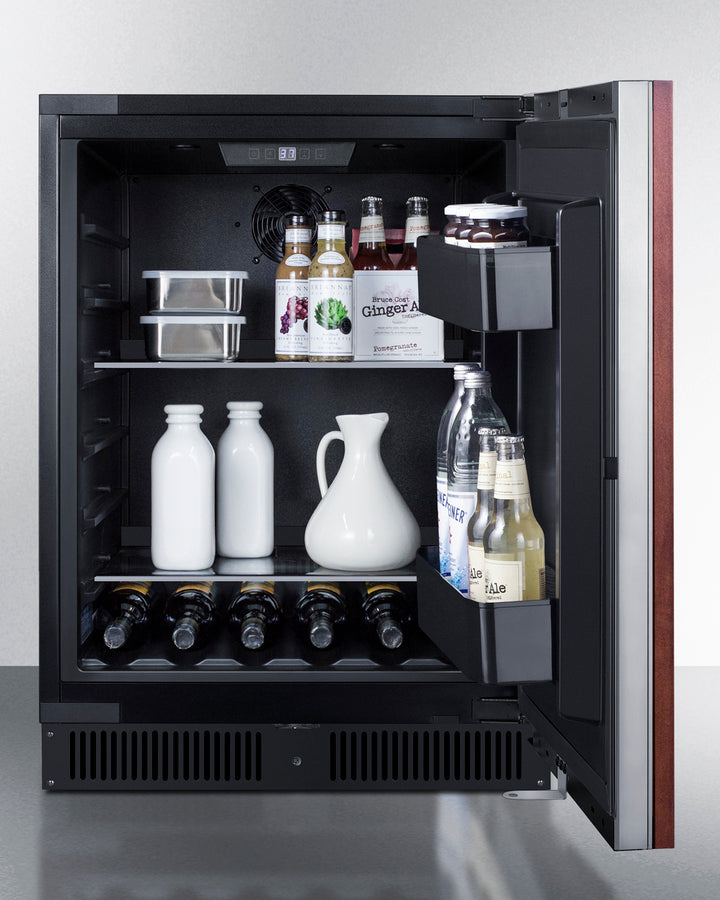

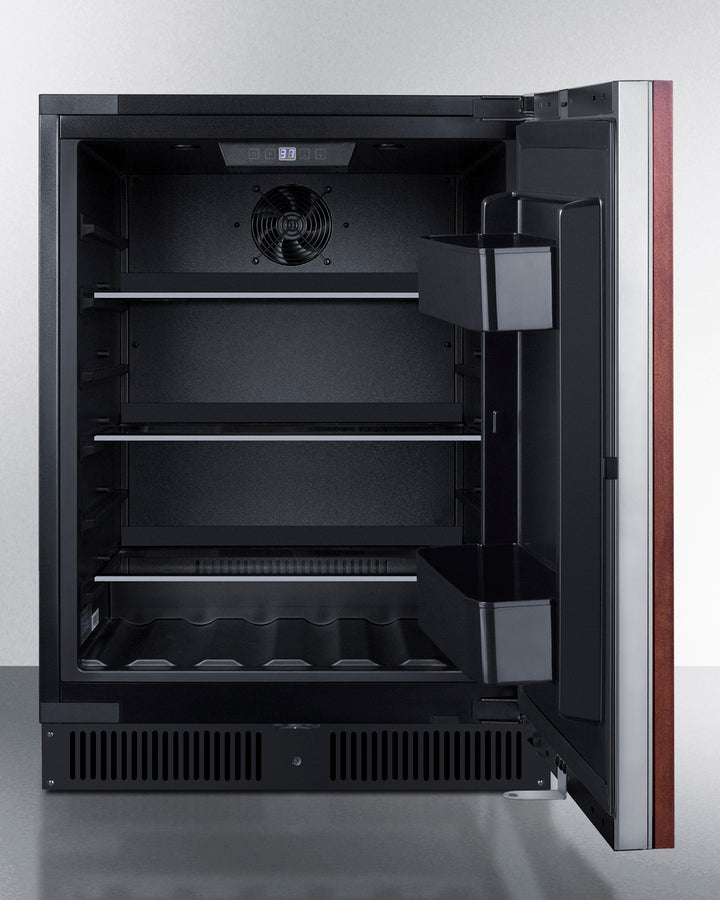

Inside, the AL54PNR utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments and bottles in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
The AL54PNR refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 32.0" (81 cm) | Sabbath Mode | Yes |
| Height of Cabinet | 32.0" (81 cm) | Door Swing | RHD/LHD |
| Nominal Width | 24.0" (61 cm) | Reversible | Yes |
| Width | 23.38" (59 cm) | Shelf Type | Glass |
| Nominal Depth | 23.0" (58 cm) | Shelf Qty | 3 |
| Depth | 22.63" (57 cm) | Full Door Shelf Qty | 2 |
| Depth with door at 90° | 46.0" (117 cm) | Adjustable Shelves | Yes |
| Capacity | 4.4 cu.ft. (125 L) | Thermostat Type | Digital |
| Defrost Type | Frost-Free | Fan Type | Interior and Exterior |
| Door | Panel-Ready | Refrigerant Type | R600a |
| Cabinet | Black | Refrigerant Amount | 0.99oz. |
| US Electrical Safety | ETL | High Side PSI | 270.0 |
| Canadian Electrical Safety | ETL-C | Low Side PSI | 105.0 |
| Sanitation | ETL-S | Level Legs Qty | 4 |
| Energy Usage/Year | 270.0kWh/year | Interior Light | Yes |
| Amps | 1.0 | Temperature Range | 36 to 43ºF |
| Voltage/Frequency | 115 V AC/60 Hz | Sound Level | 33.3dB |
| Weight | 100.0 lbs. (45 kg) |
Dimensions
|
|
|---|---|---|---|
| Parts & Labor Warranty | 1 Year | Interior Height | 24.38" (62 cm) |
| Compressor Warranty | 5 Years | Interior Width | 20.0" (51 cm) |
| UPC | 761101151267 | Interior Depth | 16.63" (42 cm) |
| Compressor Step Height | 3.25" (8 cm) | ||
| Compressor Step Width | 20.0" (51 cm) | ||
| Compressor Step Depth | 5.25" (13 cm) | ||
