Summit AL55IF 24″ Wide Built-In All-Refrigerator – Panel-Ready (ADA Height)
Customer service
Features
- SKU SA-AL55IF
SUMMIT features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

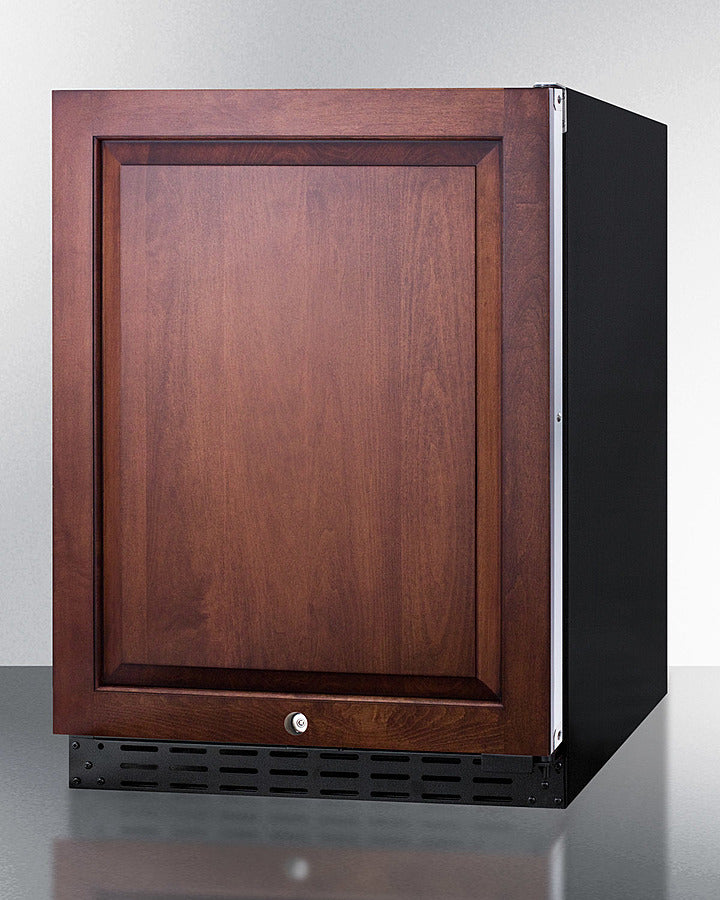

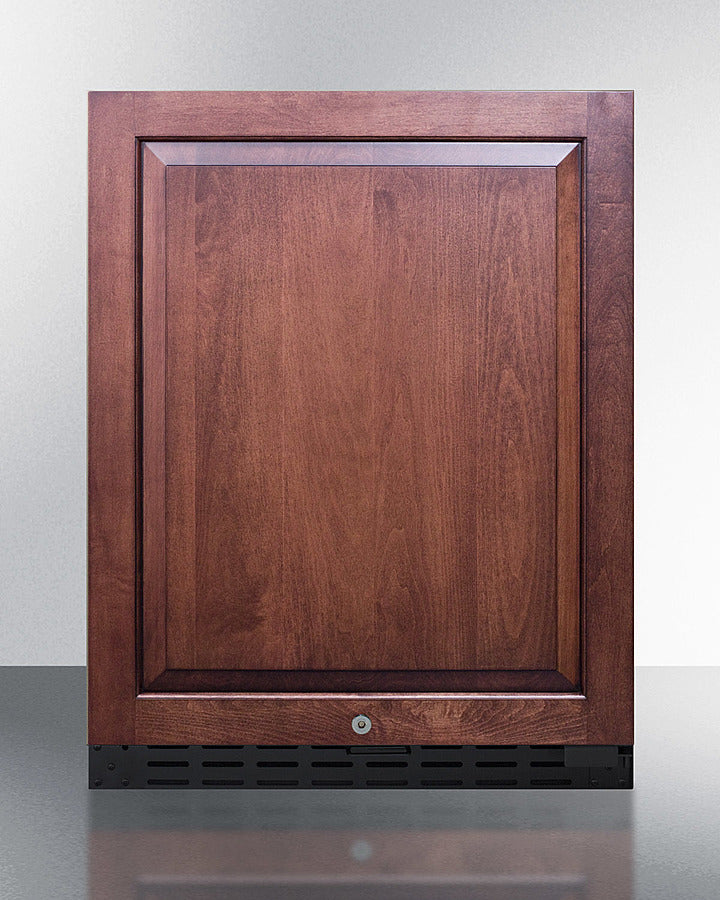

The AL55IF refrigerator meets both residential and commercial standards for versatile use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 3/4" H x 23 3/16" W; 3/4" thick with a maximum weight of 10 lbs.). The door is factory reversible, and users must supply their own door handle. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance. The automatic defrost system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled.

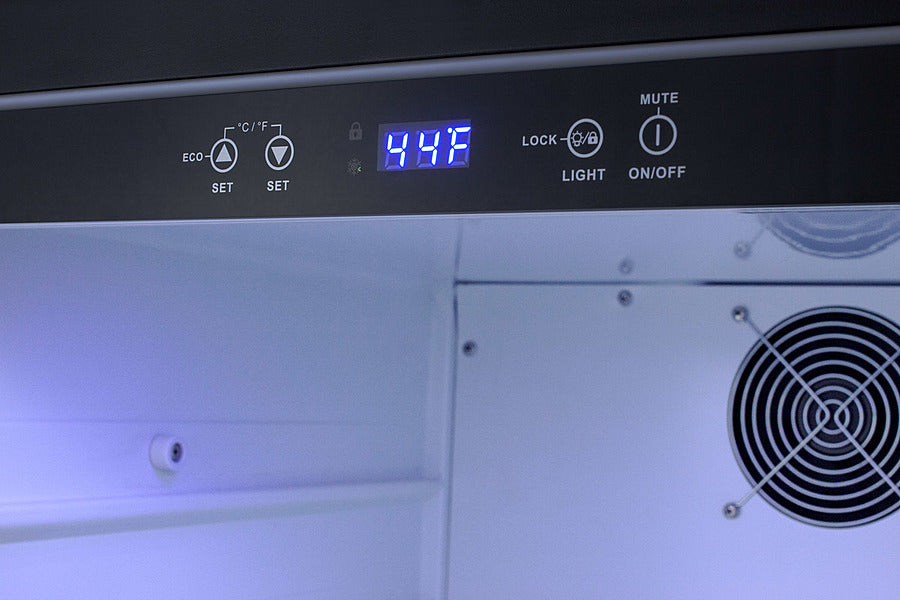

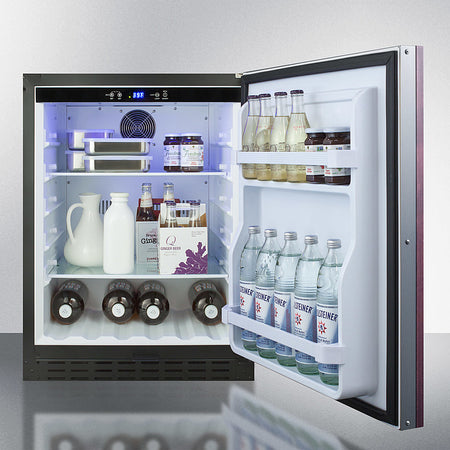

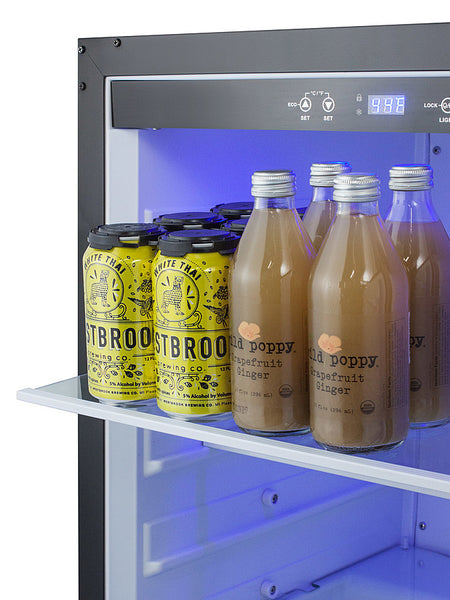

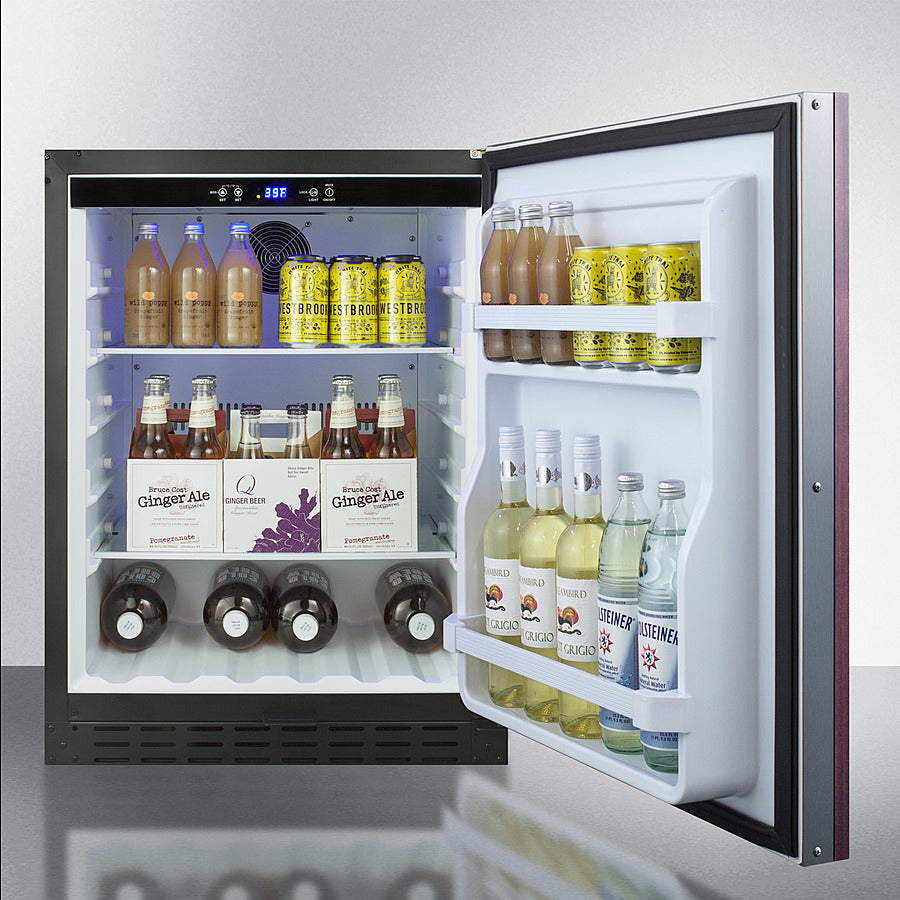

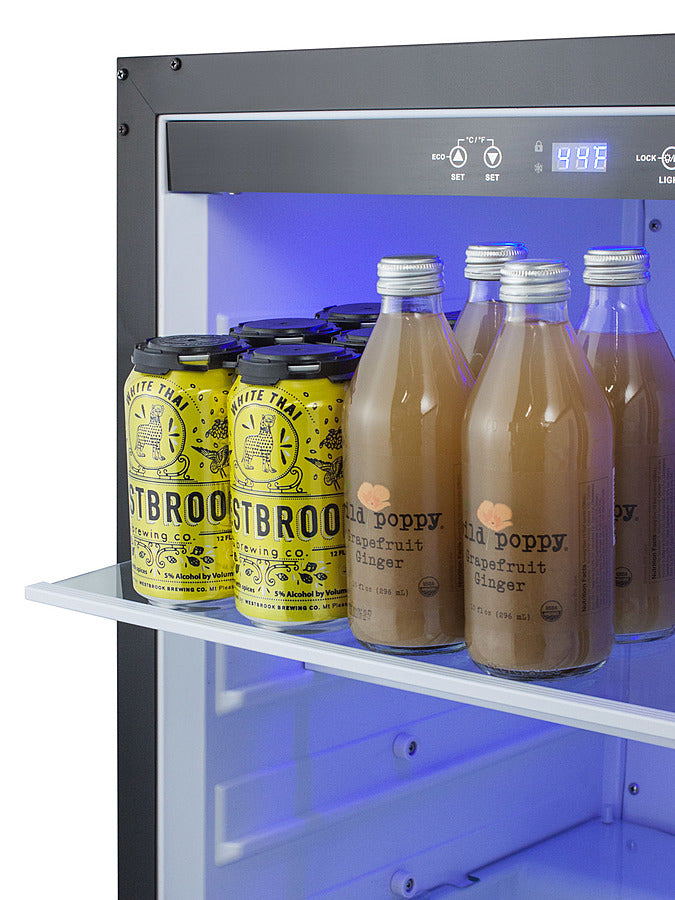

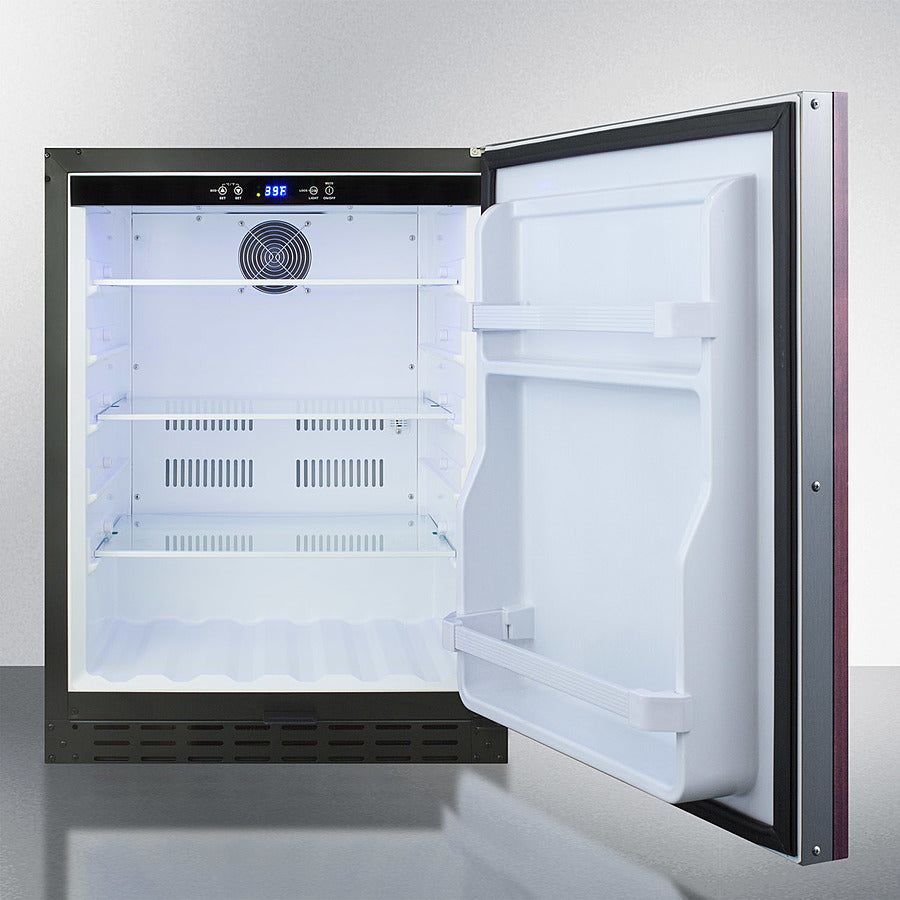

Inside, the AL55IF has a digital control panel which allows you to manage the unit’s temperature with ease. An adjustable temperature range between 36 and 46ºF ensures contents are kept cold. Three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping condiments within easy reach, while the slotted floor ensures easy storage of bottles. The dimmable soft LED lighting in a gentle blue hue with three brightness settings offers an attractive and efficient presentation inside the white interior.
With its advanced user features and versatile design, the AL55IF is an excellent addition to any ADA compliant setting looking for a refrigerator with a modern, elegant look. For a matching frost-free freezer, see the ALFZ51IF.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Sabbath Mode | Yes |
| Height of Cabinet | 31.63" (80 cm) | Door Swing | RHD |
| Nominal Width | 24.0" (61 cm) | Reversible | Factory Reversible |
| Width | 23.5" (60 cm) | Shelf Type | Glass |
| Nominal Depth | 24.0" (61 cm) | Shelf Qty | 3 |
| Depth | 23.38" (59 cm) | Full Door Shelf Qty | 2 |
| Depth with Handle | 25.38" (64 cm) | Adjustable Shelves | Yes |
| Depth with door at 90° | 45.0" (114 cm) | Thermostat Type | Digital |
| Capacity | 4.2 cu.ft. (119 L) | Fan Type | Interior and Exterior |
| Defrost Type | Automatic | Refrigerant Type | R600a |
| Door | Panel-Ready | Refrigerant Amount | 1.23oz. |
| Cabinet | Black | High Side PSI | 150.0 |
| US Electrical Safety | ETL | Low Side PSI | 50.0 |
| Canadian Electrical Safety | ETL-C | Level Legs Qty | 4 |
| Sanitation | ETL-S | Interior Light | Yes |
| Energy Usage/Year | 250.0kWh/year | Temperature Range | 36 to 46ºF |
| Amps | 1.0 | Sound Level | 33.7 dB |
| Voltage/Frequency | 115 V AC/60 Hz |
Dimensions
|
|
|---|---|---|---|
| Weight | 95.0 lbs. (43 kg) | Interior Height | 23.5" (60 cm) |
| Parts & Labor Warranty | 1 Year | Interior Width | 19.0" (48 cm) |
| Compressor Warranty | 5 Years | Interior Depth | 17.25" (44 cm) |
| UPC | 761101067049 | Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 19.0" (48 cm) | ||
| Compressor Step Depth | 5.0" (13 cm) | ||
|
ASSEMBLY DRAWING |
