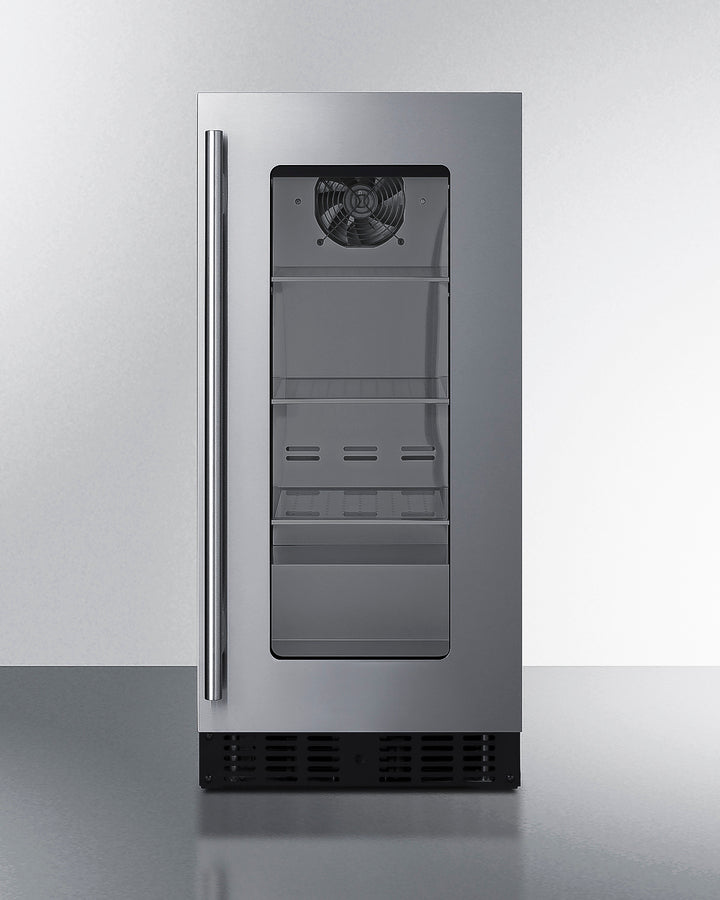

Summit ASDG1521 15″ Shallow-Depth Built-In Beverage Center – ADA-Height, Glass Door, Black Cabinet

SKU: SA-ASDG1521
Regular price $1,636.00
Smart Controls & Commercial Certification — Digital thermostat (°F/°C), open-door & high temperature alarms, Sabbath mode, memory of settings after power loss; ETL-S listed to NSF-7 commercial standards.
Secure & Stylish Glass Door — Double-pane tempered glass door with seamless stainless steel trim, factory-installed keyed lock (2 keys), and reversible swing.
1.8 cu ft Interior with Fan-Forced Frost-Free Cooling — Ensures a uniform temperature between 36–43 °F without manual defrosting.
32.0" H x 14.75" W x 17.75" D
(81cm H x 37cm W x 45cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-ASDG1521

Less than 18" deep:
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

15" wide beverage center:
1.8 cu.ft. interior for residential or commercial cold storage

ADA compliant:
Sized at 32" high for use under lower ADA compliant counters

Adjustable height:
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable:
Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel interior:
Walls and floor are constructed from stainless steel for added strength and easy cleanup

Double pane tempered glass door:
Elegant design offers a clear but protected view of your interior

Seamless stainless steel door trim:
Glass is framed by with a flush one-piece stainless steel trim for an elevated look

Factory installed lock:
Keyed lock for a secure interior (2 keys included)

Professional handle:
Stainless steel handle completes the look

Digital thermostat:
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Dimmable LED lighting:
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

Frost-free operation:
No-frost operation for minimum user maintenance

Internal fan:
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Cantilevered shelving:
Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit

Open door alarm:
Alarm sounds if the door is left open for more than 60 seconds

High temperature alarm:
Audible alarm sounds if the interior temperature rises out of set range

Sabbath mode setting:
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Temperature Memory Function:
Unit will retain its last settings when power is restored in the event of power loss

Right angle plug:
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back:
Space-saving design with no exposed coils that offers easier cleanability

Fully articulating European style hinge:
Smoother opening and a better fit with an integrated European hinge

Reversible door:
User-reversible door swing on the refrigerator for added flexibility

Fully finished black cabinet:
Allows the unit to be used freestanding

Commercially approved:
ETL-S listed to NSF-7 Standards for use in commercial establishments

100% CFC Free:
Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

Model ASDG1521 is a 15" wide beverage refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock.

Inside, the ASDG1521 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. A commercial grade cantilevered shelving system with glass shelves ensures flexible storage to accommodate any size. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The ASDG1521 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW1522 wine cellar. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.

 Overview

Refrigerator-Freezer

ominal Height 32.0" (81 cm) Sabbath Mode Yes
Height of Cabinet 32.0" (81 cm) Door Swing RHD
Nominal Width 15.0" (38 cm) Reversible Yes
Width 14.75" (37 cm) Height Adjustable Yes
Nominal Depth 18.0" (46 cm) Shelf Type Glass
Depth 17.75" (45 cm) Shelf Qty 3
Depth with Handle 19.63" (50 cm) Adjustable Shelves Yes
Depth with door at 90° 31.0" (79 cm) Thermostat Type Digital
Capacity 1.8 cu.ft. (51 L) Fan Type Interior and Exterior
Defrost Type Frost-Free Refrigerant Type R600a
Door Glass Refrigerant Amount 0.78oz.
Cabinet Black High Side PSI 270.0
US Electrical Safety ETL Low Side PSI 105.0
Canadian Electrical Safety ETL-C Level Legs Qty 4
Sanitation ETL-S Interior Light Yes
Energy Usage/Year 270.0kWh/year Temperature Range 36 to 43ºF
Amps 1.0 Sound Level 33.4 dB
Voltage/Frequency 115 V AC/60 Hz
Dimensions
Weight 68.0 lbs. (31 kg) Interior Height 22.5" (57 cm)
Parts & Labor Warranty 1 Year Interior Width 10.75" (27 cm)
Compressor Warranty 5 Years Interior Depth 12.38" (31 cm)
UPC 761101079509 Compressor Step Height 3.75" (10 cm)


Compressor Step Width 10.75" (27 cm)


Compressor Step Depth 5.5" (14 cm)

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
