Summit BIM44GIFADA 15″ Wide Built-In Clear Cube Ice Maker – ADA Compliant, Panel-Ready
Customer service
Features
- SKU SA=BIM44GIFADA
SUMMIT BIM44GIFADA is an auto defrost clear icemaker designed for true convenience under the counter in ADA compliant settings.

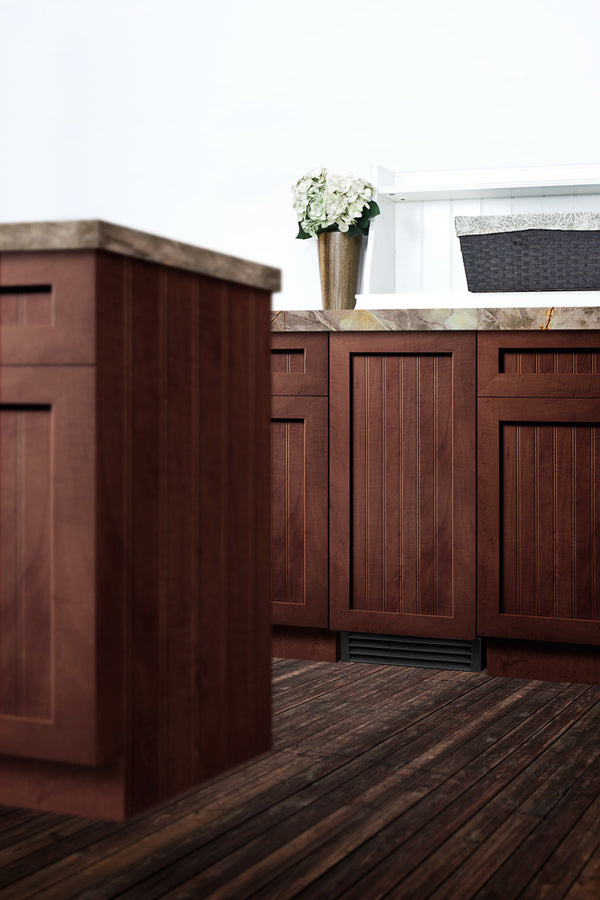

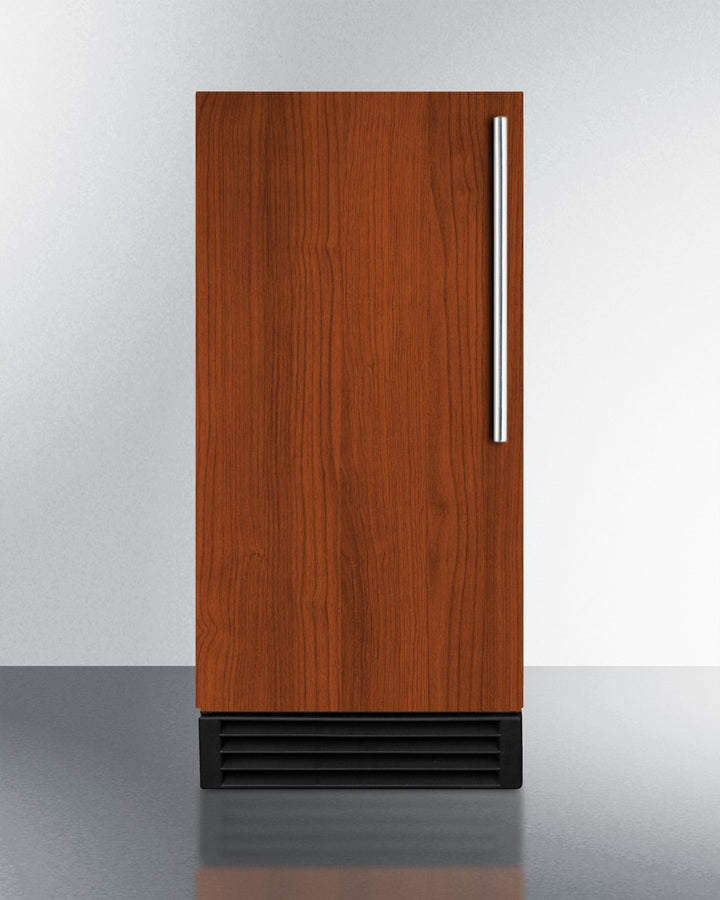

At just under 15" wide, the BIM44GIFADA is ideal for finishing any kitchen or wet bar. The door includes an integrated stainless steel frame that can accept full overlay panels for a seamless look that blends into matching cabinetry. Users supply their own handles. This unit is 32 3/8" high to fit under lower counters following ADA guidelines.
Automatic defrost makes maintenance simple and stress-free, while the BIM44GIFADA's front-breathing cooling system and fully finished sides allow built-in or freestanding use.

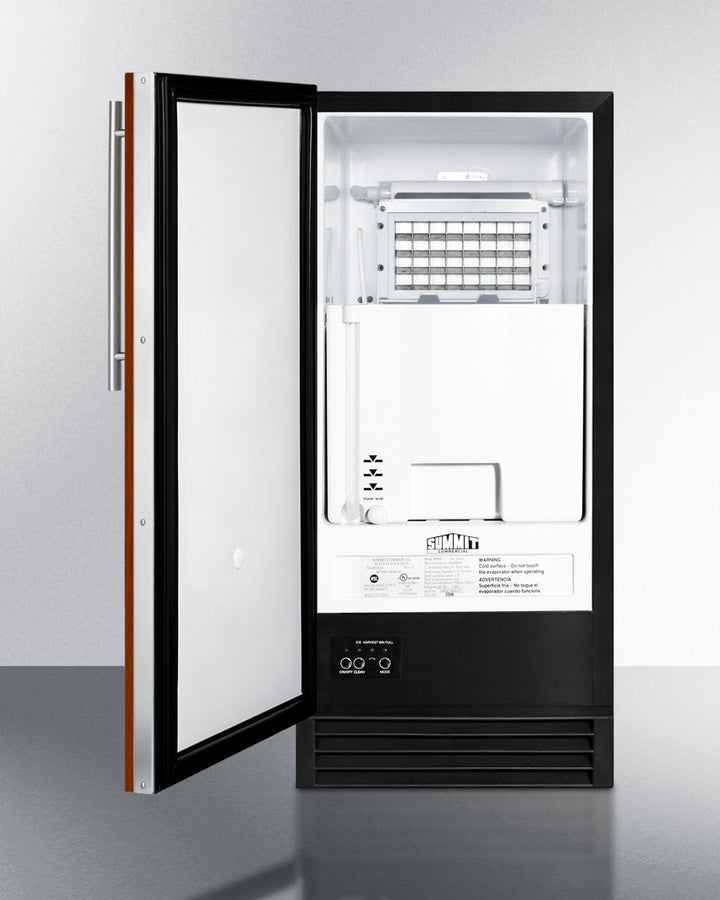

The BIM44GIFADA can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. The ice is produced in sheets and can be easily broken into cubes using the provided scoop. This unit must be used with a drain. It is NSF listed to commercial standards and is ENERGY STAR certified for commercial use.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | LHD |
| Height of Cabinet | 32.38" (82 cm) | Reversible | Factory Reversible |
| Nominal Width | 15.0" (38 cm) | Drain Required | Yes |
| Width | 14.5" (37 cm) | Daily Ice Production | 50.0 lbs. (23 kg) |
| Nominal Depth | 24.0" (61 cm) | Ice Storage Capacity | 25.0 lbs. (11 kg) |
| Depth | 23.5" (60 cm) | Ice Shape | Cube |
| Defrost Type | Automatic | Size of Cube | 7/8" x 7/8" x 7/8" |
| Door | Panel-Ready | Number of Ice Cube Sizes | 1 |
| Cabinet | Black | Fan Type | Exterior |
| US Electrical Safety | UL | Refrigerant Type | R134a |
| Canadian Electrical Safety | ULC | Refrigerant Amount | 3.88 oz. |
| Sanitation | NSF | High Side PSI | 350.0 |
| Amps | 4.8 | Low Side PSI | 130.0 |
| Voltage/Frequency | 115 V AC/60 Hz | Interior Height | 18.5" (47 cm) |
| Weight | 100.0 lbs. (45 kg) | Interior Width | 12.0" (30 cm) |
| Parts & Labor Warranty | 1 Year | Interior Depth | 16.0" (41 cm) |
| Compressor Warranty | 5 Years | Level Legs | 4 |
| UPC | 761101029283 |
|
ASSEMBLY DRAWING |
