Summit BIM62ADA ADA-Height Built-In Clear Icemaker – 68 lb/day, Stainless Steel

SKU: SA-BIM62ADA
Regular price $2,420.70
Front-Breathing, Built-In Design — Flush undercounter installation without requiring rear clearance, plus a fully finished stainless steel exterior.
Automatic Defrost & Internal Pump — Self-defrosting system with built-in pump provides flexibility in placement and reduces maintenance.
Touch Controls with Ice Size Selector & Memory Mode — Choose among three ice cube sizes; features memory of last settings, cleaning reminders, Sabbath mode, and more.
32.0" H x 14.75" W x 22.75" D
(81cm H x 37cm W x 58cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-BIM62ADA

15" Wide Clear Icemaker:
Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings

Built-in undercounter design:
Front-breathing design lets you make the best use of space by installing your appliance under the counter

ADA-compliant:
32" height allows installation under lower ADA-compliant counters

Height adjustable:
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34 1/4" if used under higher cabinets

Built-in pump:
Internal pump allows more flexibility in placing the unit

Commercially approved:
ETL-S listed to NSF-7 Standards for use in commercial establishments

68 lb. production capacity:
High capacity production to keep clear gourmet ice on hand

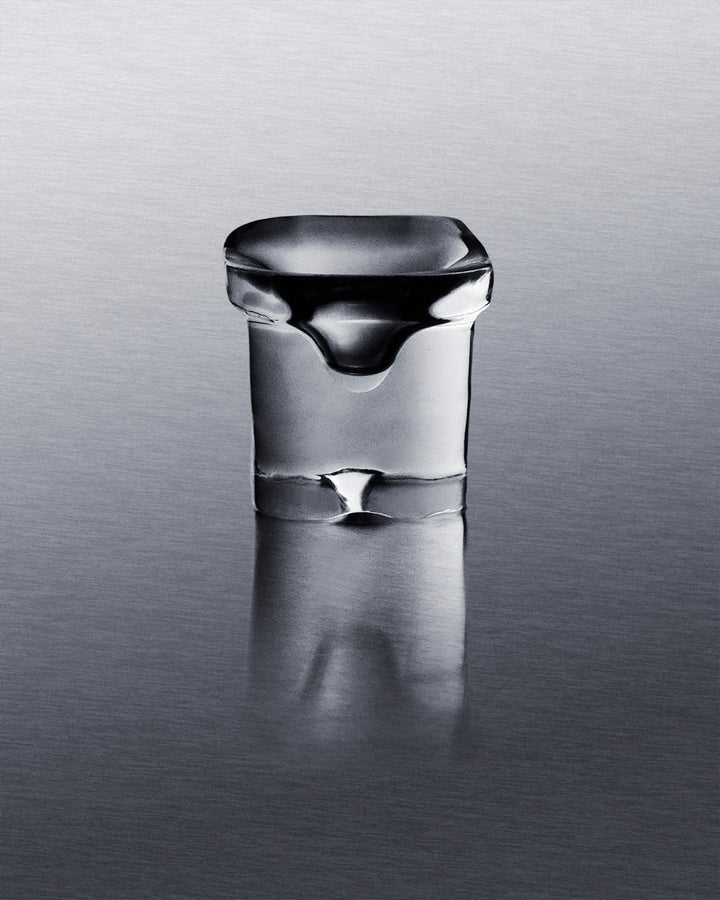

Gourmet top hat ice:
Unique clear ice shape for an upscale presentation, while its dense structure means it melts slower, making it ideal for cocktails where dilution needs to be controlled

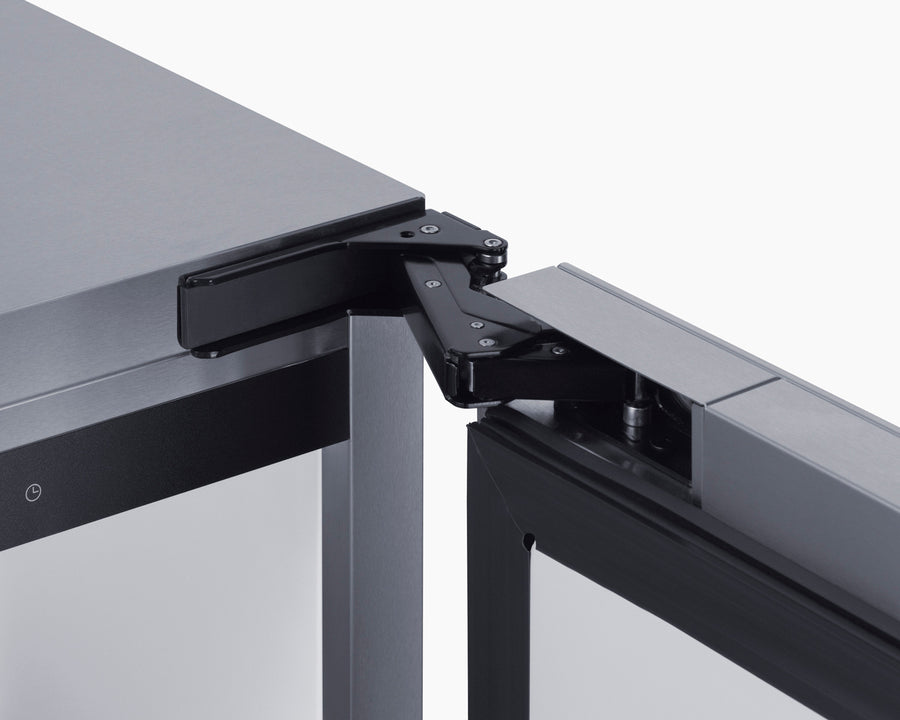

Fully articulating door hinge:
European style hinge design ensures a flush fit and allows for a smoother opening

Unbranded exterior:
Allows for seamless integration with other appliances

Professional handle:
Horizontally mounted handle in stainless steel

Touch controls:
Provides easy operation of the unit with indicator lights for each stage of the production process

Ice size selection:
Function allows users to choose from small, medium, or large clear ice cubes

Clean function:
Clean mode allows you to periodically clean the system as needed with a neutral detergent

Cleaning alarm:
Control panel light will flash 180 days after each cleaning cycle as a reminder to run that process

Memory function:
Mode memory function allows the icemaker to its last setting in the event of a power interruption

Sabbath mode:
Optional setting lets you disable the lighting and alarms during periods of religious observance

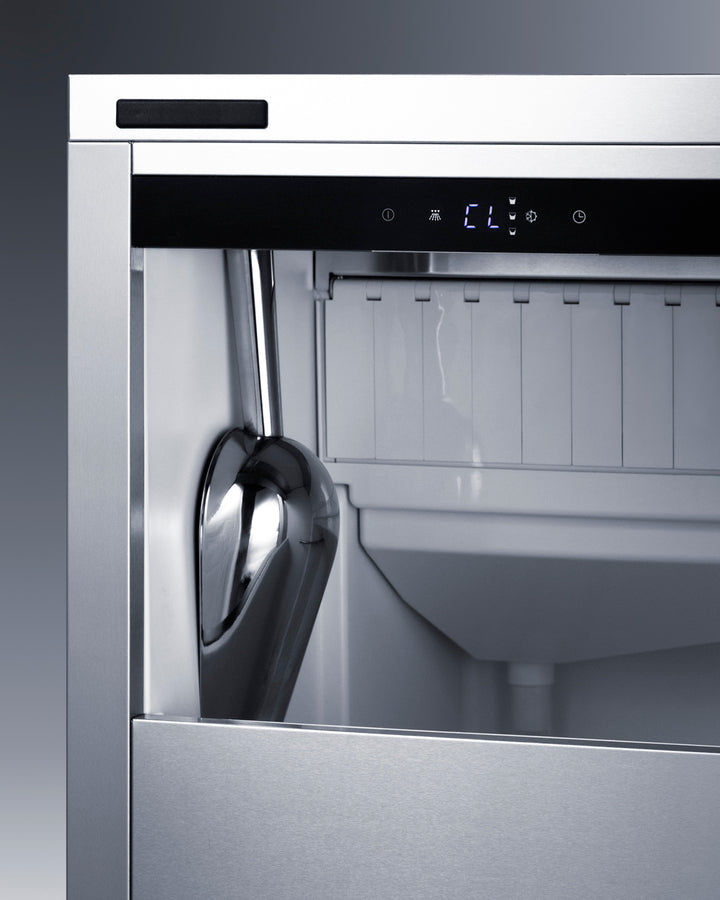

Ice scoop:
Ice scoop included for added convenience, with an interior hook to keep it in place inside

Sealed back:
Space-saving design with no exposed coils that offers easier cleanability

Right angle plug:
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Left hand door swing:
For this unit with the door opening from the other side, see model BIM62ADA

CARB compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free:
Environmentally friendly design with no ozone-damaging chemicals

Lead-free certified:
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for residential and commercial spaces.

Model BIM62ADA is a 15" wide icemaker at just 32" high, ideal for use under lower counters following ADA-compliant guidelines. The legs can also be raised to reach 34 1/4", with a sliding kickplate that helps fill the extra space. This model features a complete stainless steel exterior for added durability and long-term use. The door comes complete with a pro style handle and European-style articulating hinge for smoother openings. The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use. The sealed back and right angle cord help to ensure an easy fit. The icemaker's door includes a stylish handle for a premium look. This icemaker is unbranded, allowing you to easily integrate it into any kitchen or bar.

Inside, the BIM62ADALHD produces up to 68 lbs. of clear, gourmet style top hat-shaped ice cubes daily. Top hat ice, often called gourmet ice, is a cylindrical cube with a slightly wider top resembling a miniature top hat or thimble. The distinct dense structure helps minimize dilution, keeping drinks colder for longer without watering them down. The uniform shape offers an elegant presentation, while its non-clumping design ensures easy dispensing. The size can be adjusted between three settings to best suit your taste. We include a steel ice scoop that can be hung inside for easy serving.

This icemaker features easy-to-use digital controls.  An indicator light alerts users to each step in the production process and when the bin is full. Frost-free operation eliminates the need to defrost the interior. Additional features include a temperature memory function, cleaning setting and alarm, and sabbath mode for periods of observances.

With clear gourmet ice that's gentle on glassware paired with efficient performance, the BIM62ADALHD is ideal for both residential and commercial settings. For a panel-ready version of this unit, see model BIM62ADAPNR. This unit comes with a left hand door swing. For this model with a right-hand door, see model BIM62ADA.

In addition to this series, Summit also manufactures drain-free icemakers, as well as 18" wide options, outdoor models, and more. Explore all of Summit's residential and commercial icemakers at summitappliance.com

 Overview


Refrigerator-Freezer



Height of Cabinet 32.0" (81 cm) Door Swing LHD/RHD
Width 14.75" (37 cm) Reversible No
Depth 22.75" (58 cm) Height Adjustable Yes
Depth with Handle 24.75" (63 cm) Drain Required Yes
Depth with door at 90° 38.13" (97 cm) Daily Ice Production 68.0 lbs. (31 kg)
Defrost Type Automatic Ice Storage Capacity 26.0 lbs. (12 kg)
Door Stainless Steel Ice Shape Top hat
Cabinet Stainless Steel Size of Cube 1 1/4" H x 1 1/8" W x 1 1/8" D
US Electrical Safety ETL Number of Ice Cube Sizes 3
Canadian Electrical Safety ETL-C Refrigerant Type R600a
Sanitation ETL-S Refrigerant Amount 1.58 oz.
Amps 6.0 Interior Height 19.75" (50 cm)
Voltage/Frequency 115 V AC/60 Hz Interior Width 12.25" (31 cm)
Weight 100.0 lbs. (45 kg) Interior Depth 15.5" (39 cm)
Parts & Labor Warranty 1 Year Level Legs 4
Compressor Warranty 5 Years
UPC 761101156194

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
