Summit FFRF36IFADA 36″ Wide Built-In / ADA All-In-One Refrigerator-Freezer – Panel-Ready, Frost-Free, 5.8 cu ft
Customer service
Features
- SKU SA-FFRF36IFADA
SUMMIT brings quality and value under the counter with the industry’s largest collection of ADA compliant built-in refrigeration.

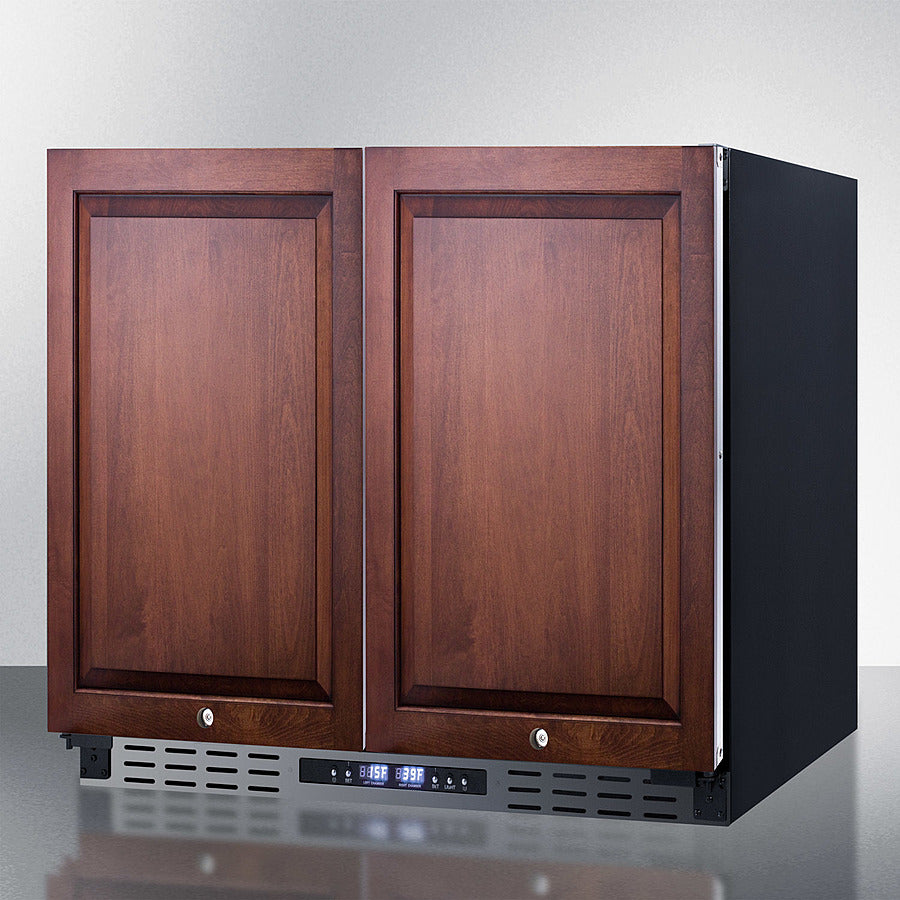

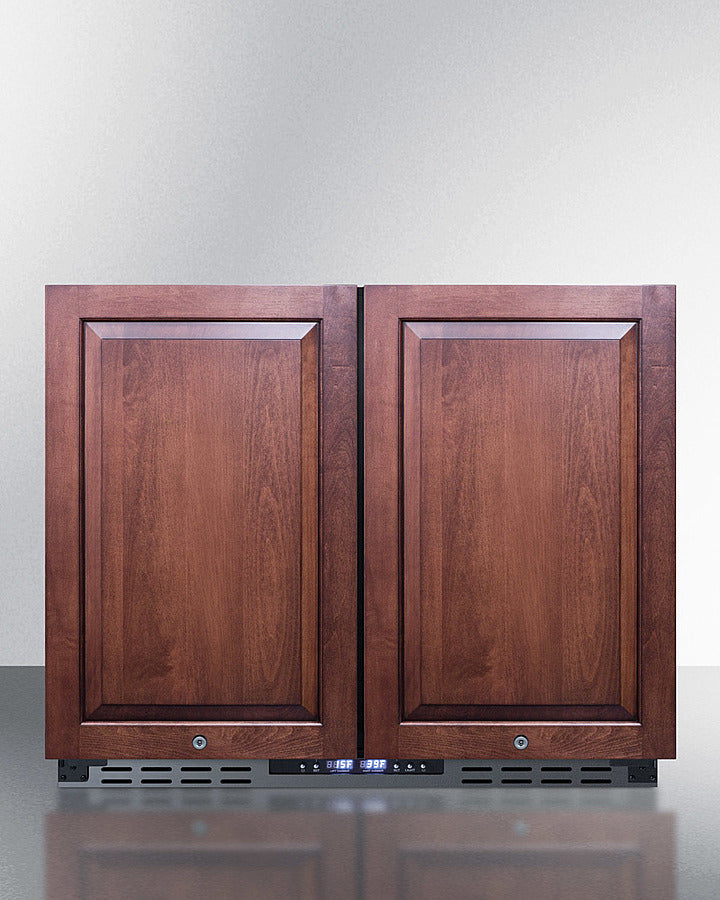

The FFRF36IFADA features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at 36" wide, this all-in-one, side-by-side refrigerator-freezer is designed for built-in or freestanding installation. The two doors feature an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 7/8" H x 17 9/16" W; 3/4" thick with a maximum weight of 10 lbs.). Users must supply their own door handle. A stainless steel kickplate adds elegance to any space. The digital controls are located in the kickplate, allowing you to adjust the temperature without opening the door. This unit has a sealed back design to enable easier cleanup and added space savings.

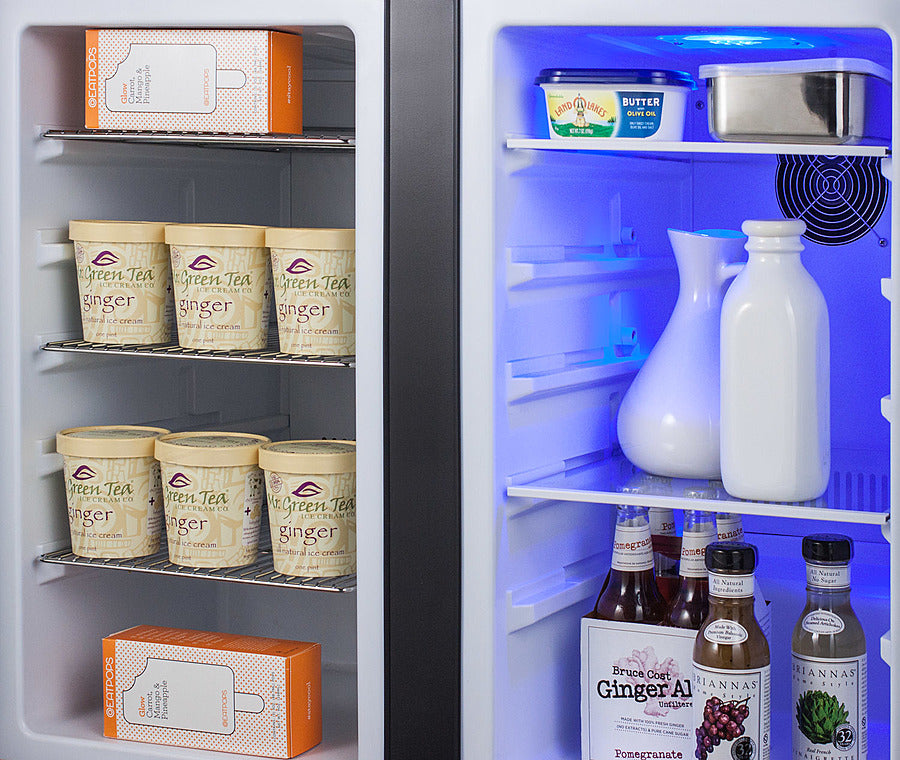

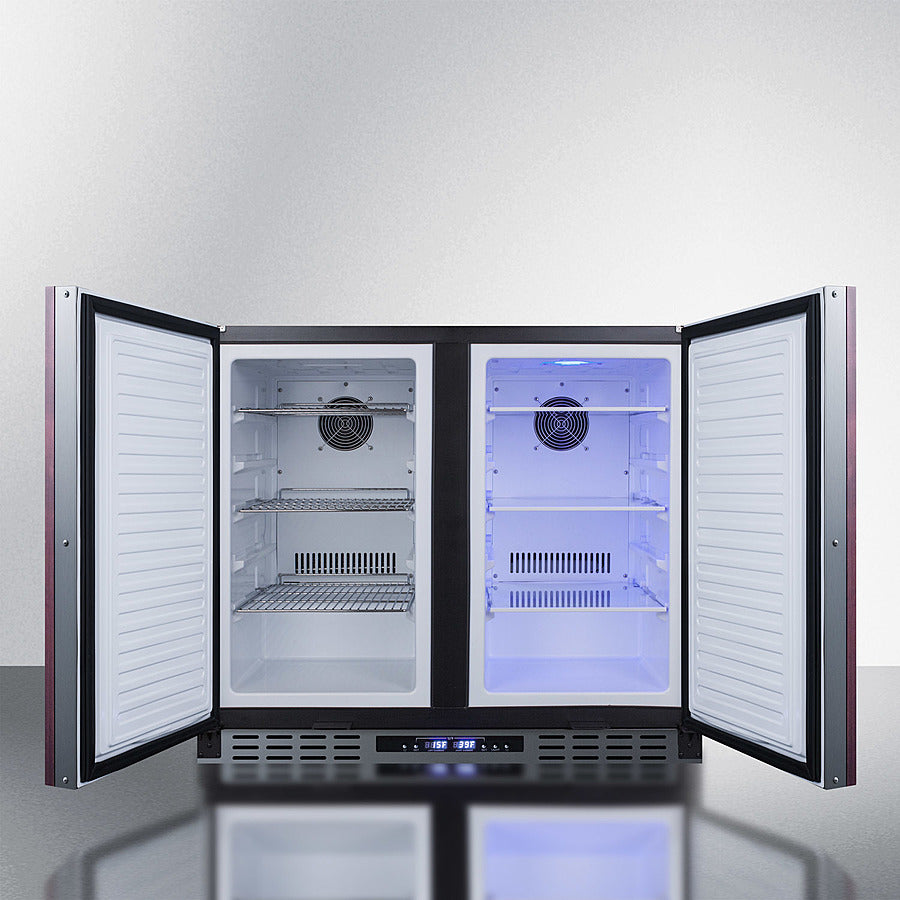

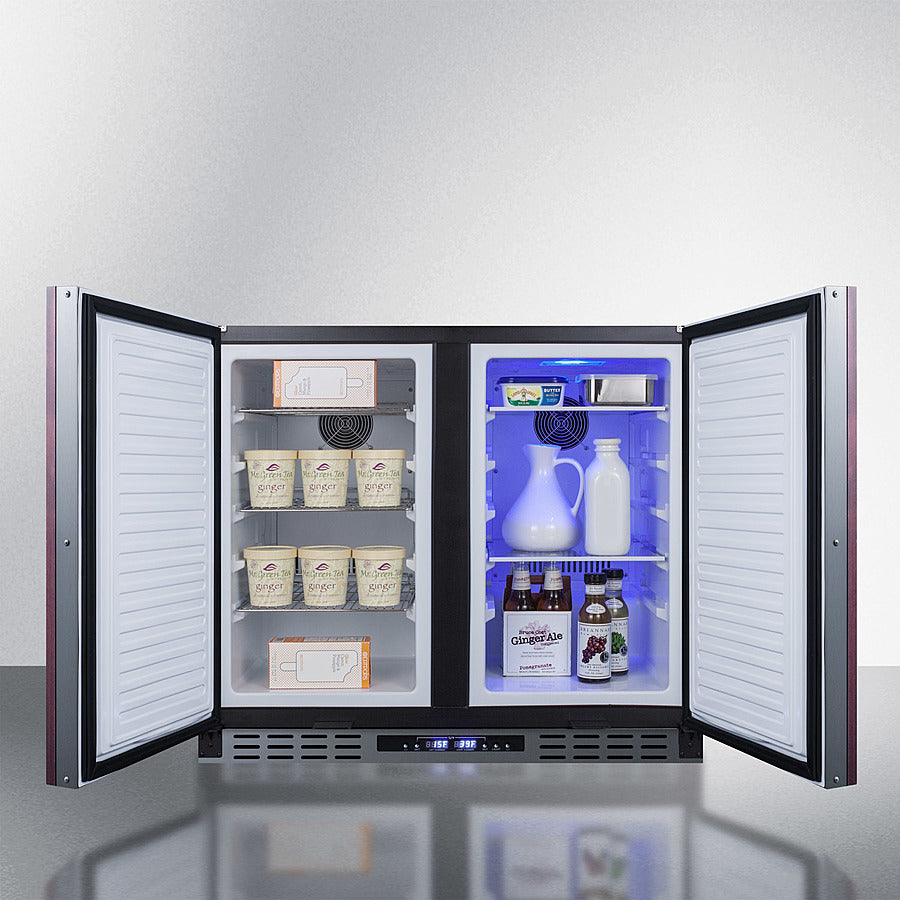

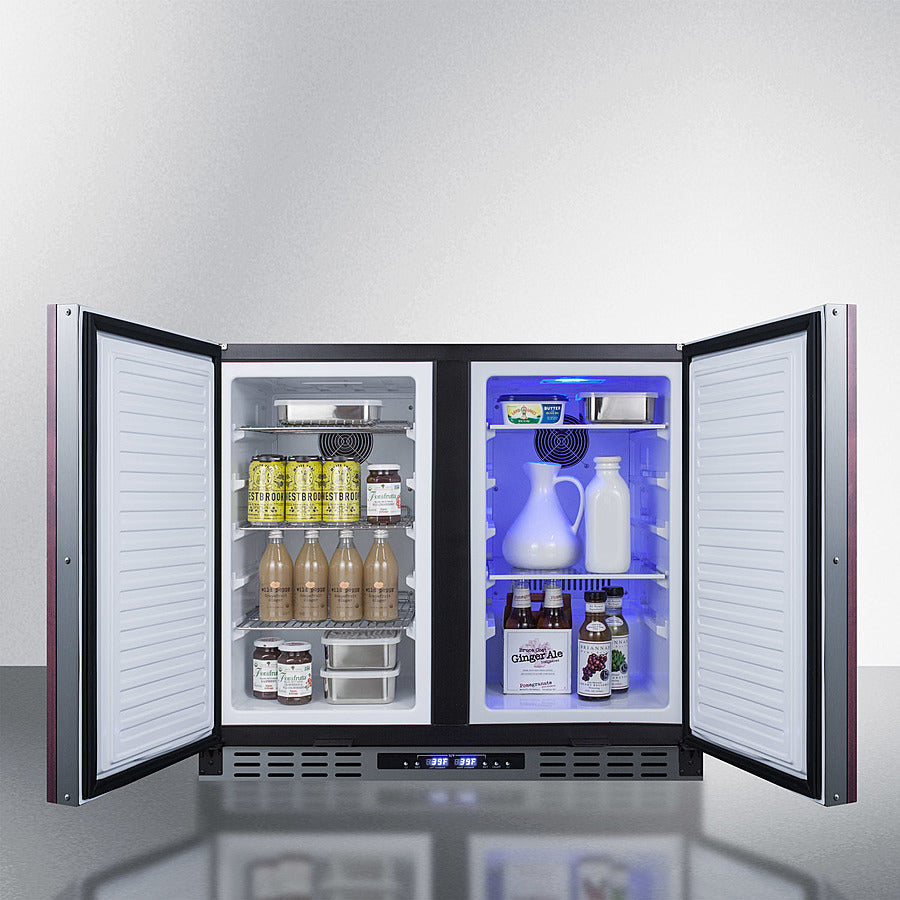

Inside, the FFRF36IFADA features a 2.9 cu.ft. frost-free freezer compartment on the left and a 2.9 cu.ft. frost-free refrigerator compartment on the right. Both sections are frost-free for easy maintenance, with internal fans to help provide even cooling. The refrigerator compartment includes three adjustable glass shelves with five placement options that offer multiple spill-proof storage options. The freezer compartment includes three adjustable chrome shelves for proper cold air circulation. Additionally, the freezer section can be converted to run as a refrigerator, allowing you to adjust the temperature range to best accommodate your storage needs at the touch of a button.
The FFRF36ADA is sized at 31 5/8 inches high to fit under lower ADA compliant counters. For this unit in standard height, see the FFRF36IF.
NOTE: Due to its larger commercial design, the FFRF36IFADA requires an additional 5/8" of width for each door to open to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 32.0" (81 cm) | Door Swing | French |
| Height of Cabinet | 31.5" (80 cm) | Adjustable Shelves | Yes |
| Nominal Width | 36.0" (91 cm) | Interior Light | Yes |
| Width | 35.5" (90 cm) | Refrigerator - Interior Height | 23.5" (60 cm) |
| Nominal Depth | 25.0" (64 cm) | Refrigerator - Interior Width | 12.75" (32 cm) |
| Depth | 24.25" (62 cm) | Refrigerator - Interior Depth | 16.75" (43 cm) |
| Depth with door at 90° | 42.0" (107 cm) | Refrigerator - Capacity | 2.9 cu.ft |
| Capacity | 5.8 cu.ft. (164 L) | Refrigerator - Shelf Type | Glass |
| Defrost Type | Frost-Free | Refrigerator - Shelf Qty | 3 |
| Door | Panel-Ready | Refrigerator - Temperature Range | 36°F to 46°F |
| Cabinet | Black | Refrigerator - Refrigerant Type | R600a |
| US Electrical Safety | ETL | Refrigerator - Refrigerant Amount | 1.59 oz. |
| Canadian Electrical Safety | ETL-C | Freezer - Interior Height | 23.5" (60 cm) |
| Sanitation | ETL-S | Freezer - Interior Width | 12.75" (32 cm) |
| Energy Usage/Year | 504.0kWh/year | Freezer - Interior Depth | 16.75" (43 cm) |
| Amps | 1.3 | Freezer - Capacity | 2.9 cu.ft |
| Voltage/Frequency | 115 V AC/60 Hz | Freezer - Shelf Type | Chrome |
| Weight | 160.0 lbs. (73 kg) | Freezer - Shelf Qty | 3 |
| Parts & Labor Warranty | 1 Year | Thermostat Type | Digital |
| Compressor Warranty | 5 Years | Fan Type | Interior and Exterior |
| UPC | 761101067940 | Refrigerant Type | R600a |
| UPC | 761101079493 | Refrigerant Amount | 1.59 oz. |
| High Side PSI | 150.0 | ||
| Low Side PSI | 50.0 | ||
| Level Legs | 2 | ||
| Freezer - Temperature Range | -22°F to 46°F | ||
| Compressor Step Height | 4.75" (12 cm) | ||
| Compressor Step Width | 12.75" (32 cm) | ||
| Compressor Step Depth | 4.25" (11 cm) |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
