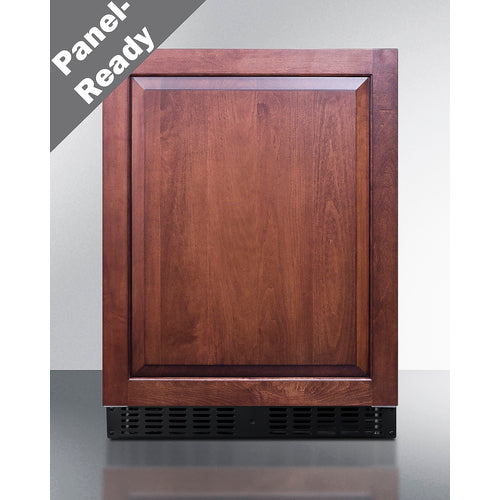

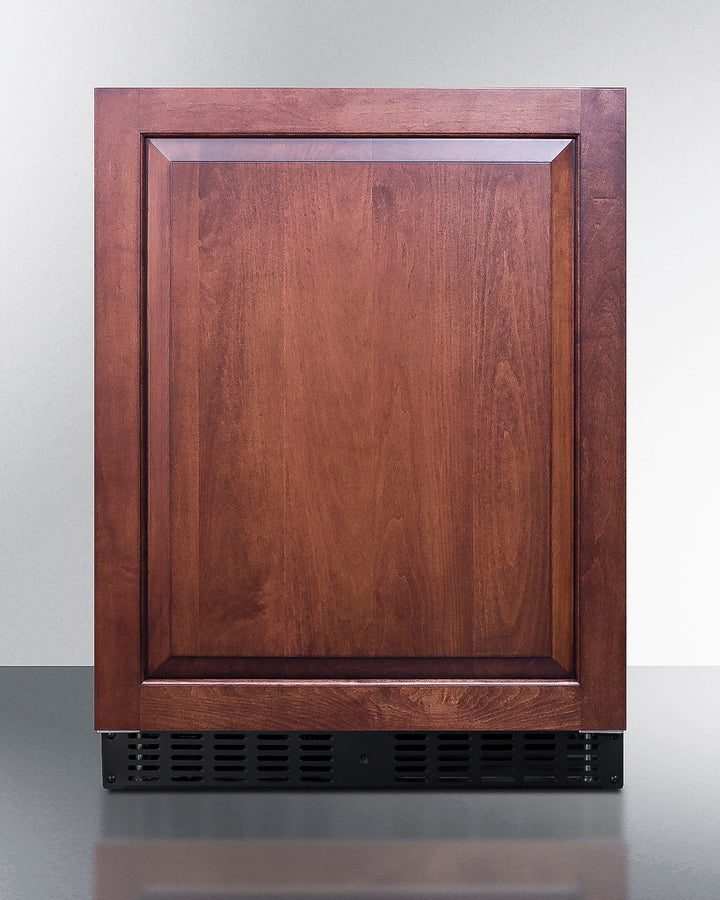

Summit ASDS2413IF 24″ Wide Built-In All-Refrigerator – ADA-Height, Panel-Ready, 3.1 cu ft
Customer service
Features
- SKU SA-ASDS2413IF
Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

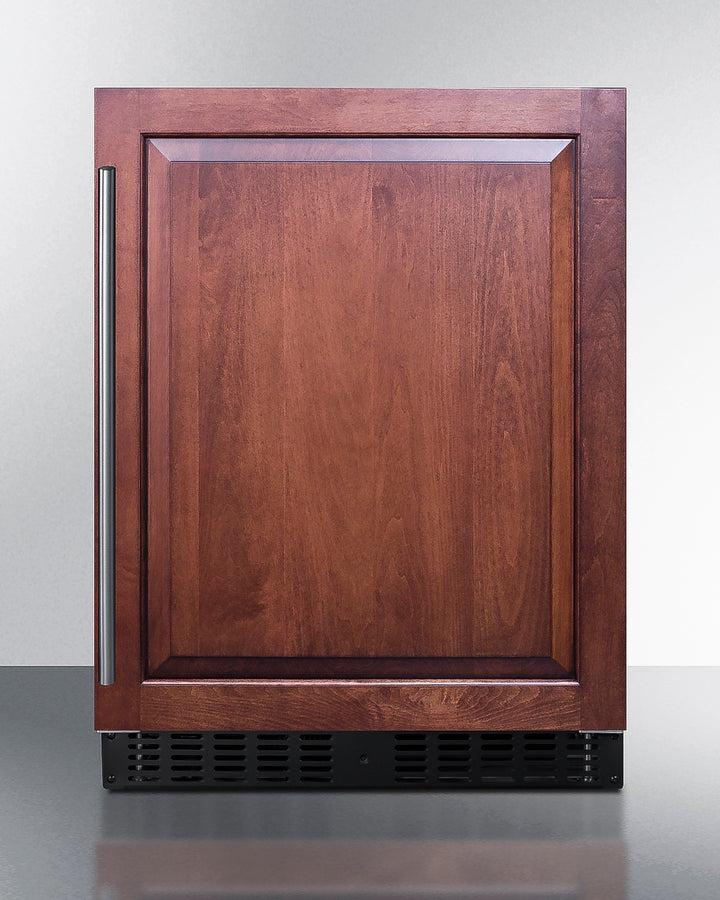

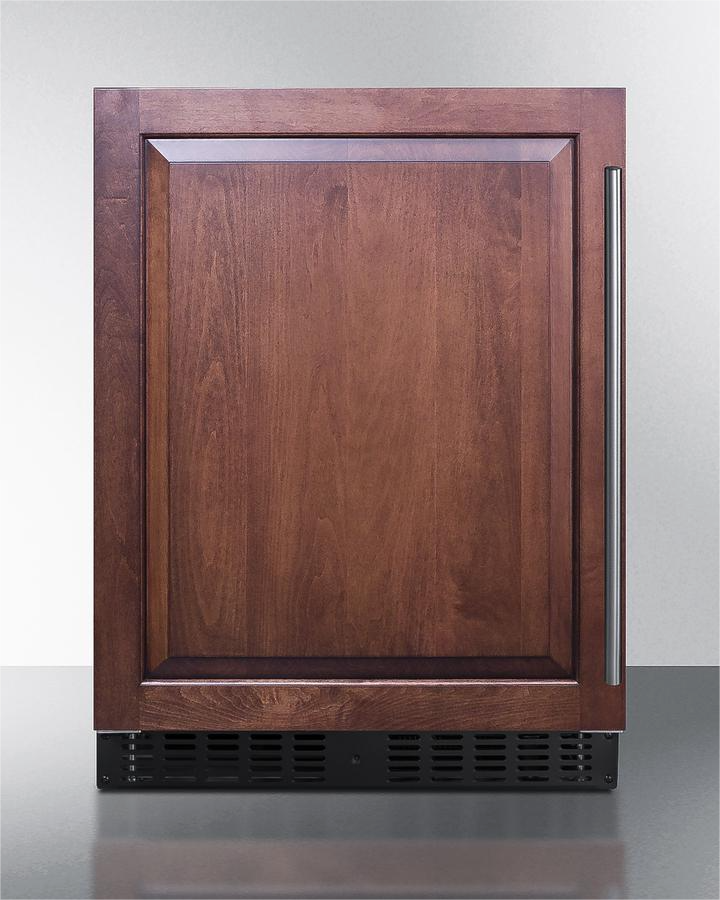

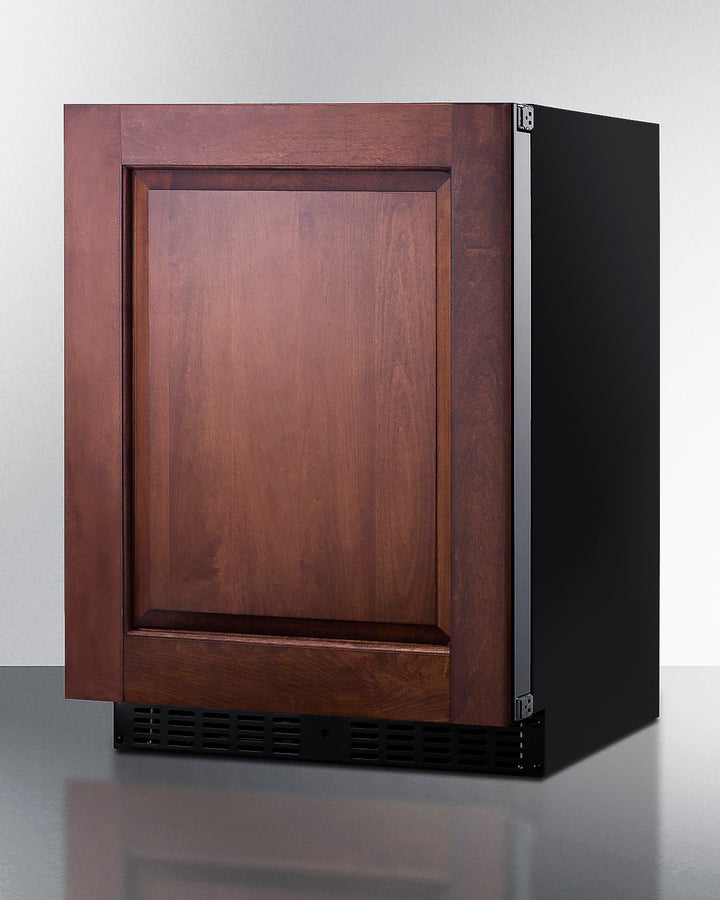

Model ASDS2413 is a 24" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The stainless steel wrapped door is user-reversible and includes a front lock and pro style handle.

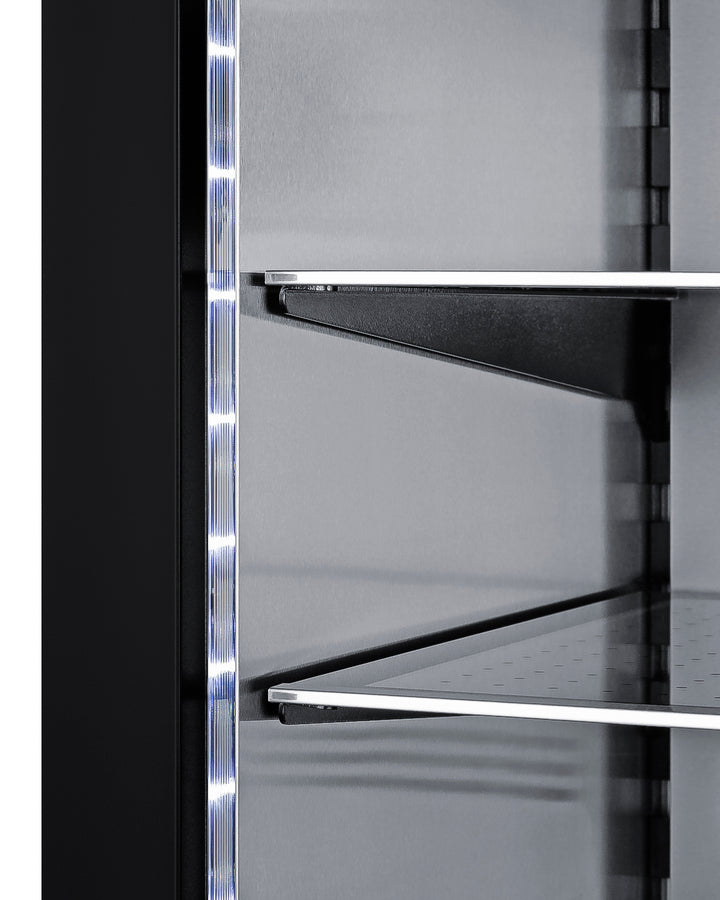

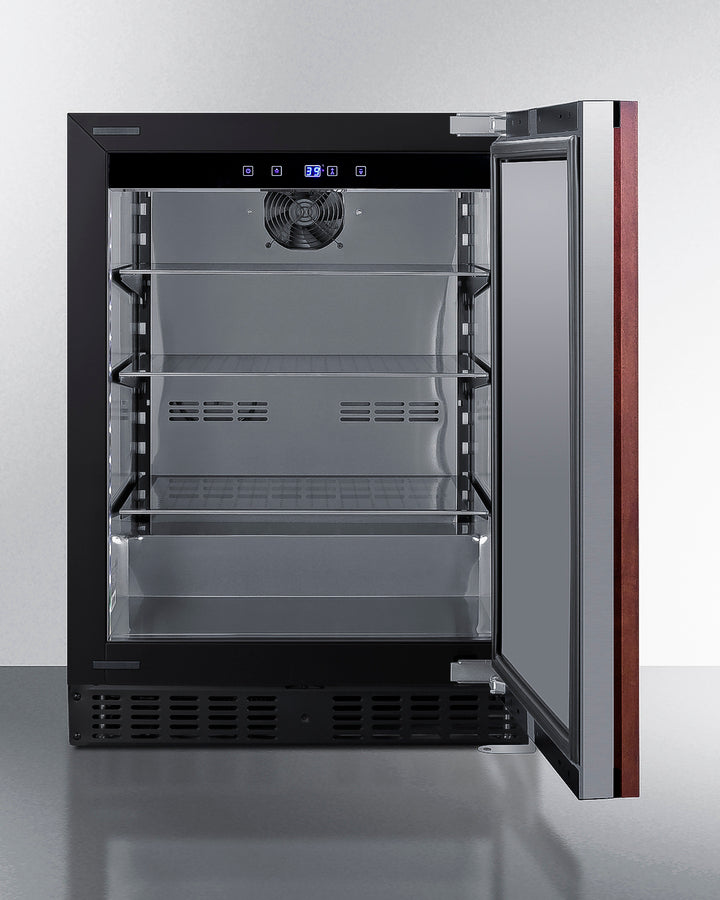

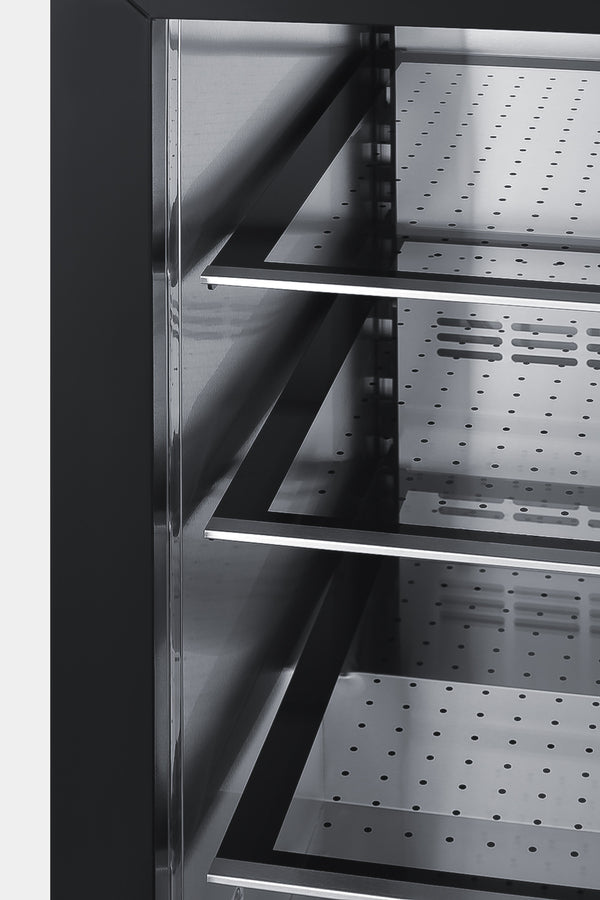

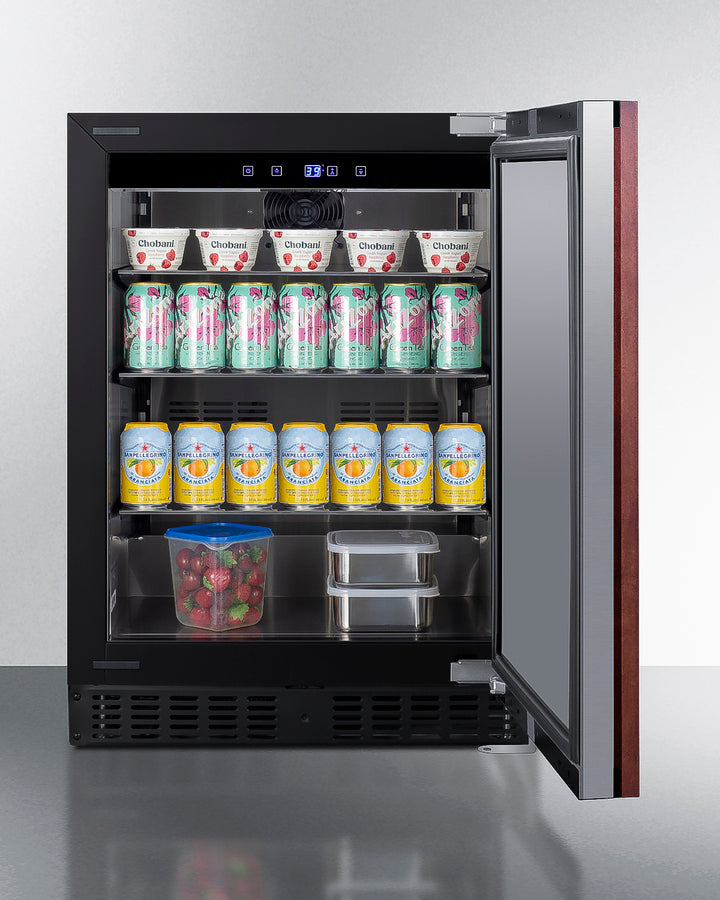

Inside, the ASDS2413 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes a cantilevered shelving system and glass shelves for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
The ASDS2413 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 32.0" (81 cm) | Sabbath Mode | Yes |
| Height of Cabinet | 32.0" (81 cm) | Door Swing | RHD/LHD |
| Nominal Width | 24.0" (61 cm) | Reversible | Factory Reversible |
| Width | 23.38" (59 cm) | Height Adjustable | Yes |
| Nominal Depth | 18.0" (46 cm) | Shelf Type | Chrome |
| Depth | 17.75" (45 cm) | Shelf Qty | 3 |
| Depth with door at 90° | 40.0" (102 cm) | Adjustable Shelves | Yes |
| Capacity | 3.1 cu.ft. (88 L) | Thermostat Type | Digital |
| Defrost Type | Frost-Free | Fan Type | Interior and Exterior |
| Door | Panel-Ready | Refrigerant Type | R600a |
| Cabinet | Black | Refrigerant Amount | 1.38oz. |
| US Electrical Safety | ETL | High Side PSI | 270.0 |
| Canadian Electrical Safety | ETL-C | Low Side PSI | 105.0 |
| Sanitation | ETL-S | Level Legs Qty | 4 |
| Energy Usage/Year | 215.0kWh/year | Interior Light | Yes |
| Amps | 1.0 | Temperature Range | 36 to 43ºF |
| Voltage/Frequency | 115 V AC/60 Hz | Sound Level | 32.9 dB |
| Weight | 89.0 lbs. (40 kg) |

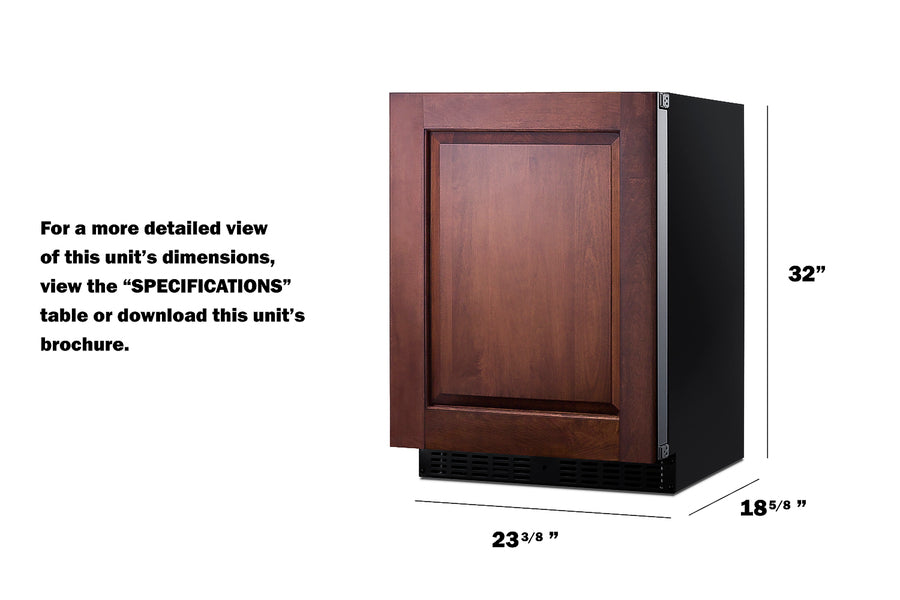

Dimensions
|
|
|---|---|---|---|
| Parts & Labor Warranty | 1 Year | Interior Height | 24.25" (62 cm) |
| Compressor Warranty | 5 Years | Interior Width | 19.5" (50 cm) |
| UPC | 761101088822 | Interior Depth | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) | ||
| Compressor Step Width | 19.5" (50 cm) | ||
| Compressor Step Depth | 4.25" (11 cm) | ||
