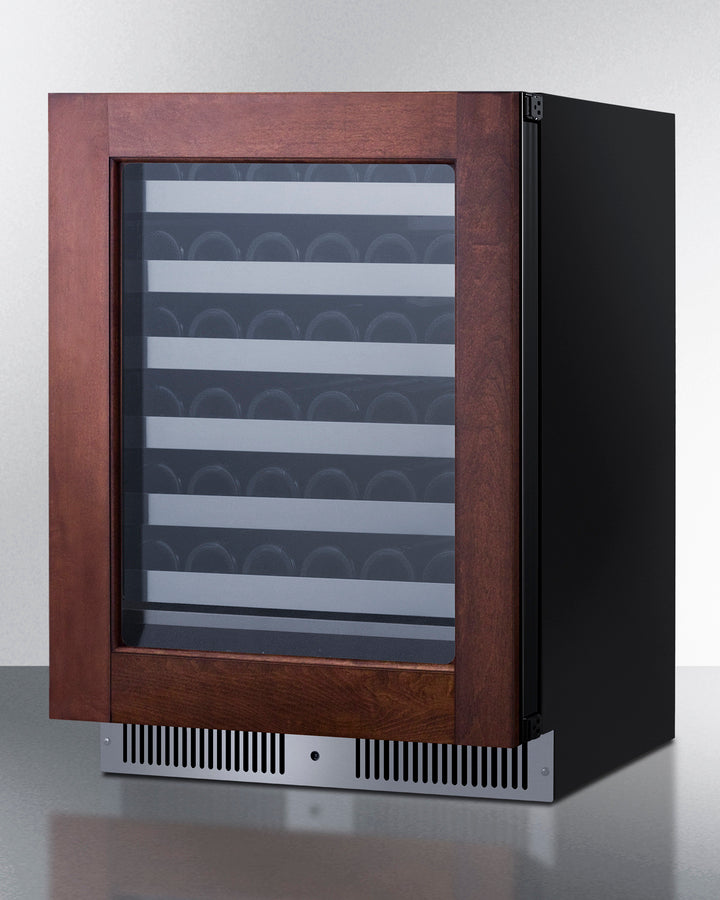

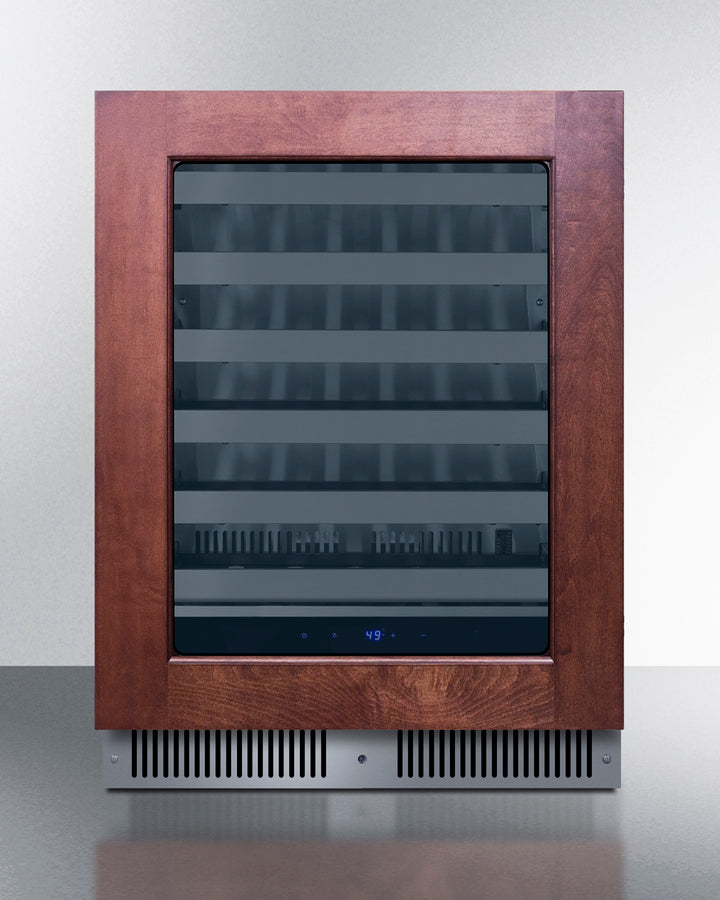

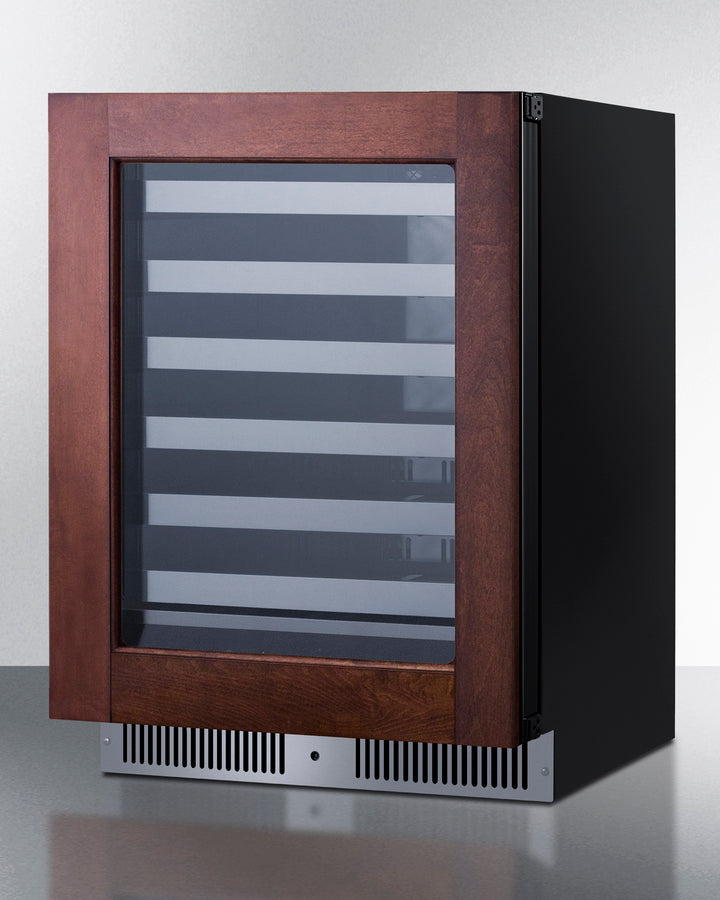

Summit SDHW2442PNR 24″ Wide Shallow-Depth Wine Cellar – Panel-Ready, Glass Door, Built-In

SKU: SA-SDHW2442PNR
Regular price $2,078.40
Digital Controls & Safety Features — 41–68 °F adjustable range, open-door & high-temp alarms, Sabbath mode, LED lighting, lockable door, and memory recall.
Commercial-Grade Cooling & Frost-Free Operation — Fan-forced circulation ensures even temperature; frost-free design keeps maintenance minimal.
33-Bottle Capacity with Adjustable Shelving — Six steel slide-out shelves plus a bottom floor shelf offer flexible bottle arrangement.
33.75" H x 23.38" W x 18.0" D
(86cm H x 59cm W x 46cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-SDHW2442PNR

24" Wide Wine Cellar:
Single zone built-in wine cooler for residential or commercial storage

18" depth:
Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

Built-in capable:
Front-breathing design lets you make the best use of space by installing your appliance under the counter

Commercially approved:
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

Versatile design:
Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of stainless steel door trim

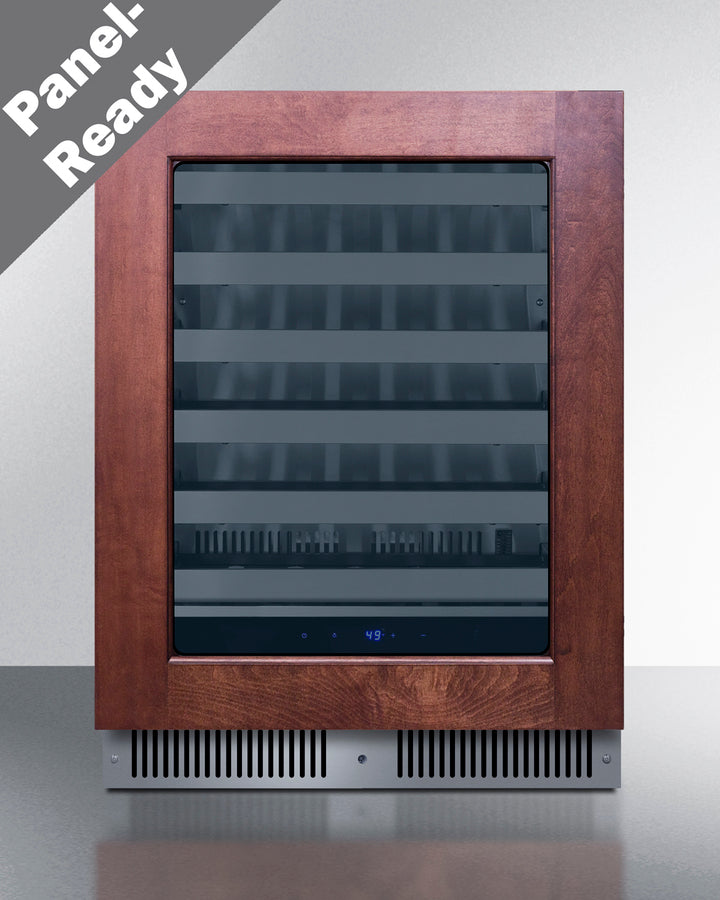

Panel-ready door trim:
European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 23 1/4" W with a 3 1/4" H x 3 1/4" W inner frame

Double pane tempered glass door:
Elegant design offers a clear but protected view of your interior

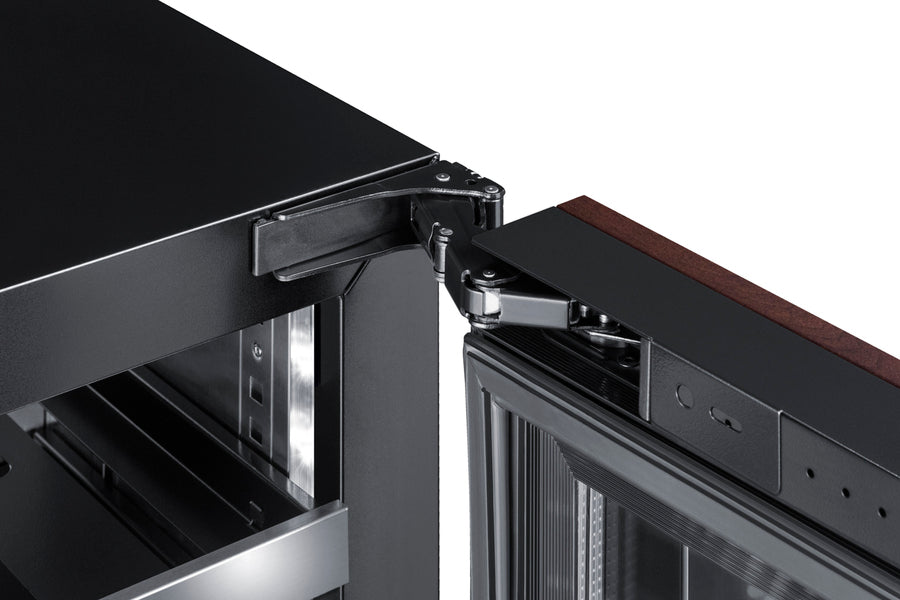

Fully articulating European style hinge:
Smoother opening and a better fit with an integrated European hinge

Factory installed lock:
Keyed lock for a secure interior (2 keys included)

Stainless steel interior:
Walls and floor are constructed from stainless steel for added strength and easy cleanup

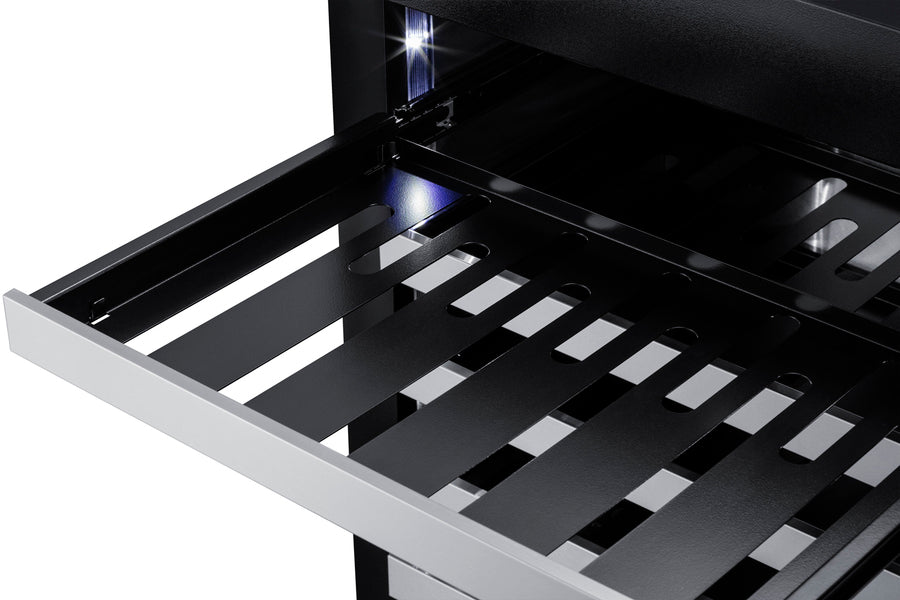

Commercial wine shelving:
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

Frost-free operation:
No-frost operation for minimum user maintenance

Digital controls:
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

Angled Thermostat:
Thermostat’s unique and ergonomic position allows for more accessible temperature readings with zero bending required

Ideal temperature range:
The unit's temperature range of 41º to 68ºF is ideal for red, white, or sparkling wine bottles

Dimmable LED light:
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

High/low temperature alarm:
Audible alarm sounds if the interior temperature rises out of set range

Sabbath mode:
Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature memory function:
Unit will retain its last settings when power is restored in the event of power loss

Large capacity:

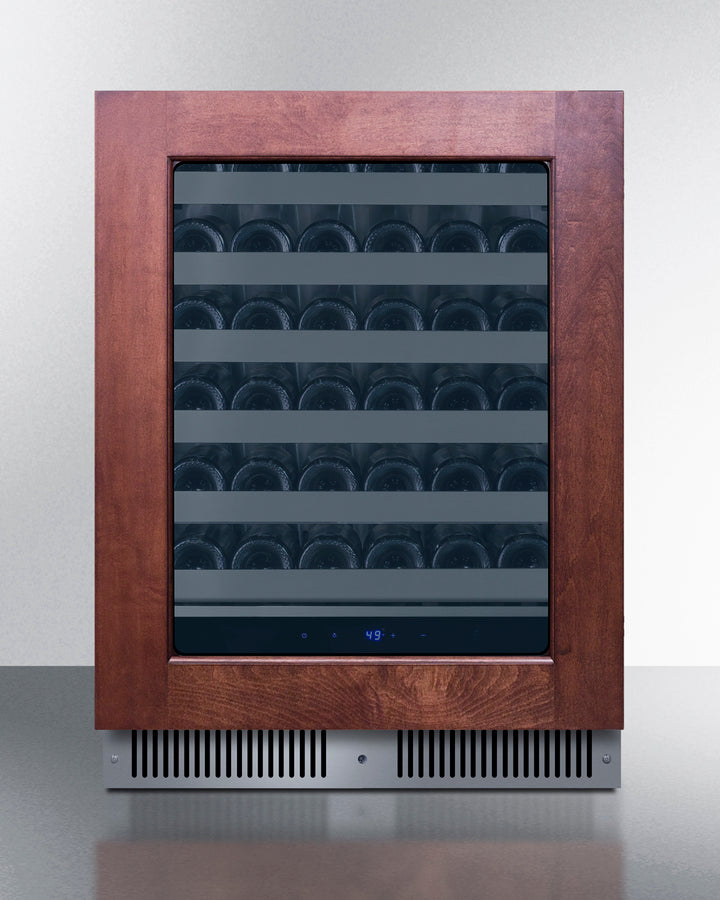

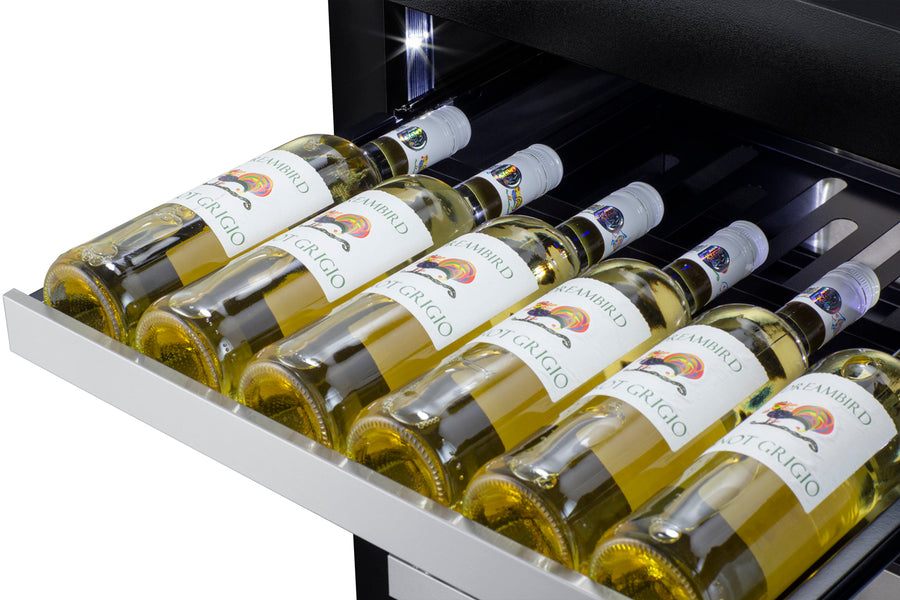

33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)

Internal fan:
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Open door alarm:
Alarm sounds if the door is left open for more than 60 seconds

Fully finished black cabinet:
Allows the unit to be used freestanding

Sealed back:
Space-saving design with no exposed coils that offers easier cleanability

Right angle plug:
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Quiet operation:
Runs under 34 dB for a quiet performance that won't interrupt your conversation

100% CFC free:
Environmentally friendly design with no ozone-damaging chemicals

CARB compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

The SDHW2442PNR is a 24" wide single-zone wine cellar sized at 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The panel-ready SDHW2442PNR features our fully articulating European hinge, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. The user-reversible door swing allows easy adjustment as needed.

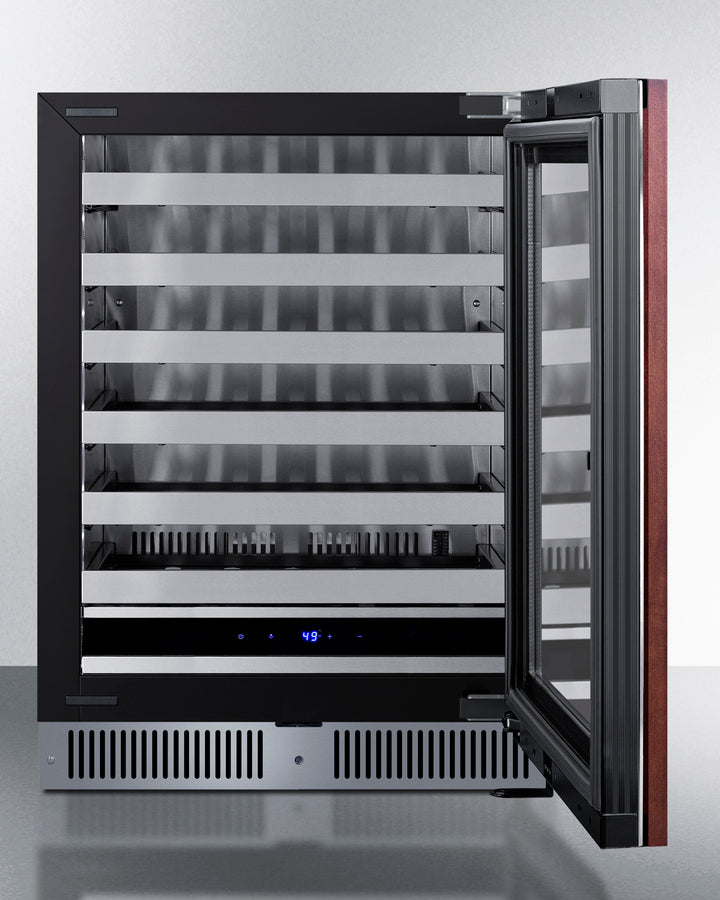

The inside features stainless steel construction for improved durability and sanitation. White LED lighting in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The angled digital control panel enables you to adjust the temperature between 41º and 68ºF to accommodate red, white, or sparkling wine bottles. Our uniquely designed steel shelves in a jet black finish slide out smoothly, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery.

Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances.

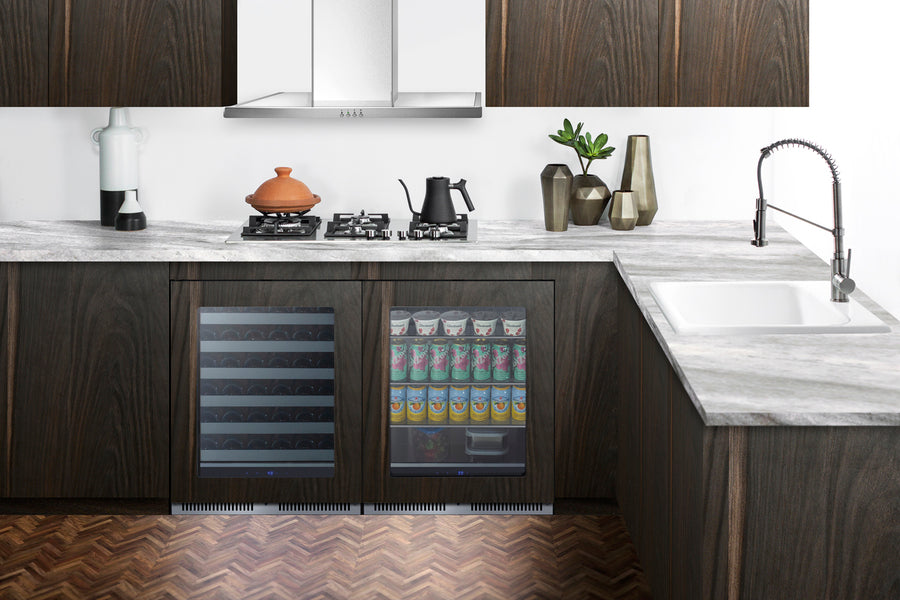

The SDHW2442PNR is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our SDHG2443PNR beverage center.

Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more.

NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.

 Overview


Refrigerator-Freezer



Nominal Height 34.0" (86 cm) Number of Zones 1
Height of Cabinet 33.75" (86 cm) Door Swing RHD
Nominal Width 24.0" (61 cm) Reversible Yes
Width 23.38" (59 cm) Adjustable Shelves Yes
Nominal Depth 18.0" (46 cm) Shelf Type Steel
Depth 18.0" (46 cm) Shelf Qty 6
Depth with Handle 19.75" (50 cm) Thermostat Type Digital
Depth with door at 90° 41.25" (105 cm) Interior Light Yes
Capacity 3.25 cu.ft. (92 L) Fan Type Interior and Exterior
Bottles 33 bottles Refrigerant Type R600a
Defrost Type Frost-Free Refrigerant Amount 1.38 oz.
Door Glass/Panel-Ready Frame High Side PSI 270.0
Cabinet Black Low Side PSI 105.0
US Electrical Safety ETL Interior Height 1 26.0" (66 cm)
Canadian Electrical Safety ETL-C Interior Width 1 19.25" (49 cm)
Sanitation ETL-S Interior Depth 1 12.25" (31 cm)
Amps 1.0 Compressor Step Height 3.75" (10 cm)
Voltage/Frequency 115 V AC/60 Hz Compressor Step Width 19.25" (49 cm)
Weight 114.0 lbs. (52 kg) Compressor Step Depth 5.0" (13 cm)
Parts & Labor Warranty 1 Year Level Legs 4
Compressor Warranty 5 Years Temperature Range 41°F to 68°F
UPC 761101145723 Sabbath Mode Yes


Sound Level 33.4 dB
