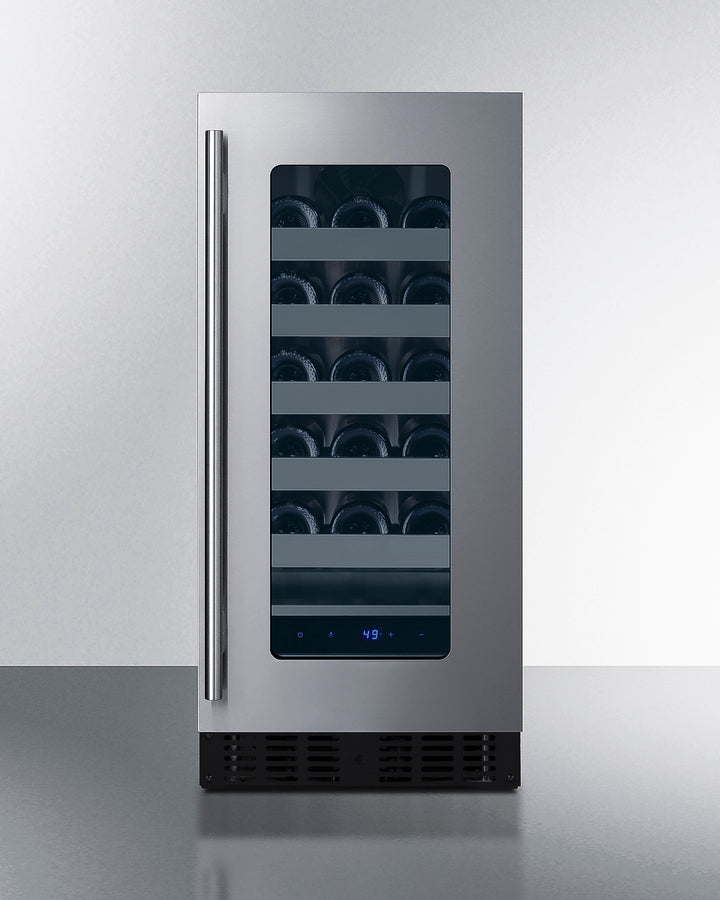

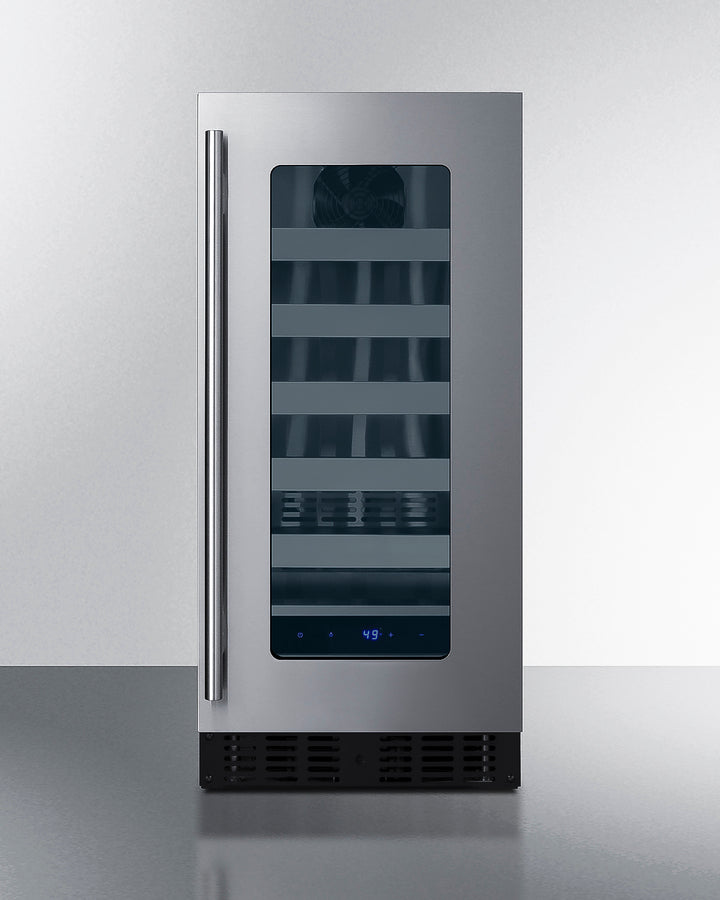

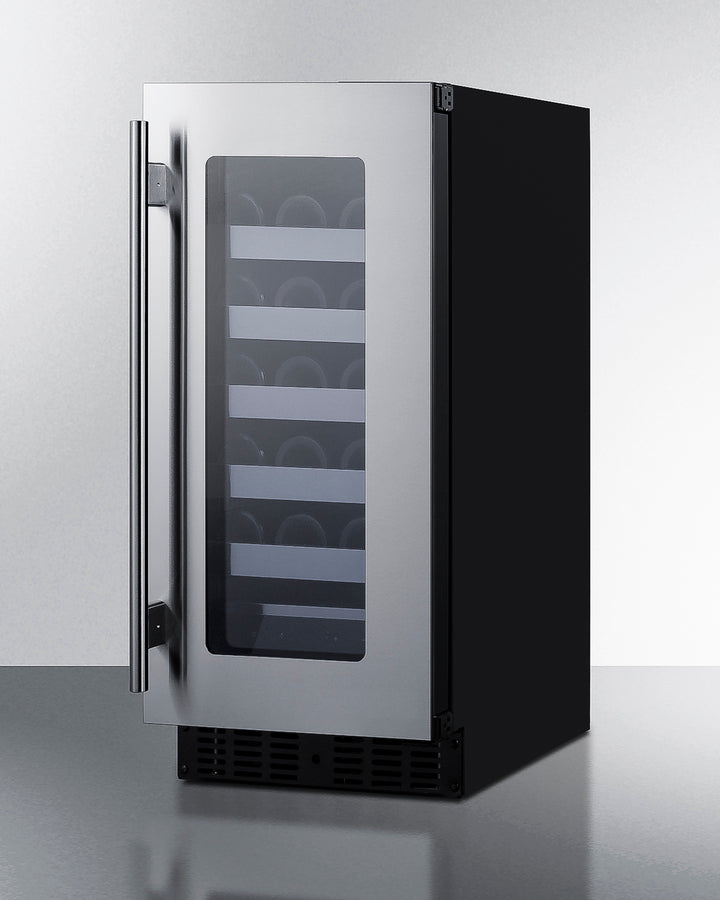

Summit ASDW1522 15″ Wide ADA-Height Shallow Wine Cellar – Glass Door, Built-In

SKU: SA-ASDW1522
Regular price $1,594.40
Frost-Free & Precise Cooling — Fan-forced airflow ensures uniform temperature; automatic (no manual) defrost keeps it low-maintenance.
Commercial-Grade & Feature-Rich — ETL-S listed to NSF-7 for commercial use, tempered glass door, factory-installed lock, digital thermostat (41–64 °F), open-door & high-temp alarm, Sabbath mode, dimmable LED lighting.

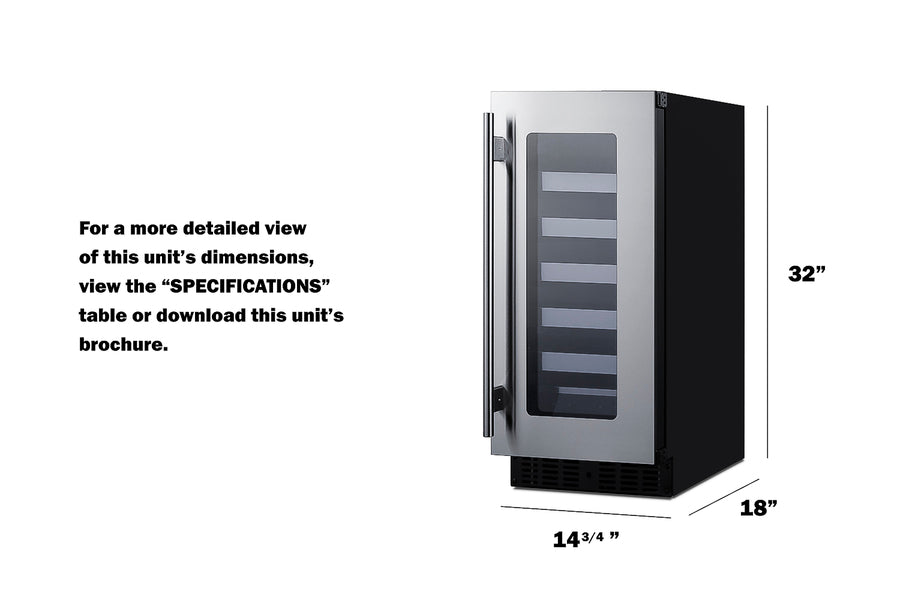

Ultra-Compact 15″ Width & 17.75″ Depth — 14.75″ W × 17.75″ D cabinet fits cleanly into tight undercounter spaces while still offering robust wine storage.
32.0" H x 14.75" W x 17.75" D
(81cm H x 37cm W x 45cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-ASDW1522

15" wide wine cellar:
Single zone wine cooler for residential or commercial cold storage

Less than 18" deep:
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant:
Sized at 32" high for use under lower ADA compliant counters

Adjustable height:
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable:
Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel interior:
Walls and floor are constructed from stainless steel for added strength and easy cleanup

Double pane tempered glass door:
Elegant design offers a clear but protected view of your interior

Seamless stainless steel door trim:
Glass is framed by with a flush one-piece stainless steel trim for an elevated look

Factory installed lock:
Keyed lock for a secure interior (2 keys included)

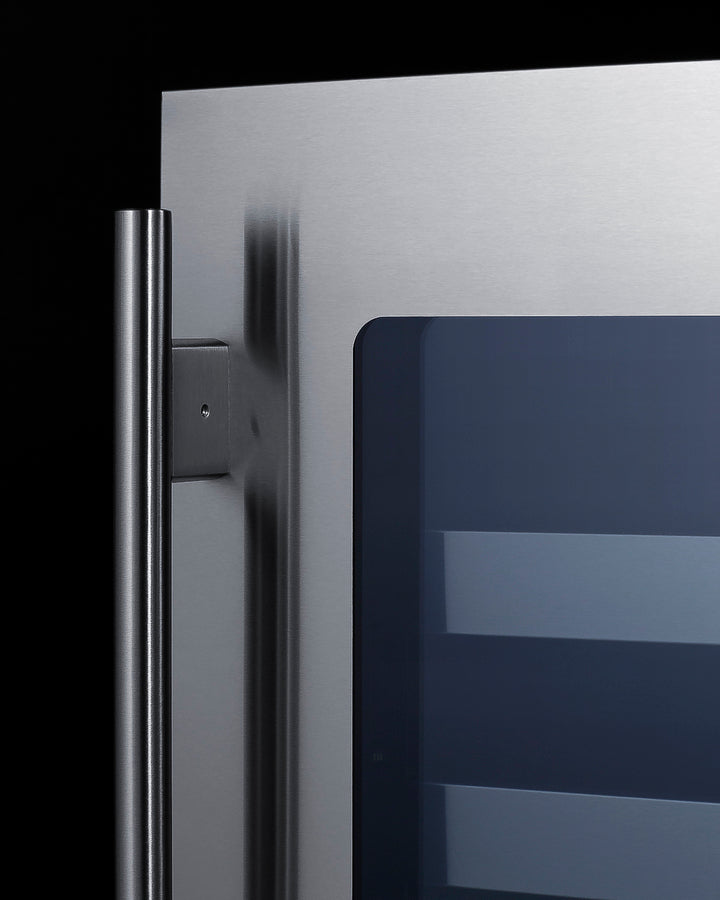

Professional handle:
Stainless steel handle completes the look

Digital thermostat:
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Dimmable LED lighting:
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

Frost-free operation:
No-frost operation for minimum user maintenance

Internal fan:
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

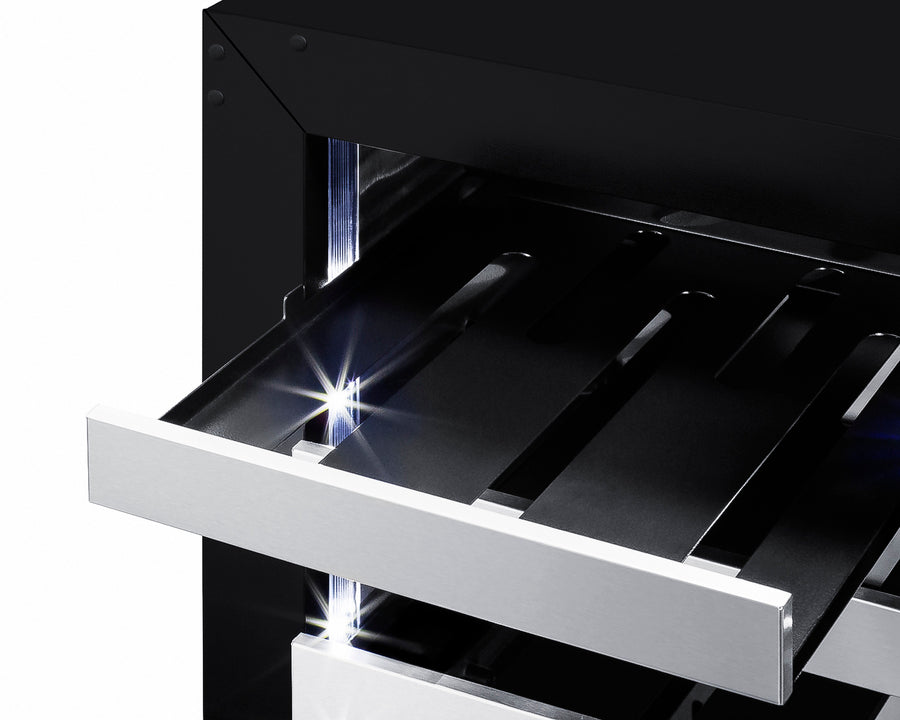

Commercial wine shelving:
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

Open door alarm:
Alarm sounds if the door is left open for more than 60 seconds

High temperature alarm:
Audible alarm sounds if the interior temperature rises out of set range

Sabbath mode setting:
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Temperature Memory Function:
Unit will retain its last settings when power is restored in the event of power loss

Right angle plug:
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back:
Space-saving design with no exposed coils that offers easier cleanability

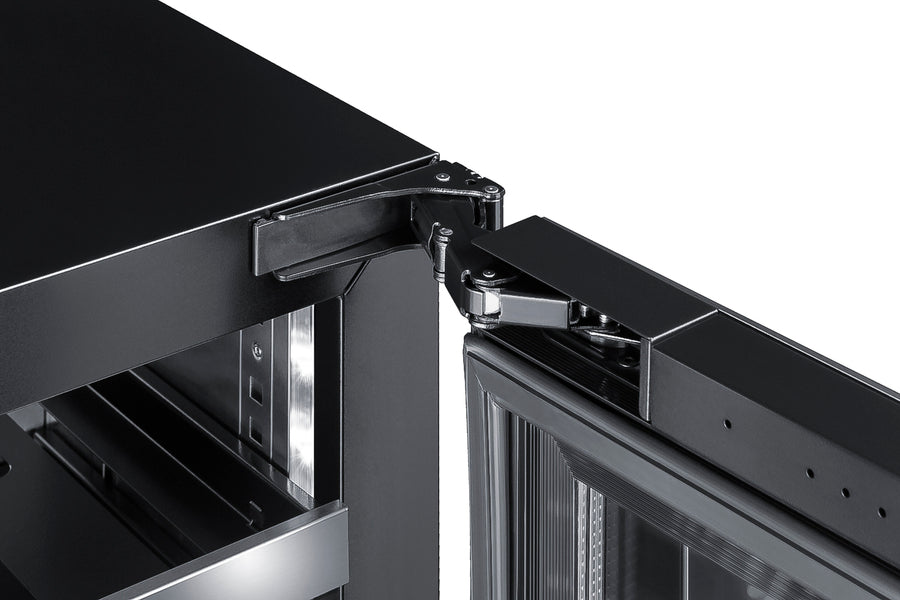

Fully articulating European style hinge:
Smoother opening and a better fit with an integrated European hinge

Reversible door:
User-reversible door swing on the refrigerator for added flexibility

Fully finished black cabinet:
Allows the unit to be used freestanding

Commercially approved:
ETL-S listed to NSF-7 Standards for use in commercial establishments

100% CFC Free:
Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

Model ASDW1522 is a 15" wide single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock to protect your collection.

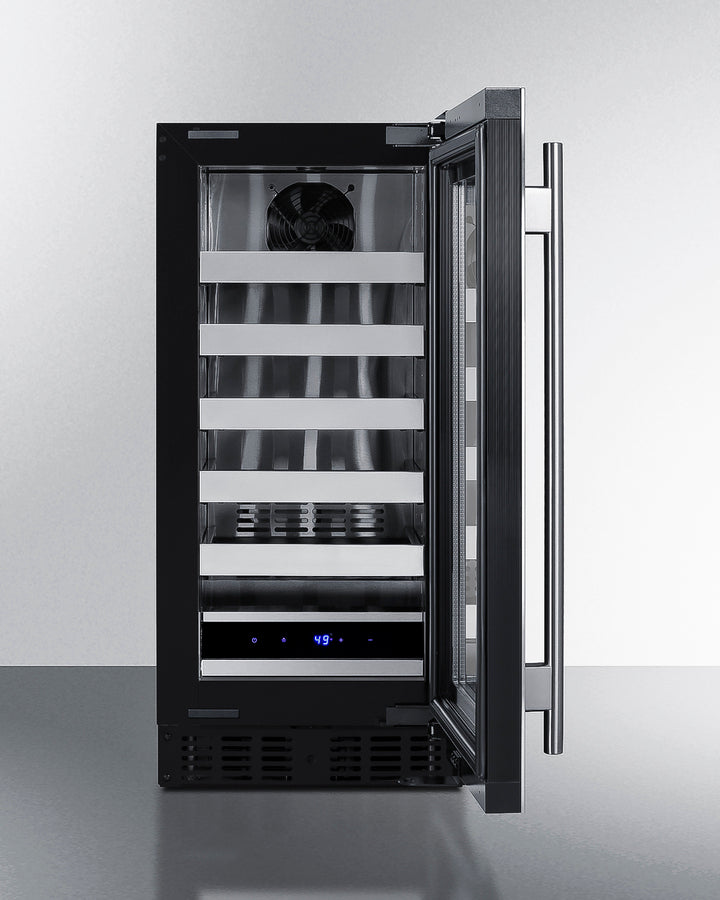

Inside, the ASDW1522 features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41º and 64ºF to accommodate red, white, or sparkling wine. Store bottles on the removable steel shelves complete with stainless steel front trim. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The ASDW1522 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDG1521 beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more.

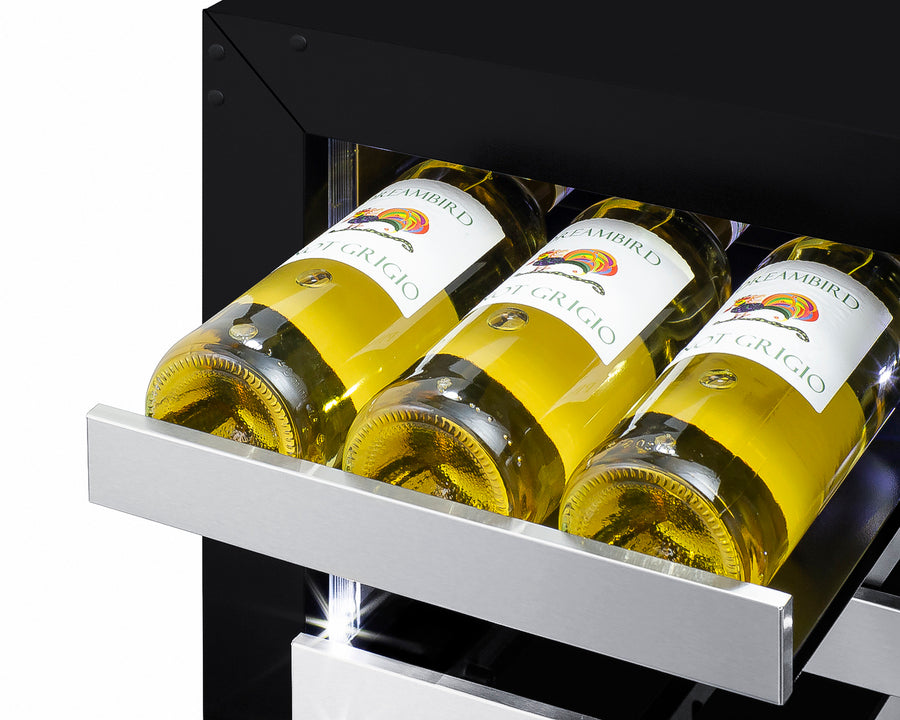

NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.

 Overview


Refrigerator-Freezer



Nominal Height 32.0" (81 cm) Number of Zones 1
Height of Cabinet 32.0" (81 cm) Door Swing RHD
Nominal Width 15.0" (38 cm) Reversible Yes
Width 14.75" (37 cm) Height Adjustable Yes
Nominal Depth 18.0" (46 cm) Adjustable Shelves Yes
Depth 17.75" (45 cm) Shelf Type Steel
Depth with Handle 19.63" (50 cm) Shelf Qty 5
Depth with door at 90° 31.0" (79 cm) Thermostat Type Digital
Capacity 1.8 cu.ft. (51 L) Interior Light Yes
Bottles 18 bottles Fan Type Interior and Exterior
Defrost Type Automatic Refrigerant Type R600a
Door Glass Refrigerant Amount 0.64 oz.
Cabinet Black High Side PSI 270.0
US Electrical Safety ETL Low Side PSI 105.0
Canadian Electrical Safety ETL-C Interior Height 1 20.5" (52 cm)
Sanitation ETL-S Interior Width 1 10.75" (27 cm)
Amps 1.0 Interior Depth 1 12.25" (31 cm)
Voltage/Frequency 115 V AC/60 Hz Compressor Step Height 3.75" (10 cm)
Weight 68.0 lbs. (31 kg) Compressor Step Width 10.75" (27 cm)
Parts & Labor Warranty 1 Year Compressor Step Depth 5.0" (13 cm)
Compressor Warranty 5 Years Level Legs 4
UPC 761101079516 Temperature Range 41º to 64ºF


Sabbath Mode Yes


Sound Level 33 dB
