Summit SCR504SSTBADA 21″ Wide ADA-Height Built-In Commercial All-Refrigerator – Stainless Steel Door, White Cabinet
Customer service
Features
- SKU SA-SCR504SSTBADA
Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use.
Model SCR504SSTBADA is a commercial all-refrigerator sized at just under 21" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar.

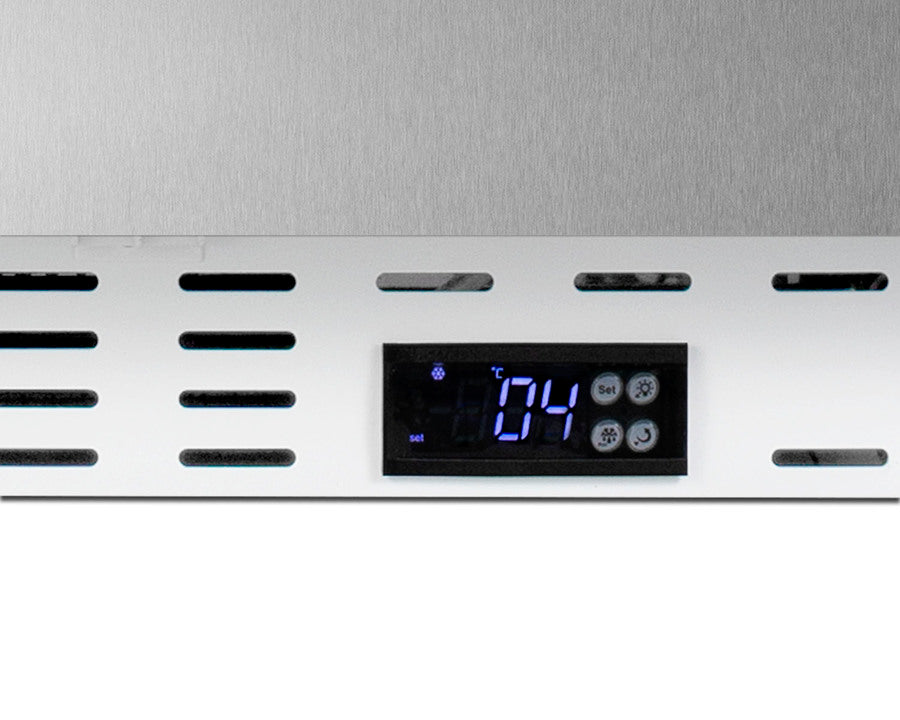

Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius. Inside, this refrigerator includes adjustable wire shelves, automatic LED lighting, and an internal fan to help ensure even cooling throughout the 3.32 cu.ft. interior. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred.
The SCR504SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCF505SSTBADA all-freezer. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, icemakers, reach-in refrigeration, and much more.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.0" (81 cm) | Shelf Type | Wire |
| Nominal Width | 21.0" (53 cm) | Shelf Qty | 4 |
| Width | 20.25" (51 cm) | Thermostat Type | Digital |
| Nominal Depth | 23.0" (58 cm) | Fan Type | Interior |
| Depth | 22.5" (57 cm) | Refrigerant Type | R600a |
| Depth with Handle | 25.0" (64 cm) | Refrigerant Amount | 0.99oz. |
| Depth with door at 90° | 40.25" (102 cm) | High Side PSI | 180.0 |
| Capacity | 3.32 cu.ft. (94 L) | Low Side PSI | 80.0 |
| Defrost Type | Automatic | Level Legs Qty | 2 |
| Door | Stainless Steel | Interior Light | Yes |
| Cabinet | White | Temperature Range | 2 to 8°C |
| US Electrical Safety | ETL |
Dimensions
|
|
|---|---|---|---|
| Canadian Electrical Safety | ETL-C | Interior Height | 23.5" (60 cm) |
| Sanitation | ETL-S | Interior Width | 16.25" (41 cm) |
| Amps | 1.1 | Interior Depth | 17.0" (43 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 6.25" (16 cm) |
| Weight | 69.0 lbs. (31 kg) | Compressor Step Width | 16.25" (41 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 6.0" (15 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101086132 | ||
|
ASSEMBLY DRAWING |
