Summit BIM47OS 15″ Wide Outdoor/Indoor 50 lb Clear-Cube Icemaker – Stainless Steel Cabinet
Customer service
Features
- SKU SA-BIM47OS
Summit's line of commercially approved icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor kitchen space.

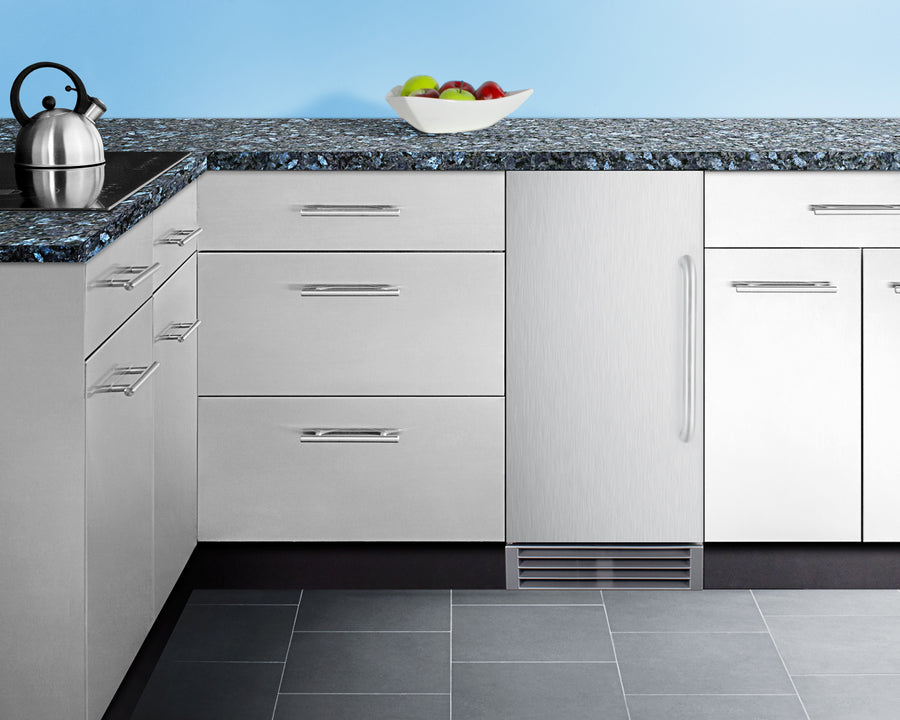

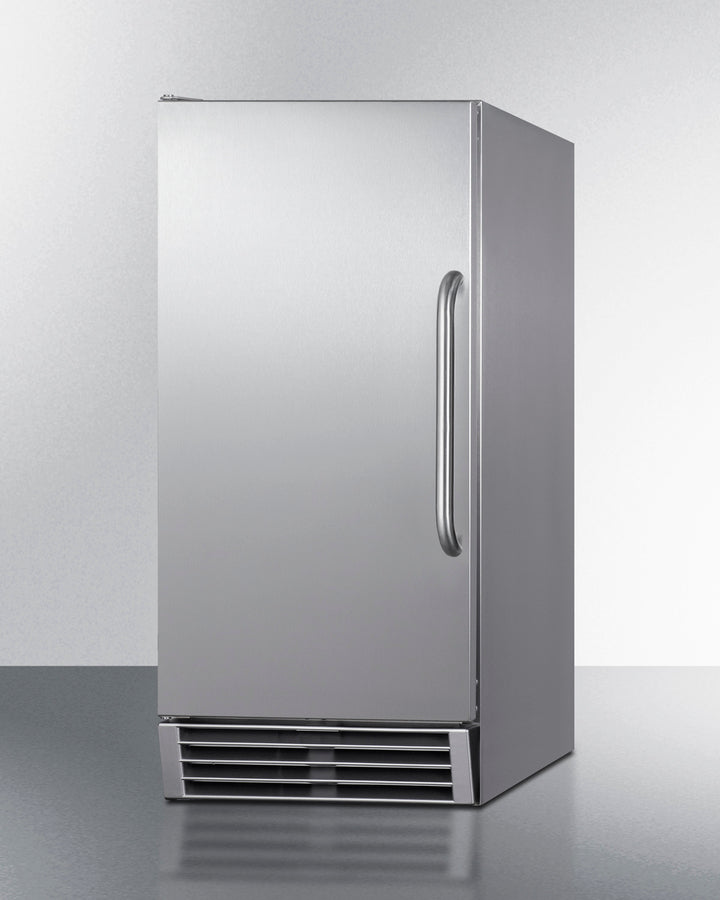

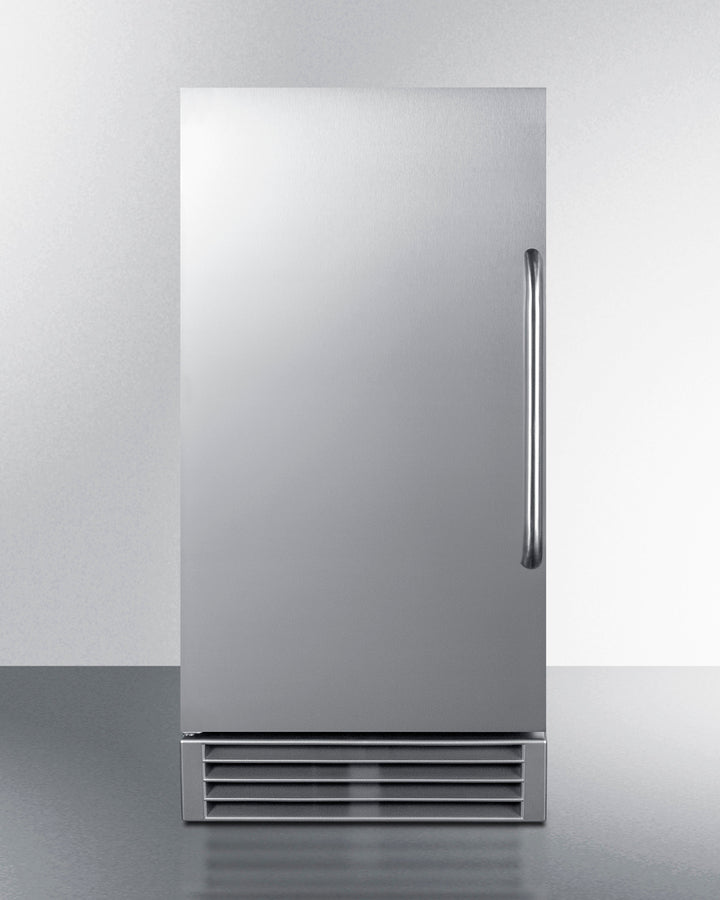

ENERGY STAR certified for commercial use, BIM47OS features a complete stainless steel exterior specially built to hold up to the outdoor elements. The front-breathing design allows built-in use under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. The user-reversible stainless steel door includes a curved towel bar handle for a professional look. NOTE: this unit ships with a left hand door swing that can be reversed before delivery (add suffix RHD) or at home.

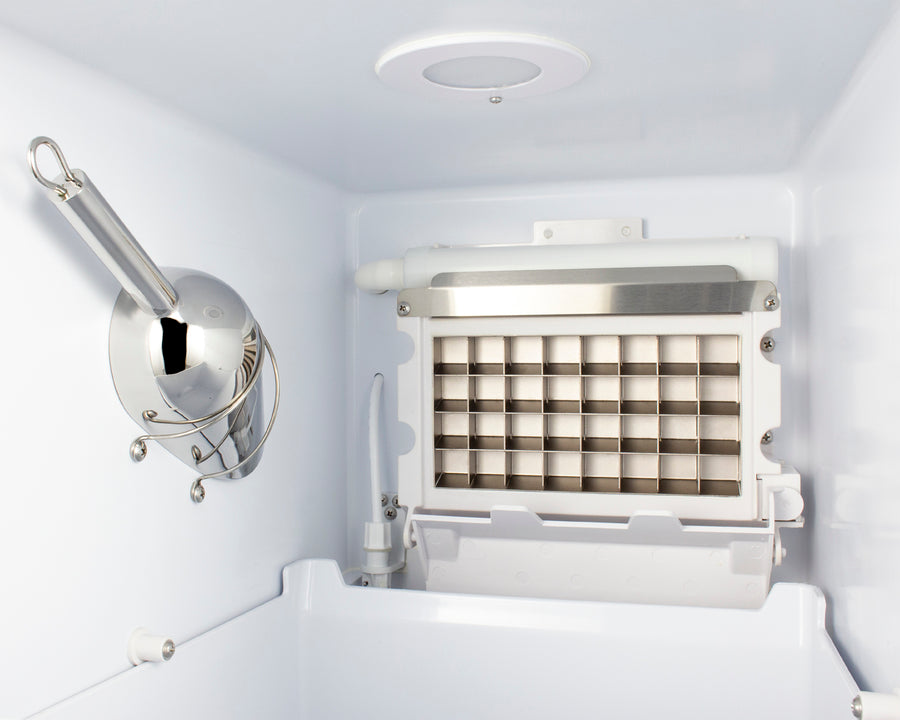

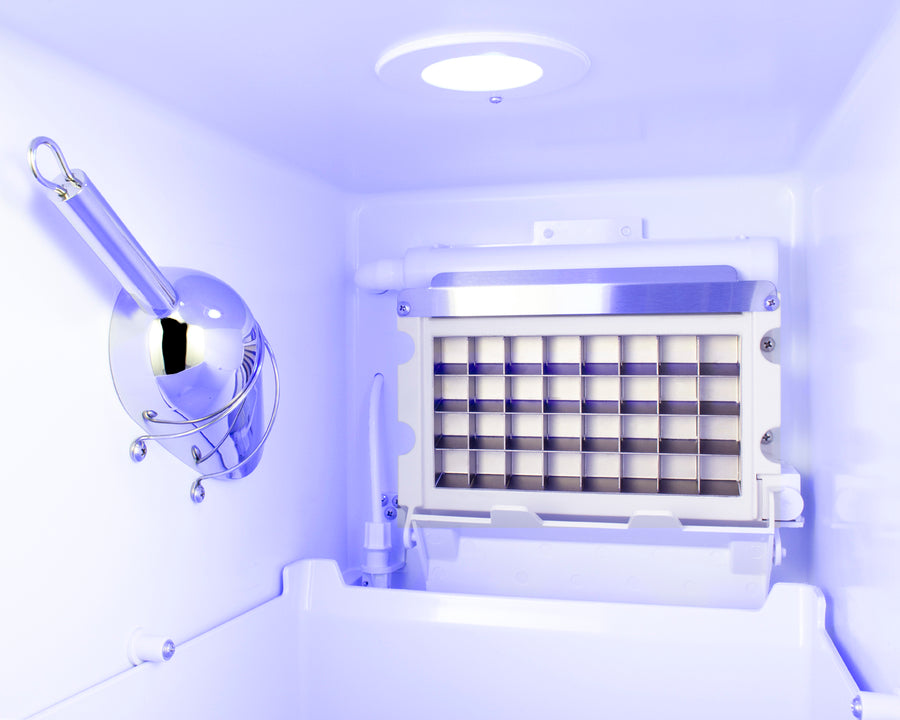

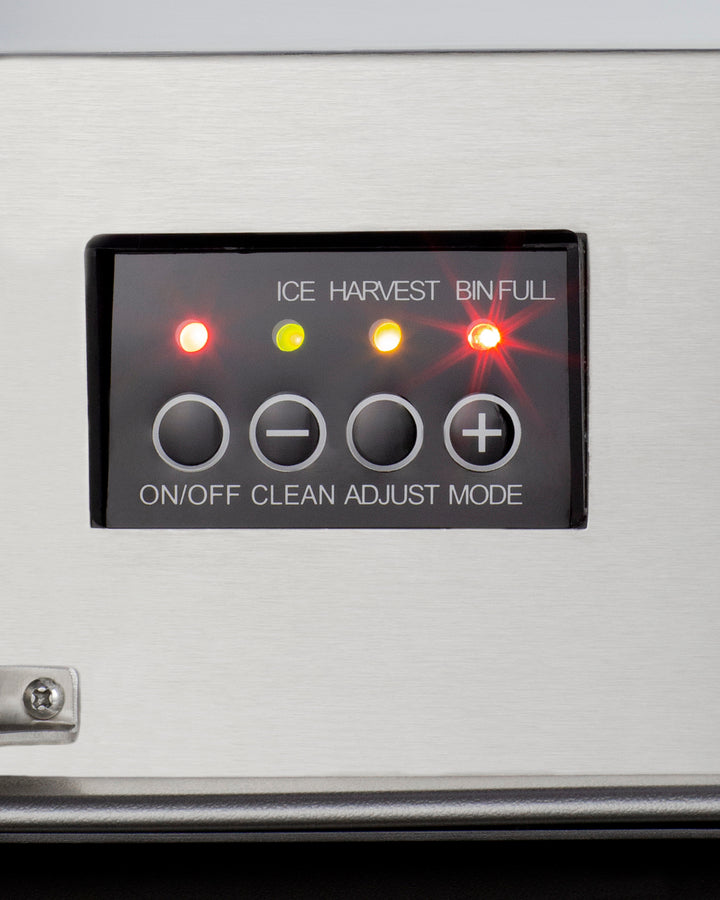

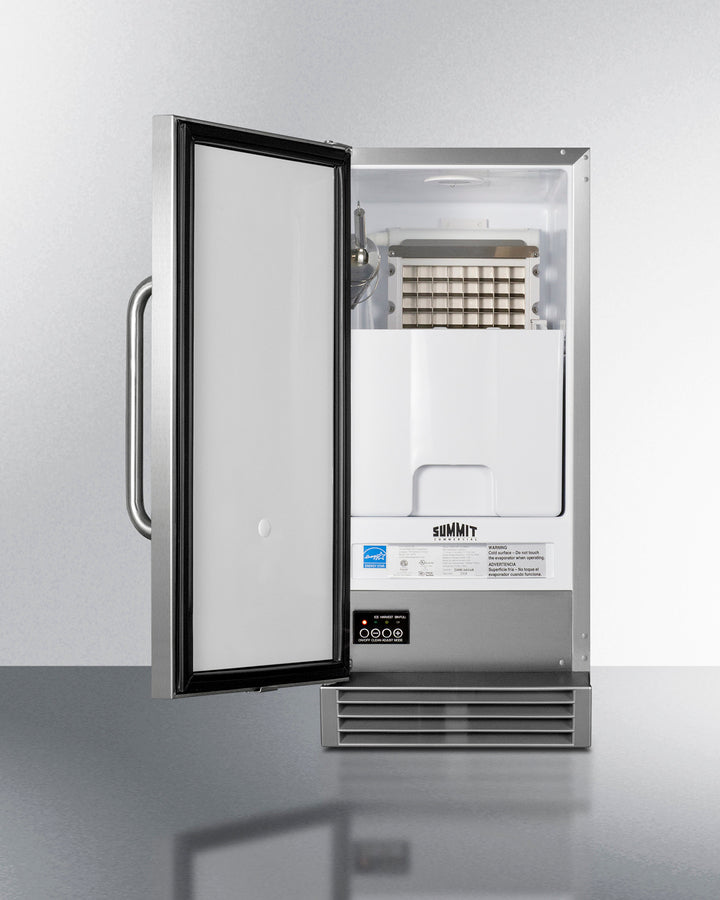

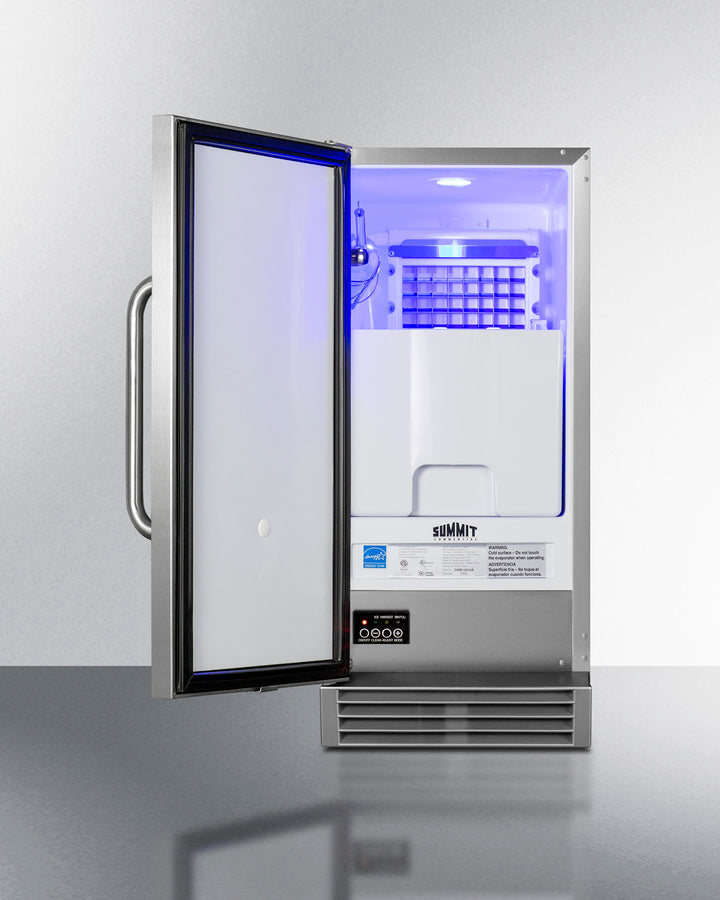

Inside, the BIM47OS has a touch control panel for easy operation. Indicator lights alert users to each step in the production process, as well as to when the bin is full. This unit can produce up to 50 lbs. of clear cube-shaped ice, with an adjustable bin capacity that can hold up to 25 lbs. The ice is produced in sheets and can easily be broken into cubes with the provided stainless steel scoop, which can be mounted on brackets inside for easy use. An interior light in a blue hue allows for easy viewing of the interior, while automatic defrost operation makes maintenance simple and stress-free. This model comes equipped with an internal pump, while four adjustable leveling legs keep the unit level on uneven surfaces.
Sized at 15" wide, BIM47OS is ETL-S listed to NSF-12 for use in foodservice settings and can also be installed in any kitchen or wet bar. For an ADA compliant version of this unit, see the BIM47OSADA.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 33.0" (84 cm) | Door Swing | LHD |
| Height of Cabinet | 33.0" (84 cm) | Reversible | Yes |
| Nominal Width | 15.0" (38 cm) | Drain Required | Yes |
| Width | 14.5" (37 cm) | Daily Ice Production | 50.0 lbs. (23 kg) |
| Nominal Depth | 24.0" (61 cm) | Ice Storage Capacity | 25.0 lbs. (11 kg) |
| Depth | 23.25" (59 cm) | Ice Shape | Cube |
| Depth with Handle | 25.25" (64 cm) | Size of Cube | 7/8" x 7/8" x 7/8" |
| Depth with door at 90° | 36.75" (93 cm) | Number of Ice Cube Sizes | 1 |
| Defrost Type | Automatic | Fan Type | Exterior |
| Door | Stainless Steel | Refrigerant Type | R134a |
| Cabinet | Stainless Steel | Refrigerant Amount | 3.88 oz. |
| US Electrical Safety | UL | High Side PSI | 350.0 |
| Canadian Electrical Safety | ULC | Low Side PSI | 130.0 |
| Sanitation | ETL-S | Interior Height | 18.5" (47 cm) |
| Amps | 4.8 | Interior Width | 12.0" (30 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Interior Depth | 16.0" (41 cm) |
| Weight | 100.0 lbs. (45 kg) | Level Legs | 4 |
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101067742 |
|
ASSEMBLY DRAWING |
