Summit BIM68OSPUMPIF 15″ Wide Outdoor/Indoor Clear Icemaker – Panel-Ready, Stainless Steel, 62 lb/day
Customer service
Features
- SKU SA-BIM68OSPUMPIF
Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location.

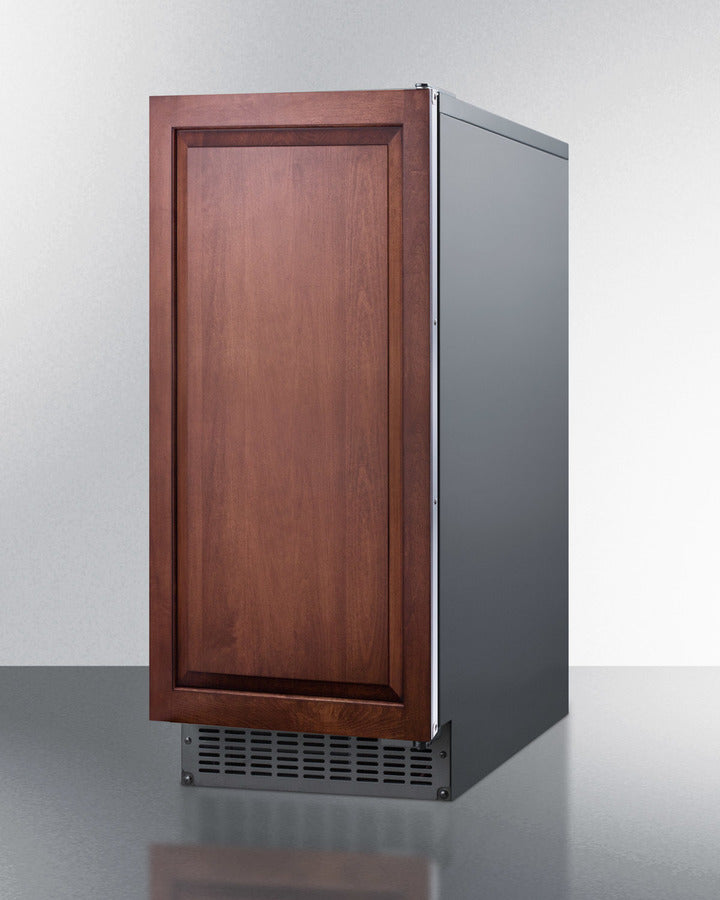

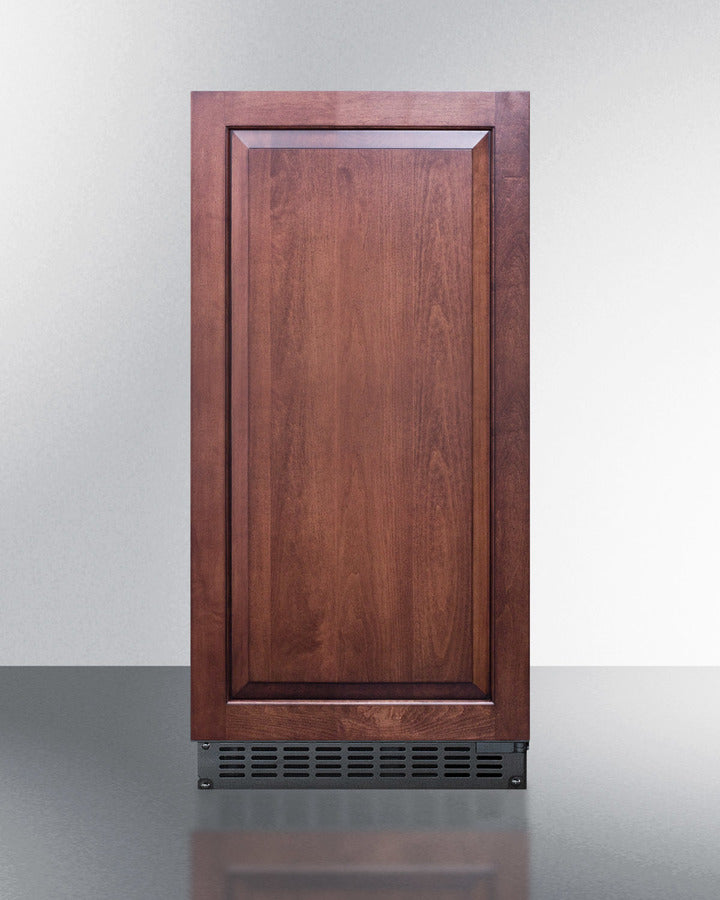

Sized at 15" wide, the BIM68OSPUMPIF features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The door is designed with a powerful magnetic gasket to ensure proper insulation. An integrated stainless steel door frame is designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry decor (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick). The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet lets the unit be used freestanding. The internal pump allows more flexibility in where you choose to place the unit. This unit has a sealed back to ensure added outdoor protection and easier cleanup.

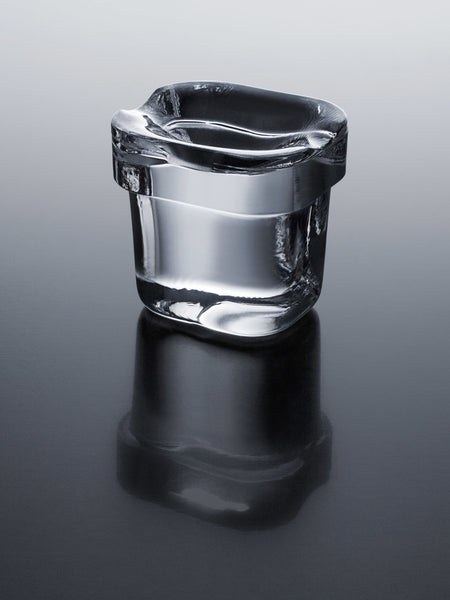

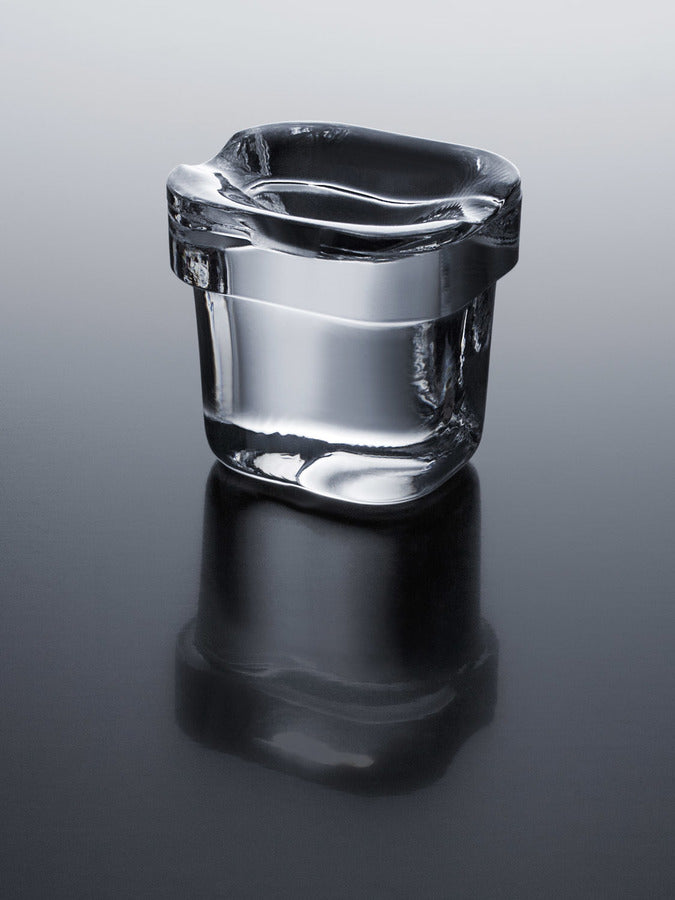

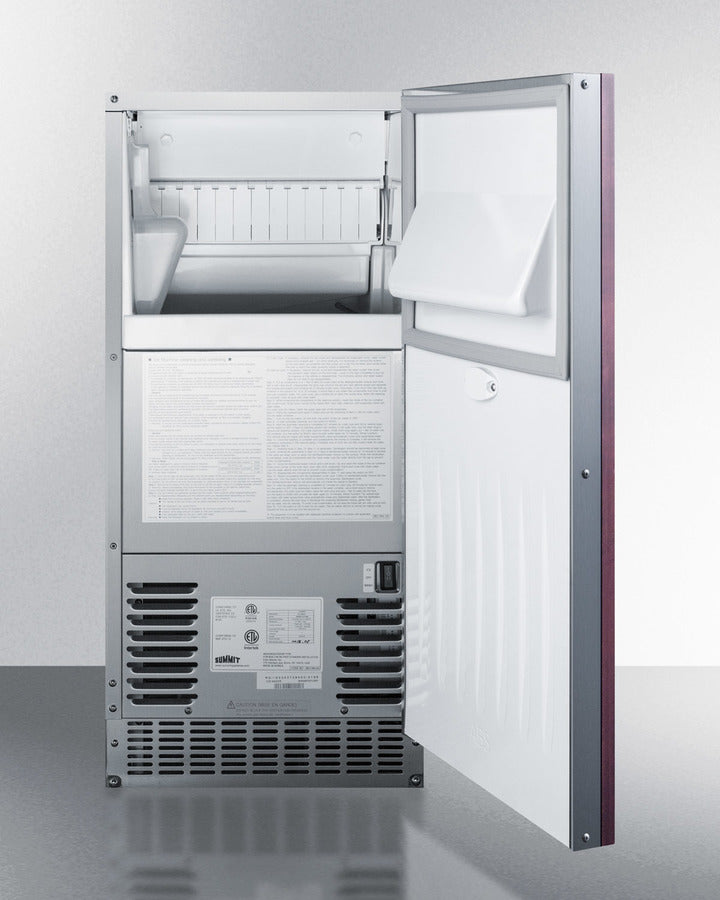

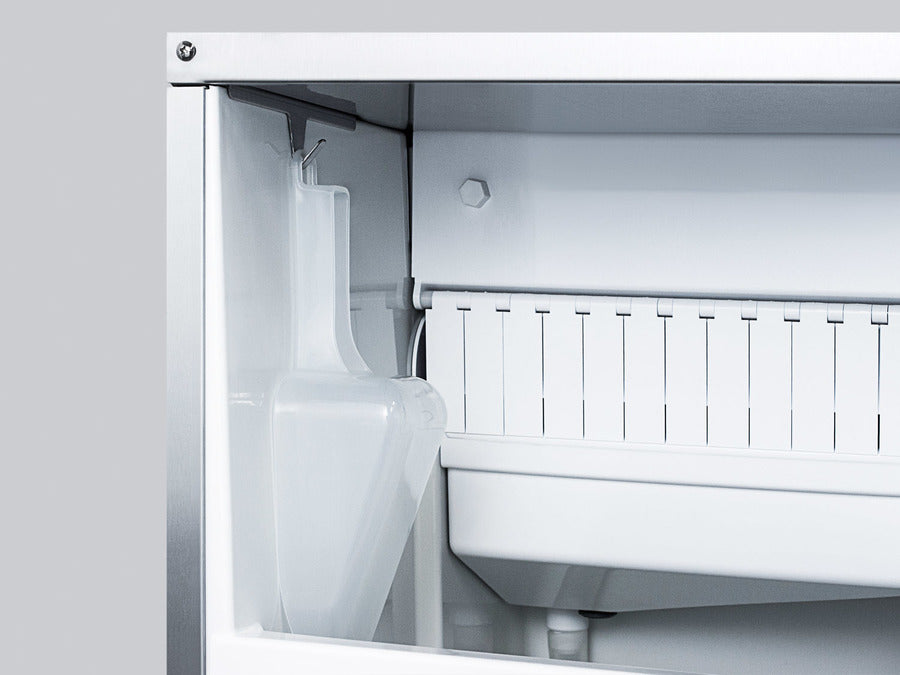

The BIM68OSPUMPIF produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 47 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use. Frost-free operation eliminates the need to defrost the interior.
Designed and manufactured for us in South Korea, the BIM68OSPUMPIF is UL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar.
NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 34.0" (86 cm) | Door Swing | RHD |
| Height of Cabinet | 33.5" (85 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 33.63" (85 cm) | Daily Ice Production | 47.0 lbs. (21 kg) |
| Nominal Width | 15.0" (38 cm) | Ice Storage Capacity | 26.0 lbs. (12 kg) |
| Width | 14.88" (38 cm) | Ice Shape | Top hat |
| Nominal Depth | 23.0" (58 cm) | Size of Cube | 1 1/4" H x 1 1/8" W x 1 1/8" D |
| Depth | 22.63" (57 cm) | Number of Ice Cube Sizes | 1 |
| Depth with door at 90° | 37.25" (95 cm) | Fan Type | Exterior |
| Capacity | 0.98 cu.ft. (28 L) | Refrigerant Type | R600a |
| Defrost Type | Frost-Free | Refrigerant Amount | 3.5 oz. |
| Door | Panel-Ready | High Side PSI | 127.0 |
| Cabinet | Stainless Steel | Low Side PSI | 40.0 |
| US Electrical Safety | UL | Interior Height | 12.75" (32 cm) |
| Canadian Electrical Safety | ULC | Interior Width | 12.75" (32 cm) |
| Sanitation | UL-S | Interior Depth | 9.25" (23 cm) |
| Amps | 1.7 | Level Legs | 4 |
| Voltage/Frequency | 115 V AC/60 Hz | ||
| Weight | 105.0 lbs. (48 kg) | ||
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101061795 |
