Summit BIM18SSADA 18″ Wide Built-In/Counterside Icemaker – 8 lb Production/Storage, Stainless-Steel Door, ADA-Compliant Height
Customer service
Features
- SKU SA-BIM18SSADA
Summit brings convenient luxury under the counter with built-in icemakers uniquely sized for use in ADA compliant settings.

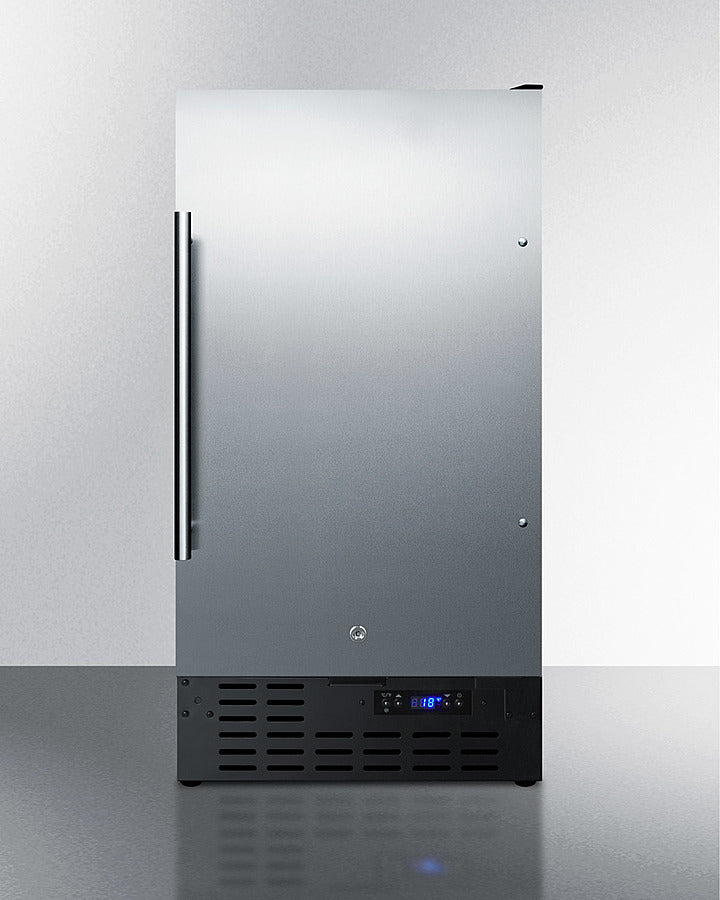

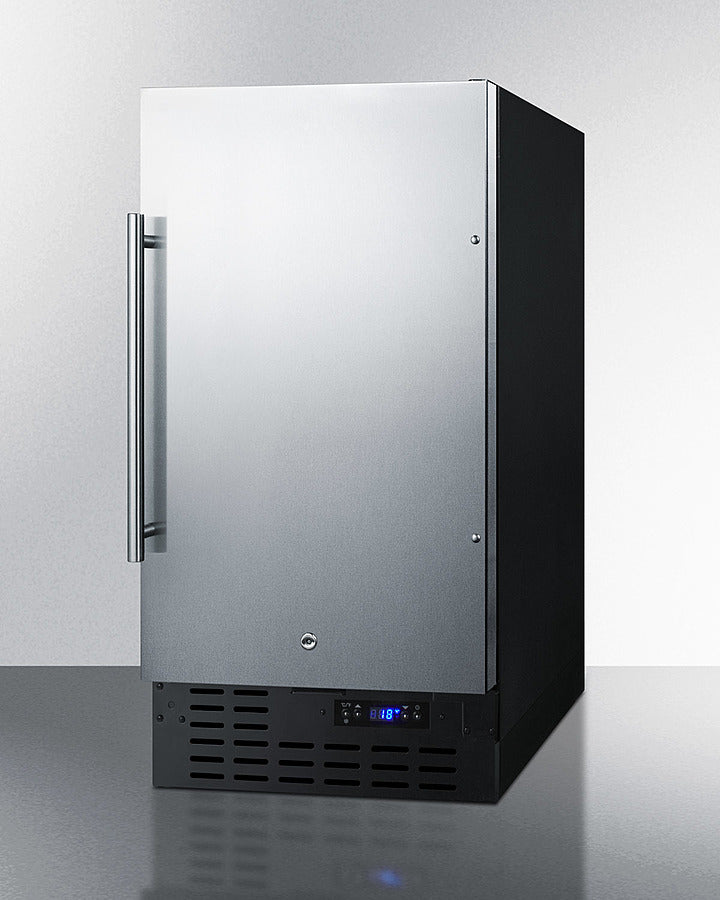

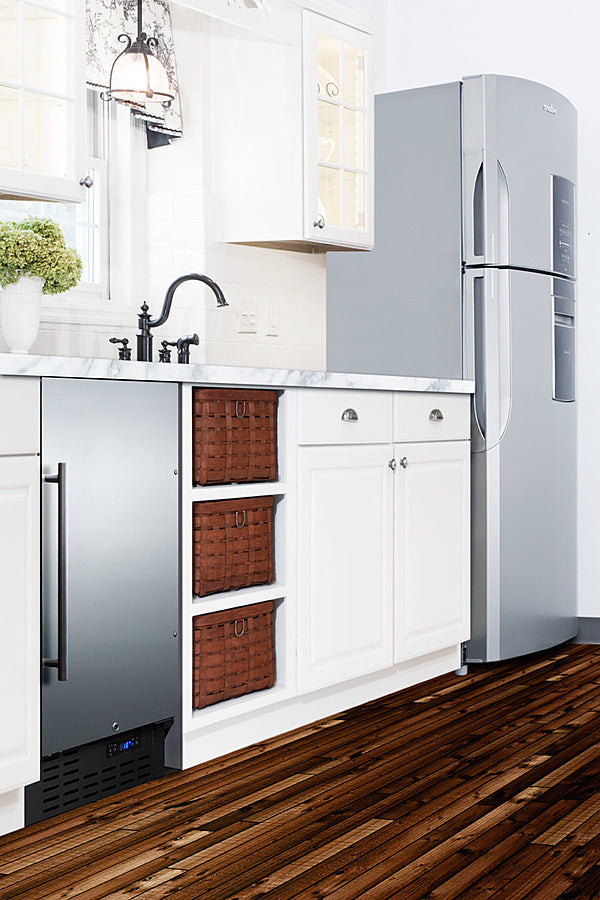

Sized just under 18 inches wide and 32 inches high, the BIM18SSADA is ideal for installation under lower counters following ADA compliant guidelines. The 304 grade stainless steel wrapped door is user-reversible to best fit your setting. We include a pro style handle and front-mounted keyed lock for optional security. No drain or pump is required for use, offering more flexibility in where you place the unit.

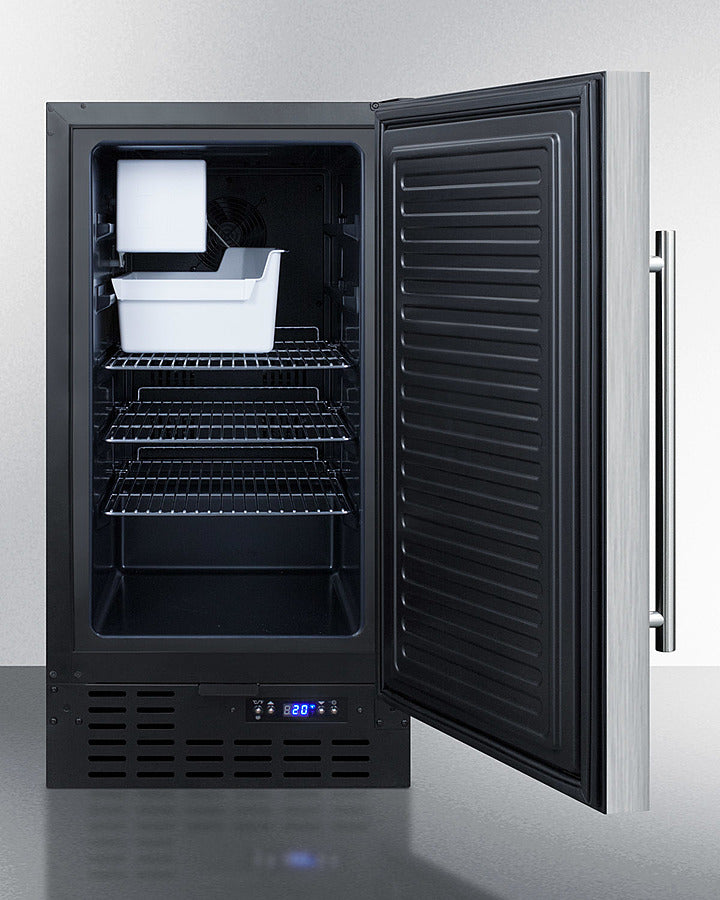

Inside, the BIM18SSADA can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance.

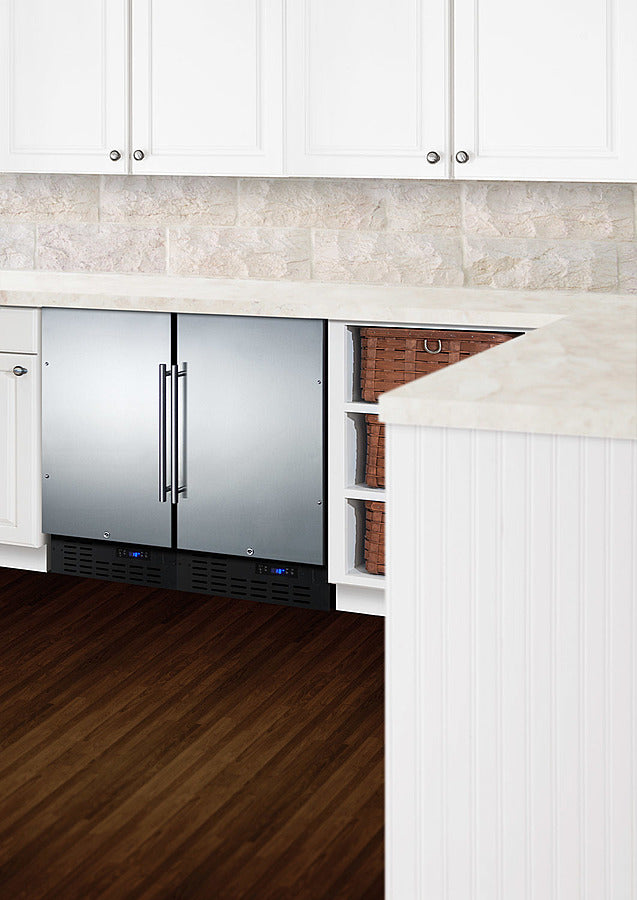

With its ideal size and user-friendly design, the BIM18SSADA is a great solution to keeping a steady supply of ice on hand in ADA compliant kitchen spaces. Matching 18 inch wide refrigerators, beverage centers, and wine cellars are also available. Browse our website to explore our complete selection.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.38" (80 cm) | Reversible | Yes |
| Nominal Width | 18.0" (46 cm) | Daily Ice Production | 8.0 lbs. (4 kg) |
| Width | 17.75" (45 cm) | Ice Storage Capacity | 8.0 lbs. (4 kg) |
| Nominal Depth | 24.0" (61 cm) | Ice Shape | Crescent |
| Depth | 24.0" (61 cm) | Number of Ice Cube Sizes | 1 |
| Depth with Handle | 25.75" (65 cm) | Interior Light | Yes |
| Depth with door at 90° | 40.0" (102 cm) | Fan Type | Interior and Exterior |
| Capacity | 2.7 cu.ft. (76 L) | Refrigerant Type | R600a |
| Defrost Type | Frost-Free | Refrigerant Amount | 1.06 oz. |
| Door | Stainless Steel | High Side PSI | 270.0 |
| Cabinet | Black | Low Side PSI | 103.0 |
| US Electrical Safety | ETL | Interior Height | 23.5" (60 cm) |
| Canadian Electrical Safety | ETL-C | Interior Width | 12.75" (32 cm) |
| Amps | 1.1 | Interior Depth | 16.75" (43 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 4.5" (11 cm) |
| Weight | 82.0 lbs. (37 kg) | Compressor Step Width | 12.75" (32 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 4.5" (11 cm) |
| Compressor Warranty | 5 Years | Level Legs | 4 |
| UPC | 761101063713 | Temperature Range | -22 to 14ºF |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
