Summit BIM182IF 18″ Wide Built-In Clear Ice Maker – Panel-Ready Door, 60 lb/Day Production, 33 lb Storage

SKU: SA-BIM182IF
(0)
$2,792.50
High-capacity clear ice production: up to 60 lb/day with 33 lb storage – Offers commercial-grade output of crisp .87″ square cubes and allows users to select from three cube sizes for versatility.
Premium operational features for ease & cleanliness – Includes built-in pump (for flexible drain placement), automatic defrost, UV-interior lighting (to help reduce germs), removable ice bucket and built-in scoop hook.
Eco-aware design and under-counter installation friendly – Uses R290 hydrocarbon refrigerant for greener performance, features sealed back, right-angle plug and fully finished steel cabinet for both built-in or freestanding placement.

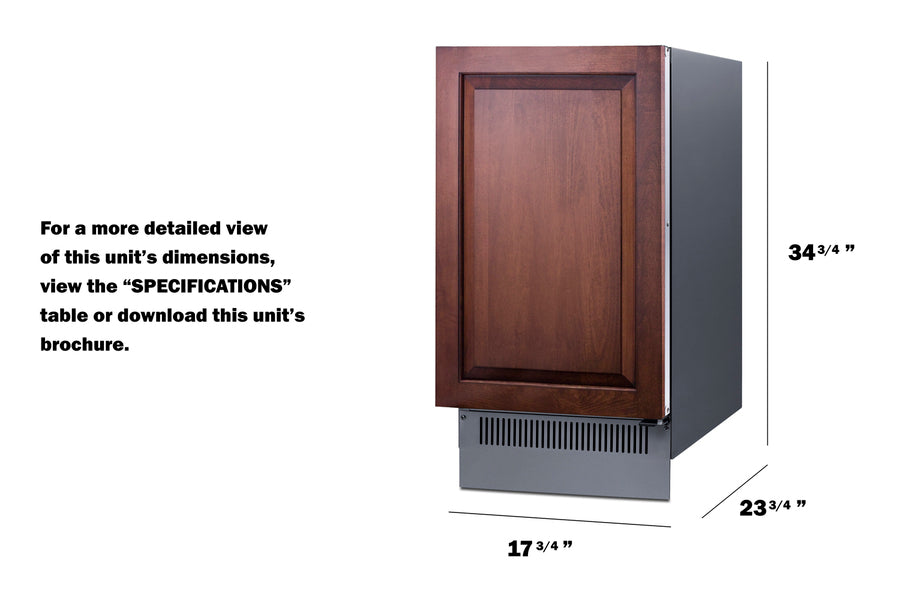

34.75" H x 17.75" W x 23.75" D
(88cm H x 45cm W x 60cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Customer service

Video chat Chat Email 800-626-0854

Features

  • SKU SA-BIM182IF

18" Wide Clear Icemaker:
Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings

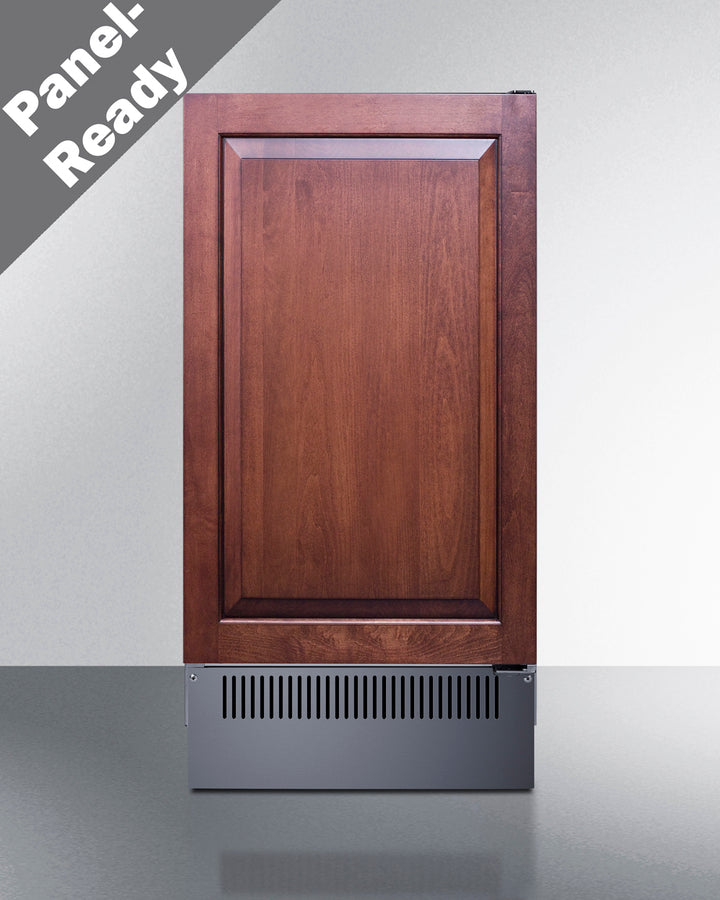

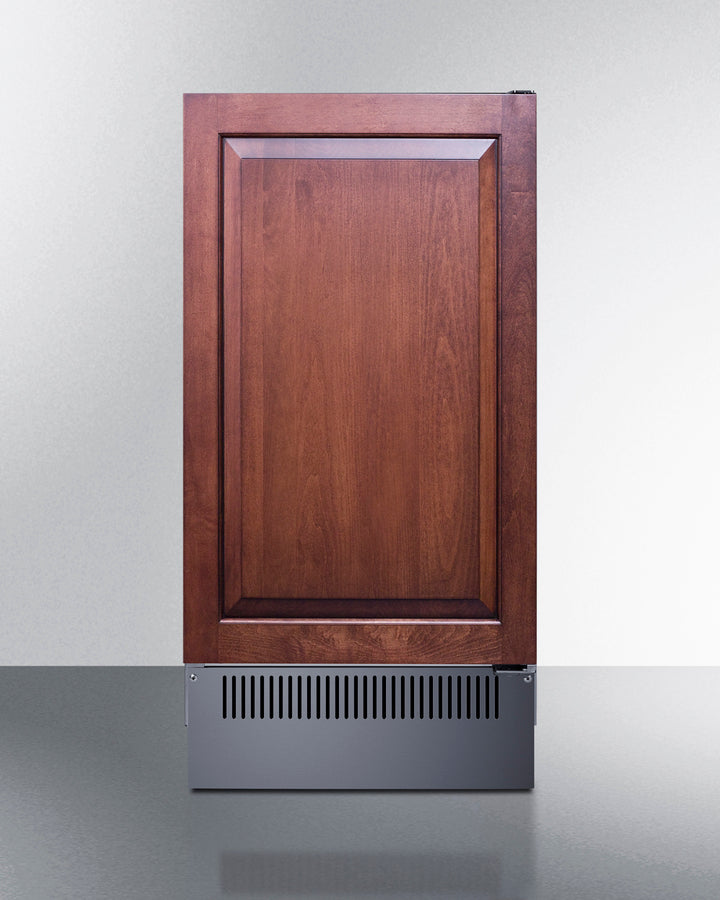

Panel-ready door:
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)

Built-in capable:
Make the best use of space by installing your icemaker under the counter

60 lb. production capacity:
Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs.

Height adjustable:
Unit is sized at 32 1/2" and can be raised to 34 3/4" to best fit a variety of spaces

Built-in pump:
Internal pump affords more flexibility in placing the unit

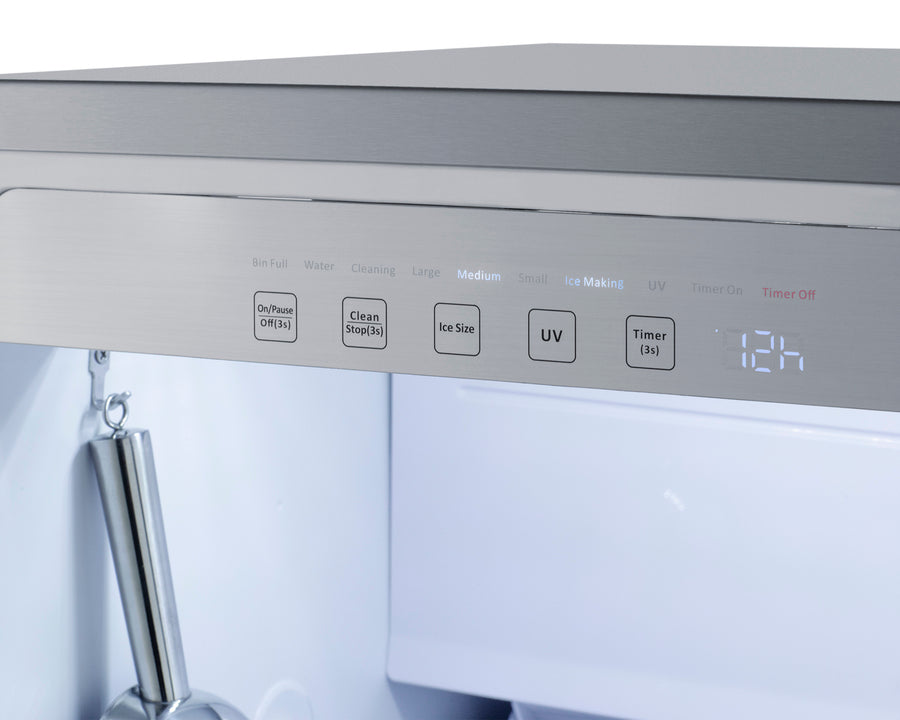

Touch control panel:
Provides easy operation of the unit with indicator lights for each stage of the production process

Ice selection:
Unit allows users to choose from small, medium, or large clear ice cubes

Automatic defrost:
Reduced maintenance with auto defrost system

Interior light:
LED lighting automatically illuminates when the door is opened

Interior UV light:
Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

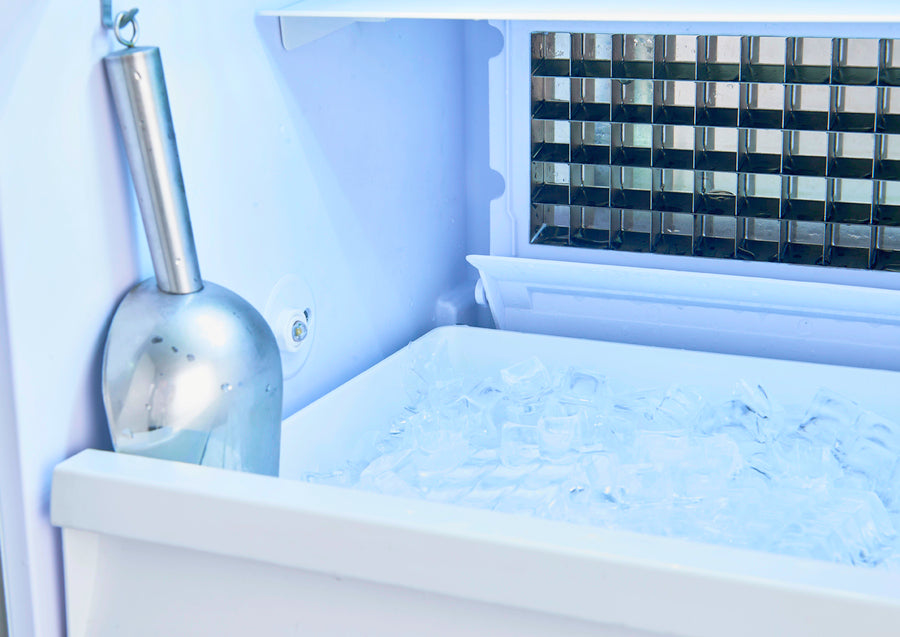

Ice scoop included:
Interior wall includes brackets to hang for easy storage

Removable bin:
Users can remove the ice bucket for fast and easy cleaning

Insulated storage bin:
Ice stays solid longer in this cold-protected bin

Fully finished stainless steel cabinet:
Allows the unit to be used freestanding

Pro style handle:
Vertically mounted stainless steel handle completes the look

Sealed back:
Space-saving design with easier cleanability

Right angle plug:
Flat design offers added space savings by requiring no extra depth to plug the unit in

CARB compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free:
Environmentally friendly design without ozone-damaging chemicals

Lead-free certified:
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for 18 inch wide spaces.

Sized just under 18 inches wide and 34.75 inches high, model BIM182IF features a front-breathing design for built-in installation underneath standard height counters and includes a include a stainless steel kickplate extender to cover any gaps.  The door includes an integrated stainless steel frame that allows it to accept overlay panels, creating a custom look to match or complement the rest of you cabinetry (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness). This unit features a sealed back and right angle cord for added space savings.

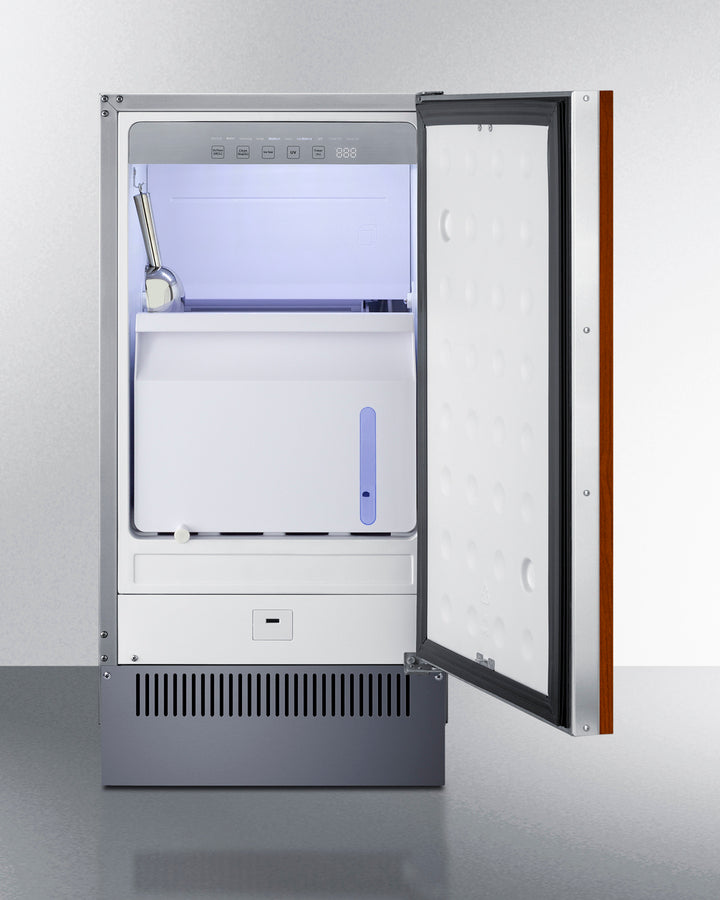

Inside, the BIM182IF can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with the drain hose, water hose, a removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience.

With its unique size, user-friendly design, and large capacity, the BIM182IF is a great fit for various kitchen setups. For a weatherproof outdoor version, see model BIM182OSIF.

In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15 inch wide icemakers and a full assortment of matching 18 inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.

 Overview
Refrigerator-Freezer


Nominal Height 35.0" (89 cm) Door Swing RHD/LHD
Height of Cabinet 34.75" (88 cm) Reversible Factory Reversible
Nominal Width 18.0" (46 cm) Height Adjustable Yes
Width 17.75" (45 cm) Drain Required Yes
Depth 23.75" (60 cm) Daily Ice Production 60.0 lbs. (27 kg)
Depth with Panel 24.75" (63 cm) Ice Storage Capacity 33.0 lbs. (15 kg)
Depth with door at 90° 41.0" (104 cm) Ice Shape Cube
Defrost Type Automatic Size of Cube .87" x .87" . 87"
Door Panel-Ready Number of Ice Cube Sizes 3
Cabinet Stainless Steel Interior Light Yes
US Electrical Safety ETL Refrigerant Type R290
Canadian Electrical Safety ETL-C Refrigerant Amount 1.37 oz.
Amps 11.8 High Side PSI 330.0
Voltage/Frequency 115 V AC/60 Hz Low Side PSI 160.0
Weight 95.0 lbs. (43 kg) Interior Height 18.75" (48 cm)
Parts & Labor Warranty 1 Year Interior Width 14.75" (37 cm)
Compressor Warranty 5 Years Interior Depth 16.75" (43 cm)
UPC 761101150765 Level Legs 4

BROCHURE

ASSEMBLY DRAWING
SUPPORT SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
