Summit BIM26H34 15″ Wide Built-In No-Drain Ice Maker – 25 lb/Day Crescent Ice, 22 lb Storage, ADA-Adjustable Height

SKU: SA-BIM26H34
Regular price $1,715.30
Premium stainless steel build and professional aesthetic – 304-grade stainless steel exterior, fully finished cabinet (so it can be used freestanding if required), reversible door, sealed back for flush installation.
Drain-free installation for maximum flexibility – No external drain or pump required, allowing installation in locations without dedicated plumbing lines or in custom cabinetry settings.
High-performance ice production & storage – Produces up to 25 lb of crescent-shaped ice per day, with a generous 22 lb ice-storage bin for continuous supply during busy service periods.
34.0" H x 14.88" W x 19.38" D
(86cm H x 38cm W x 49cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-BIM26H34

15" Wide No-Drain Icemaker:
No drain is required for more flexibility in placing the icemaker indoors or outside

Adjustable Height:
This unit can be lowered just under 32", with a smaller kickplate included for a seamless aesthetic

ADA compliant:
Customizable height allows installation under lower ADA-compliant counters

Large capacity:
Produces and stores more than 20 lbs of ice per day cycle

Drain-free design:
Convenient design allows more flexibility in positioning the unit

Manual defrost:
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems

Stainless steel exterior:
304-grade stainless steel allows the icemaker to be used freestanding

Reversible door:
User-reversible door swing for flexible placement

Sealed back:
Space-saving design with easier cleanability

Standard water hookup:
Operates with a standard 1/4” OD water supply line

Built-In capable:
Make the best use of space by installing your ice maker under the counter

Modern handle:
Horizontally mounted towel bar style handle in stainless steel

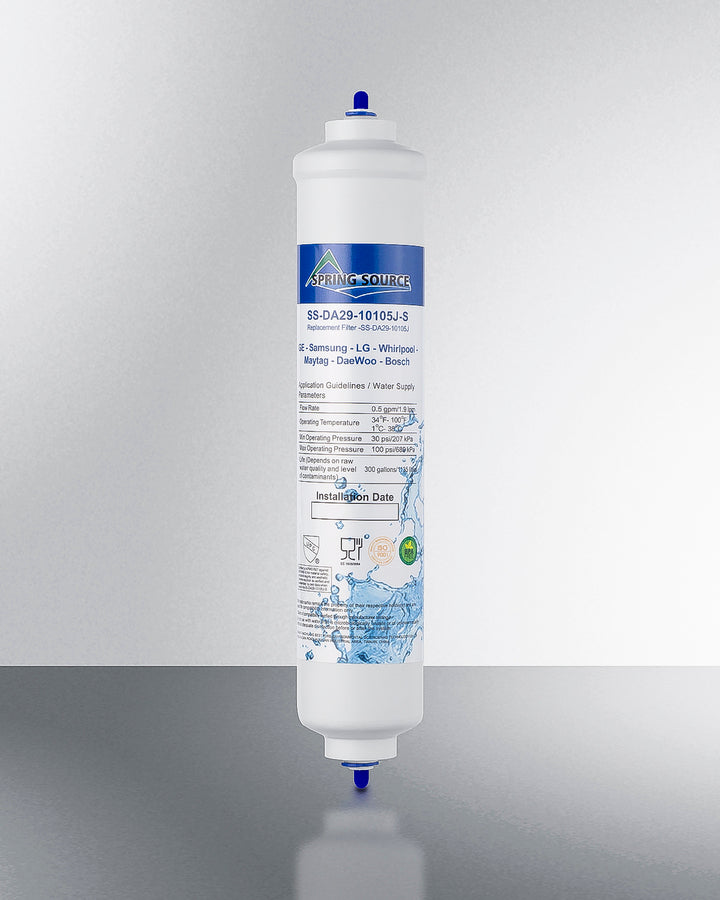

Filter included:
Water filter is included for optional use

Ice scoop included:
Large ice scoop and holder included for your convenience

Lasting ice cube production:
Crescent-shaped ice provides a harder and longer-lasting ice

Removable bin:
Users can remove the ice bucket for fast and easy cleaning

Insulated storage bin:
Ice stays solid longer in this cold-protected bin

100% CFC free:
Environmentally friendly design without ozone-damaging chemicals

Lead-free certified:
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit combines convenience and luxury to craft the BIM26H34 - an undercounter icemaker finished in complete 304-grade stainless steel.

Sized at just under 15" wide, the BIM26H34 features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height of 34", Summit designed this icemaker to be compatible with standard counters. This unit can be lowered just under 32" to fit ADA-compliant spaces. A smaller kickplate is included for a streamlined and cohesive look.

The cabinet and user-reversible door also feature a stainless steel finish for a professional style built to last, paired with a sleek handle mounted horizontally to finish the look. There’s a sealed back to allow more flush installation. An optional water filter is included and designed to be mounted in the rear.

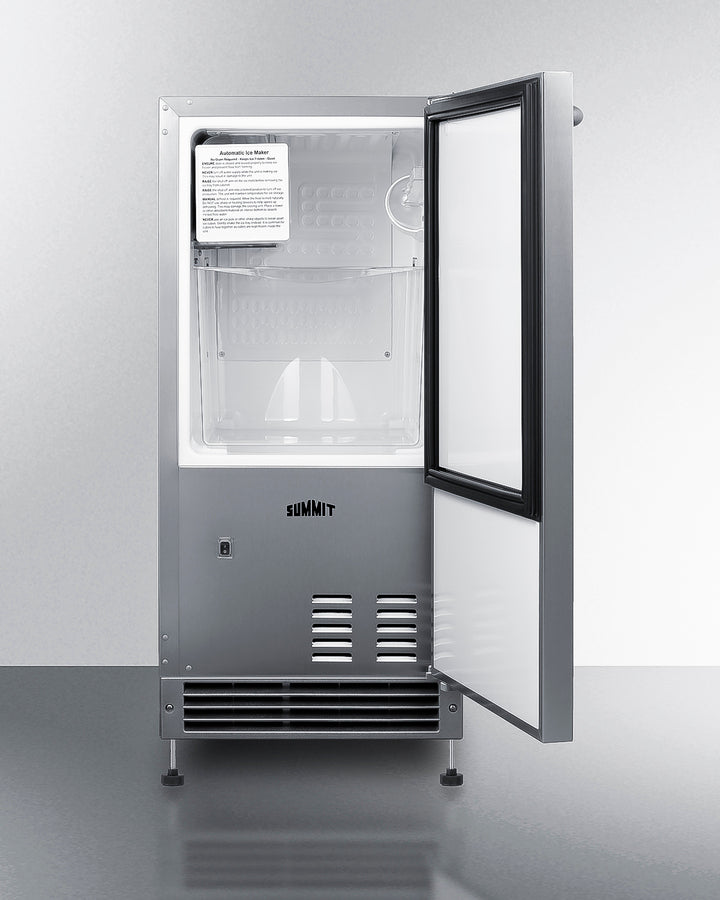

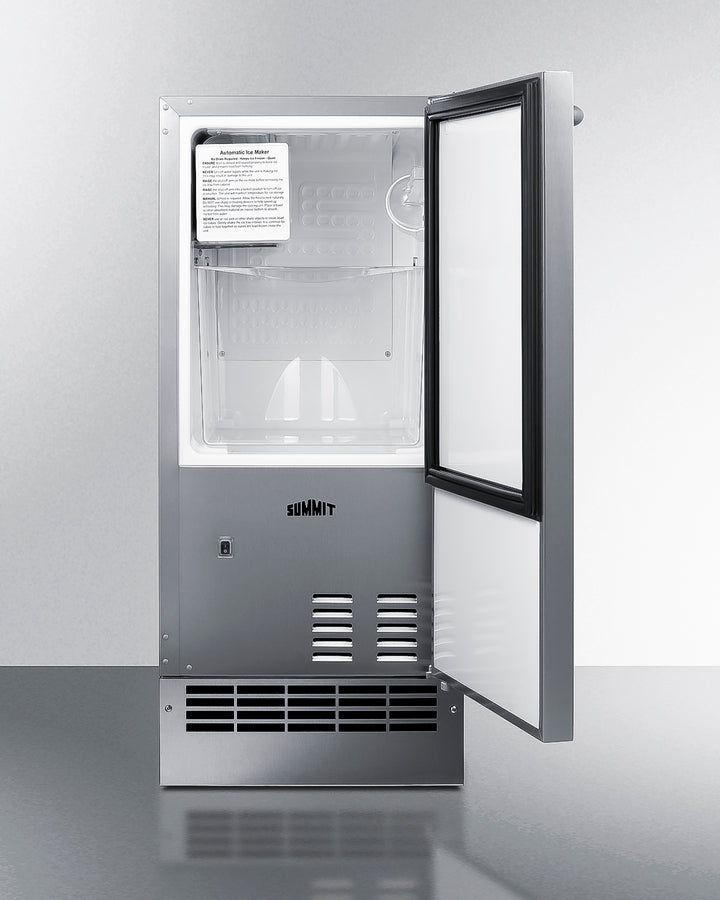

A look inside the BIM26H34 shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop.

With its complete stainless steel construction and low maintenance design, the BIM26H34 is a great way to finish any undercounter kitchen space and allows you to maintain an entire supply of ice with less waste. This icemaker can become an ADA-compliant model. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.

 Overview


Refrigerator-Freezer



Nominal Height 34.0" (86 cm) Door Swing RHD
Height of Cabinet 34.0" (86 cm) Reversible Yes
Nominal Width 15.0" (38 cm) Height Adjustable Yes
Width 14.88" (38 cm) Daily Ice Production 25.0 lbs. (11 kg)
Nominal Depth 20.0" (51 cm) Ice Storage Capacity 22.0 lbs. (10 kg)
Depth 19.38" (49 cm) Ice Shape Crescent
Depth with Handle 21.38" (54 cm) Size of Cube 1/2" x 3/4" x 2 3/8"
Depth with door at 90° 33.63" (85 cm) Number of Ice Cube Sizes 1
Defrost Type Manual Refrigerant Type R600a
Door Stainless Steel Refrigerant Amount 1.58 oz.
Cabinet Stainless Steel High Side PSI 120.0
US Electrical Safety ETL Low Side PSI 55.0
Canadian Electrical Safety ETL-C Interior Height 15.88" (40 cm)
Amps 1.9 Interior Width 11.88" (30 cm)
Voltage/Frequency 115 V AC/60 Hz Interior Depth 12.38" (31 cm)
Weight 61.0 lbs. (28 kg) Level Legs 4
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101103532

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
