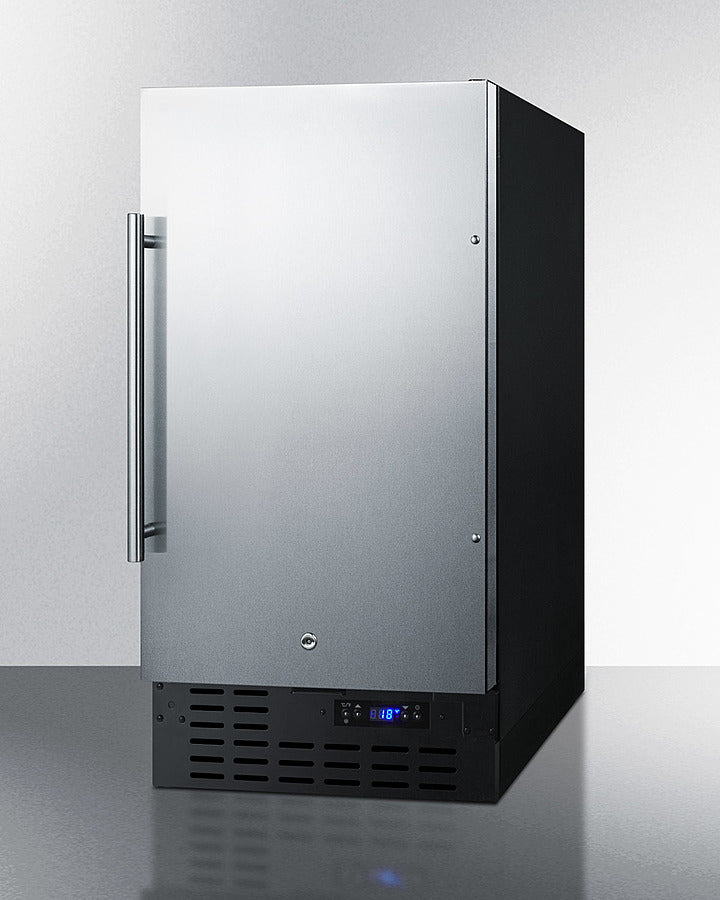

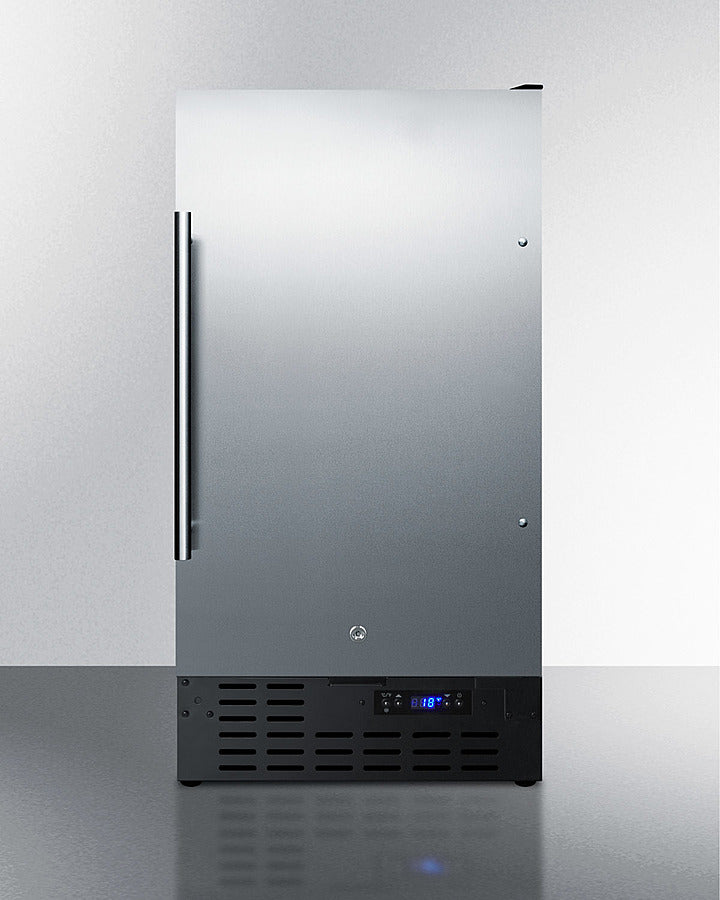

Summit BIM18SS 18″ Wide Built-In/Freestanding Icemaker – Crescent Ice, Stainless Steel Door, Drain-Free Design

SKU: SA-BIM18SS
(0)
$2,237.40
No external drain or pump required – Drain-free and pump-free design gives you far more flexibility in installation placement—perfect for islands, wet bars, or retrofit scenarios.
Built-in capable with freestanding flexibility – Front-breathing design allows flush under-counter installation; a fully finished black cabinet also means the unit fits well as a standalone component.
Produces and stores up to 8 lb of ice daily – Delivers 8 lb production and 8 lb storage capacity of crescent-shaped cubes—ideal for home bars, small commercial spaces or hospitality zones.
34.25" H x 17.75" W x 24.0" D
(87cm H x 45cm W x 61cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Customer service

Video chat Chat Email 800-626-0854

Features

  • SKU SA-BIM18SS

Built-in capable:
Make the best use of space by installing your appliance under the counter

No pump or drain required:
Convenient design allows more flexibility in positioning the unit

Ice production:
Makes and stores up to 8 lbs. of crescent cubes

Stainless steel door:
Fully wrapped in stainless steel for a professional look

Factory installed lock:
Keyed lock for a secure interior (2 keys included)

Removable bin:
Bucket can be removed for fast and easy cleaning

Digital thermostat:
Electronic controls for precise temperature management.

Digital display:
Temperature readout can be shown in Celsius or Fahrenheit

Frost-free operation:
Eliminates the need to manually defrost the interior

Extra shelves:
Adjustable chrome shelves included to accommodate additional items

Reversible door:
User-reversible door swing for added flexibility

Professional handle:
Stainless steel handle completes the professional look

Flush back:
Space saving design with easier cleanability

Fully finished black cabinet:
Allows the unit to be used freestanding

CARB Compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC Free:
Environmentally friendly design with no ozone-damaging chemicals

Lead-free certified:
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit brings convenient luxury under the counter with built-in icemakers uniquely sized for smaller kitchens.

Sized just under 18 inches wide, the BIM18SS features a front-breathing design for built-in installation, with a fully finished cabinet to also allow freestanding use. The 304 grade stainless steel wrapped door is user-reversible to best fit your setting. We include a pro style handle and front-mounted keyed lock for optional security. No drain or pump is required for use, offering more flexibility in where you place the unit.

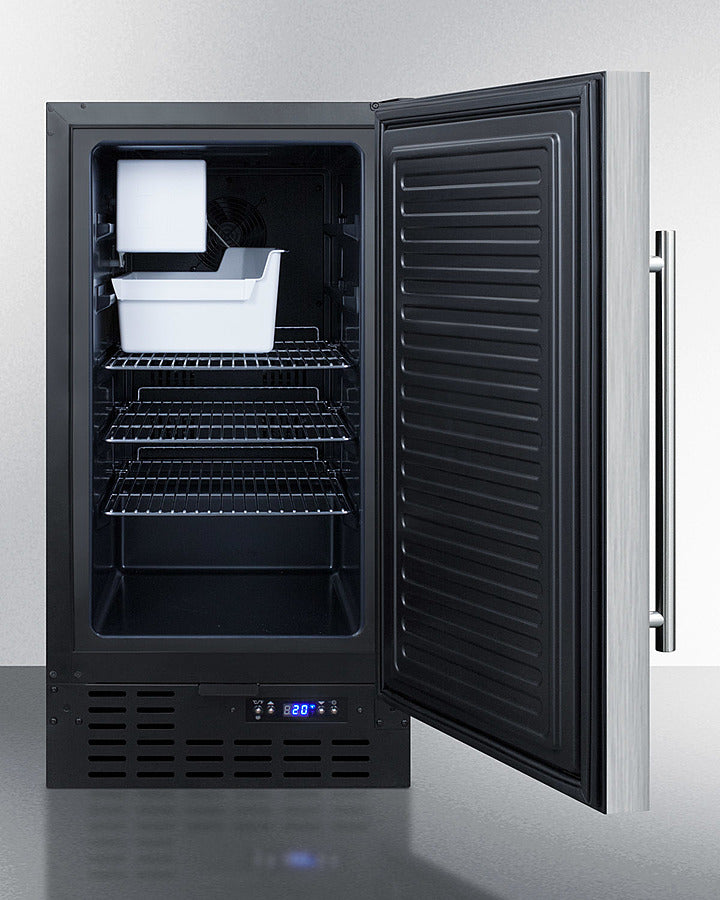

Inside, the BIM18SS can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance.

With its ideal size and user-friendly design, the BIM18SS is a great solution to keeping a steady supply of ice on hand in smaller kitchen spaces. For this unit sized for ADA compliant counters, see the BIM18SSADA. Matching 18 inch wide refrigerators, beverage centers, and wine cellars are also available. Browse our website to explore our complete selection.

 Overview
Refrigerator-Freezer


Nominal Height 35.0" (89 cm) Door Swing RHD
Height of Cabinet 34.25" (87 cm) Reversible Yes
Nominal Width 18.0" (46 cm) Daily Ice Production 8.0 lbs. (4 kg)
Width 17.75" (45 cm) Ice Storage Capacity 8.0 lbs. (4 kg)
Nominal Depth 24.0" (61 cm) Ice Shape Crescent
Depth 24.0" (61 cm) Number of Ice Cube Sizes 1
Depth with Handle 25.75" (65 cm) Interior Light Yes
Depth with door at 90° 40.0" (102 cm) Fan Type Interior and Exterior
Capacity 2.7 cu.ft. (76 L) Refrigerant Type R600a
Defrost Type Frost-Free Refrigerant Amount 1.06 oz.
Door Stainless Steel High Side PSI 270.0
Cabinet Black Low Side PSI 103.0
US Electrical Safety ETL Interior Height 23.5" (60 cm)
Canadian Electrical Safety ETL-C Interior Width 12.75" (32 cm)
Amps 1.1 Interior Depth 16.75" (43 cm)
Voltage/Frequency 115 V AC/60 Hz Compressor Step Height 4.5" (11 cm)
Weight 82.0 lbs. (37 kg) Compressor Step Width 12.75" (32 cm)
Parts & Labor Warranty 1 Year Compressor Step Depth 4.5" (11 cm)
Compressor Warranty 5 Years Level Legs 4
UPC 761101063706 Temperature Range -22 to 14ºF

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
