Summit BIM182OSADA 18″ Wide Outdoor Clear Ice Maker – ADA-Compliant Undercounter, Stainless Steel Cabinet
Customer service
Features
- SKU SA-BIM182OSADA
Summit brings proper convenience and streamlined luxury under the counter with built-in indoor and outdoor clear icemakers sized for 18-inch wide spaces in outdoor kitchens.

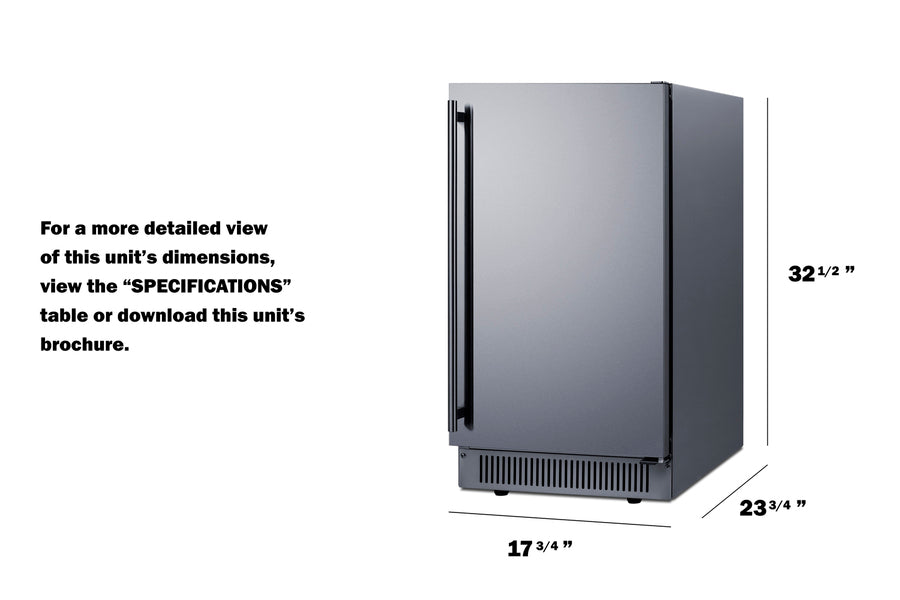

Sized just under 18 inches wide and 32.5 inches high, model BIM182OSADA features a front-breathing design for built-in installation underneath ADA-compliant counters. The height can also be raised to 34.75 inches to accommodate standard counters. We include a stainless steel kickplate extender to fill the gap. This model comes with a user-reversible door to best suit your setting. A pro-style handle is included. The complete stainless steel exterior and sealed rear is specially constructed to hold up to the outdoor elements.

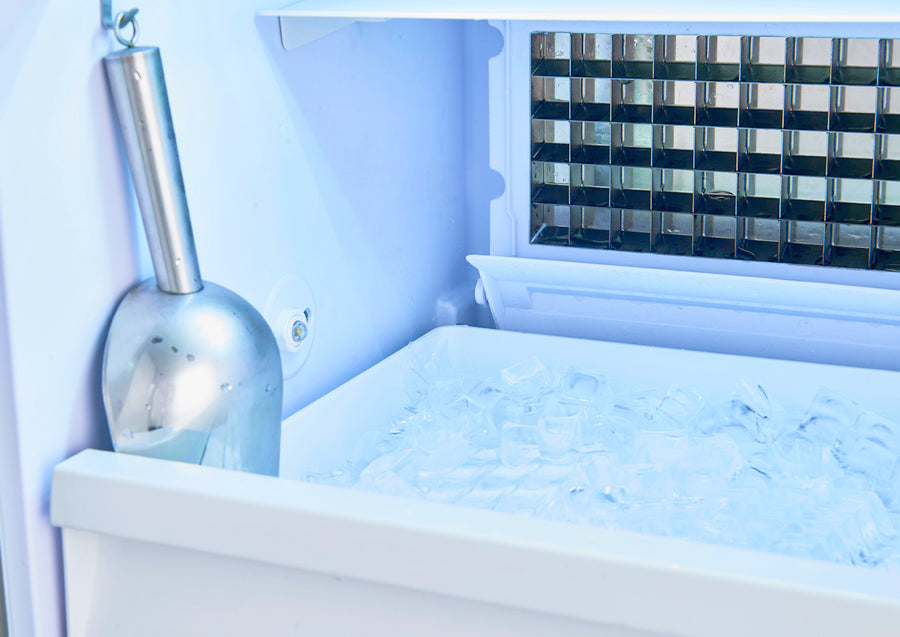

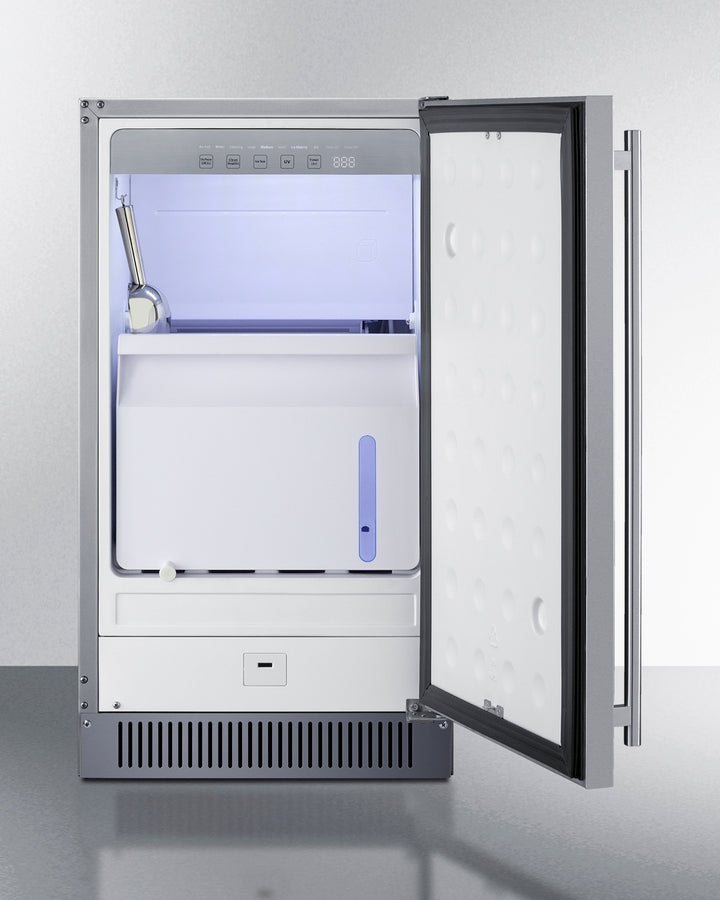

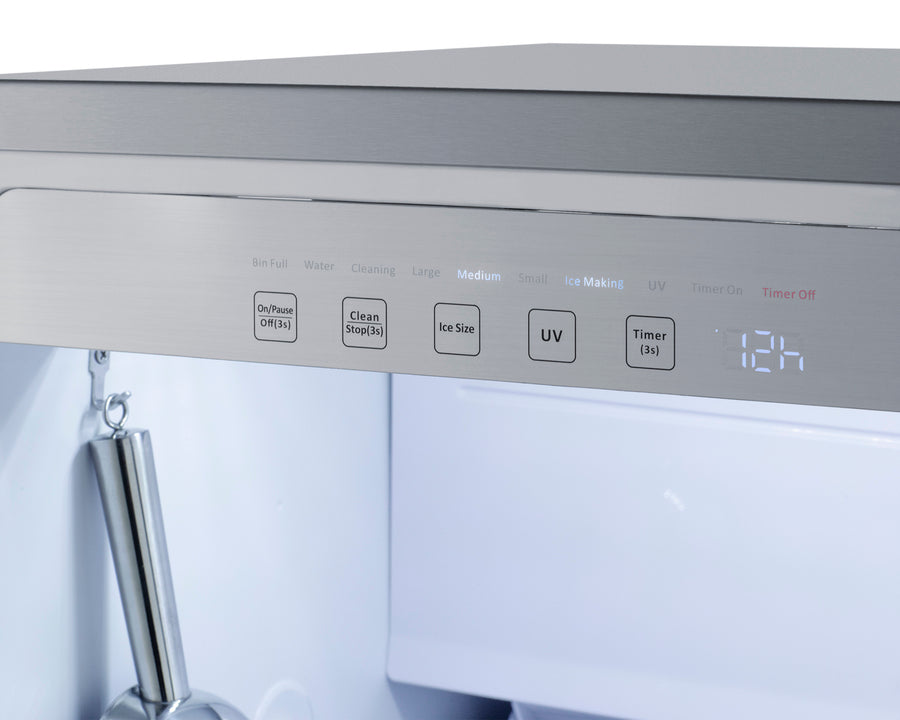

Inside, the BIM182OSADA shows can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with a drain hose, water hose, removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience.
With its unique size, user-friendly design, and large capacity, the BIM182OSADA is a great fit for various kitchen setups. For a weatherproof outdoor version in a standard height, see model BIM182OS. For a panel-ready version, see model BIM182ADAIF.
In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15-inch wide icemakers and a full assortment of matching 18-inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD/LHD |
| Height of Cabinet | 32.5" (83 cm) | Reversible | Yes |
| Nominal Width | 18.0" (46 cm) | Height Adjustable | Yes |
| Width | 17.75" (45 cm) | Drain Required | Yes |
| Depth | 23.75" (60 cm) | Daily Ice Production | 60.0 lbs. (27 kg) |
| Depth with Handle | 25.25" (64 cm) | Ice Storage Capacity | 33.0 lbs. (15 kg) |
| Depth with door at 90° | 41.0" (104 cm) | Ice Shape | Cube |
| Defrost Type | Automatic | Size of Cube | .87" x .87" . 87" |
| Door | Stainless Steel | Number of Ice Cube Sizes | 3 |
| Cabinet | Stainless Steel | Interior Light | Yes |
| US Electrical Safety | ETL | Refrigerant Type | R290 |
| Canadian Electrical Safety | ETL-C | Refrigerant Amount | 1.37 oz. |
| Amps | 11.8 | High Side PSI | 330.0 |
| Voltage/Frequency | 115 V AC/60 Hz | Low Side PSI | 160.0 |
| Weight | 95.0 lbs. (43 kg) | Interior Height | 18.75" (48 cm) |
| Parts & Labor Warranty | 1 Year | Interior Width | 14.75" (37 cm) |
| Compressor Warranty | 5 Years | Interior Depth | 16.75" (43 cm) |
| UPC | 761101108179 | Level Legs | 4 |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
