Summit AFM19W 18 cu. ft. Upright Manual-Defrost Freezer – Commercial Grade

SKU: SA-AFM19W
(0)
$2,514.20
Reversible Door & Interior Lighting — Door swing is factory-reversible for flexible placement; interior LED lighting improves visibility inside the free space.
Manual Defrost Static Cooling System — Fan-free design helps maintain stable low temperatures, avoiding the fluctuations of automatic defrost cycles.
Commercial Certification & Durable Design — ETL-S listed to ANSI-NSF Standard 7 for commercial use, includes factory-installed keyed lock and heavy-duty epoxy-coated wire shelves.

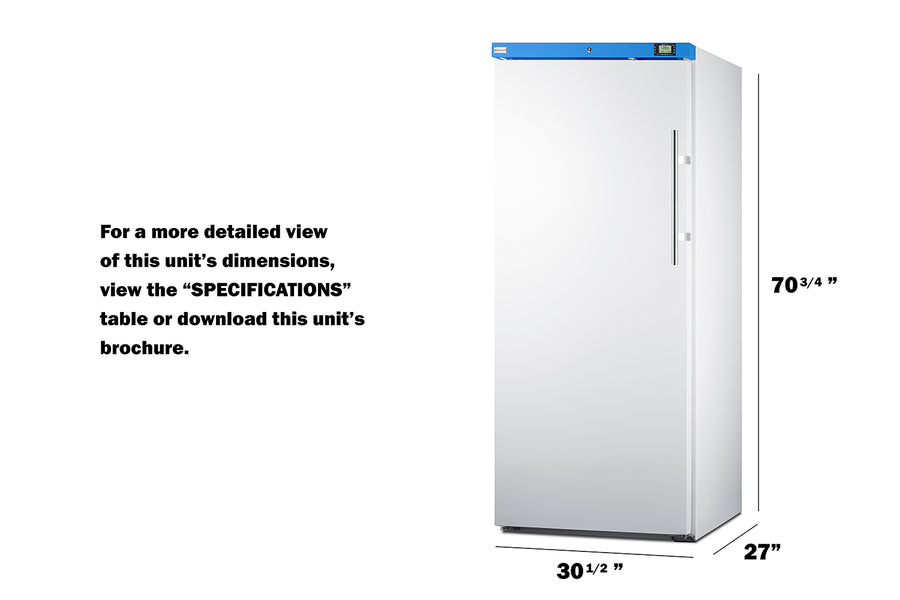

72.0" H x 30.5" W x 27.63" D
(183cm H x 77cm W x 70cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Customer service

Video chat Chat Email 800-626-0854

Features

  • SKU SA-AFM19W

Commercially listed:
ETL-S listed to ANSI-NSF Standard 7 for commercial use

Upright manual defrost all-freezer:
Front-opening commercial freezer

Large capacity:
Over 18 cu.ft. of storage inside

Manual defrost operation:
Static cooling system with no fans or warming cycles

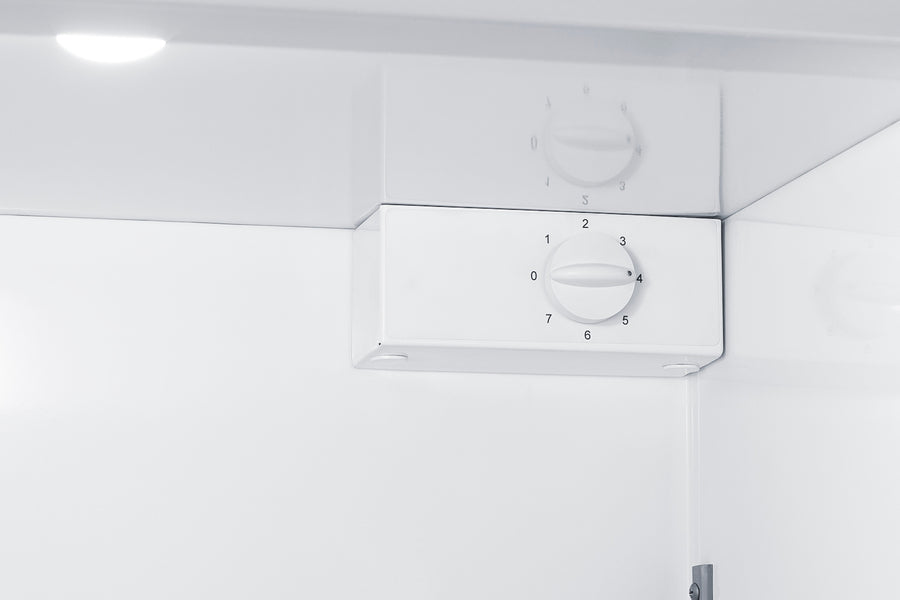

Dial thermostat:
Intuitive and reliable mechanical thermostat located inside the unit to prevent unnecessary adjustments

-20ºC operation:
Preset to -20ºC with a temperature range of -18 to -24ºC

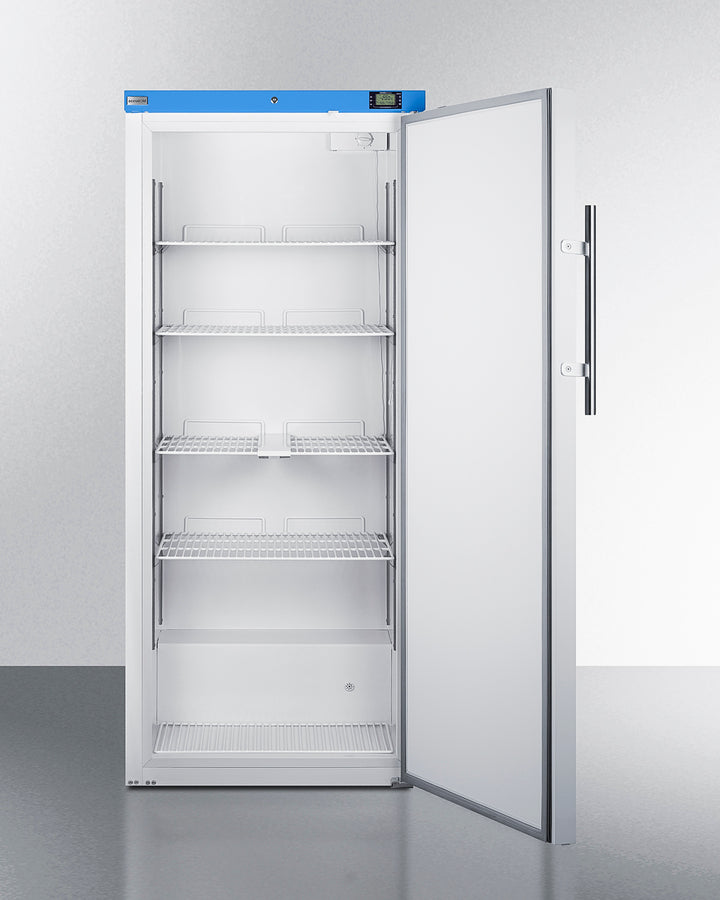

Cantilevered shelving:
Tight pilaster spacing throughout the interior allows you to adjust the shelf positions to meet your exact storage needs

Epoxy-coated wire shelves:
Four heavy duty shelves included

Factory-installed lock:
Conveniently located towards the top of the door for easier user access (2 keys included)

Flat door liner:
No door storage to allow for the interior to accommodate deeper trays

Reversible door:
User-reversible door swing for added flexibility to best accommodate your setting

LED lighting:
Automatic interior lighting for an efficient presentation

9' long cord with hospital grade plug:
Extra long power cord with hospital grade 'green dot' plug for a more secure connection

External handle:
Easy-grip handle in brushed aluminum

Leveling legs:
Adjustable front legs allow you to ensure a straight fit, even on uneven surfaces

Advanced vacuum seal insulation:
Vacuum seal gasket design ensures no cold air escapes (NOTE: seal activates when door is closed, so you must allow a few minutes to pass before re-opening)

100% CFC free:
Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial manufactures a wide range of full-sized refrigeration choices approved to NSF-7 standards, including upright freezers.

Model AFM19W is a large capacity front-opening freezer with an 18.3 cu.ft. interior. It is ETL-S listed to NSF-7 for commercial storage applications. This freezer utilizes a static manual defrost cooling system that offers more stabilized temperature than traditional no-frost units. The dial thermostat is located inside to prevent accidental temperature adjustments. Cantilevered shelving with epoxy-coated wire shelves allows you to adjust the interior to best accommodate a variety of sizes, while the flat door liner helps to fit deeper trays than units equipped with door racks. An automatic LED light makes it easy to see the full interior.

This freezer comes in a white exterior finish. The keyed lock is conveniently located towards the top of the unit for easier user access. The reversible door includes an easy-grip handle in a brushed aluminum finish. This unit includes a 9'5" long power cord with a hospital grade 'green dot' plug for a more secure connection, ideal for high traffic commercial environments. The cooling system utilizes hydrocarbon refrigerant for a greener footprint that meets CARB regulations. For advanced insulation, the door features a vacuum seal that keeps all cold air inside.

In addition to this freezer, Summit Commercial manufactures a full lineup of full-sized commercial refrigerators and freezers, including reach-in style and frost-free options. Browse the full lineup to explore our catalog.

 Overview
Refrigerator-Freezer


Nominal Height 72.0" (183 cm) Door Swing RHD
Height of Cabinet 72.0" (183 cm) Reversible Factory Reversible
Nominal Width 31.0" (79 cm) Interior Height 64.0" (163 cm)
Width 30.5" (77 cm) Interior Width 25.0" (64 cm)
Nominal Depth 28.0" (71 cm) Interior Depth 20.88" (53 cm)
Depth 27.63" (70 cm) Shelf Type Wire
Depth with Handle 30.25" (77 cm) Shelf Qty 4
Depth with door at 90° 55.38" (141 cm) Adjustable Shelves Yes
Capacity 18.3 cu.ft. (518 L) Thermostat Type Dial
Defrost Type Manual Interior Light Yes
Door White Refrigerant Type R290
Cabinet White Refrigerant Amount 3.88 oz.
US Electrical Safety ETL High Side PSI 280.0
Canadian Electrical Safety ETL-C Low Side PSI 145.0
Sanitation ETL-S Level Legs 2
Amps 2.7 Compressor Step Height 9.38" (24 cm)
Voltage/Frequency 115 V AC/60 Hz Compressor Step Width 25.0" (64 cm)
Weight 215.0 lbs. (98 kg) Compressor Step Depth 7.25" (18 cm)
Parts & Labor Warranty 1 Year Temperature Range -18 to -24ºC (Preset to -20ºC)
Compressor Warranty 5 Years

UPC 761101077314

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
