Summit BIM27OSADA 15″ Wide 25 lb/day Drain-Free Outdoor Ice Maker – ADA-Compliant, Stainless Steel Cabinet
Customer service
Features
- SKU SA-BIM27OSADA

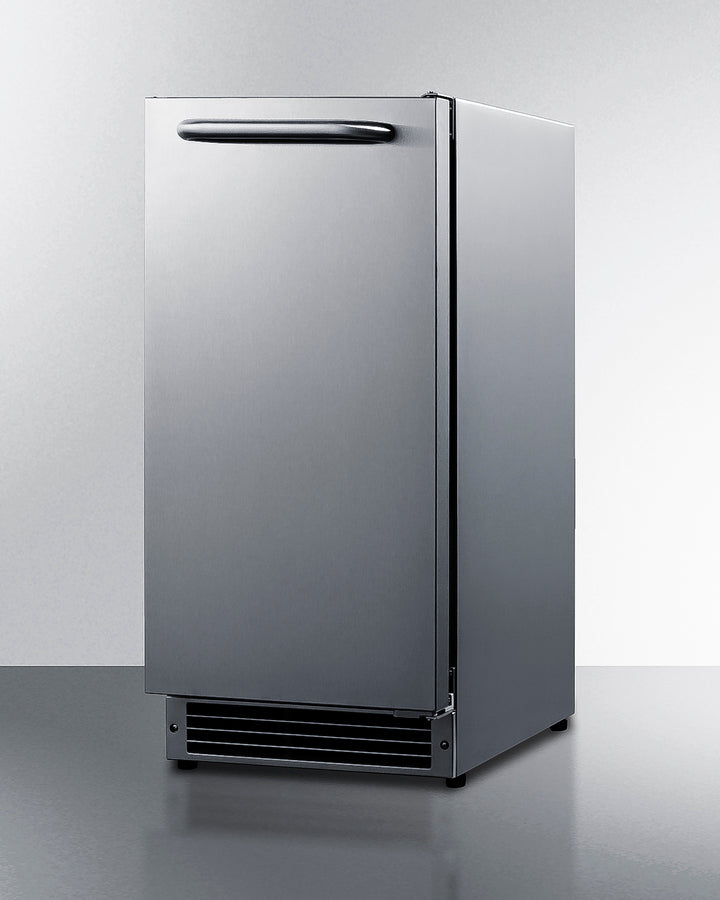

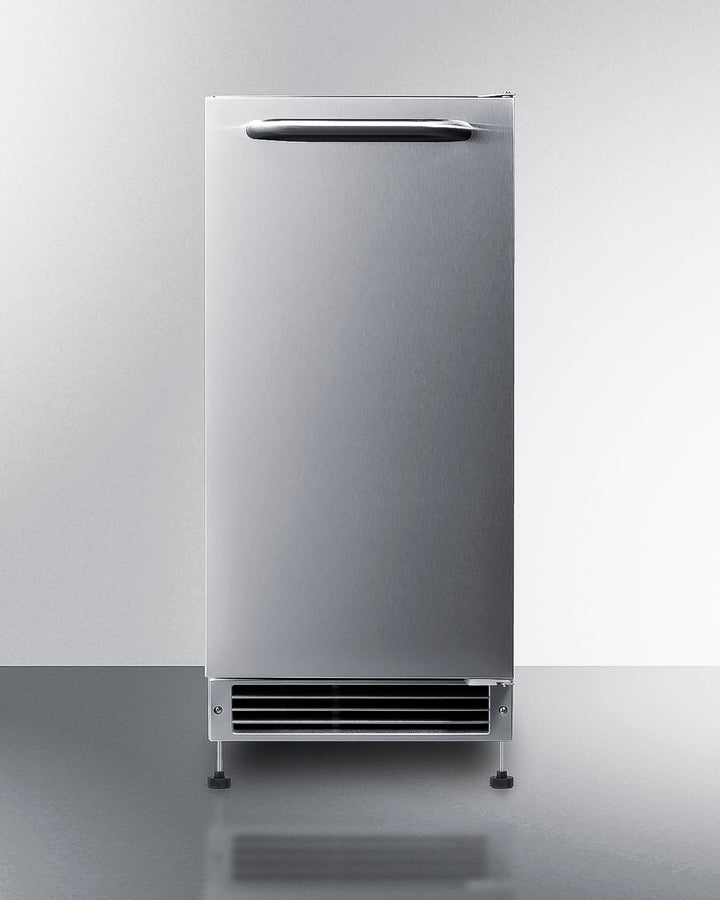

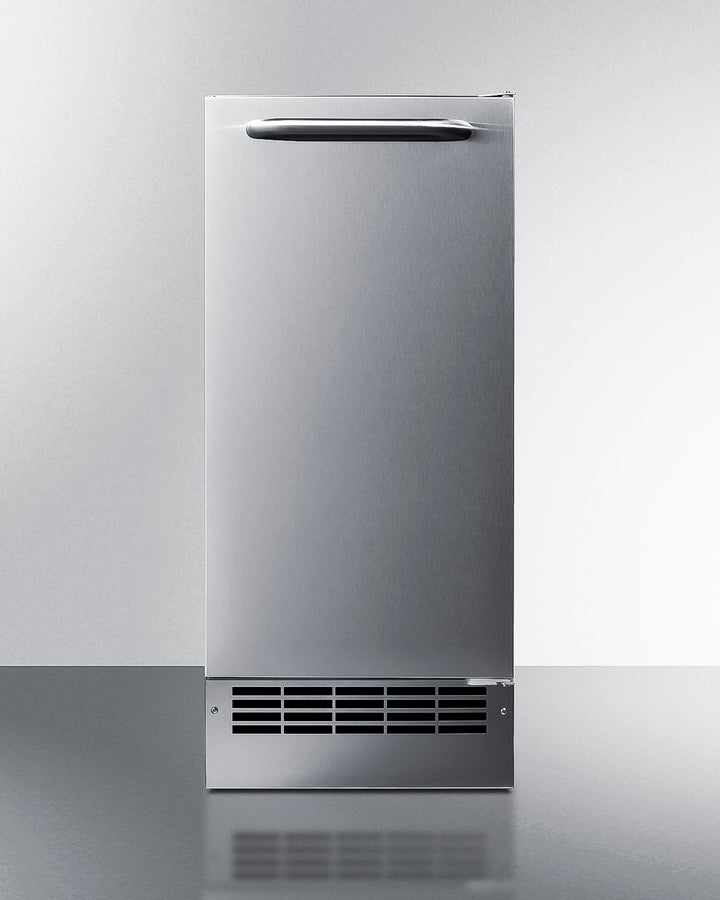

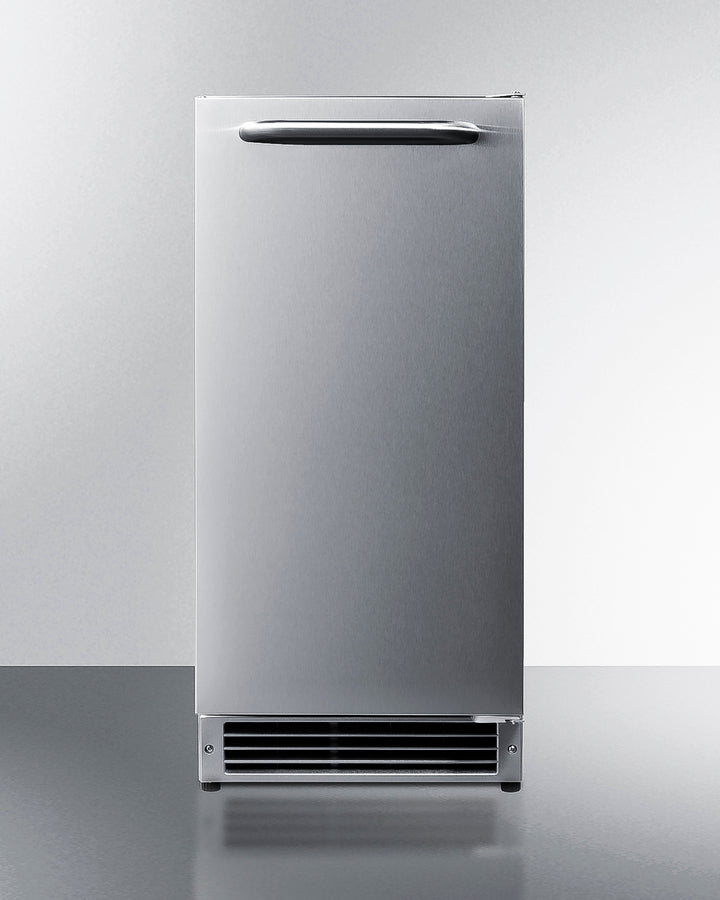

Summit combines convenience and luxury to craft the BIM27OSADA - an undercounter icemaker finished in complete 304-grade stainless steel.
Sized at just under 15" wide, the BIM27OSADA features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height just under 32", Summit designed this icemaker to be compatible with ADA-compliant counters in outdoor spaces. This unit can be raised to 34". A taller kickplate is included for a streamlined and cohesive look.

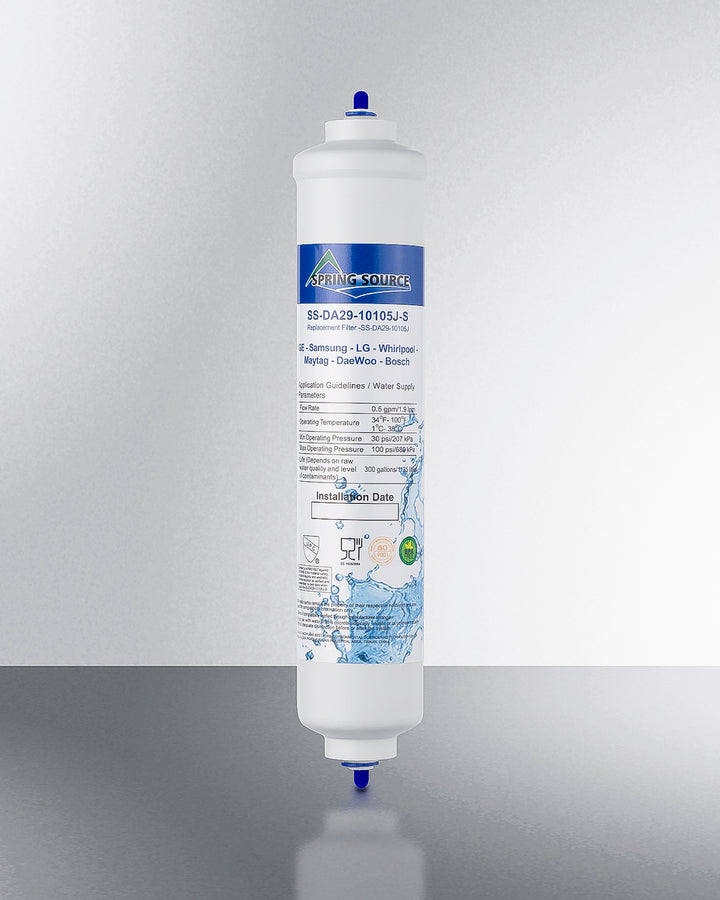

The cabinet and user-reversible door also feature a stainless steel finish for a professional style built to last, paired with a sleek handle mounted horizontally to finish the look. There’s a sealed back to allow more flush installation. An optional water filter is included and designed to be mounted in the rear.

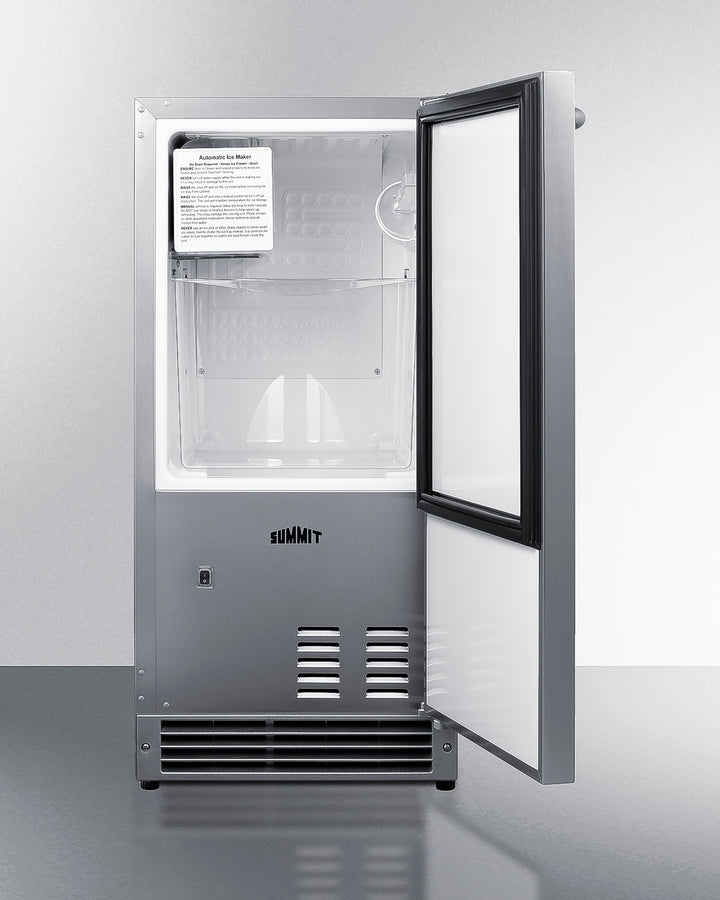

A look inside the BIM27OSADA shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop.
With its complete stainless steel construction and low maintenance design, the BIM27OSADA is a great way to finish any undercounter outdoor space and allows you to maintain an entire supply of ice with less waste. The weatherproof construction allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar.
This outside icemaker is an ADA-compliant model. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Yes |
| Nominal Width | 15.0" (38 cm) | Height Adjustable | Yes |
| Width | 14.88" (38 cm) | Daily Ice Production | 25.0 lbs. (11 kg) |
| Nominal Depth | 20.0" (51 cm) | Ice Storage Capacity | 22.0 lbs. (10 kg) |
| Depth | 19.38" (49 cm) | Ice Shape | Crescent |
| Depth with Handle | 21.38" (54 cm) | Size of Cube | 1/2" x 3/4" x 2 3/8" |
| Depth with door at 90° | 33.63" (85 cm) | Number of Ice Cube Sizes | 1 |
| Defrost Type | Manual | Refrigerant Type | R600a |
| Door | Stainless Steel | Refrigerant Amount | 1.58 oz. |
| Cabinet | Stainless Steel | High Side PSI | 120.0 |
| US Electrical Safety | ETL | Low Side PSI | 55.0 |
| Canadian Electrical Safety | ETL-C | Interior Height | 15.88" (40 cm) |
| Amps | 1.9 | Interior Width | 11.88" (30 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Interior Depth | 12.38" (31 cm) |
| Weight | 61.0 lbs. (28 kg) | Level Legs | 4 |
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101103549 |
