Summit BIM182ADAIF 18″ Wide Clear Ice Maker – ADA Height, Panel-Ready
Customer service
Features
- SKU SA-BIM182ADAIF
Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for 18 inch wide spaces.

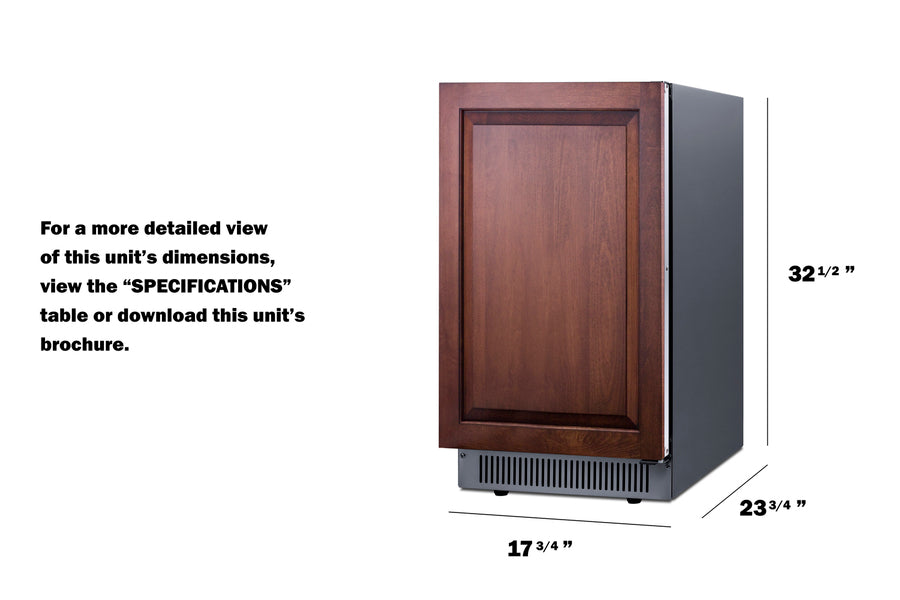

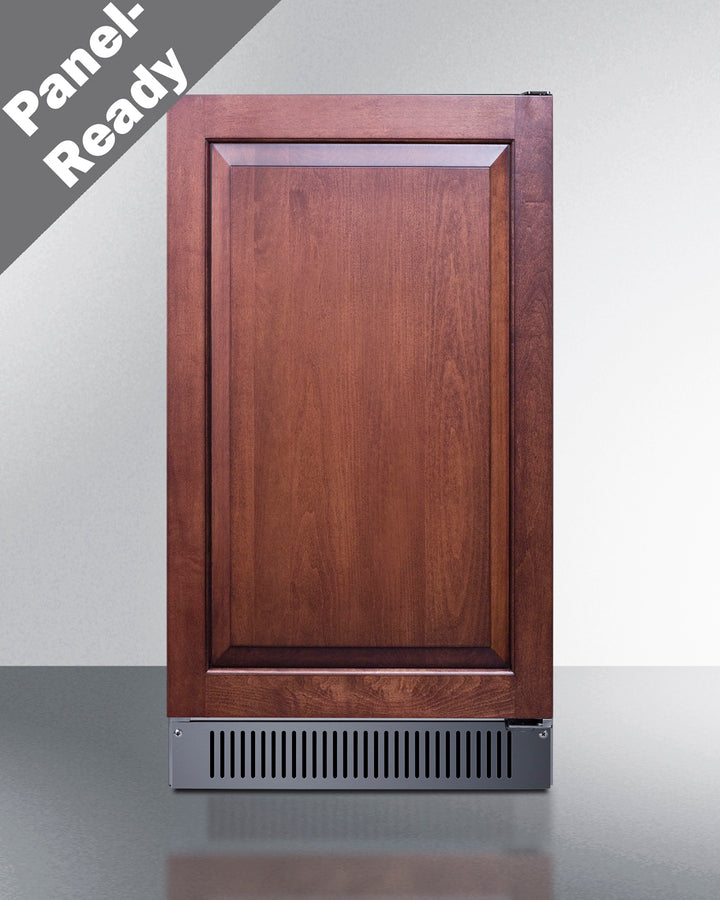

Sized just under 18 inches wide and 32.5 inches high, model BIM182ADAIF features a front-breathing design for built-in installation underneath ADA-compliant counters. The height can also be raised up to 34.75 inches to accommodate more standard counters. We include a stainless steel kickplate extender to fill the gap. The door includes an integrated stainless steel frame that allows it to accept overlay panels, creating a custom look to match or complement the rest of you cabinetry (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness). This unit features a sealed back and right angle cord for added space savings.

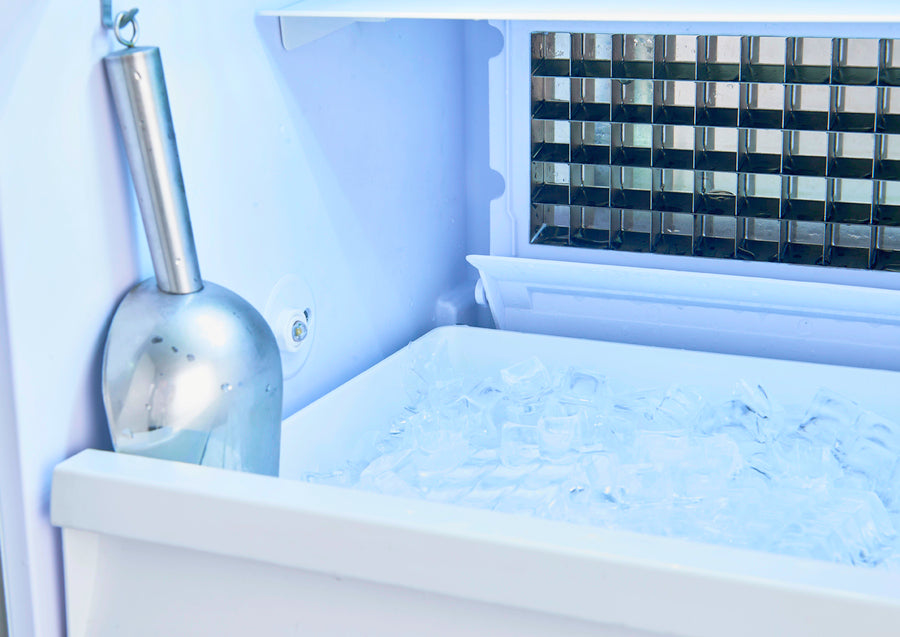

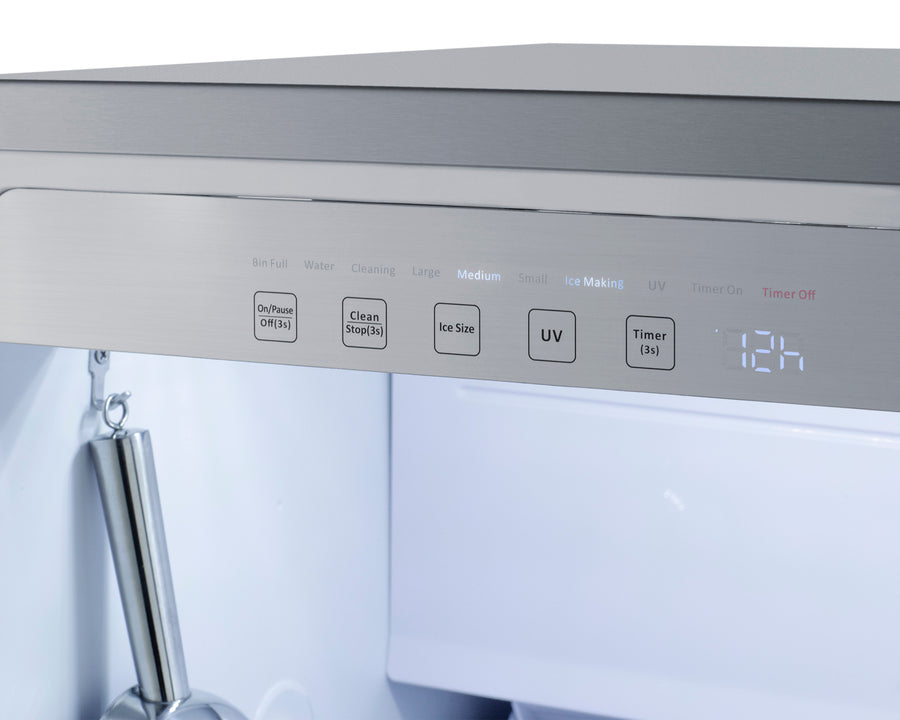

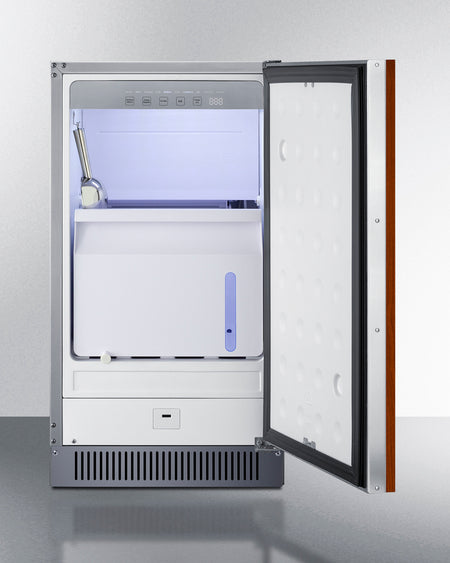

Inside, the BIM182ADAIF can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with the drain hose, water hose, a removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience.
With its unique size, user-friendly design, and large capacity, the BIM182ADAIF is a great fit for various kitchen setups. For a weatherproof outdoor version, see model BIM182OSADAIF.
In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15 inch wide icemakers and a full assortment of matching 18 inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.5" (83 cm) | Reversible | Factory Reversible |
| Nominal Width | 18.0" (46 cm) | Height Adjustable | Yes |
| Width | 17.75" (45 cm) | Drain Required | Yes |
| Depth | 23.75" (60 cm) | Daily Ice Production | 60.0 lbs. (27 kg) |
| Depth with Panel | 24.75" (63 cm) | Ice Storage Capacity | 33.0 lbs. (15 kg) |
| Depth with door at 90° | 41.0" (104 cm) | Ice Shape | Cube |
| Defrost Type | Automatic | Size of Cube | .87" x .87" . 87" |
| Door | Panel-Ready | Number of Ice Cube Sizes | 3 |
| Cabinet | Stainless Steel | Interior Light | Yes |
| US Electrical Safety | ETL | Refrigerant Type | R290 |
| Canadian Electrical Safety | ETL-C | Refrigerant Amount | 1.37 oz. |
| Amps | 11.8 | High Side PSI | 330.0 |
| Voltage/Frequency | 115 V AC/60 Hz | Low Side PSI | 160.0 |
| Weight | 95.0 lbs. (43 kg) | Interior Height | 18.75" (48 cm) |
| Parts & Labor Warranty | 1 Year | Interior Width | 14.75" (37 cm) |
| Compressor Warranty | 5 Years | Interior Depth | 16.75" (43 cm) |
| UPC | 761101150680 | Level Legs | 4 |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
