Summit ALRF49B 20″ Wide Built-In ADA Refrigerator-Freezer — Black Finish
Customer service
Features
- SKU SA-ALRF49B
Summit Appliance offers a wide range of built-in undercounter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

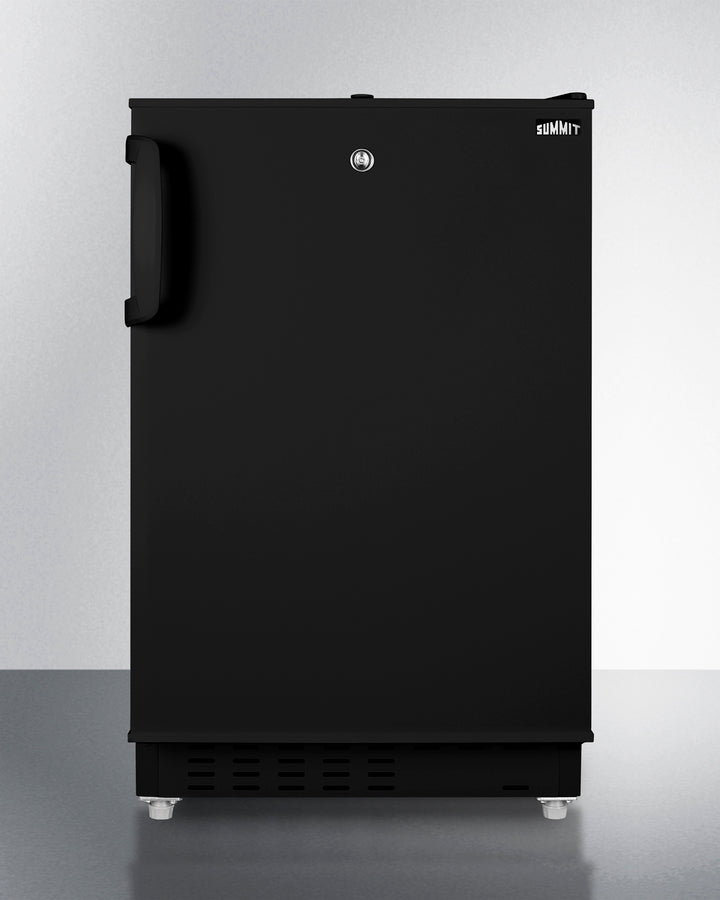

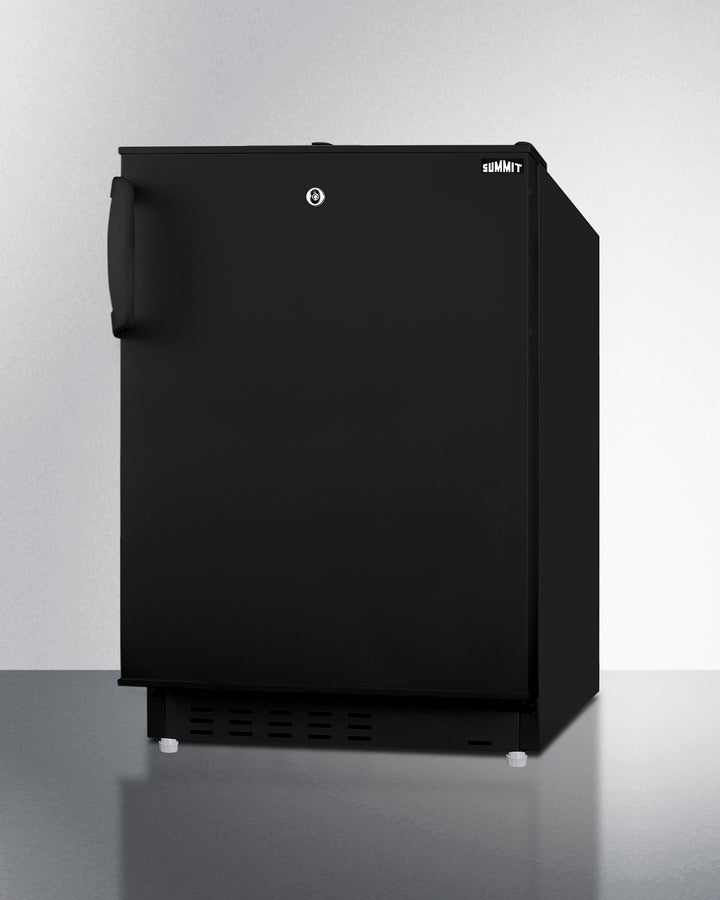

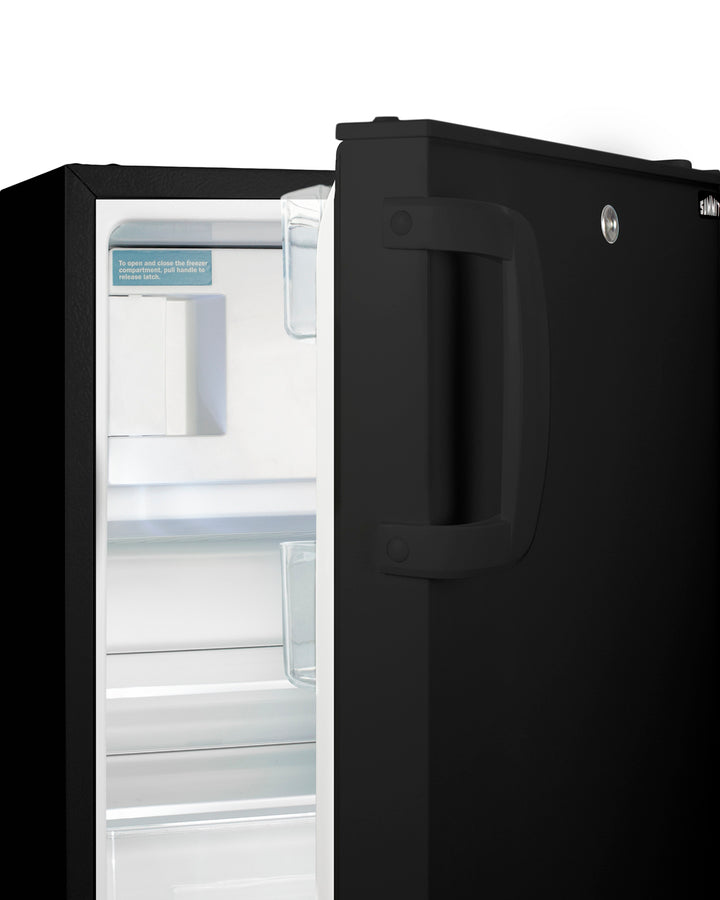

The ALRF49B is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed.

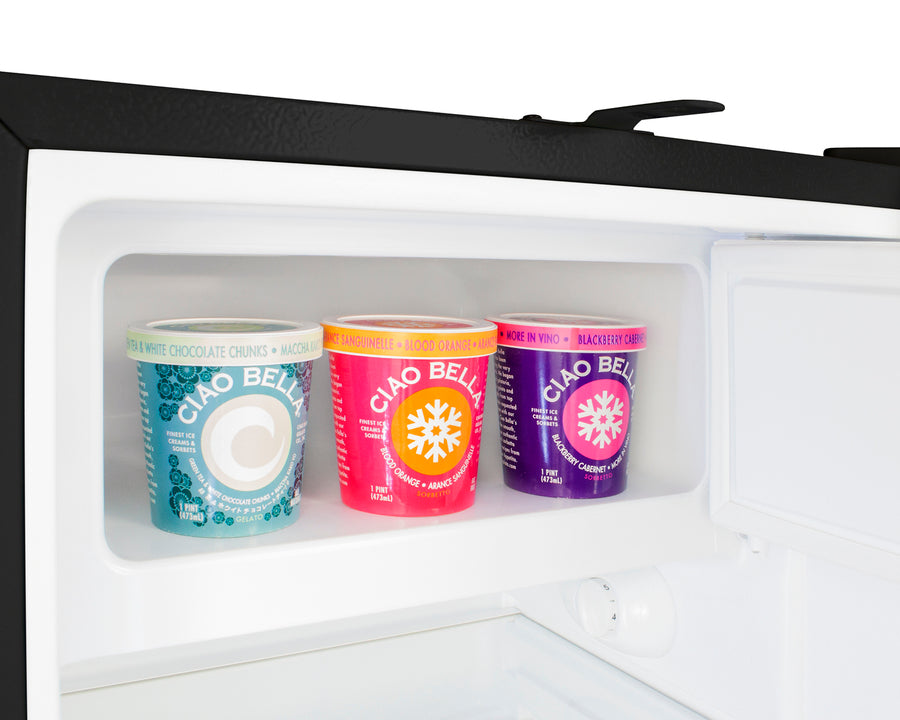

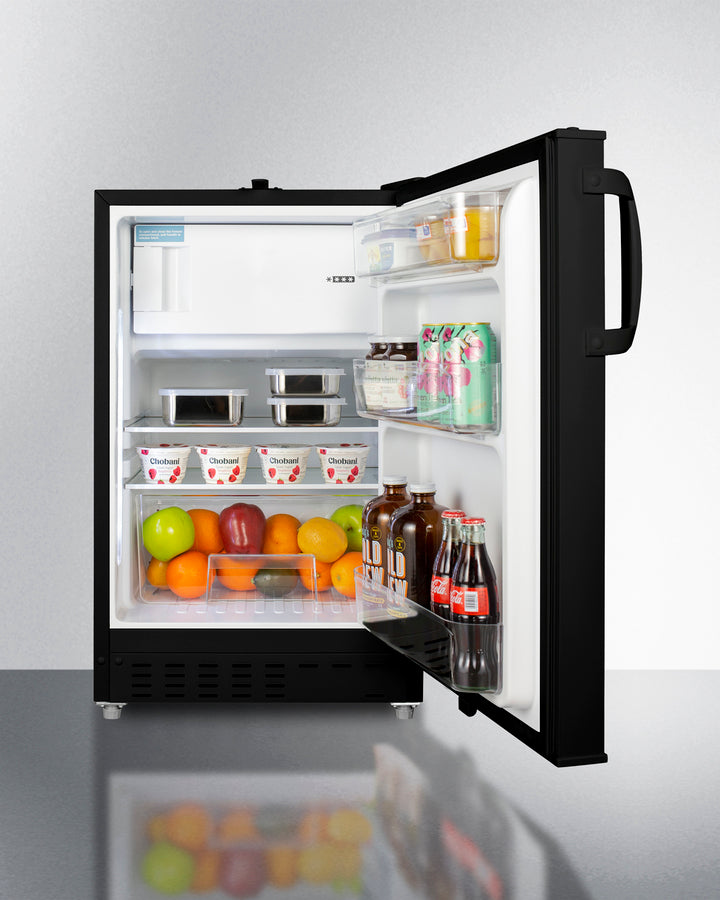

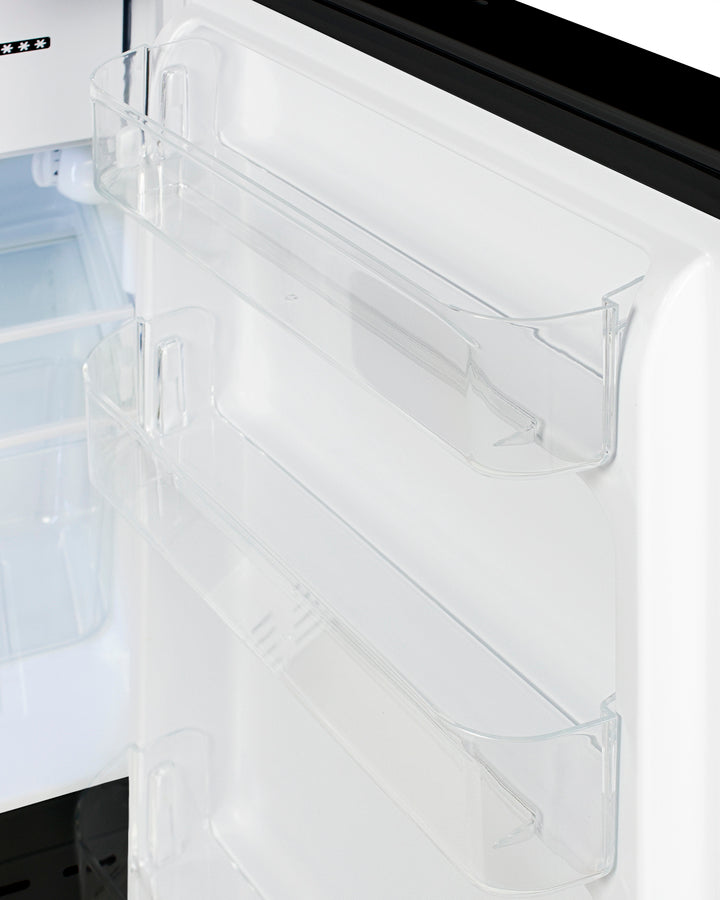

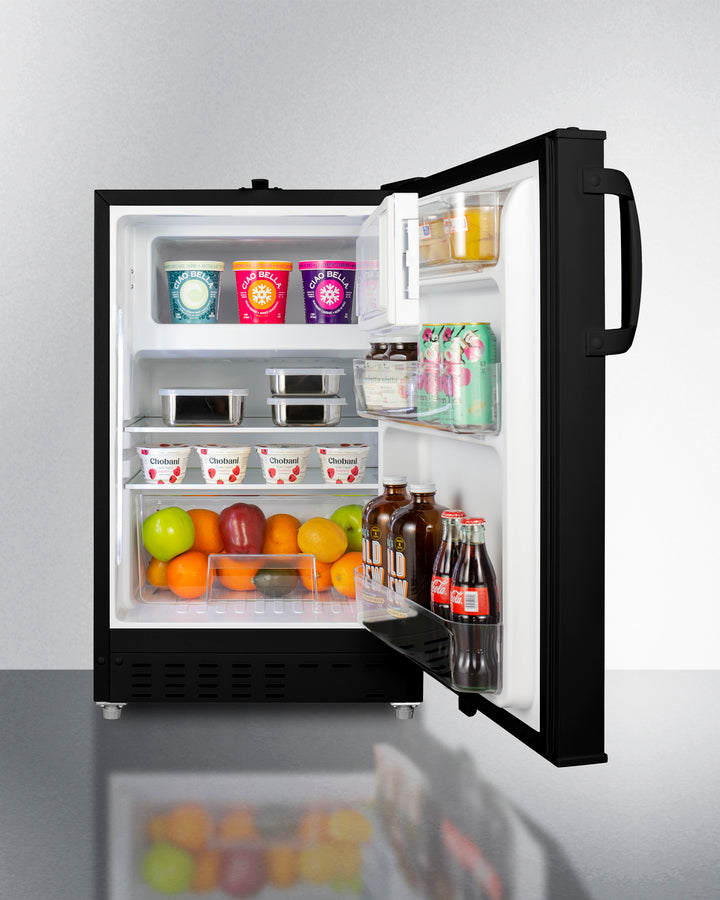

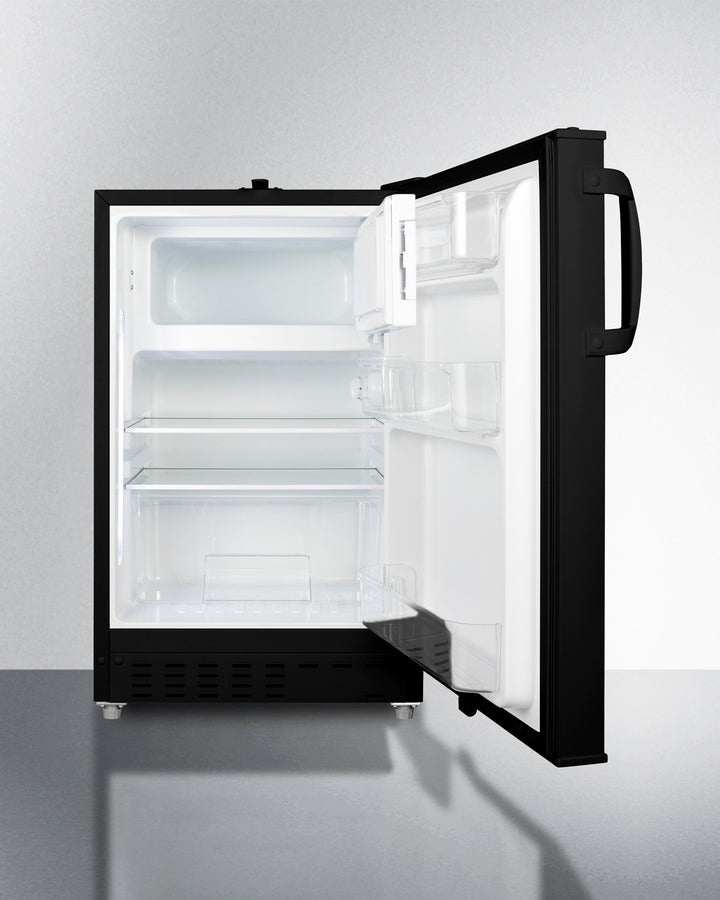

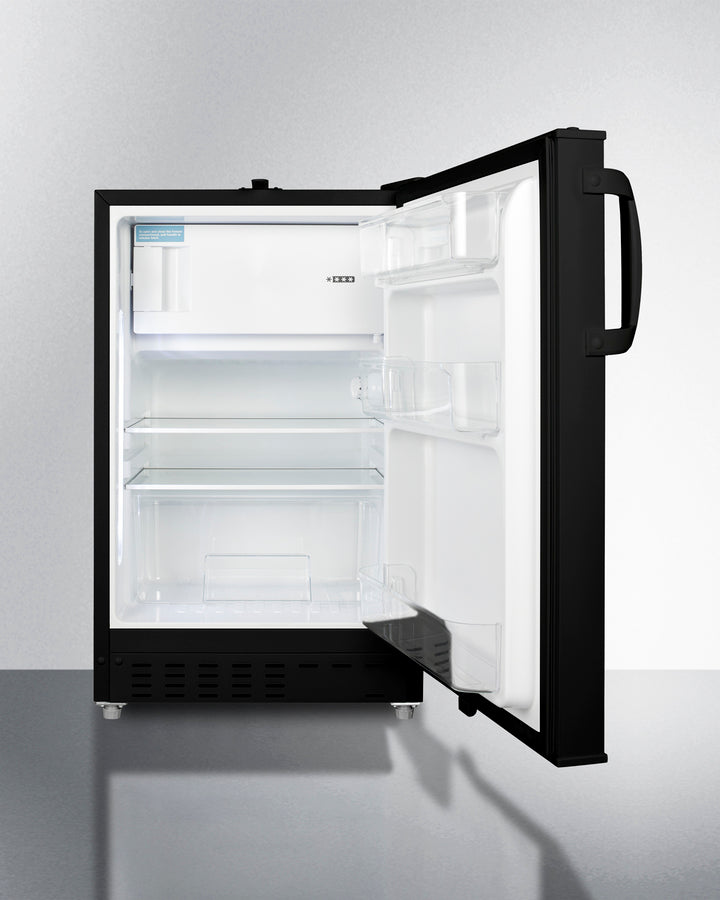

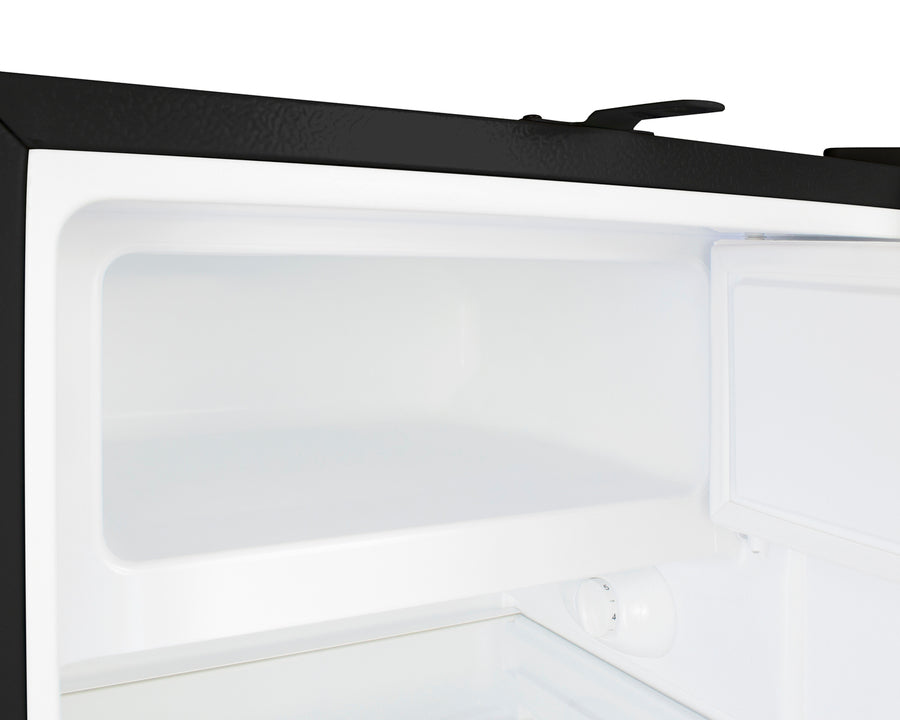

Inside, the ALRF49B features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens. Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover.
With its compact size and convenient features, the ALRF49B is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.0" (81 cm) | Adjustable Shelves | Yes |
| Nominal Width | 20.0" (51 cm) | Crisper Qty | 1 |
| Width | 19.75" (50 cm) | Crisper Finish | Transparent |
| Width with Door Open | 20.25" (51 cm) | Crisper Cover | Glass |
| Nominal Depth | 23.0" (58 cm) | Interior Light | Yes |
| Depth | 22.5" (57 cm) | Refrigerator - Interior Height | 17.5" (44 cm) |
| Depth with Handle | 24.38" (62 cm) | Refrigerator - Interior Width | 16.25" (41 cm) |
| Depth with door at 90° | 40.25" (102 cm) | Refrigerator - Interior Depth | 17.0" (43 cm) |
| Capacity | 2.68 cu.ft. (76 L) | Refrigerator - Shelf Type | Glass |
| Defrost Type | Manual | Refrigerator - Shelf Qty | 3 |
| Door | Black | Refrigerator - Full Door Shelves | 3 |
| Cabinet | Black | Refrigerator - Temperature Range | 35-46º F |
| US Electrical Safety | ETL | Refrigerator - Refrigerant Type | R600a |
| Canadian Electrical Safety | ETL-C | Refrigerator - Refrigerant Amount | 0.92 oz. |
| Energy Usage/Year | 259.0kWh/year | Freezer - Interior Height | 5.75" (15 cm) |
| Amps | 1.1 | Freezer - Interior Width | 16.25" (41 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Freezer - Interior Depth | 11.25" (29 cm) |
| Weight | 65.0 lbs. (29 kg) | Thermostat Type | Dial |
| Parts & Labor Warranty | 1 Year | Refrigerant Type | R600a |
| Compressor Warranty | 5 Years | Refrigerant Amount | 0.92 oz. |
| UPC | 761101074009 | High Side PSI | 180.0 |
| Low Side PSI | 80.0 | ||
| Level Legs | 2 | ||
| Compressor Step Height | 6.25" (16 cm) | ||
| Compressor Step Width | 16.25" (41 cm) | ||
| Compressor Step Depth | 6.0" (15 cm) | ||
| Sound Level | 32.9 dB |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
