Summit CT663BKADA 24″ Wide ADA-Height Refrigerator-Freezer – Black Cabinet & Door
Customer service
Features
- SKU SA-CT663BKADA
Summit's Peak24 series of undercounter European-made refrigeration features energy efficient, ADA height choices that offer the largest capacity in the industry for recessed installation in 24" openings.

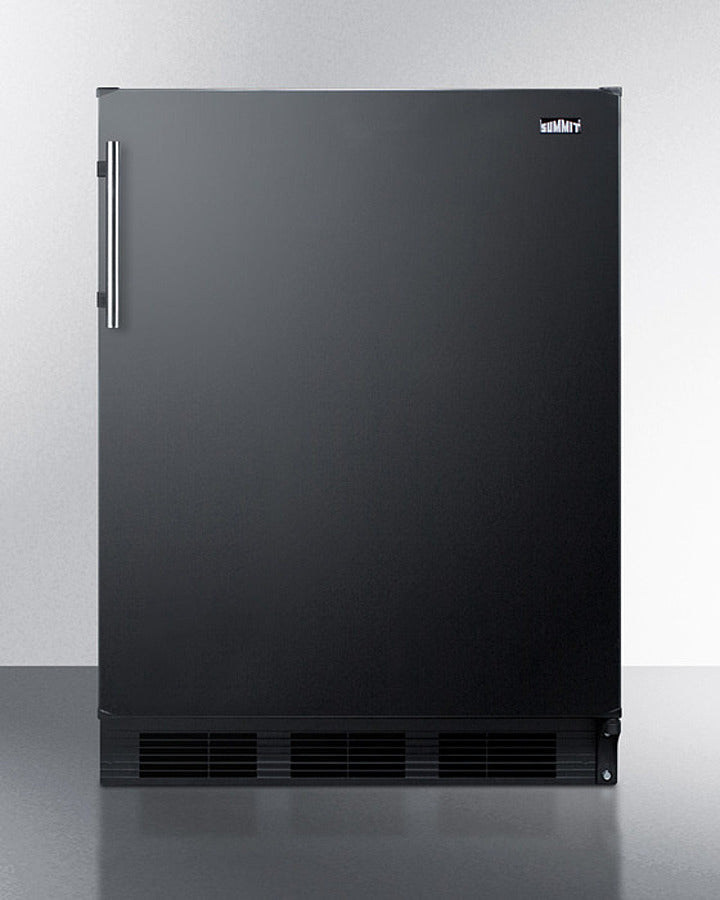

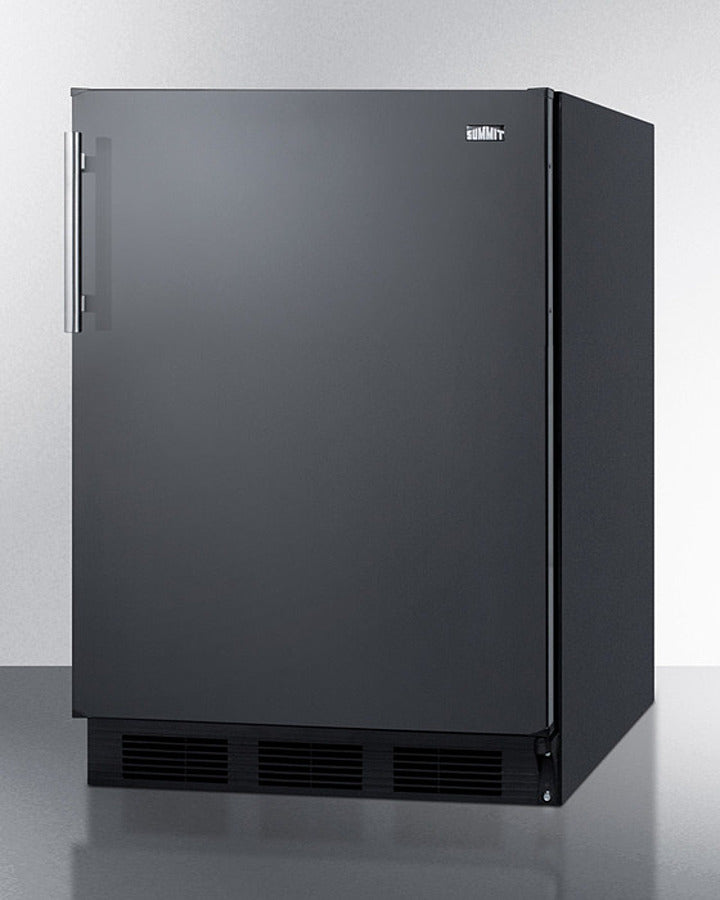

Sized with a 24” footprint, the ENERGY STAR certified CT663BKADA refrigerator-freezer offer a generous 5 cu.ft. storage capacity, larger than many units in this size class. The 32” height allows use in settings complying with ADA guidelines for lower counter height. This model features a black exterior finish with a user-reversible door swing. A stainless steel handle completes the look.

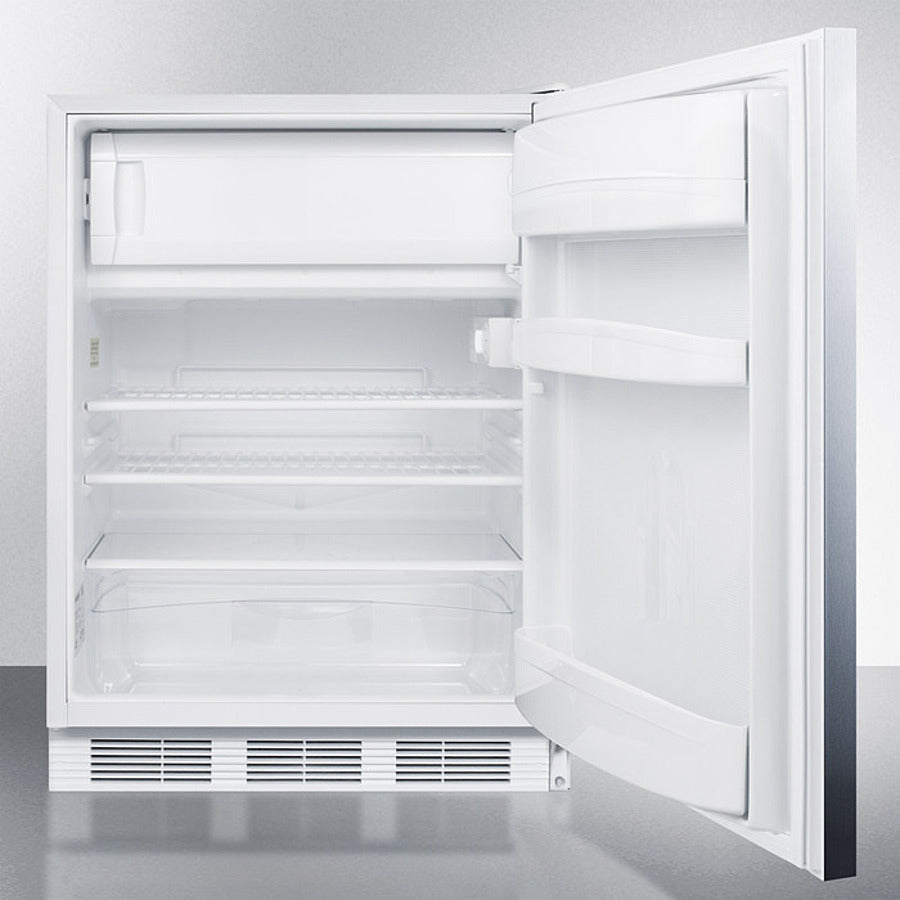

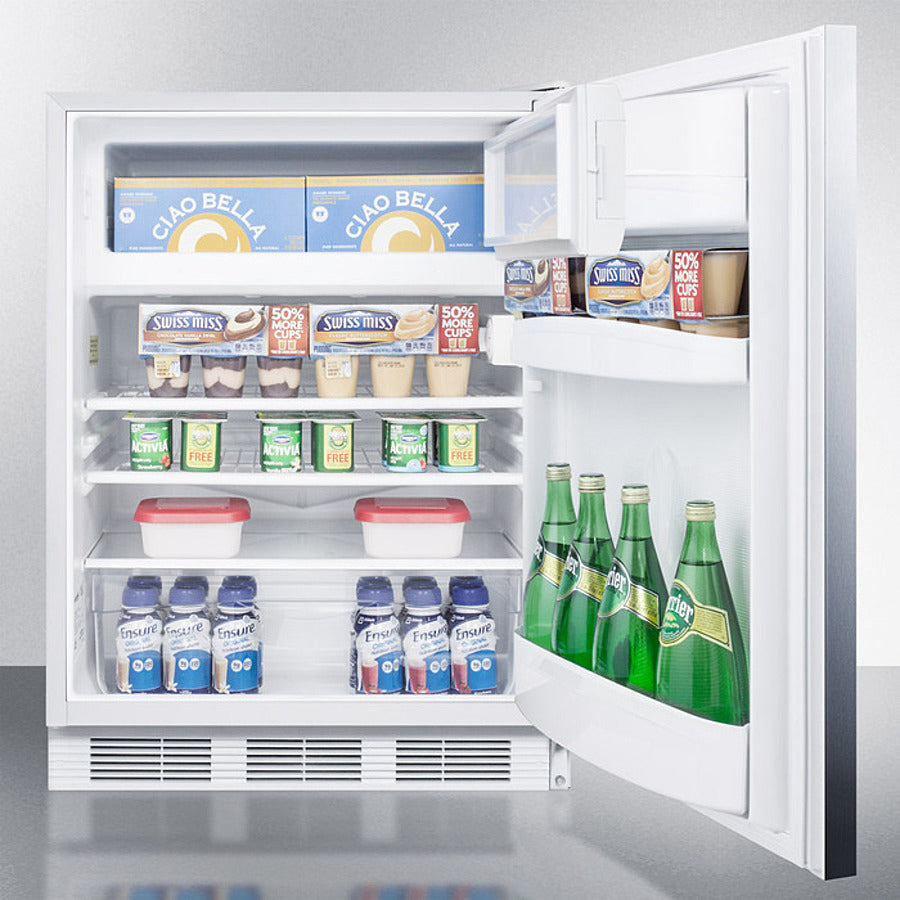

Inside, the CT663BKADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat.
The CT663BKADA is UL listed for residential use. With its large capacity and user-friendly features, this unit is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage. Additional choices are available in standard counter height. Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.38" (82 cm) | Adjustable Shelves | Yes |
| Nominal Width | 24.0" (61 cm) | Crisper Qty | 1 |
| Width | 23.63" (60 cm) | Crisper Finish | Transparent |
| Nominal Depth | 24.0" (61 cm) | Crisper Cover | Glass |
| Depth | 23.5" (60 cm) | Wine Bottle Shelving | Yes |
| Depth with door at 90° | 45.38" (115 cm) | Interior Light | Yes |
| Capacity | 5.04 cu.ft. (143 L) | Refrigerator - Interior Height | 18.0" (46 cm) |
| Defrost Type | Cycle | Refrigerator - Interior Width | 21.0" (53 cm) |
| Door | Black | Refrigerator - Interior Depth | 18.0" (46 cm) |
| Cabinet | Black | Refrigerator - Capacity | 4.5 cu.ft |
| US Electrical Safety | ETL | Refrigerator - Shelf Type | Glass |
| Canadian Electrical Safety | ETL-C | Refrigerator - Shelf Qty | 2 |
| Energy Usage/Year | 330.0kWh/year | Refrigerator - Full Door Shelves | 3 |
| Amps | 1.2 | Freezer - Interior Height | 5.25" (13 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Freezer - Interior Width | 19.0" (48 cm) |
| Weight | 100.0 lbs. (45 kg) | Freezer - Interior Depth | 11.5" (29 cm) |
| Parts & Labor Warranty | 1 Year | Freezer - Capacity | 0.6 cu.ft |
| Compressor Warranty | 5 Years | Thermostat Type | Dial |
| UPC | 761101068497 | Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. | ||
| High Side PSI | 180.0 | ||
| Low Side PSI | 80.0 | ||
| Compressor Step Height | 5.5" (14 cm) | ||
| Compressor Step Width | 21.0" (53 cm) | ||
| Compressor Step Depth | 6.0" (15 cm) |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
