Summit CT661WCSSADA 24″ Wide ADA-Height Built-In Refrigerator-Freezer – Stainless Steel Door & Cabinet
Customer service
Features
- SKU SA-CT661WCSSADA
SUMMIT brings quality and value under the counter with the industry’s largest collection of ADA compliant built-in refrigeration. The CT661BIADA Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage under lower ADA counters.

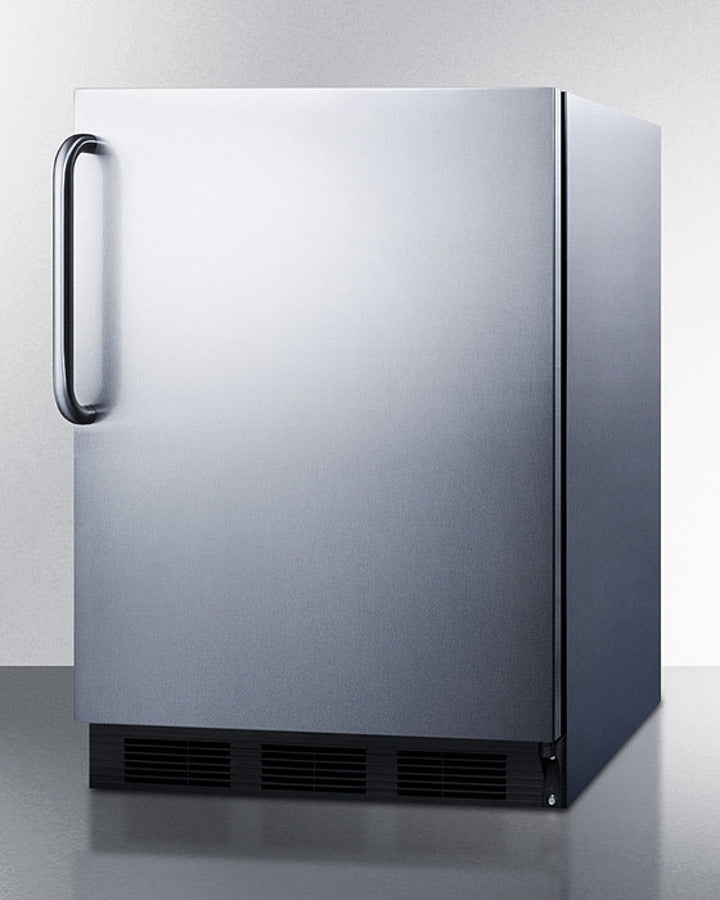

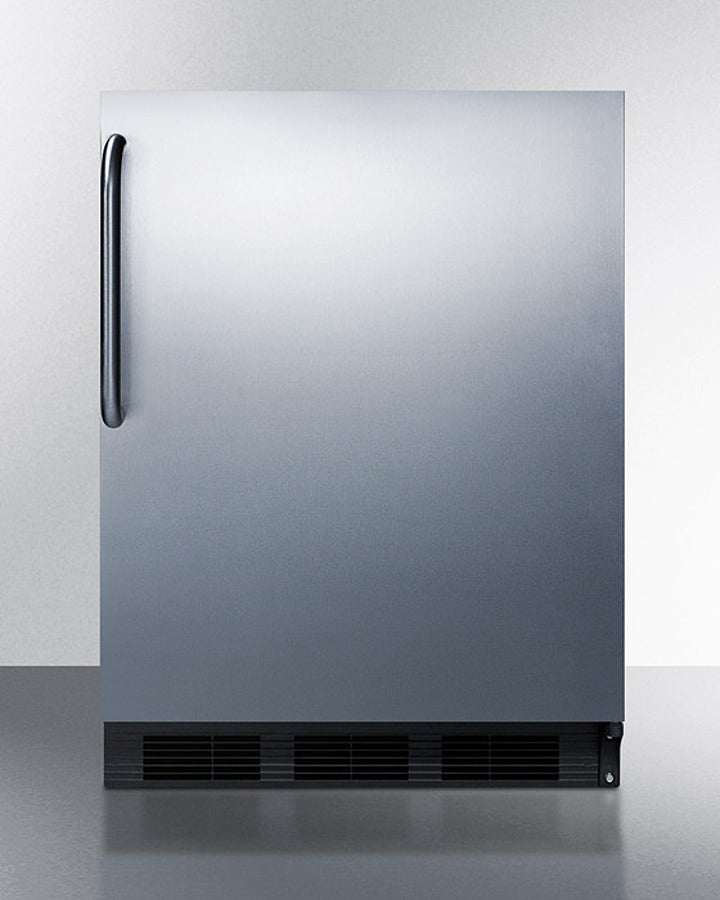

Sized with a 24” footprint, the CT661WCSSADA refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, larger than many units in this size class. The 32” height and front-breathing design makes it ideal for installation under lower counters complying with ADA guidelines for height restriction. The fully finished cabinet also enables freestanding use. This unit comes with a fully wrapped stainless steel door and cabinet. A curved towel bar handle in brushed stainless steel completes the professional look.

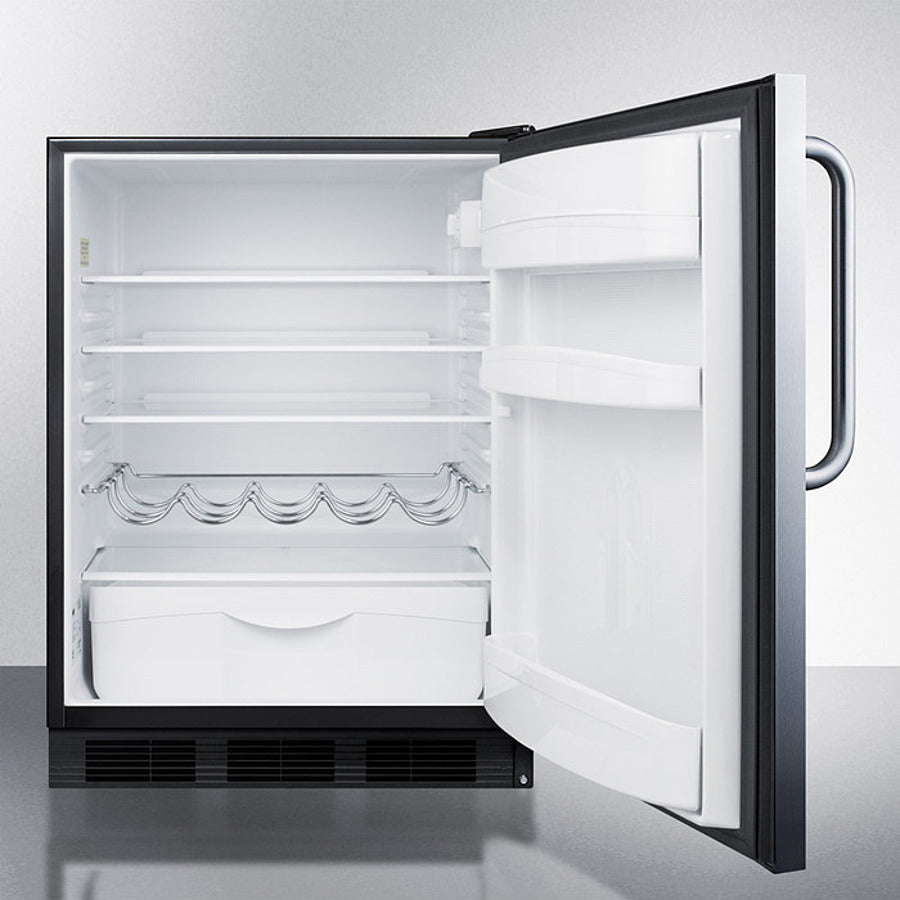

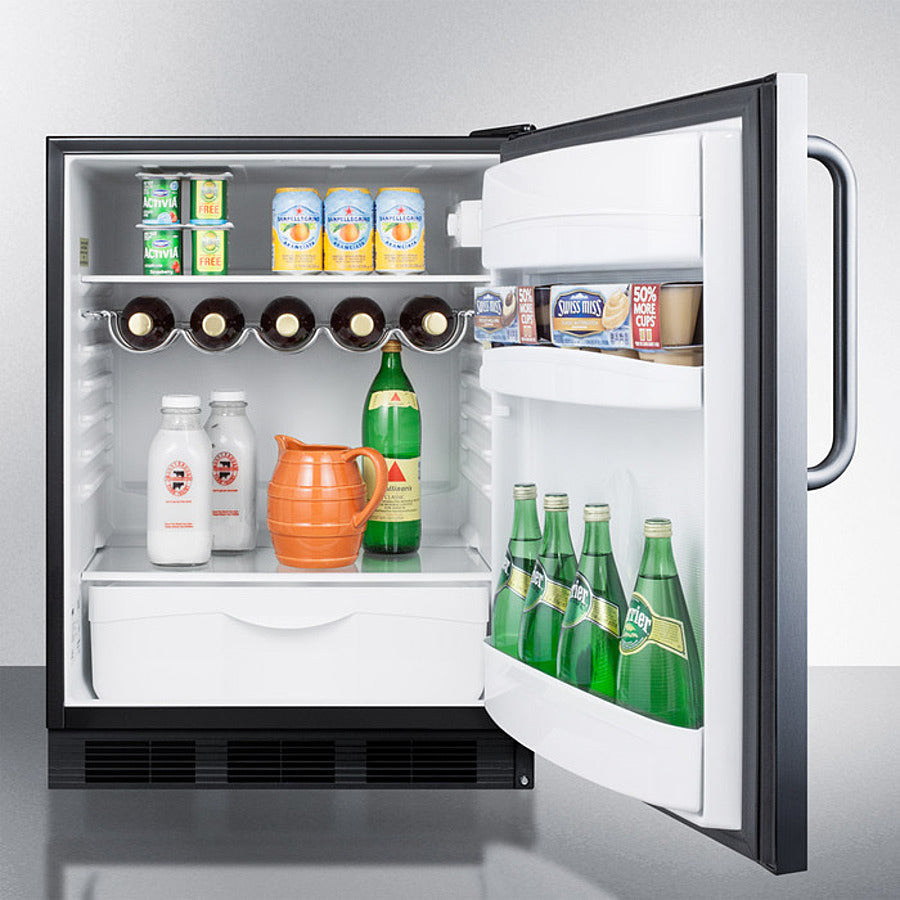

Inside, the CT661WCSSADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. These models include automatic interior lighting and an adjustable dial thermostat.
With its ideal dimensions and user-friendly features, the CT661WCSSADA is the perfect refrigerator-freezer for any ADA compliant setting in need of versatile storage under the counter.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 32.38" (82 cm) | Adjustable Shelves | Yes |
| Nominal Width | 24.0" (61 cm) | Crisper Qty | 1 |
| Width | 23.63" (60 cm) | Crisper Finish | Transparent |
| Nominal Depth | 23.0" (58 cm) | Crisper Cover | Glass |
| Depth | 23.0" (58 cm) | Wine Bottle Shelving | Yes |
| Depth with door at 90° | 45.38" (115 cm) | Interior Light | Yes |
| Capacity | 5.1 cu.ft. (144 L) | Refrigerator - Interior Height | 18.0" (46 cm) |
| Defrost Type | Cycle | Refrigerator - Interior Width | 21.0" (53 cm) |
| Door | Stainless Steel | Refrigerator - Interior Depth | 18.0" (46 cm) |
| Cabinet | Stainless Steel | Refrigerator - Capacity | 4.5 cu.ft |
| US Electrical Safety | ETL | Refrigerator - Shelf Type | Glass |
| Canadian Electrical Safety | ETL-C | Refrigerator - Shelf Qty | 2 |
| Energy Usage/Year | 365.0kWh/year | Refrigerator - Full Door Shelves | 3 |
| Amps | 1.4 | Freezer - Interior Height | 5.25" (13 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Freezer - Interior Width | 19.0" (48 cm) |
| Weight | 110.0 lbs. (50 kg) | Freezer - Interior Depth | 11.5" (29 cm) |
| Parts & Labor Warranty | 1 Year | Freezer - Capacity | 0.6 cu.ft |
| Compressor Warranty | 5 Years | Thermostat Type | Dial |
| UPC | 761101068411 | Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. | ||
| High Side PSI | 180.0 | ||
| Low Side PSI | 80.0 | ||
| Compressor Step Height | 5.5" (14 cm) | ||
| Compressor Step Width | 21.0" (53 cm) | ||
| Compressor Step Depth | 6.0" (15 cm) |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
