Summit CT66LWSSTBADA 24″ Wide ADA-Compliant Refrigerator-Freezer – Stainless Steel Door, White Cabinet, 5.1 cu ft
Customer service
Features
- SKU SA-CT66LWSSTBADA
Accucold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The CT66JADA Series includes freestanding refrigerator-freezers designed for optimum storage conditions and sized for use in settings complying with ADA guidelines.

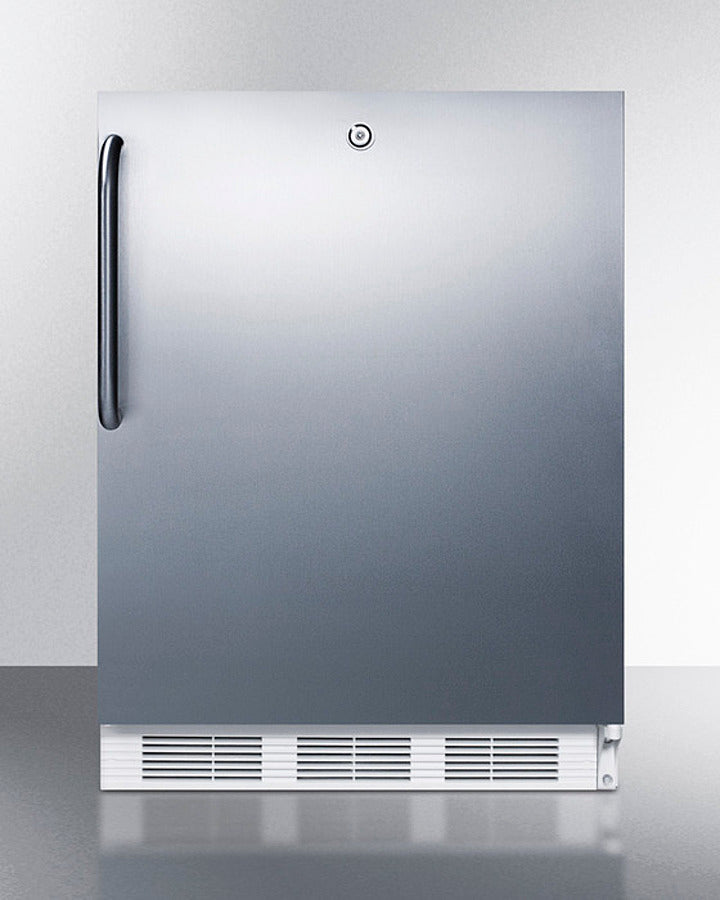

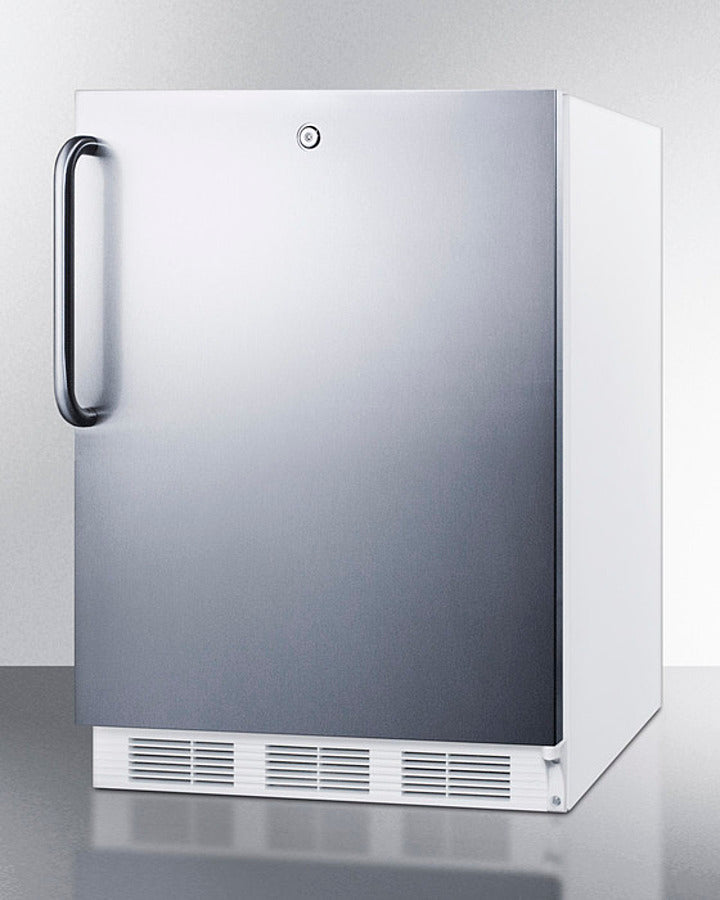

At 32" high, the CT66LWSSTBADA is designed for freestanding use in ADA compliant facilities. The 24" footprint offers overly 5 cu.ft. of storage capacity. This model features a white cabinet and a stainless steel wrapped door with a factory installed lock. A curved towel bar handle completes the look.

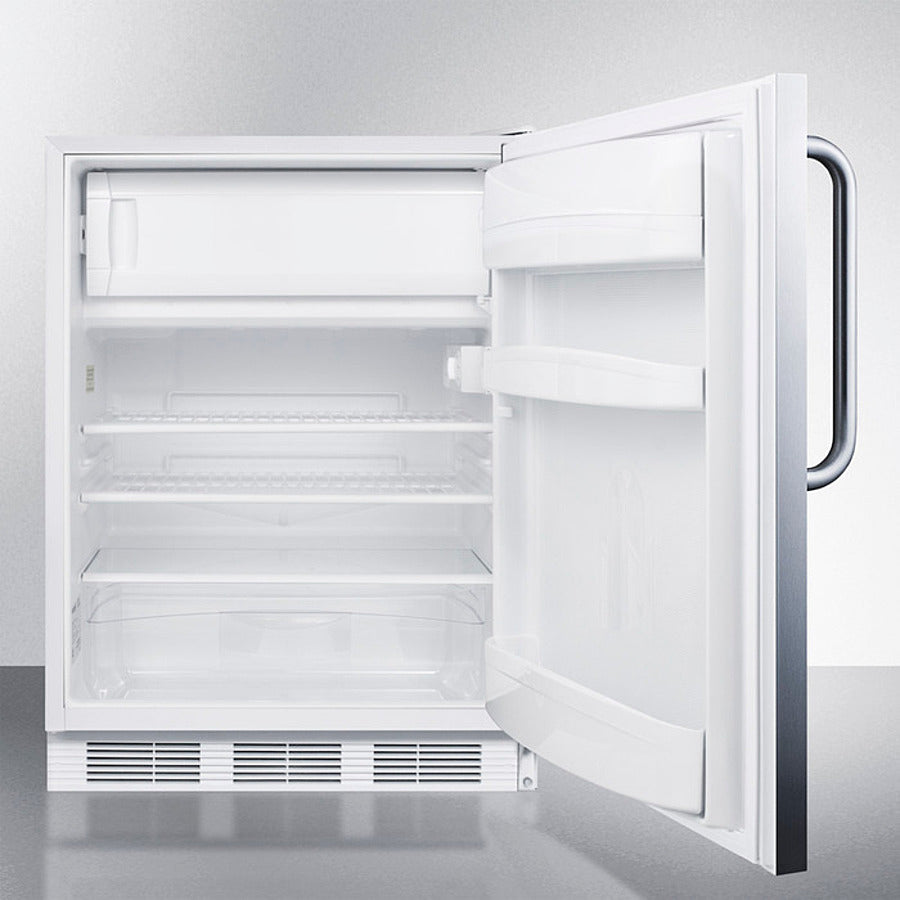

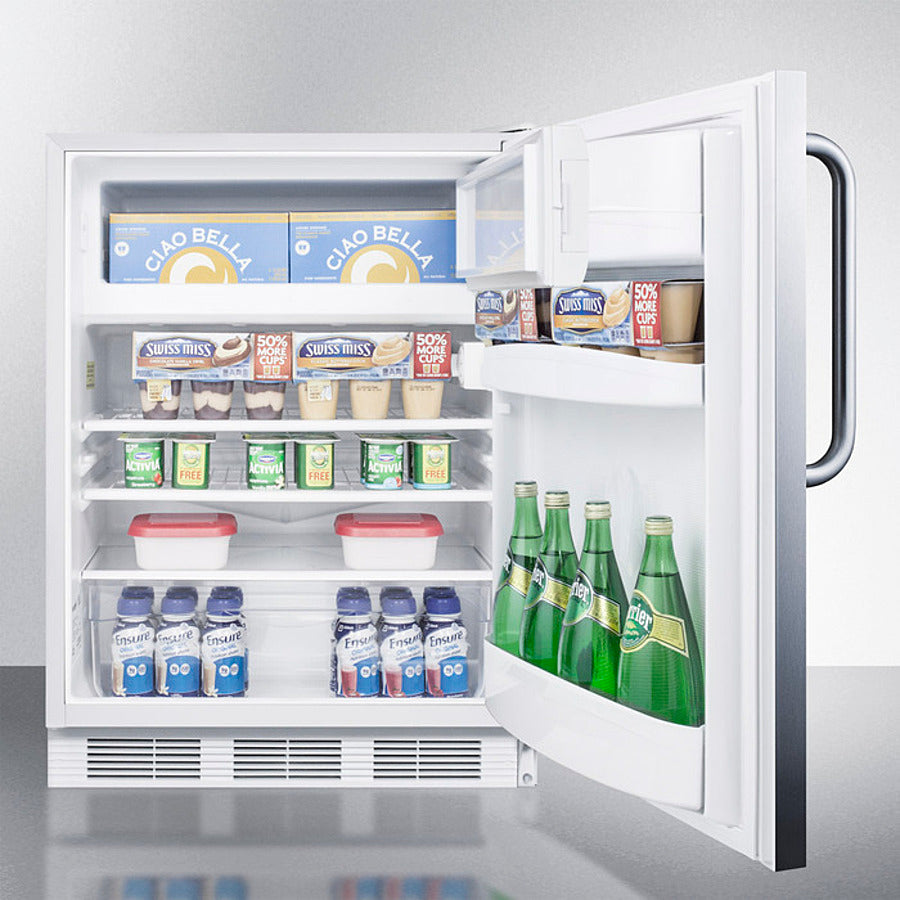

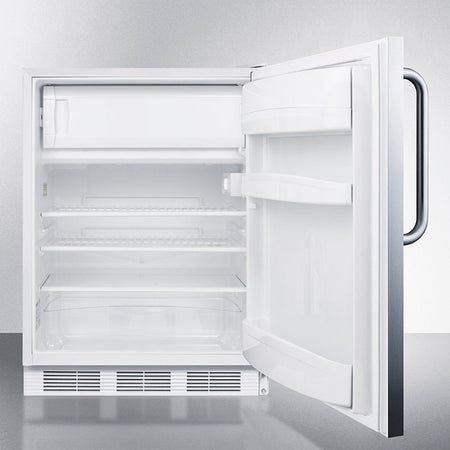

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.
The CT66LWSSTBADA has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66JADA Series. For built-in undercounter applications, see the CT66LWBISSTBADA.
NOTE: This unit is designed for general purpose applications and does not meet DOE energy standards for residential use.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 32.38" (82 cm) | Adjustable Shelves | Yes |
| Nominal Width | 24.0" (61 cm) | Crisper Qty | 1 |
| Width | 23.63" (60 cm) | Crisper Finish | Transparent |
| Nominal Depth | 24.0" (61 cm) | Crisper Cover | Glass |
| Depth | 23.5" (60 cm) | Interior Light | Yes |
| Capacity | 5.1 cu.ft. (144 L) | Refrigerator - Shelf Type | Wire |
| Defrost Type | Cycle | Refrigerator - Shelf Qty | 2 |
| Door | Stainless Steel | Refrigerator - Full Door Shelves | 3 |
| Cabinet | White | Thermostat Type | Dial |
| US Electrical Safety | ETL | Refrigerant Type | R600a |
| Canadian Electrical Safety | ETL-C | Refrigerant Amount | 0.92 oz. |
| Amps | 1.2 | High Side PSI | 180.0 |
| Voltage/Frequency | 115 V AC/60 Hz | Low Side PSI | 80.0 |
| Weight | 100.0 lbs. (45 kg) | ||
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101068992 |
|
ASSEMBLY DRAWING |
| SUPPORT | SUPPORT |
