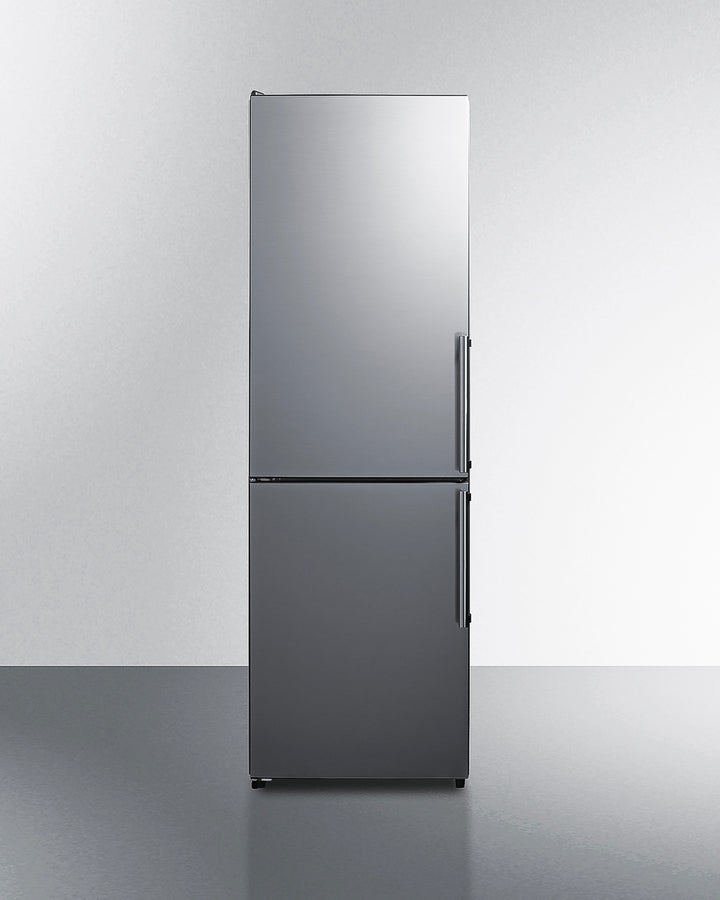

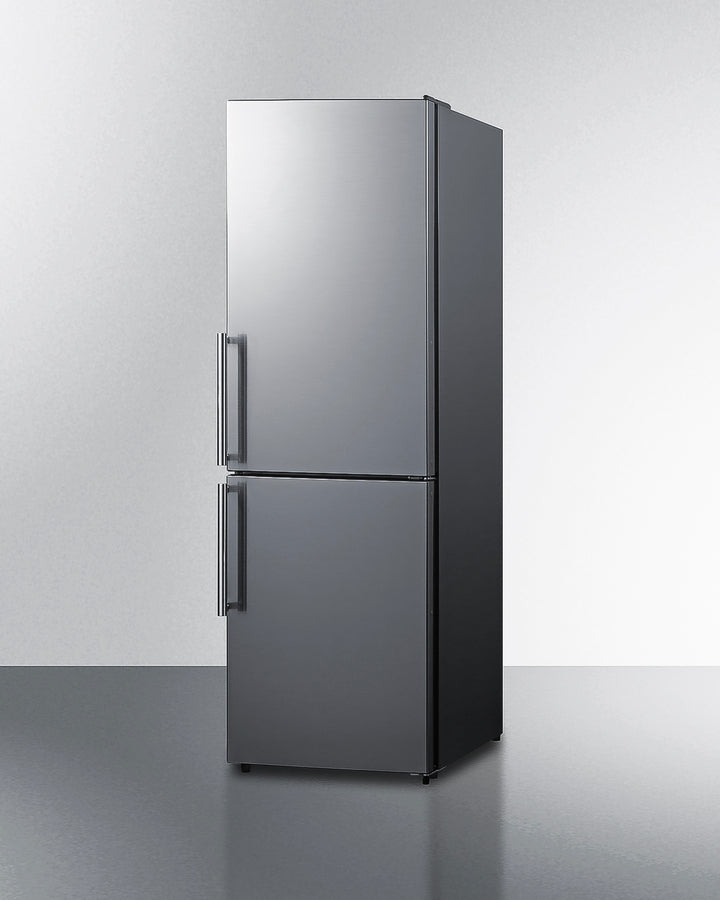

Summit FFBF235PL 24″ Wide 10.8 cu.ft Counter-Depth Bottom Freezer Refrigerator-Freezer – Stainless Look

SKU: SA-FFBF235PL

(0)

$1,458.10

Slim, 24-inch wide counter-depth design — fits apartments or tight kitchen spaces without compromising on capacity.

10.8 cu.ft total capacity with frost-free bottom-mount freezer layout — 7.35 cu.ft refrigerator + 3.43 cu.ft freezer.

Stainless steel look doors with reversible swing & sealed back — modern styling, flexible installation, clean fitting.

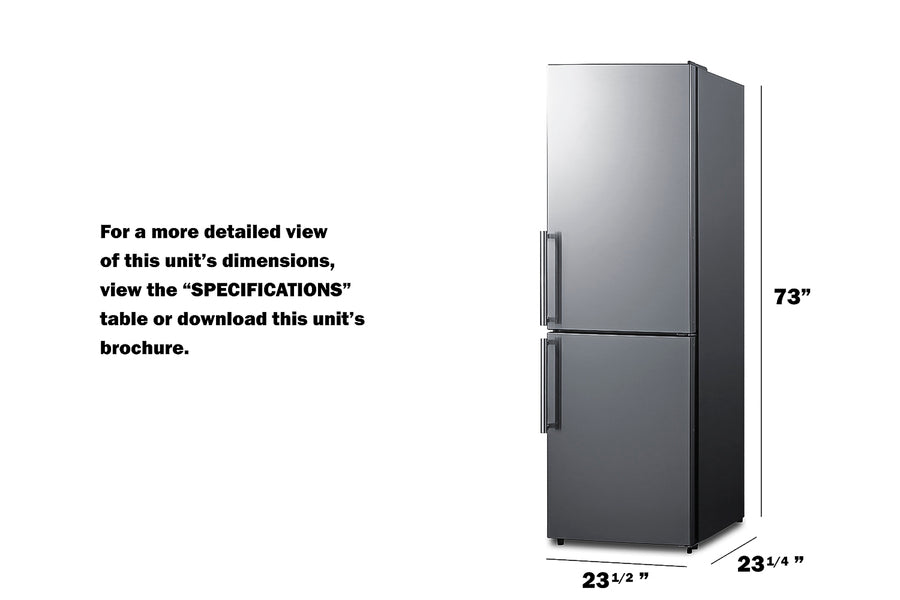

73.0" H x 23.5" W x 23.25" D

(185cm H x 60cm W x 59cm D)

5 years - Compressor Warranty

1 year - Parts & Labor Warranty

Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Customer service

Video chat Chat Email 800-626-0854

Features

SKU SA-FFBF235PL

Counter Depth Bottom Freezer Refrigerator:
10.8 cu. Ft. Refrigerator-freezer in a unique 23.5" W x 23.25" D fit is ideal for smaller kitchens and apartments

ENERGY STAR certified:
This unit is recognized as an efficient appliance by ENERGY STAR standards

No-frost operation:
Frost-free operation for minimum user maintenance

Stainless steel look:
Doors offer the look of stainless steel complete with a horizontal grain but the easier cleanability of a fingerprint-resistant steel finish

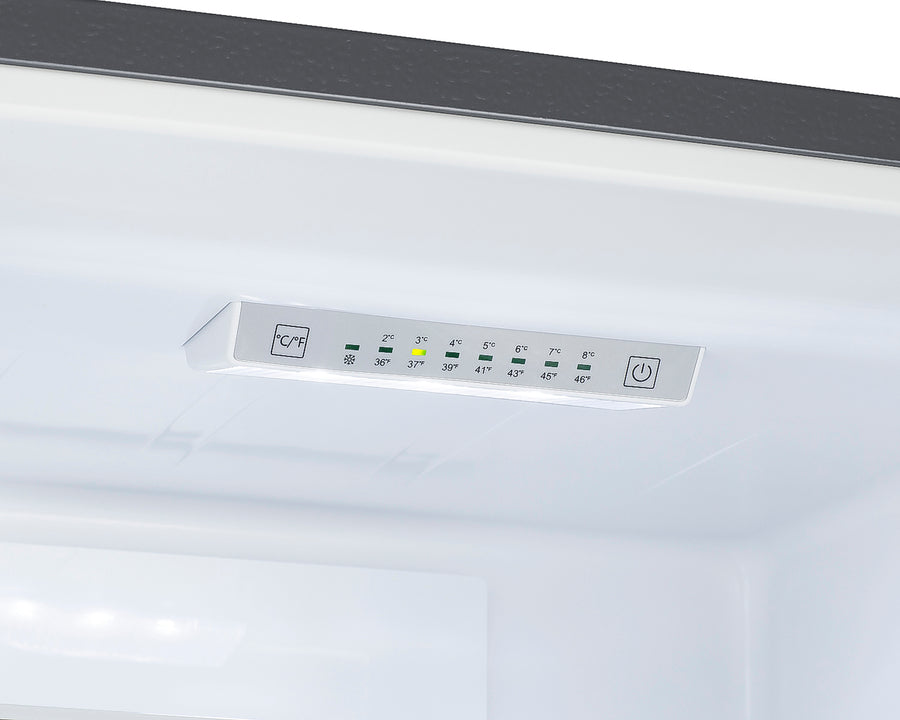

Digital controls:
Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator temperature at the touch of a button

Humidity controlled crisper:
Large crisper drawer allows you to ensure the optimum storage of fruits and vegetables

Convertible crisper/deli drawer:
Additional crisper allows you to store meats and deli items at a slightly colder temperature or convert to a second crisper using the easy slide control

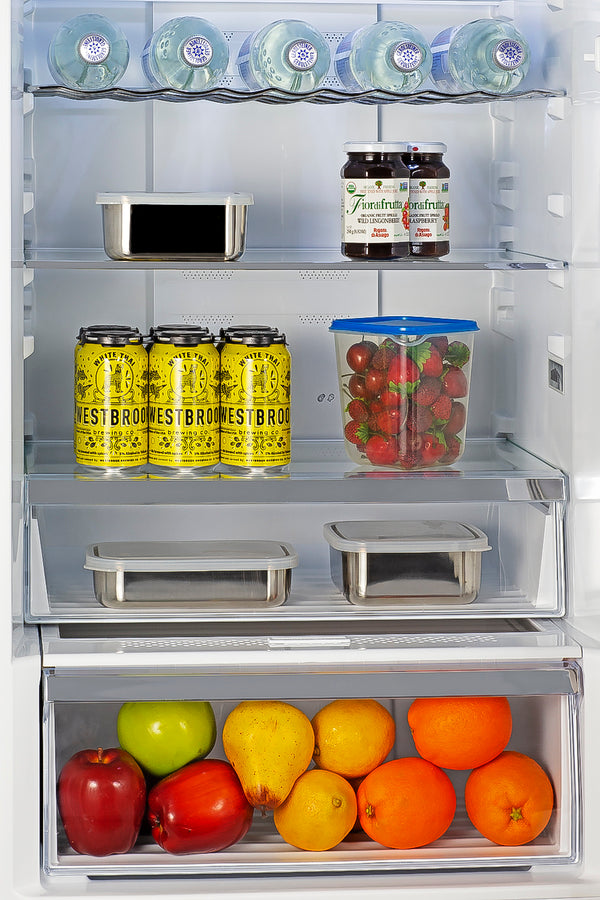

Adjustable glass shelves:
Steel-trimmed shelves users can rearrange to accommodate all shapes and sizes or remove shelves for a simple clean-up

Adjustable door storage:
Store tall bottles and condiments right on the door for convenient access

Scalloped steel rack:
The unit features one adjustable scalloped rack to store and chill your favorite beverages

Interior LED lighting:
Refrigerator section includes automatic LED lighting for an energy-efficient view

Quiet operation:
Runs at just 32.9 dB for a quiet performance that won't disturb anyone in your kitchen

Intensive freezing function:
Allows you to rapidly cool the freezer section, ideal for bringing newly loaded groceries to a safer storage temperature

Bottom freezer drawers:
Two slide-out freezer drawers include clear plastic fronts to maximize convenience and accessibility

Easy-to-use ice tray included:
Includes a convenient ice tray with a storage bin and crank system for easier ice retrieval

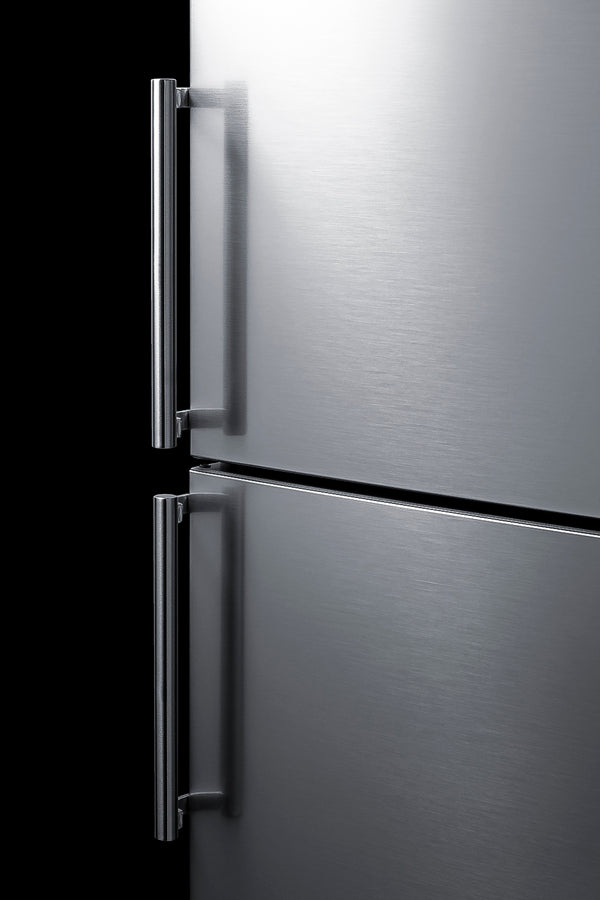

Designer handles:
Brushed steel handles offer a modern look for the refrigerator

Fully finished cabinet:
Textured cabinet in an attractive deep gray finish allows the unit to be used freestanding

Sealed back:
Space-saving convenience with easier cleanability

Reversible doors:
User-reversible door swing for added flexibility

Right angle plug:
The right-angle design allows you to plug the unit in flush against the wall socket with no need to add extra depth

100% CFC free:
Environmentally friendly design without ozone-damaging chemicals

CARB Compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's thin-line series of ENERGY STAR-certified counter-depth bottom freezer refrigerators conserves energy and space but adds quality and function with innovative features, convenient sizes, and energy-efficient operation. At 23.25" deep and 23.5" wide, the FFBF235PL offers 10.8 cu. Ft. of storage capacity, ideal for space-challenged kitchens with complete refrigeration needs.

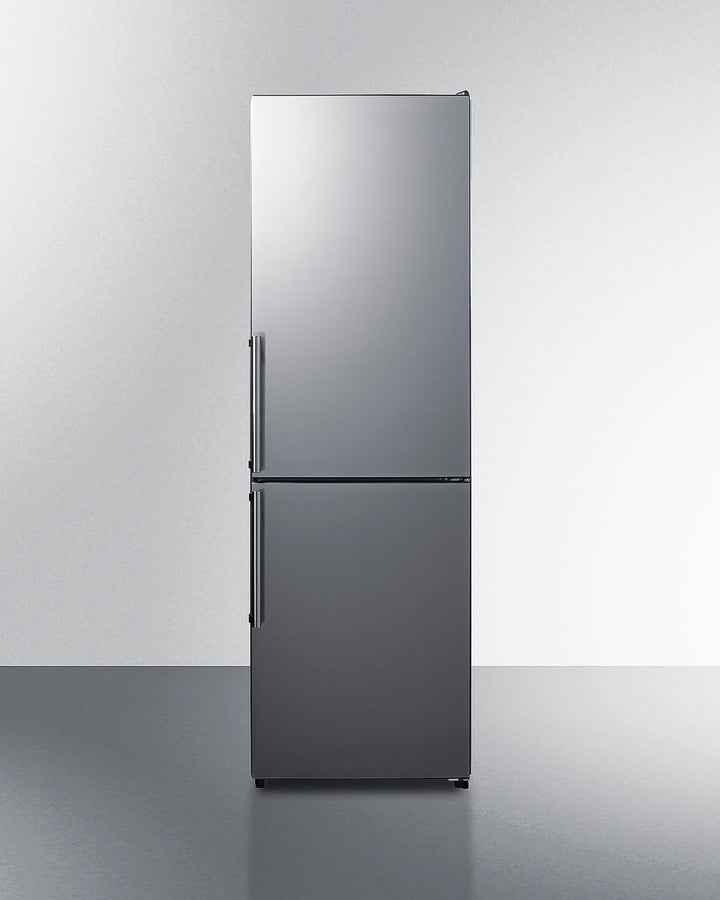

Reversible doors allow you to adjust the door swing to best suit your space. The doors and drawers come in a stainless steel look with a horizontal grain, offering a luxurious appearance with fingerprint-resistant convenience, paired with two handles in the same finish. The side cabinet features a textured gray finish. The unit features a sealed back and right-angle plug for added space savings in smaller kitchens.

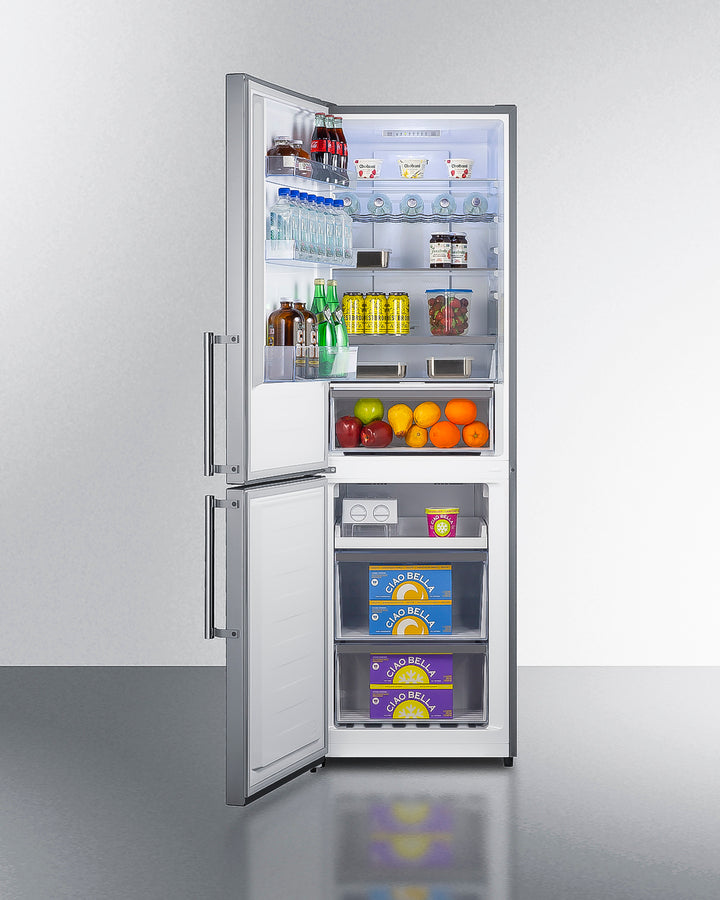

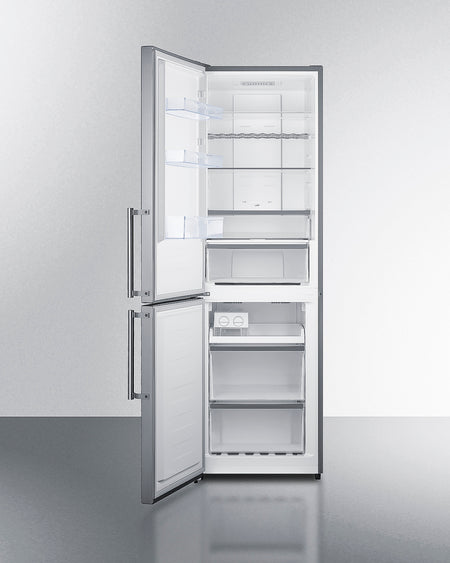

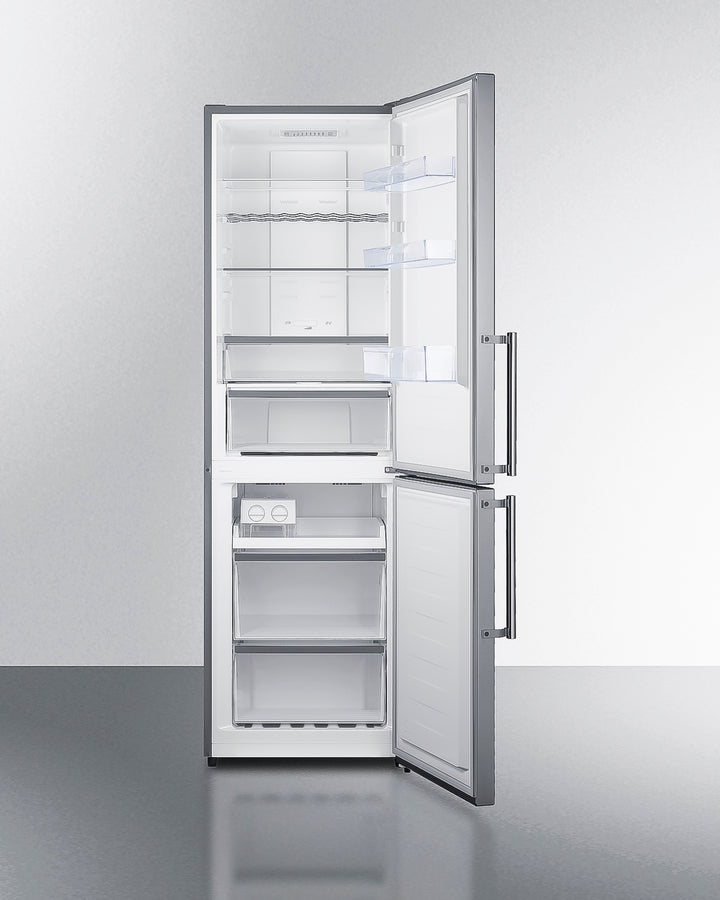

Inside, the FFBF235PL comes fully featured for maximum storage convenience with frost-free operation ideal for minimum maintenance. The refrigerator section includes adjustable shelves made from safety glass for durability and easy cleaning. An innovative touch control system lets you manage the refrigerator and freezer temperature with an intuitive digital thermostat. Super Freeze setting allows you to rapidly cool the freezer section, which is ideal for newly loaded groceries. The unit is laboratory-tested to ensure quiet operation at under 33 decibels.

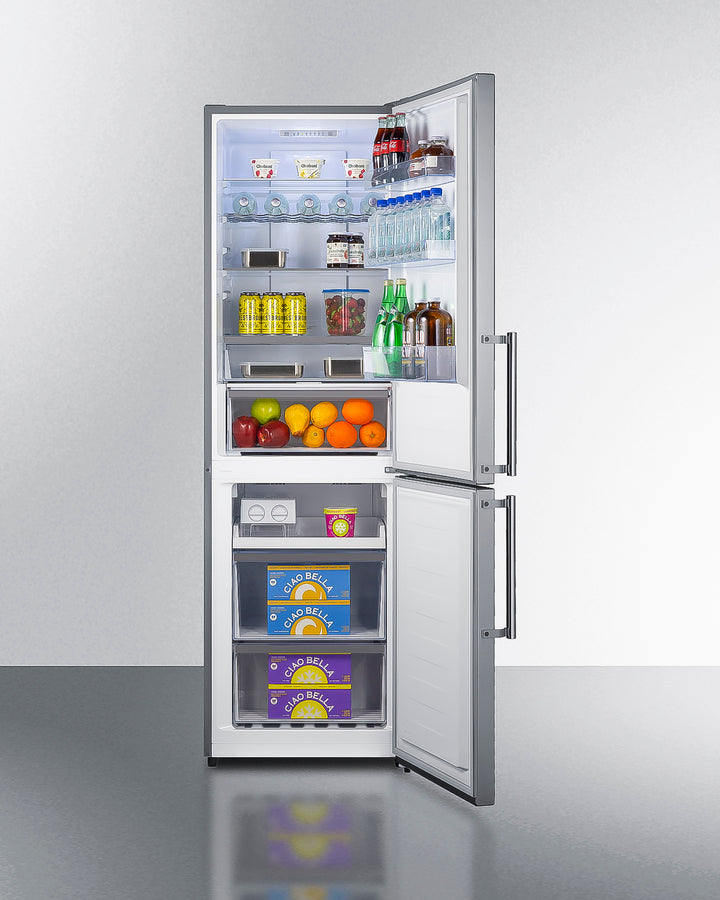

Our FFBF235PL includes a large humidity-controlled crisper drawer and a second meat drawer that can hold colder temperatures for deli items or easily convert to a regular crisper. The large freezer section features one shelf and two slide-out storage drawers with clear plastic fronts. These fronts help to protect your frozen goods from warmer ambient temperatures when the door is opened.

With its elegant design, unique size, and complete storage capacity, the FFBF235PL is the perfect energy-efficient addition to any kitchen looking to bring true quality, modern style, and energy savings in a smaller footprint than standard household refrigerators.

This is a bottom-mount freezer model. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.

Overview		Refrigerator-Freezer
Nominal Height	73.0" (185 cm)	Door Swing	RHD/LHD
Height of Cabinet	72.5" (184 cm)	Reversible	Yes
Height to Hinge Cap	73.0" (185 cm)	Adjustable Shelves	Yes
Nominal Width	24.0" (61 cm)	Interior Drawers	Yes
Width	23.5" (60 cm)	Drawer Qty	4
Nominal Depth	24.0" (61 cm)	Crisper Qty	2
Depth	23.25" (59 cm)	Crisper Finish	Transparent
Depth with Handle	25.75" (65 cm)	Crisper Cover	Plastic
Depth with door at 90°	44.63" (113 cm)	Wine Bottle Shelving	Yes
Capacity	10.8 cu.ft. (306 L)	Interior Light	Yes
Defrost Type	Frost-Free/Automatic	Refrigerator - Interior Height	37.0" (94 cm)
Door	Stainless Look	Refrigerator - Interior Width	20.5" (52 cm)
Cabinet	Gray	Refrigerator - Interior Depth	17.75" (45 cm)
US Electrical Safety	CSA	Refrigerator - Capacity	7.35 cu.ft
Canadian Electrical Safety	CSA-C	Refrigerator - Shelf Type	Glass and Scalloped
Energy Usage/Year	391.0kWh/year	Refrigerator - Shelf Qty	3
Amps	1.3	Refrigerator - Full Door Shelves	2
Voltage/Frequency	115 V AC/60 Hz	Freezer - Interior Height	26.75" (68 cm)
Weight	135.0 lbs. (61 kg)	Freezer - Interior Width	17.0" (43 cm)
Parts & Labor Warranty	1 Year	Freezer - Interior Depth	14.0" (36 cm)
Compressor Warranty	5 Years	Freezer - Capacity	3.43 cu.ft
UPC	761101103563	Freezer - Shelf Type	Drawers
		Thermostat Type	Digital
		Fan Type	Interior
		Refrigerant Type	R600a
		Refrigerant Amount	1.58 oz.
		High Side PSI	250.0
		Low Side PSI	88.0
		Level Legs	2
		Interior Height - Drawer 1	5.5" (14 cm)
		Interior Width - Drawer 1	20.5" (52 cm)
		Interior Depth - Drawer 1	12.0" (30 cm)
		Interior Height - Drawer 2	8.0" (20 cm)
		Interior Width - Drawer 2	20.5" (52 cm)
		Interior Depth - Drawer 2	16.5" (42 cm)
		Interior Height - Drawer 3	9.5" (24 cm)
		Interior Width - Drawer 3	17.0" (43 cm)
		Interior Depth - Drawer 3	12.75" (32 cm)
		Interior Height - Drawer 4	9.0" (23 cm)
		Interior Width - Drawer 4	17.0" (43 cm)
		Interior Depth - Drawer 4	8.5" (22 cm)
		Compressor Step Height	10.0" (25 cm)
		Compressor Step Width	17.0" (43 cm)
		Compressor Step Depth	5.0" (13 cm)
		Sound Level	32.9 dB
