Summit CTR18WIM 30″ Wide Top-Freezer Refrigerator-Freezer – 18.0 cu. ft., White Finish with Built-In Icemaker
Customer service
Features
- SKU SA-CTR18WIM
SUMMIT's selection of top freezer refrigerators offers true convenience for every kitchen, including break rooms and other general purpose facilities.

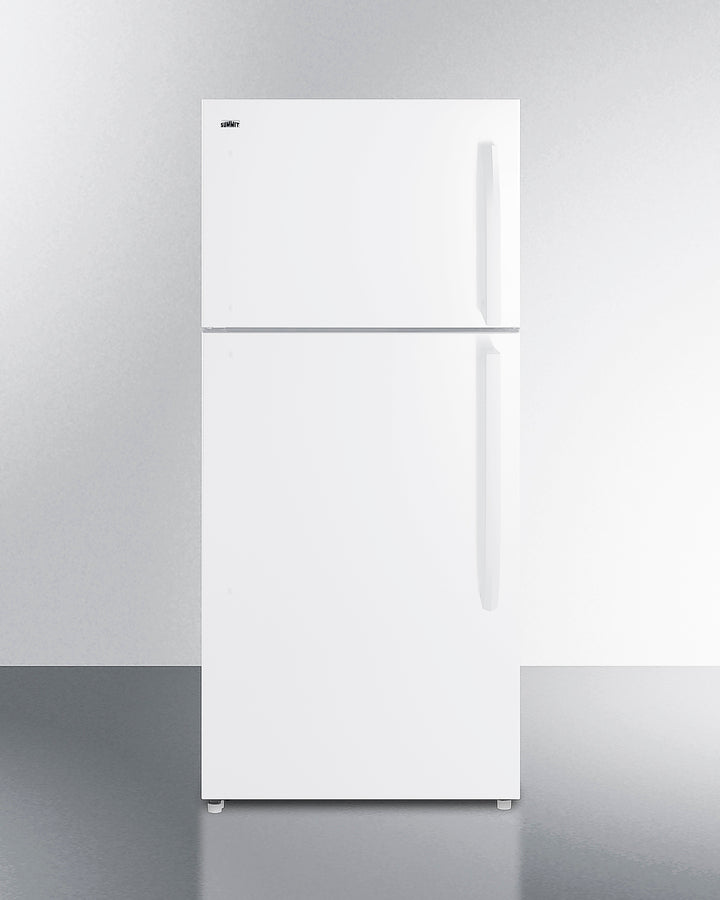

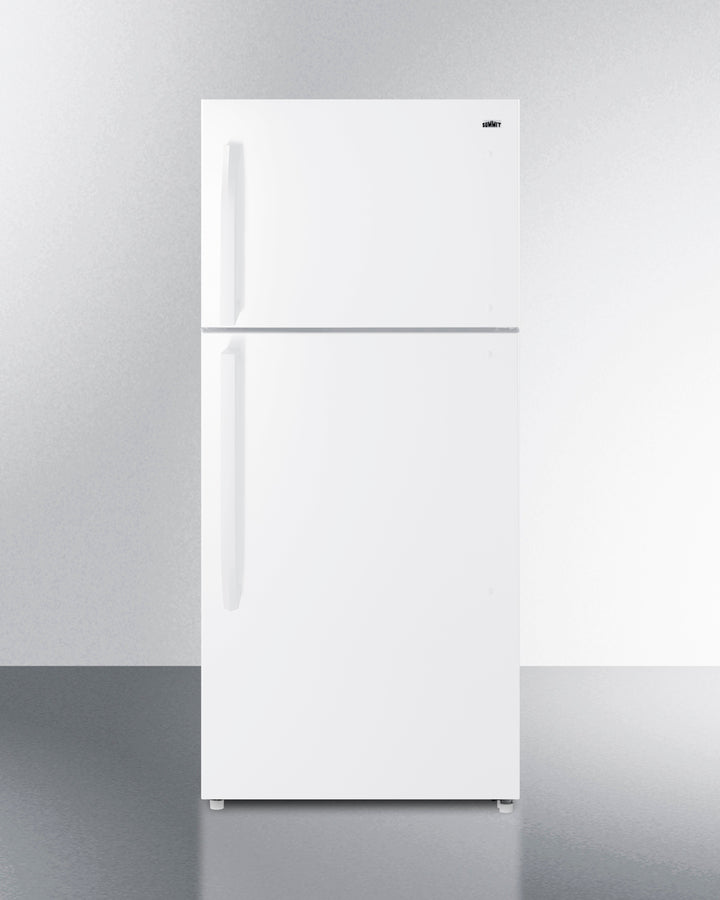

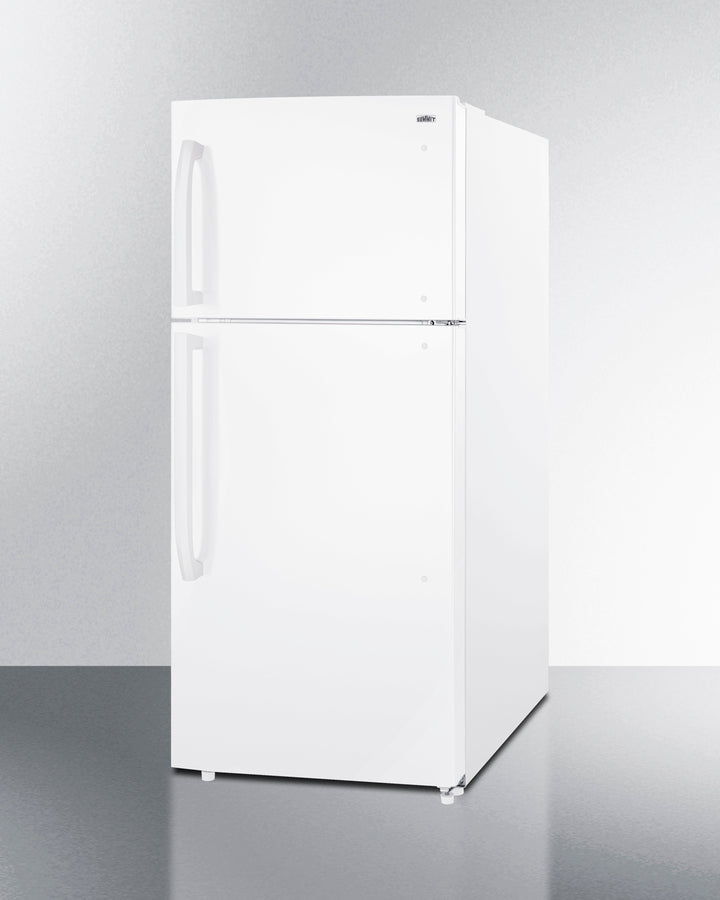

The CTR18WIM is a full-sized refrigerator-freezer. The large interior offers 18 cu.ft. of storage capacity, with frost-free operation for low maintenance use. It comes in a white exterior with user-reversible doors.

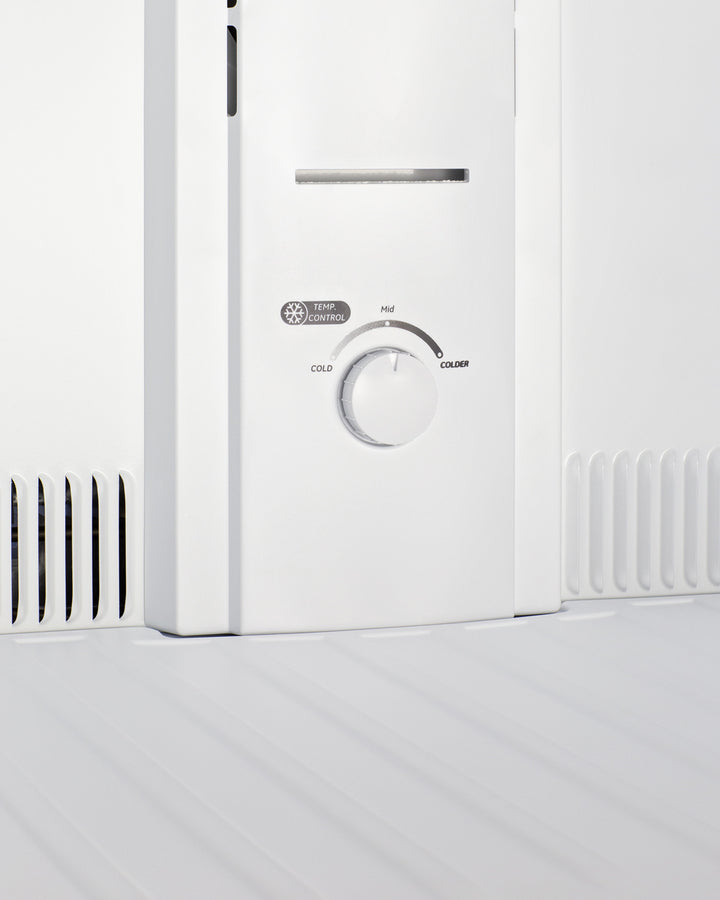

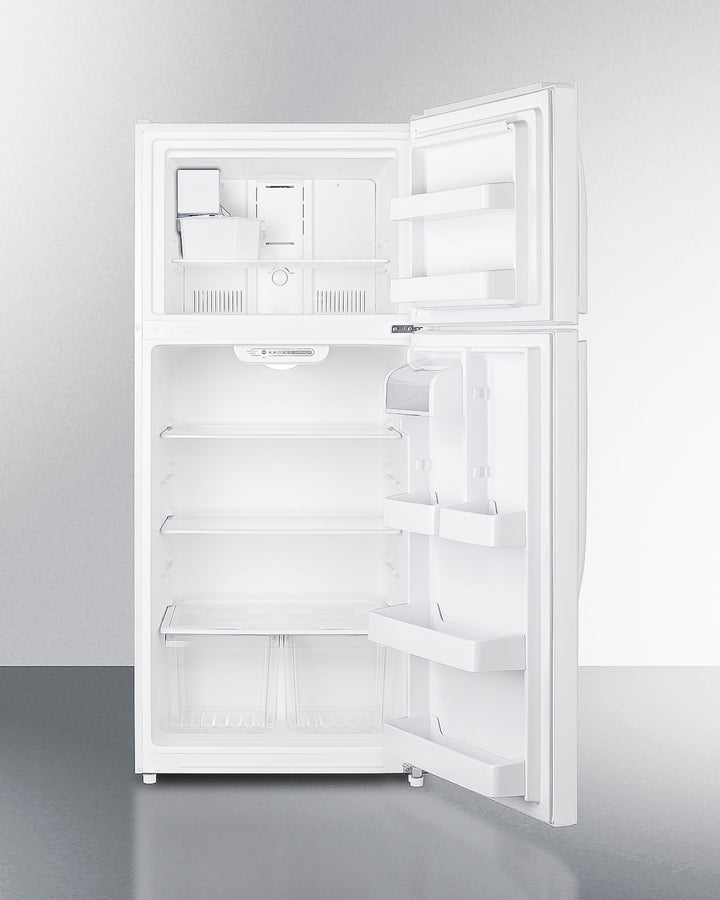

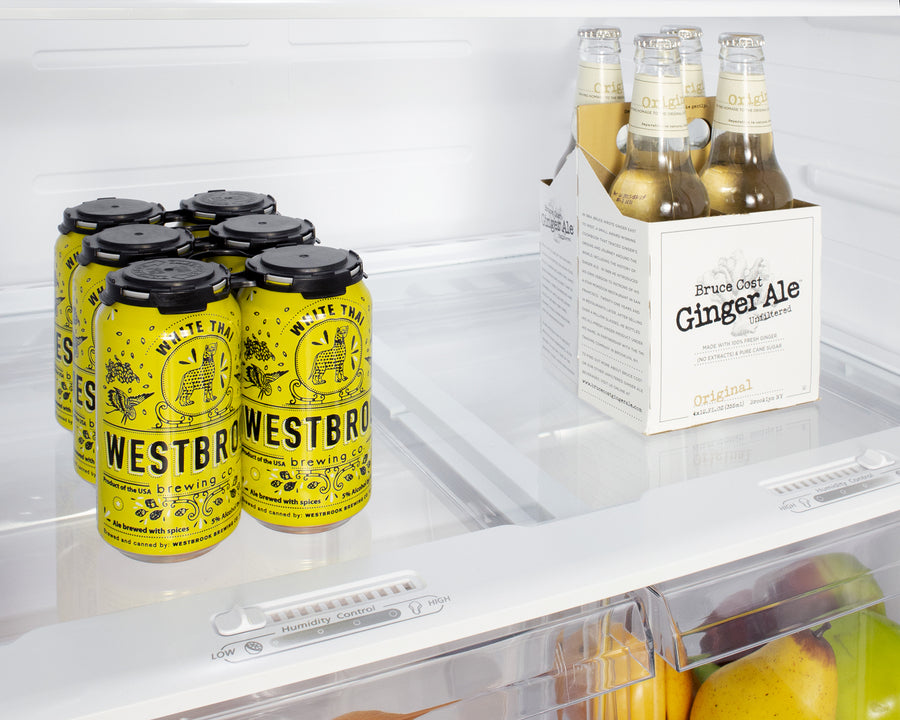

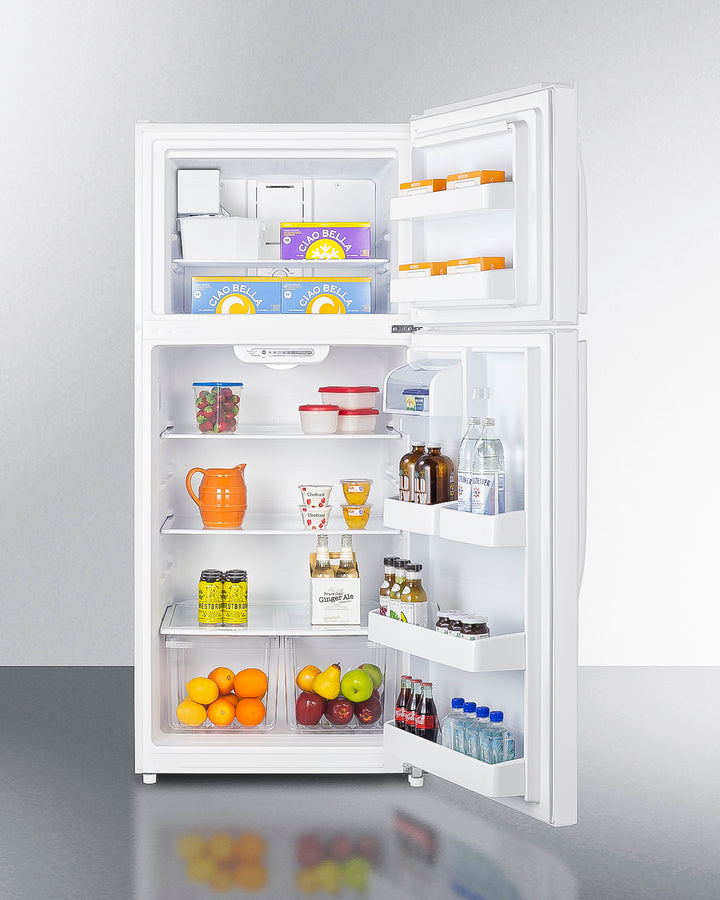

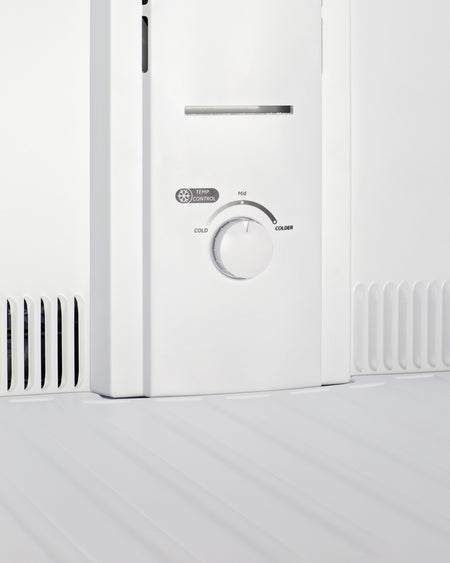

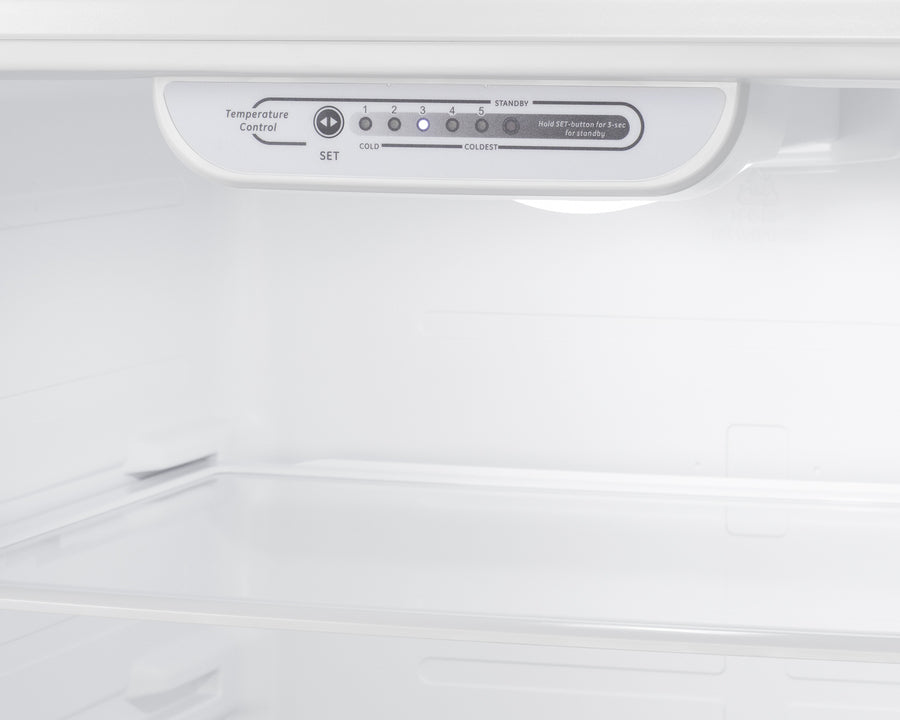

Inside, the CTR18WIM includes adjustable glass shelves in the refrigerator compartment and two clear crispers. The door features full-sized storage racks, including one that holds full gallon containers. Two half-sized door racks are adjustable to accommodate different sized items, with an additional fixed butter dish. The upper freezer compartment comes with a full-width wire shelf and two door bins, as well as a factory-installed icemaker. This unit includes an automatic interior LED light and easy-to-use interior thermostat.
| Overview | Refrigerator-Freezer | ||
| Nominal Height | 66.0" (168 cm) | Door Swing | RHD/LHD |
| Height of Cabinet | 66.0" (168 cm) | Reversible | Yes |
| Height to Hinge Cap | 66.63" (169 cm) | Adjustable Shelves | Yes |
| Nominal Width | 30.0" (76 cm) | Crisper Qty | 2 |
| Width | 29.5" (75 cm) | Crisper Finish | Transparent |
| Width with Door Open | 30.25" (77 cm) | Crisper Cover | Glass |
| Nominal Depth | 32.0" (81 cm) | Interior Light | Yes |
| Depth | 31.25" (79 cm) | Refrigerator - Interior Height | 40.0" (102 cm) |
| Depth with Handle | 33.25" (84 cm) | Refrigerator - Interior Width | 25.25" (64 cm) |
| Depth with door at 90° | 58.75" (149 cm) | Refrigerator - Interior Depth | 21.0" (53 cm) |
| Capacity | 18.0 cu.ft. (510 L) | Refrigerator - Shelf Type | Glass |
| Defrost Type | Frost-Free | Refrigerator - Shelf Qty | 2 |
| Door | White | Refrigerator - Full Door Shelves | 2 |
| Cabinet | White | Refrigerator - Half Door Shelves | 2 |
| US Electrical Safety | ETL | Refrigerator - Temperature Range | 36 to 46ºF |
| Canadian Electrical Safety | ETL-C | Freezer - Interior Height | 15.75" (40 cm) |
| Energy Usage/Year | 446.0kWh/year | Freezer - Interior Width | 22.25" (57 cm) |
| Amps | 2.1 | Freezer - Interior Depth | 25.5" (65 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Freezer - Shelf Type | Wire |
| Weight | 172.0 lbs. (78 kg) | Freezer - Shelf Qty | 1 |
| Parts & Labor Warranty | 1 Year | Freezer - Full Door Shelves | 2 |
| Compressor Warranty | 5 Years | Gallon Door Storage | Yes |
| UPC | 761101106878 | Thermostat Type | Dial |
| Fan Type | Interior | ||
| Refrigerant Type | R600a | ||
| Refrigerant Amount | 1.73 oz. | ||
| High Side PSI | 150.0 | ||
| Low Side PSI | 60.0 | ||
| Freezer - Temperature Range | 0 to 10ºF | ||
| Compressor Step Height | 10.0" (25 cm) | ||
| Compressor Step Width | 25.25" (64 cm) | ||
| Compressor Step Depth | 6.0" (15 cm) |
| BROCHURE | ASSEMBLY DRAWING | SUPPORT |
