Summit FF1843BSSADA 18″ Wide ADA-Height Built-In All-Refrigerator – Stainless Steel Door, Black Cabinet
Customer service
Features
- SKU SA-FF1843BSSADA
SUMMIT's selection of built-in undercounter refrigeration includes one of the industry's only complete 18" wide lines for use in ADA compliant settings.

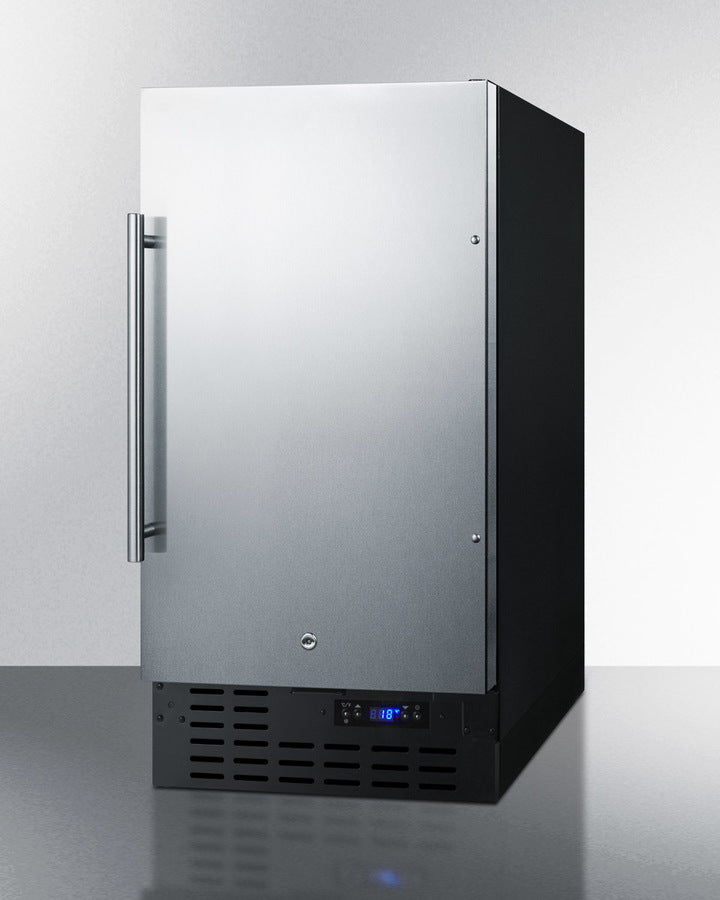

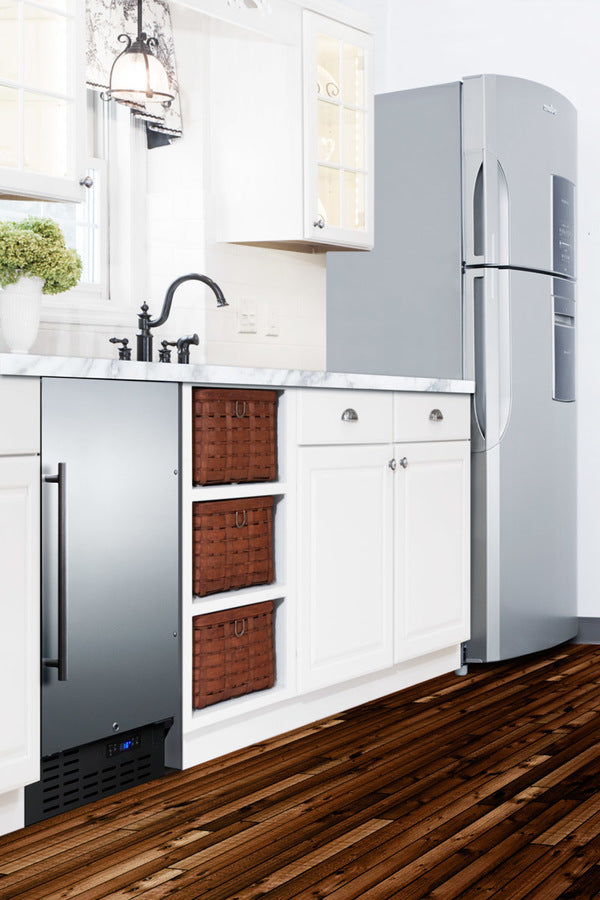

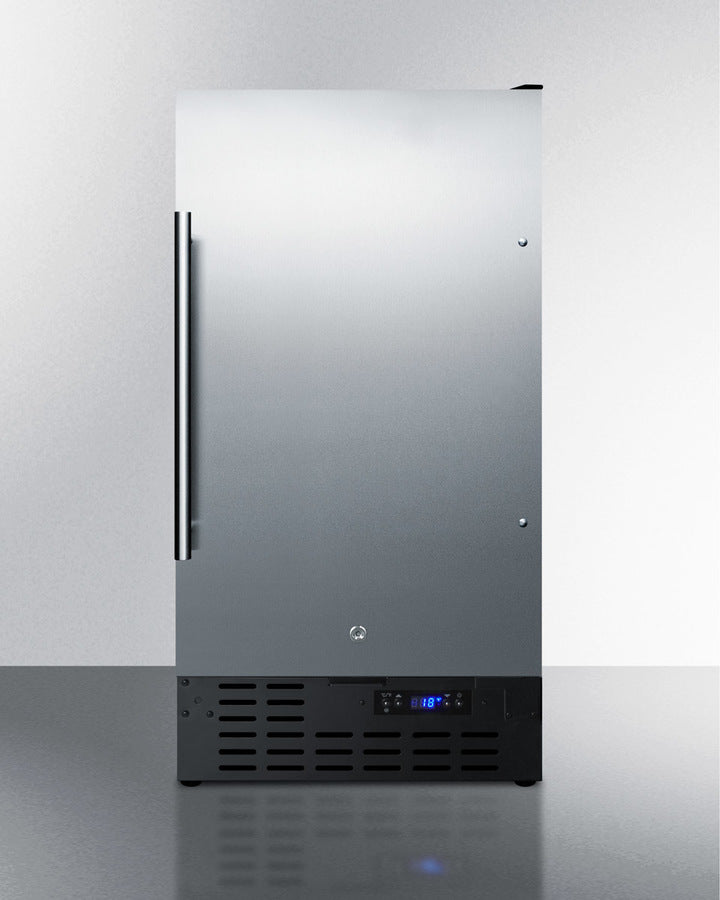

Sized just under 18" wide and 32" high, the FF1843BSSADA is the perfect all-refrigerator for space-challenged kitchens. It comes with a black cabinet and stainless steel wrapped door with a pro style handle. This unit can be used built-in or freestanding. The user-reversible door includes a factory installed front lock.

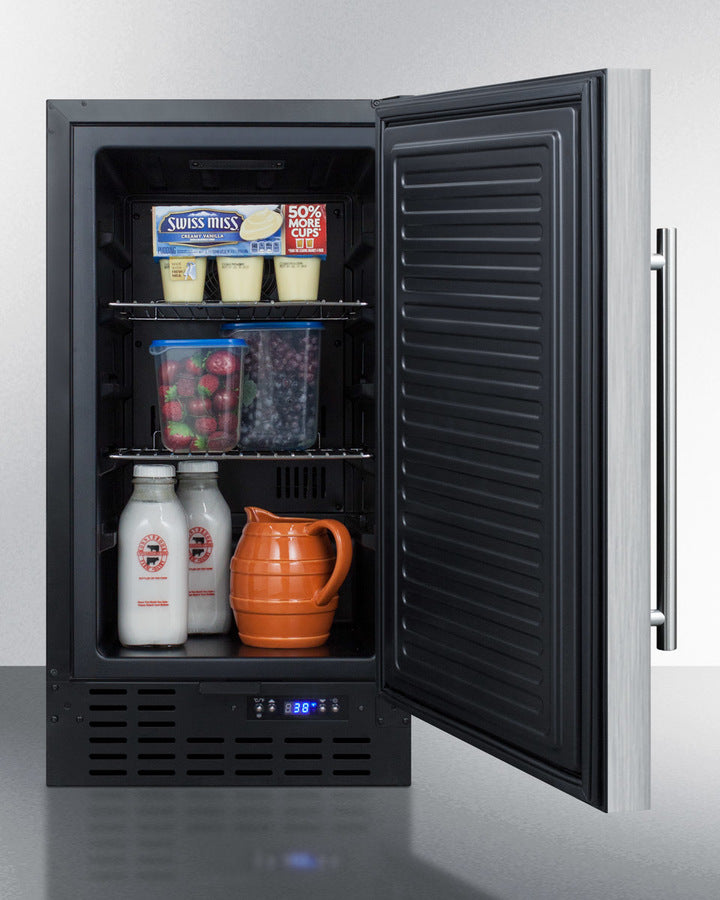

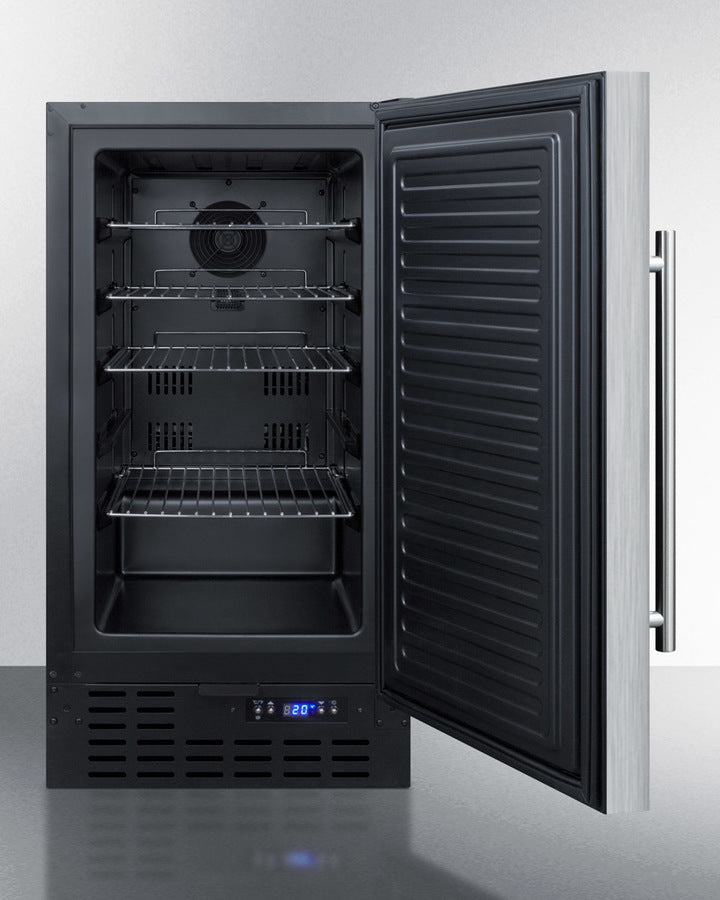

Inside, the FF1843BSSADA utilizes automatic defrost operation for low maintenance use. Four adjustable chrome shelves accommodate a variety of sizes and LED lighting offers an efficient interior view. This unit includes a digital thermostat for optimum temperature management.

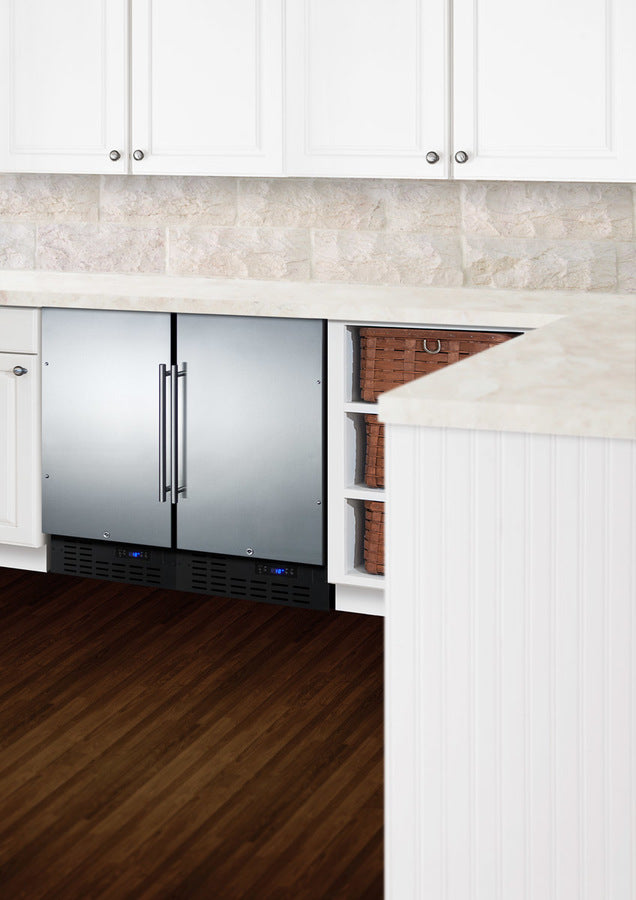

Combine the FF1843BSSADA with its matching freezer, wine cellar, or beverage refrigerator. We also offer this model in black or with a panel-ready door.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.5" (80 cm) | Reversible | Yes |
| Nominal Width | 18.0" (46 cm) | Shelf Type | Chrome |
| Width | 17.75" (45 cm) | Shelf Qty | 4 |
| Width with Door Open | 18.5" (47 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 24.0" (61 cm) | Thermostat Type | Digital |
| Depth | 24.0" (61 cm) | Fan Type | Interior and Exterior |
| Depth with Handle | 24.75" (63 cm) | Refrigerant Type | R600a |
| Depth with door at 90° | 40.0" (102 cm) | Refrigerant Amount | 1.06oz. |
| Capacity | 2.7 cu.ft. (76 L) | High Side PSI | 150.0 |
| Defrost Type | Automatic | Low Side PSI | 50.0 |
| Door | Stainless Steel | Level Legs Qty | 2 |
| Cabinet | Black | Interior Light | Yes |
| US Electrical Safety | ETL | Sound Level | 33.1 dB |
| Canadian Electrical Safety | ETL-C |
Dimensions
|
|
|---|---|---|---|
| Sanitation | ETL-S | Interior Height | 23.5" (60 cm) |
| Energy Usage/Year | 250.0kWh/year | Interior Width | 12.75" (32 cm) |
| Amps | 1.1 | Interior Depth | 16.75" (43 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 4.5" (11 cm) |
| Weight | 103.0 lbs. (47 kg) | Compressor Step Width | 12.75" (32 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 4.5" (11 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101047034 | ||
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
