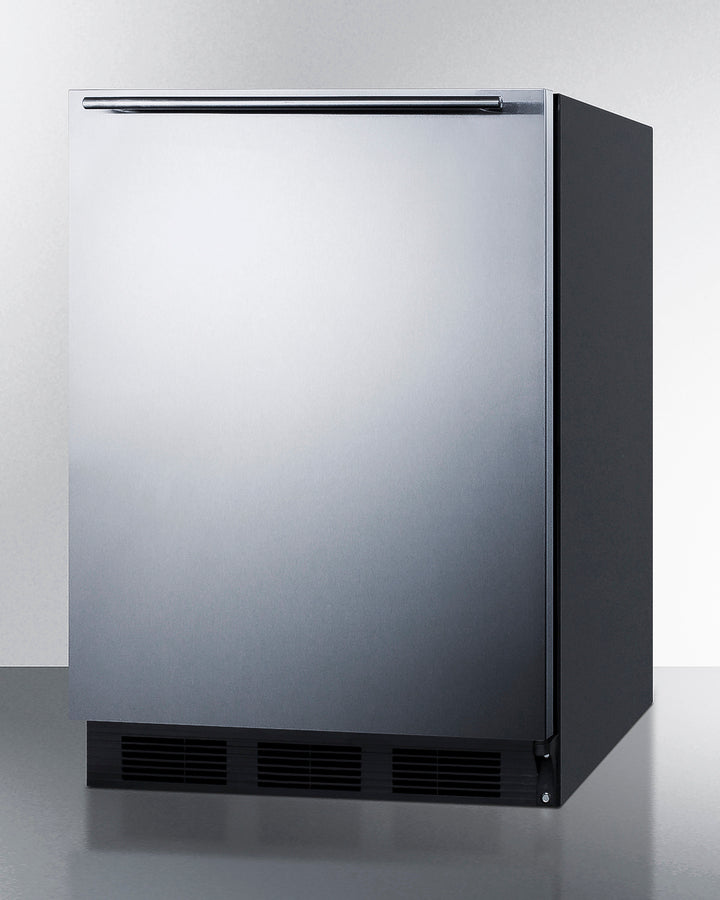

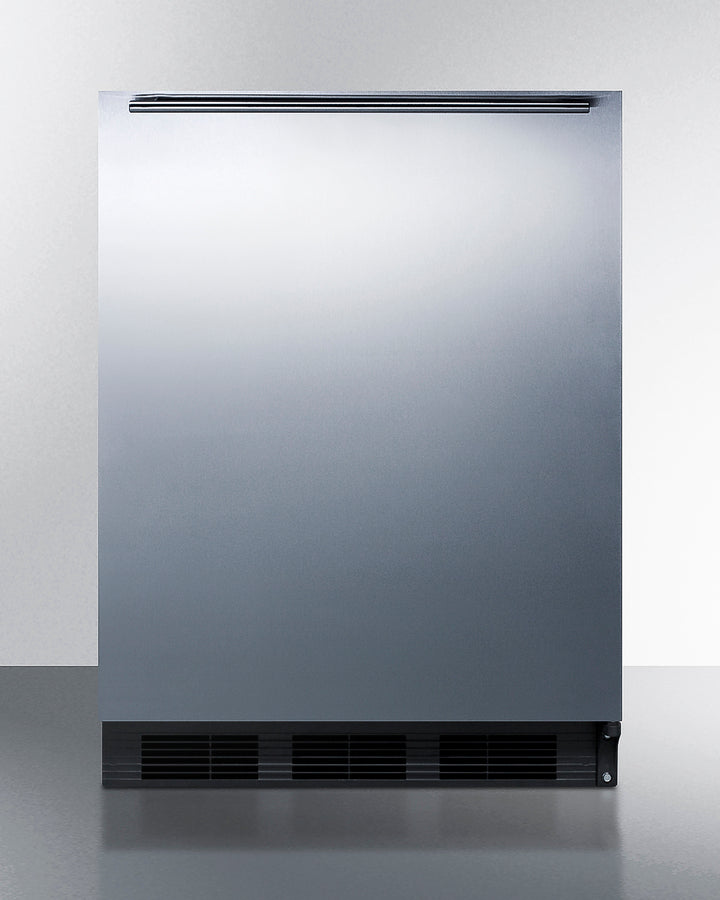

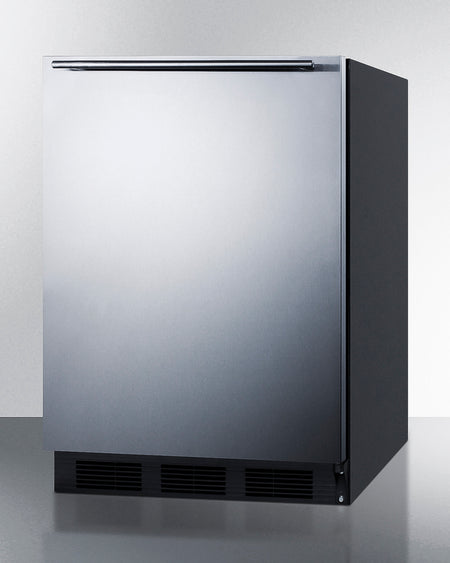

Summit AR5BS 24″ Wide Built-In All-Refrigerator – ADA-Height, Stainless Steel Door, Black Cabinet
Customer service
Features
- SKU SA-AR5BS
SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations.
Sized with a 24” footprint and 32” height, the AR5BS is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a pre-installed stainless steel handle in a sleek 14mm diameter mounted horizontally across the top of the door.

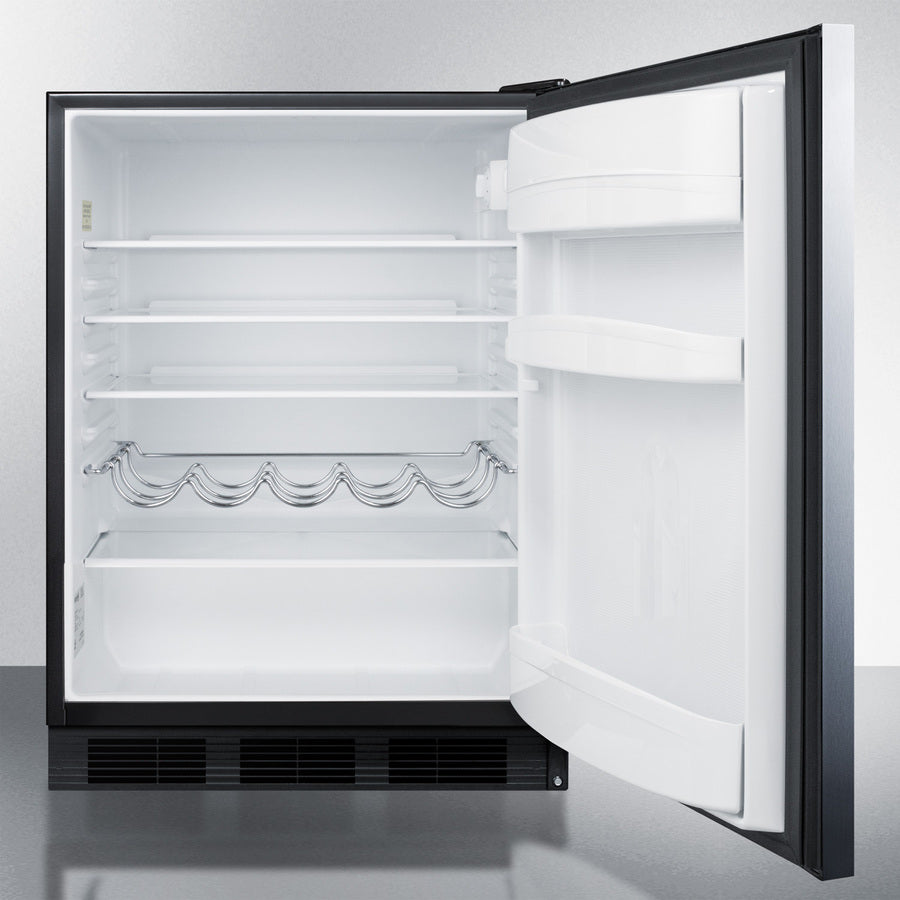

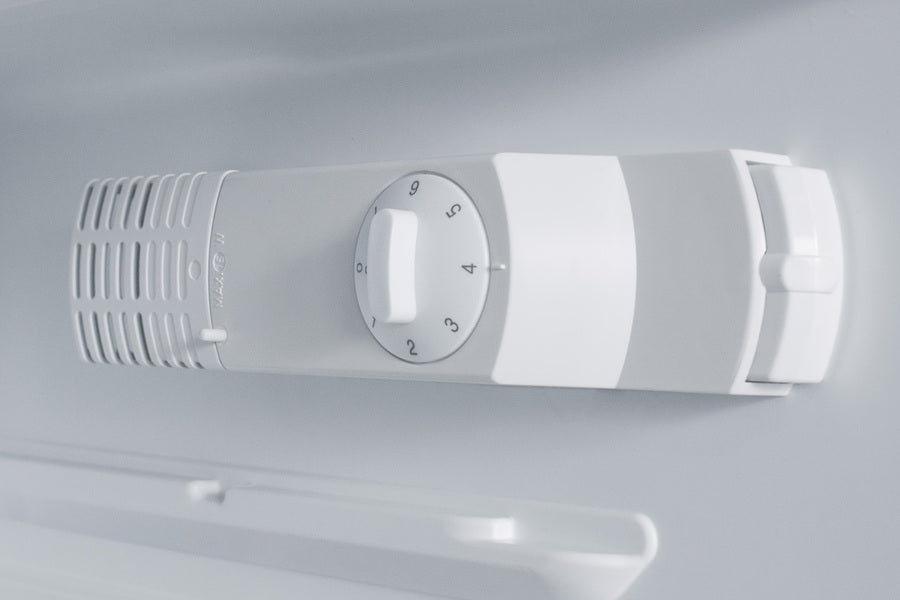

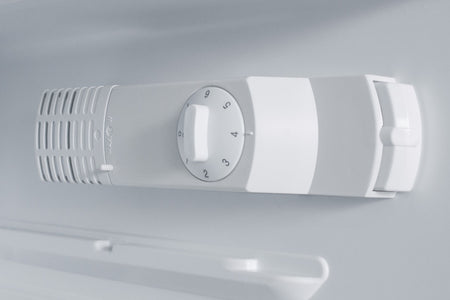

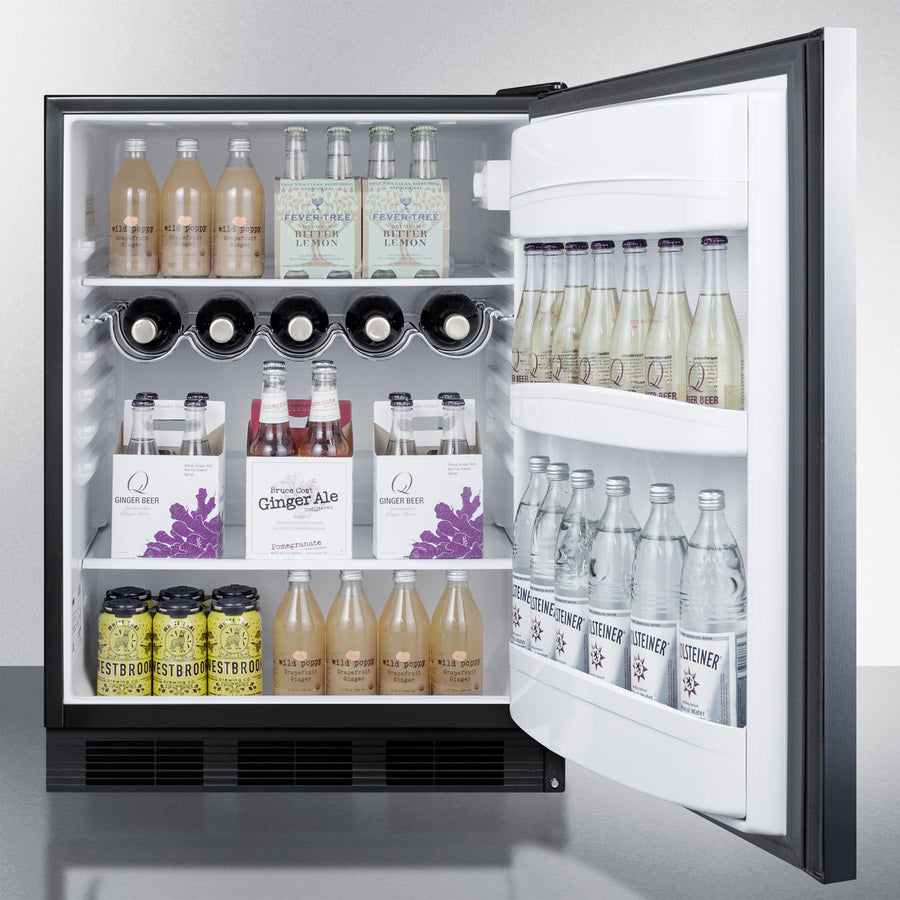

Inside, the AR5BS utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BS features Summit's intuitive dial thermostat for easy temperature management.
Designed and constructed in Europe, the AR5BS brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For a panel-ready version of this unit, see the AR5IF.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.25" (82 cm) | Shelf Type | Glass |
| Nominal Width | 24.0" (61 cm) | Shelf Qty | 3 |
| Width | 23.63" (60 cm) | Full Door Shelf Qty | 3 |
| Nominal Depth | 23.0" (58 cm) | Adjustable Shelves | Yes |
| Depth | 23.0" (58 cm) | Wine Bottle Shelves | Yes |
| Depth with door at 90° | 45.38" (115 cm) | Thermostat Type | Dial |
| Capacity | 5.5 cu.ft. (156 L) | Fan Type | Exterior |
| Defrost Type | Automatic | Refrigerant Type | R600a |
| Door | Stainless Steel | Refrigerant Amount | 0.64oz. |
| Cabinet | Black | High Side PSI | 180.0 |
| US Electrical Safety | ETL | Low Side PSI | 80.0 |
| Canadian Electrical Safety | ETL-C | Interior Light | Yes |
| Energy Usage/Year | 307.0kWh/year |
Dimensions
|
|
|---|---|---|---|
| Amps | 1.4 | Interior Height | 26.25" (67 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Interior Width | 21.0" (53 cm) |
| Weight | 100.0 lbs. (45 kg) | Interior Depth | 18.0" (46 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Height | 5.5" (14 cm) |
| Compressor Warranty | 5 Years | Compressor Step Width | 21.0" (53 cm) |
| UPC | 761101068268 | Compressor Step Depth | 6.0" (15 cm) |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
