Summit ADA404REFIF 20″ Wide Built-In Healthcare All-Refrigerator – ADA Height, Panel-Ready
Customer service
Features
- SKU SA-ADA404REFIF
Accucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA-compliant counters. These refrigerators have advanced features for user convenience.

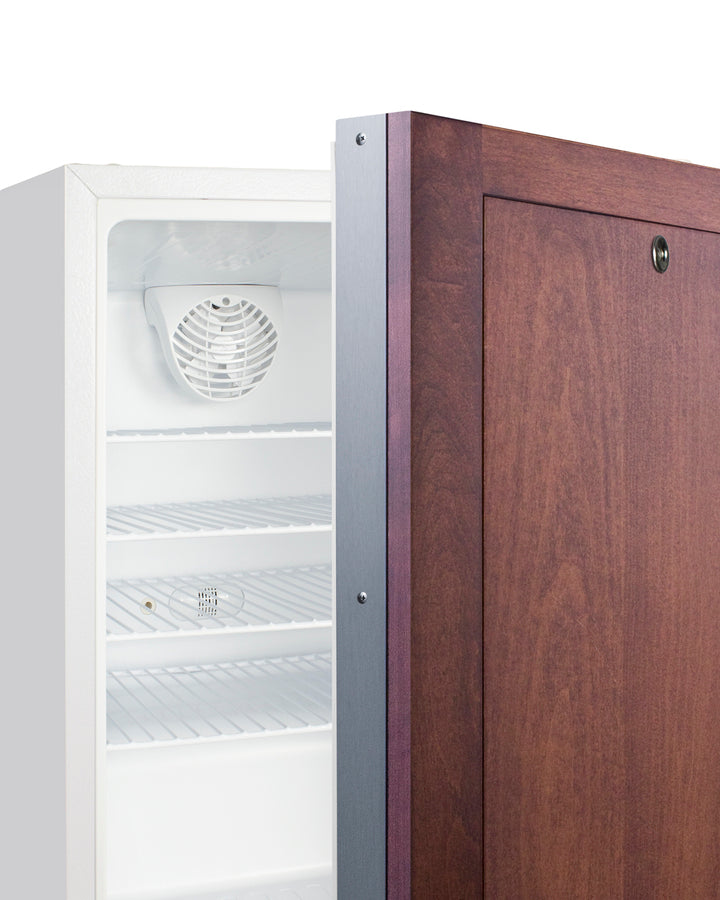

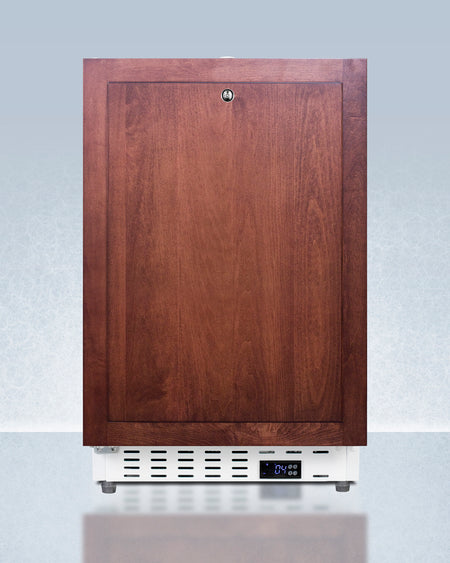

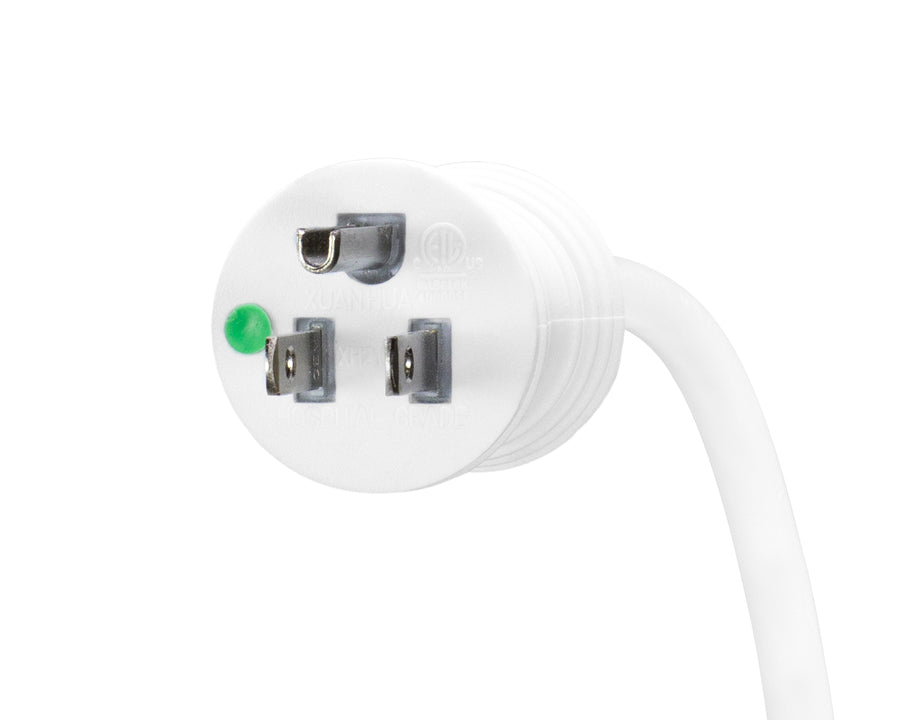

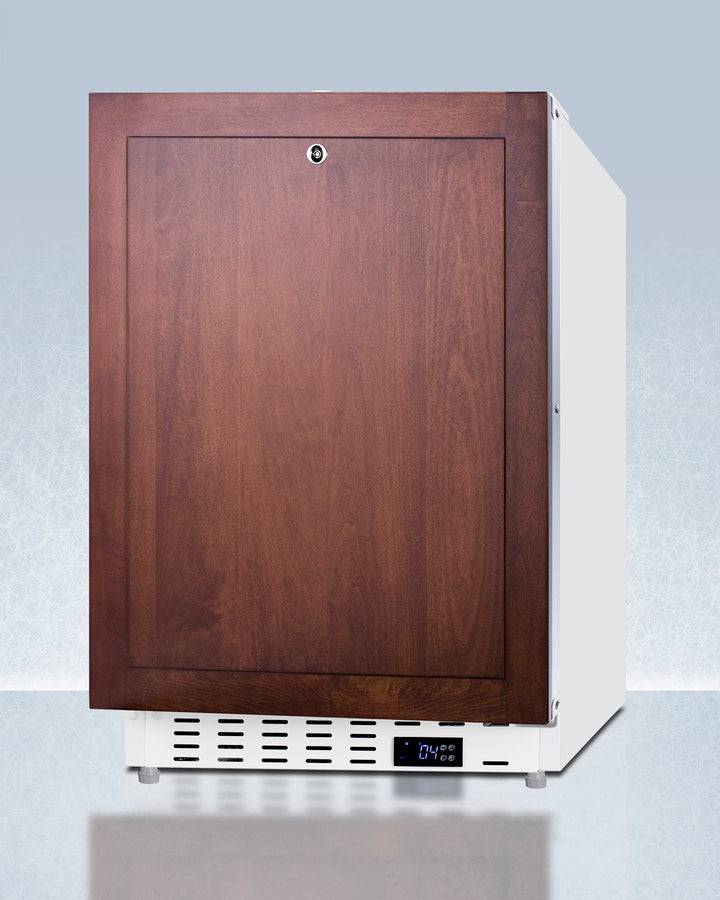

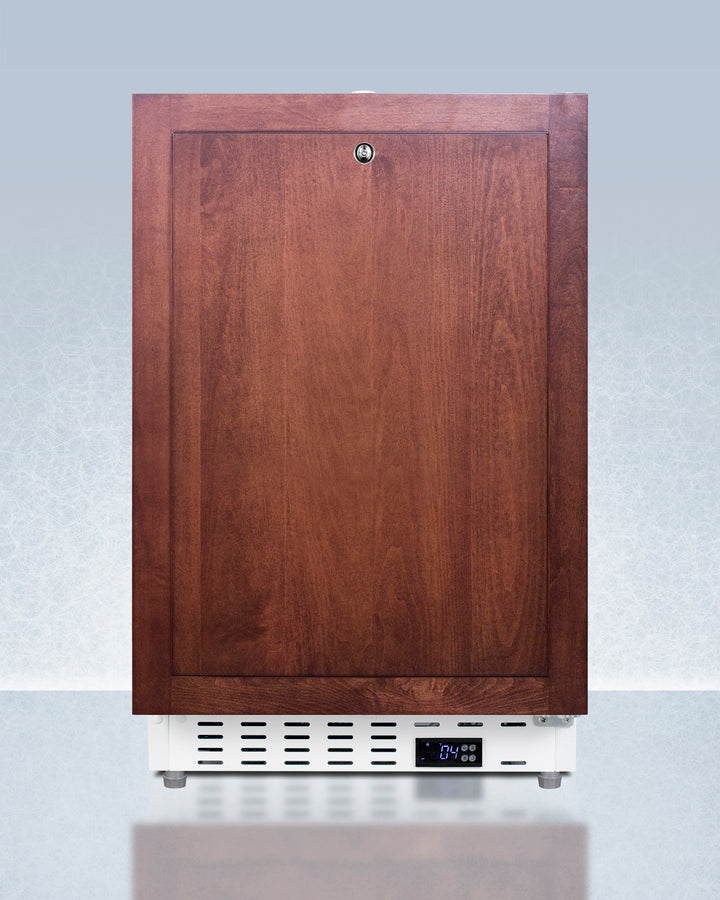

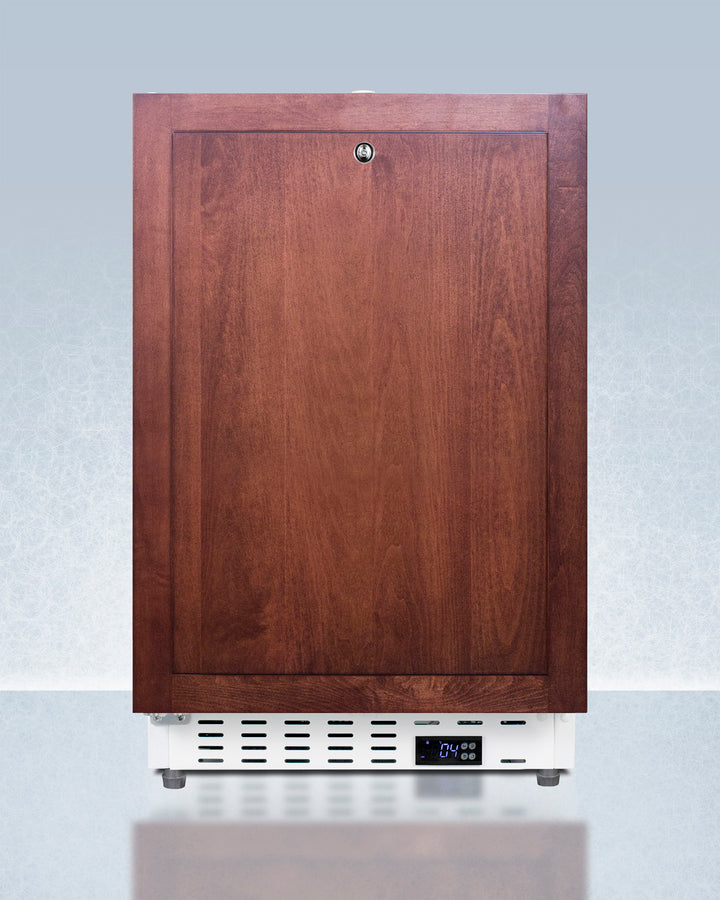

The ADA404REFIF is sized at 32" high for use in ADA-compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth.

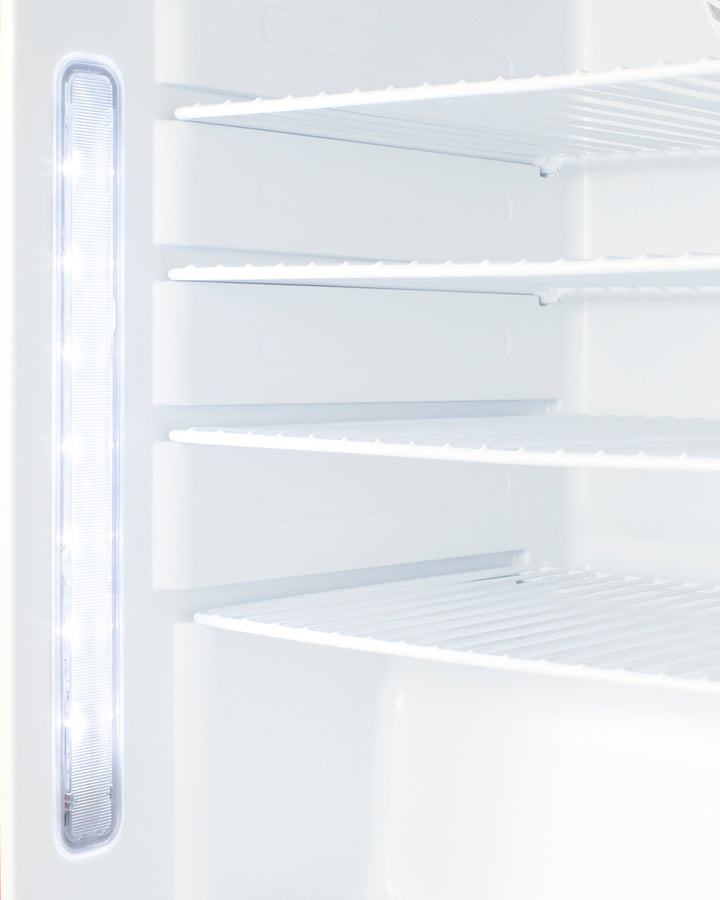

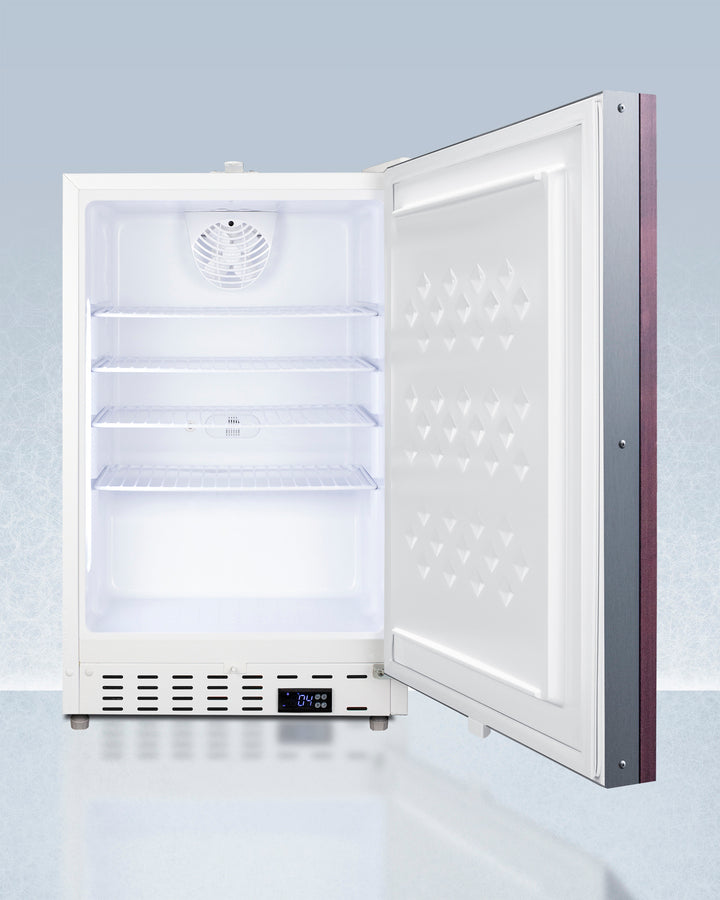

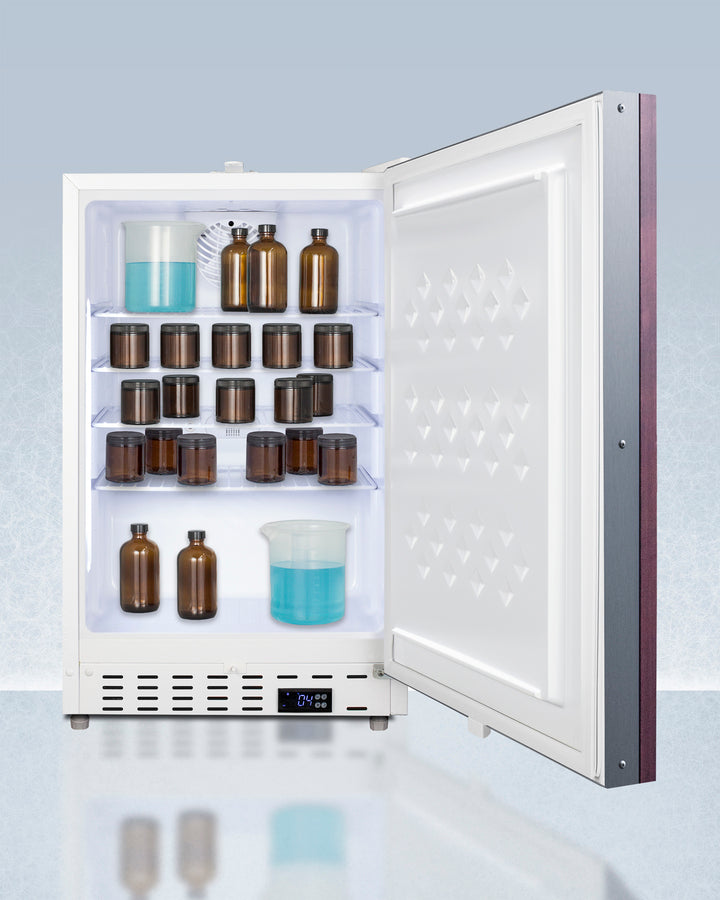

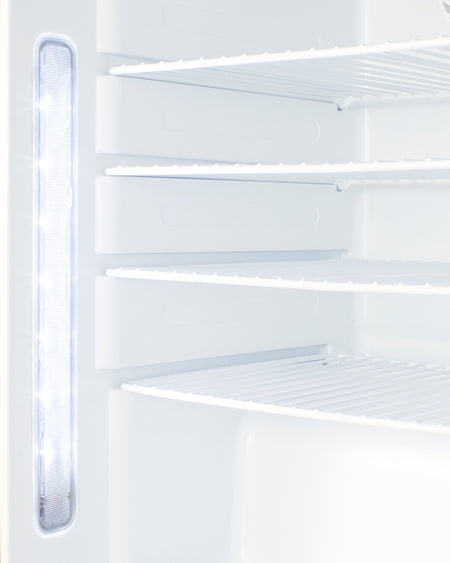

Inside, the ADA404REFIF is designed to operate between +2°C and +8°C as recommended for storing select pharmaceuticals and other medical supplies. An LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu.ft. interior. Adjustable wire shelves allow you to rearrange the interior to suit your storage needs best. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door.
The user-set high and low-temperature alarms provide added security should the temperature exceed the set point. The open door alarm sounds if the door is ajar for more than a minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
Sized at just under 21" wide, the ADA404REFIF makes an ideal choice for various healthcare facilities. For a matching freezer, see the ADA305AFIF.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD/LHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 32.0" (81 cm) | Height Adjustable | No |
| Nominal Width | 21.0" (53 cm) | Shelf Type | Wire |
| Width | 20.25" (51 cm) | Adjustable Shelves | Yes |

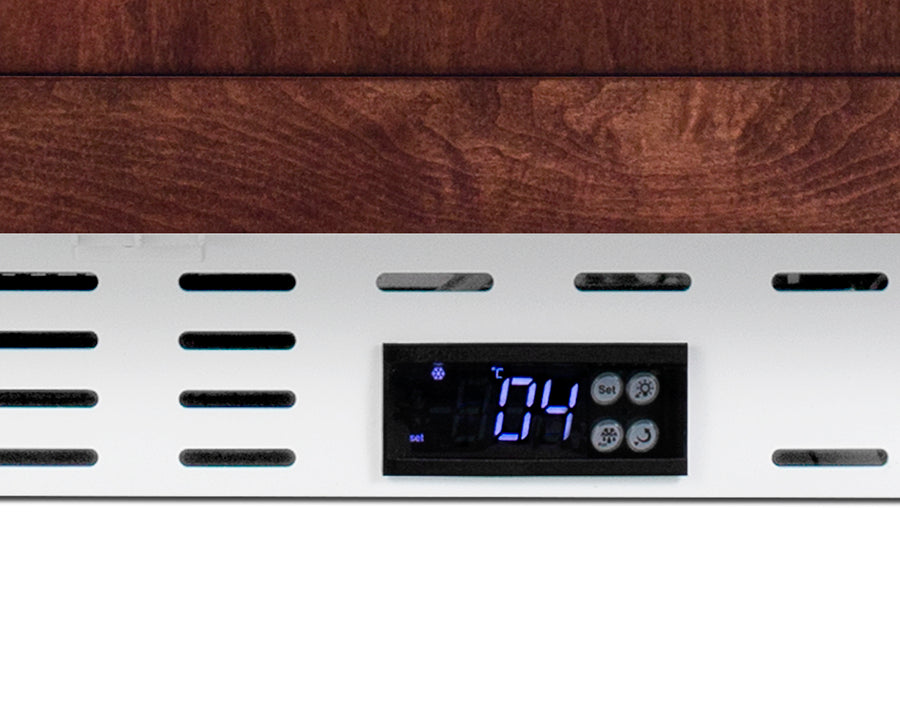

| Nominal Depth | 23.0" (58 cm) | Thermostat Type | Digital |
| Depth | 23.0" (58 cm) | Fan Type | Interior |
| Depth with Handle | 25.0" (64 cm) | Refrigerant Type | R600a |
| Capacity | 3.32 cu.ft. (94 L) | Refrigerant Amount | 0.99oz. |
| Defrost Type | Automatic | High Side PSI | 180.0 |
| Door | Panel-Ready | Low Side PSI | 80.0 |
| Cabinet | White | Level Legs Qty | 4 |
| US Electrical Safety | ETL | Interior Light | Yes |
| Canadian Electrical Safety | ETL-C | Temperature Range | 2 to 8°C |
| Amps | 1.1 |
Dimensions
|
|
|---|---|---|---|
| Voltage/Frequency | 115 V AC/60 Hz | Interior Height | 23.5" (60 cm) |
| Weight | 75.0 lbs. (34 kg) | Interior Width | 16.25" (41 cm) |
| Parts & Labor Warranty | 1 Year | Interior Depth | 17.0" (43 cm) |
| Compressor Warranty | 5 Years | Compressor Step Height | 6.25" (16 cm) |
| UPC | 761101151311 | Compressor Step Width | 16.25" (41 cm) |
| Compressor Step Depth | 6.0" (15 cm) | ||
|
