Summit ASDS2413 24″ Wide Built-In All-Refrigerator – ADA-Height, 3.1 cu ft, Stainless Steel Door, Black Cabinet

SKU: SA-ASDS2413
Regular price $1,773.10
Shallow 17.75″ Depth for Space-Sensitive Areas At under 18″ deep, this unit fits easily into island kitchens, wet bars, and cutouts with limited depth.
Stainless Steel Door & Black Finished Cabinet Durable stainless steel door with a professional look; black fully finished cabinet allows for both built-in and freestanding installation.
Frost-Free with Fan-Forced Air Cooling Maintains even interior temperatures with no need for manual defrosting.

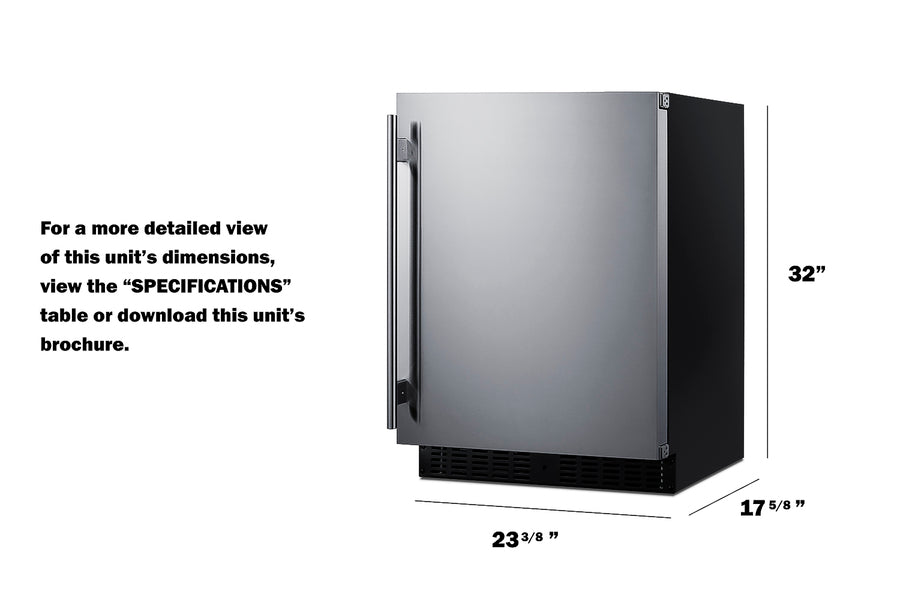

32.0" H x 23.38" W x 17.75" D
(81cm H x 59cm W x 45cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-ASDS2413

24" wide all-refrigerator:
3.1 cu.ft. interior for residential or commercial cold storage

Less than 18" deep:
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design:
32" height allows easy installation under lower ADA compliant counters

Adjustable height:
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable:
Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel interior:
Walls and floor are constructed from stainless steel for added strength and easy cleanup

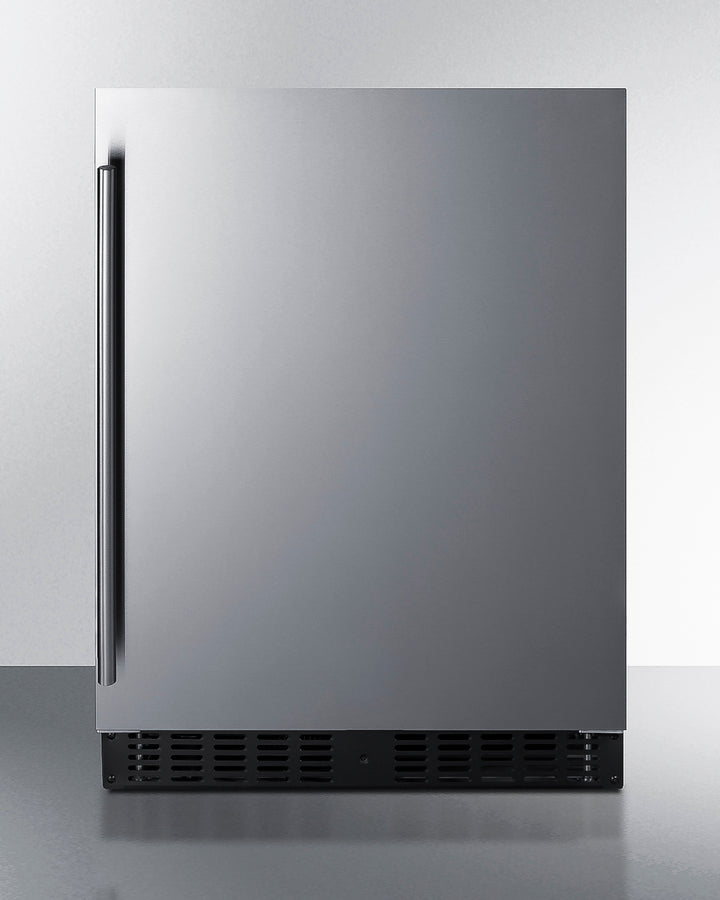

Stainless steel door:
Durable construction with a professional look

Factory installed lock:
Keyed lock for a secure interior (2 keys included)

Professional handle:
Includes a full-length pro handle in chrome

Frost-free operation:
No-frost operation for minimum user maintenance

Internal fan:
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Digital thermostat:
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Dimmable LED lighting:
Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness

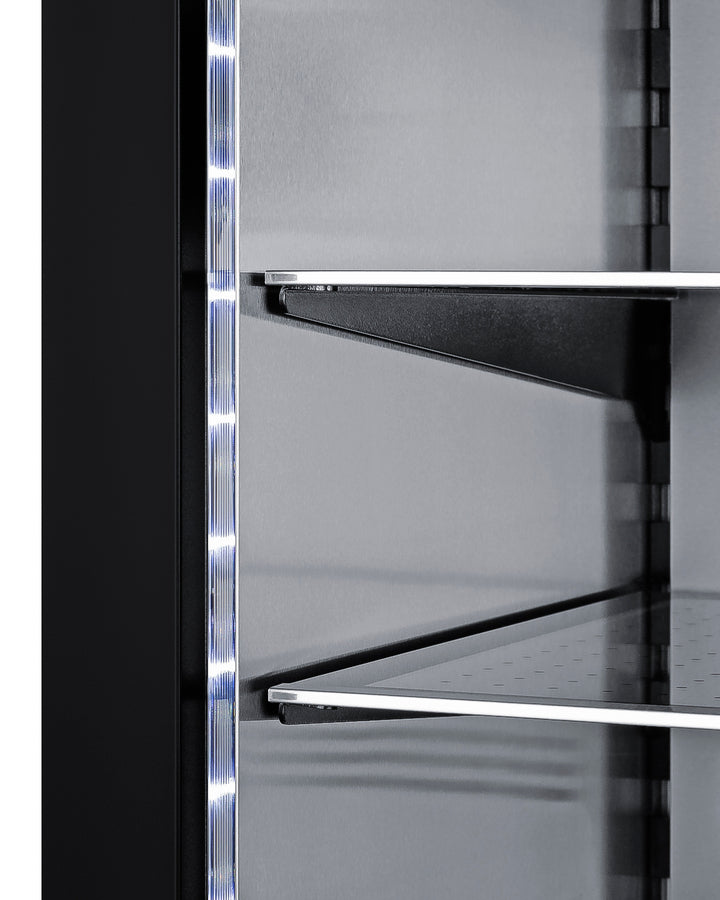

Cantilevered shelving:
Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit

Open door alarm:
Audible alarm will sound if the door is left open longer than one minute

High temperature alarm:
High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting:
Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function:
Unit will retain its last settings when power is restored in the event of power loss

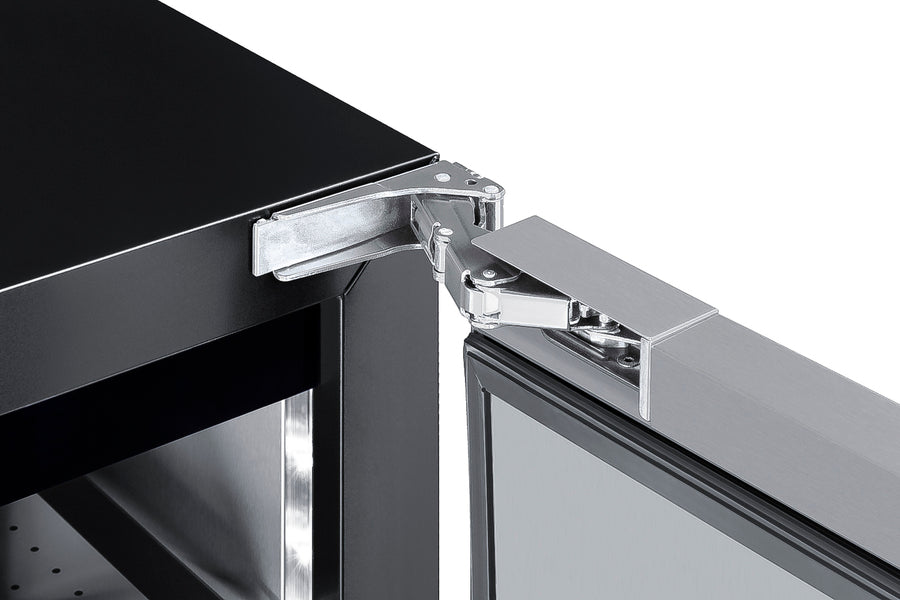

Fully articulating European style hinge:
Smoother opening and a better fit with an integrated European hinge

Right angle plug:
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back:
Space-saving design with no exposed coils that offers easier cleanability

Reversible door:
User-reversible door swing for added flexibility

Commercially approved:
ETL-S listed to NSF-7 Standards for use in commercial establishments

Fully finished black cabinet:
Allows the unit to be used freestanding

100% CFC Free:
Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

Model ASDS2413 is a 24" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The stainless steel wrapped door is user-reversible and includes a front lock and pro style handle.

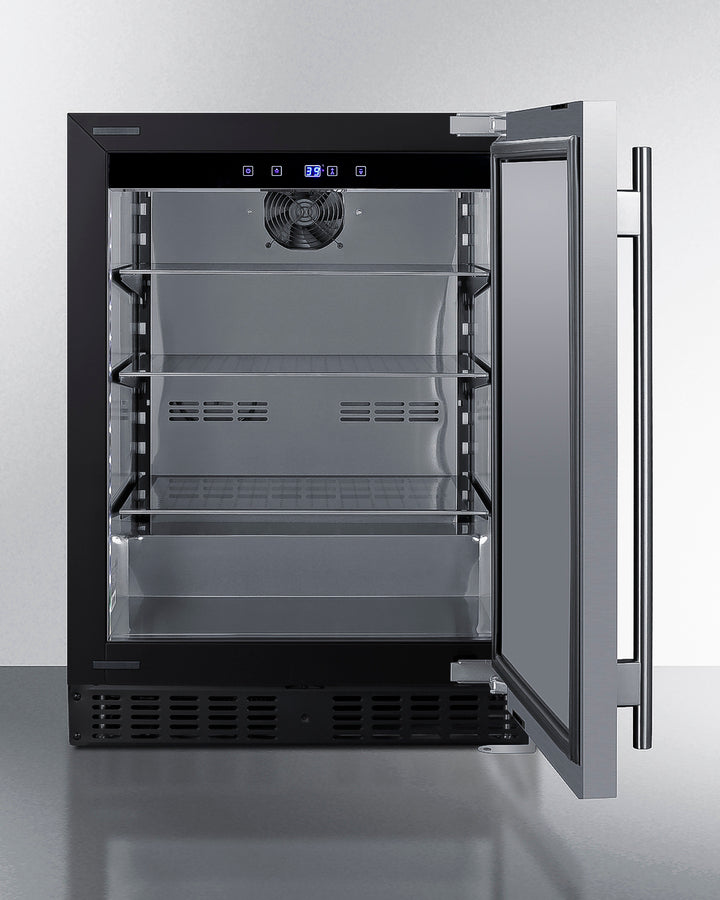

Inside, the ASDS2413 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes a cantilevered shelving system and glass shelves for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The ASDS2413 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.

 Overview

Refrigerator-Freezer

Nominal Height 32.0" (81 cm) Sabbath Mode Yes
Height of Cabinet 32.0" (81 cm) Door Swing RHD
Nominal Width 24.0" (61 cm) Reversible Yes
Width 23.38" (59 cm) Height Adjustable Yes
Nominal Depth 18.0" (46 cm) Shelf Type Glass
Depth 17.75" (45 cm) Shelf Qty 3
Depth with Handle 19.75" (50 cm) Adjustable Shelves Yes
Depth with door at 90° 40.0" (102 cm) Thermostat Type Digital
Capacity 3.1 cu.ft. (88 L) Fan Type Interior and Exterior
Defrost Type Frost-Free Refrigerant Type R600a
Door Stainless Steel Refrigerant Amount 1.38oz.
Cabinet Black High Side PSI 270.0
US Electrical Safety ETL Low Side PSI 105.0
Canadian Electrical Safety ETL-C Level Legs Qty 4
Sanitation ETL-S Interior Light Yes
Energy Usage/Year 225.0kWh/year Temperature Range 36 to 43ºF
Amps 1.0 Sound Level 32.9 dB
Voltage/Frequency 115 V AC/60 Hz
Dimensions
Weight 79.0 lbs. (36 kg) Interior Height 24.25" (62 cm)
Parts & Labor Warranty 1 Year Interior Width 19.5" (50 cm)
Compressor Warranty 5 Years Interior Depth 12.25" (31 cm)
UPC 761101077086 Compressor Step Height 3.75" (10 cm)


Compressor Step Width 19.5" (50 cm)


Compressor Step Depth 4.25" (11 cm)
