Summit AL752BKCSS 24″ Wide ADA-Height Built-In / Freestanding All-Refrigerator – Black Cabinet, Stainless Steel Door
Customer service
Features
- SKU SA-AL752BKCSS
Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The AL750BI Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters.

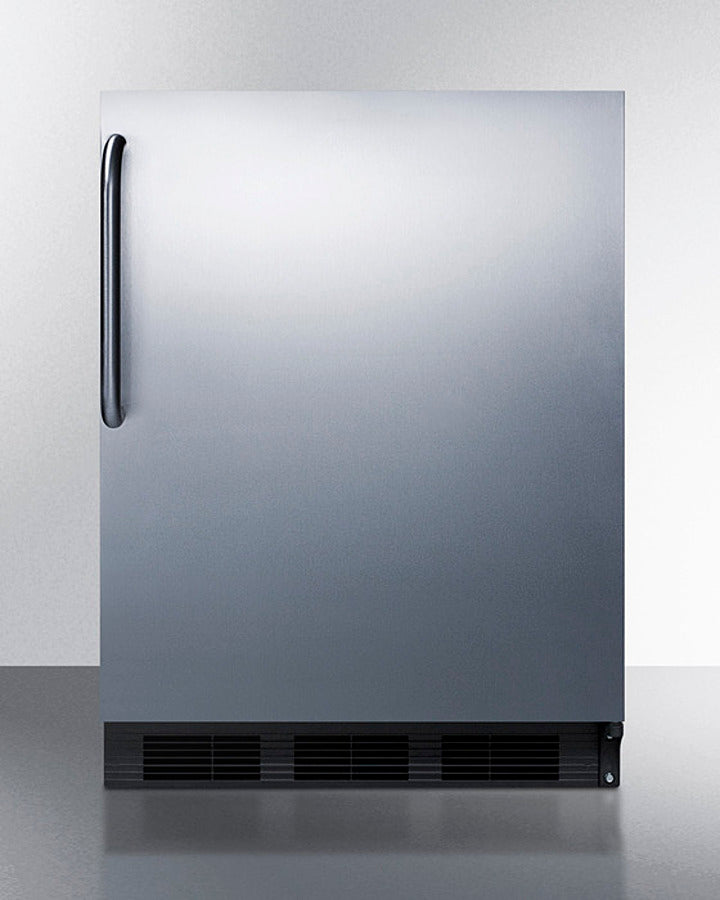

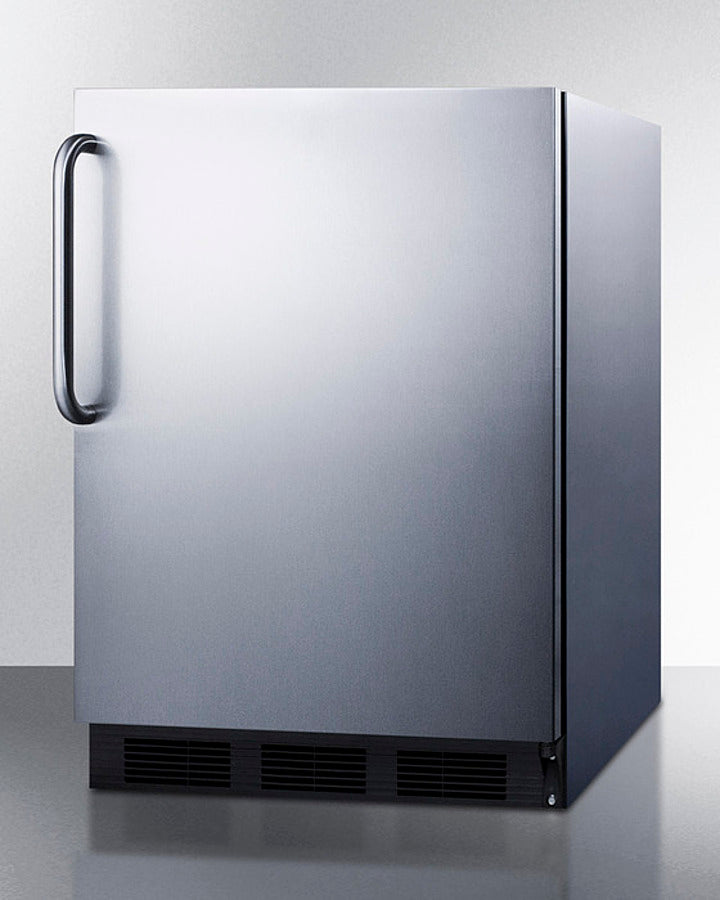

The AL752BKCSS is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a fully wrapped stainless steel cabinet and door. A curved handle in brushed stainless steel completes the professional look.

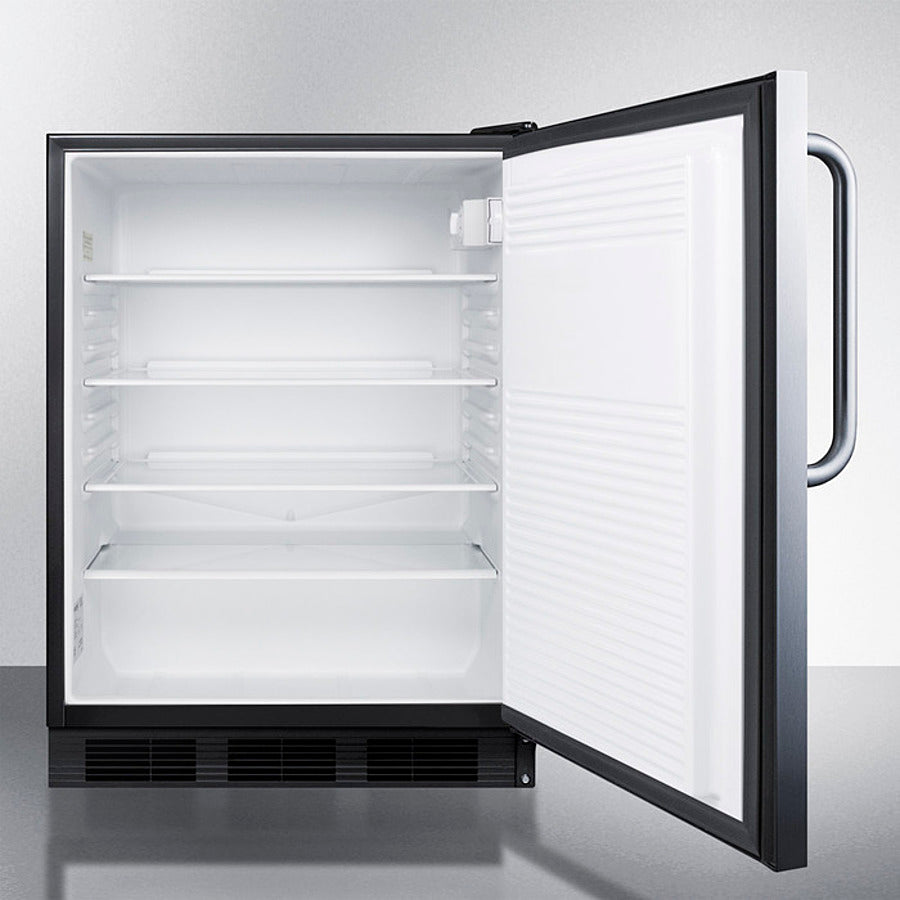

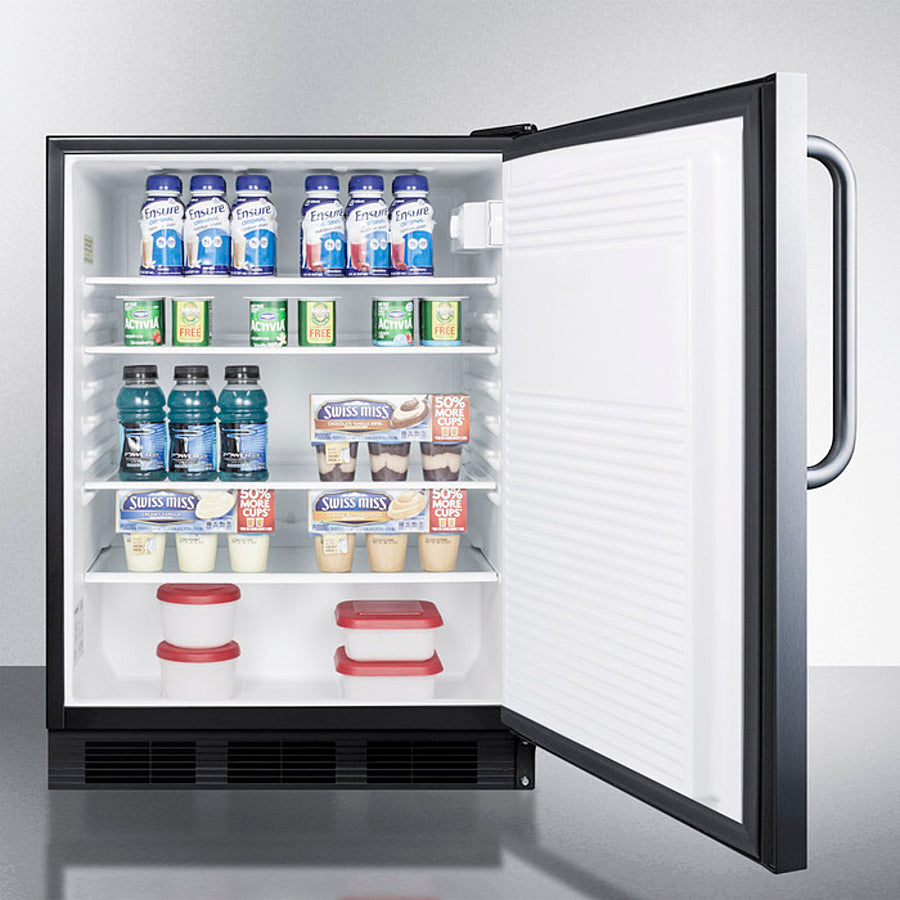

Inside, the AL752BKCSS utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.
For more finish options, browse the entire AL750BI Series.
NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 32.25" (82 cm) | Shelf Type | Glass |
| Nominal Width | 24.0" (61 cm) | Shelf Qty | 3 |
| Width | 23.75" (60 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 24.0" (61 cm) | Thermostat Type | Dial |
| Depth | 23.5" (60 cm) | Refrigerant Type | R600a |
| Depth with Handle | 24.75" (63 cm) | Refrigerant Amount | 0.64oz. |
| Depth with door at 90° | 45.5" (116 cm) | High Side PSI | 180.0 |
| Capacity | 5.5 cu.ft. (156 L) | Low Side PSI | 80.0 |
| Defrost Type | Automatic | Level Legs Qty | 4 |
| Door | Stainless Steel | Interior Light | Yes |
| Cabinet | Stainless Steel |
Dimensions
|
|
|---|---|---|---|
| US Electrical Safety | ETL | Interior Height | 26.25" (67 cm) |
| Canadian Electrical Safety | ETL-C | Interior Width | 21.0" (53 cm) |
| Amps | 1.4 | Interior Depth | 17.75" (45 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 5.5" (14 cm) |
| Weight | 100.0 lbs. (45 kg) | Compressor Step Width | 21.0" (53 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 5.5" (14 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101071954 | ||
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
