Summit FF7LWCSSADA 24″ Wide Built-In/Undercounter All-Refrigerator – ADA-Compliant, 5.5 cu ft, Stainless Steel Door & Cabinet
Customer service
Features
- SKU SA-FF7LWCSSADA
Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7BIADA Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters.

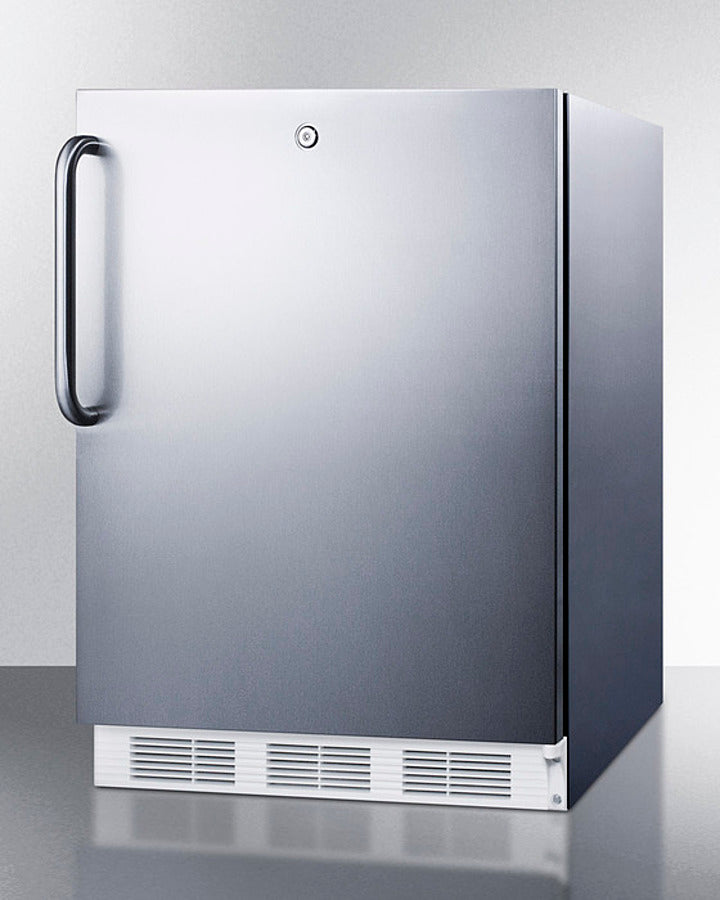

The FF7LWCSSADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a fully wrapped stainless steel exterior cabinet and door. A curved towel bar handle in brushed stainless steel completes the professional look and a factory installed front lock offers convenient security.

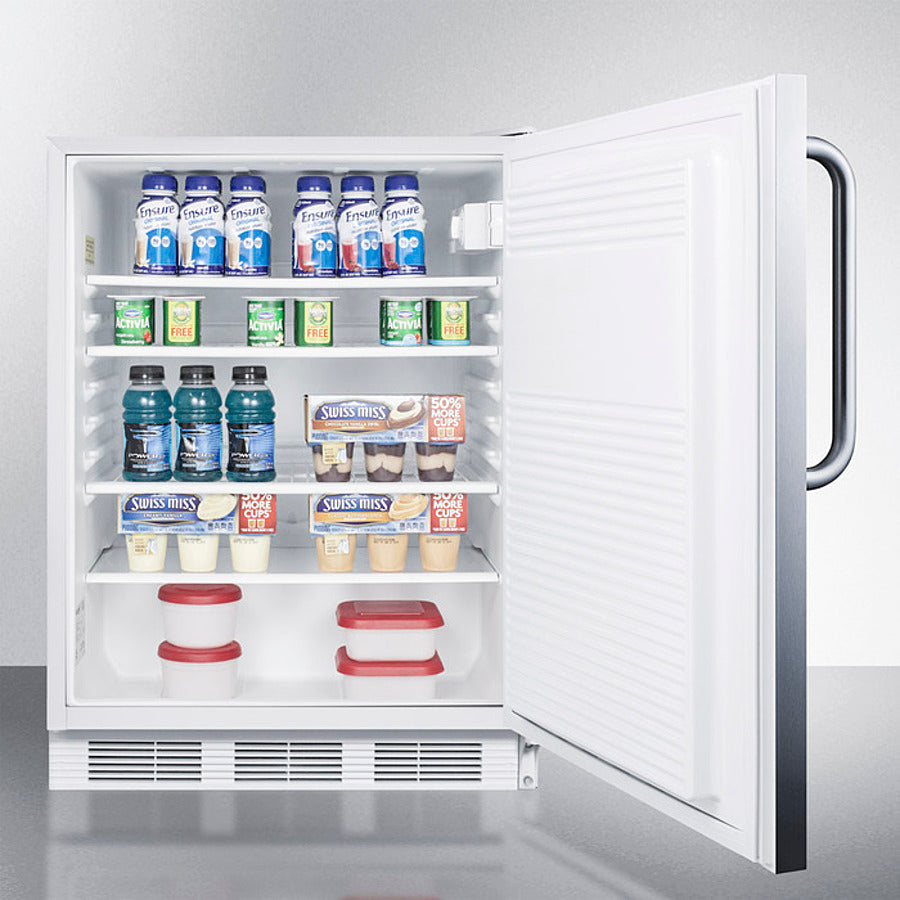

Inside, the FF7LWCSSADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.
The FF7LWCSSADA is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF7BIADA Series.
NOTE: This unit is designed for general purpose or commercial applications and does not meet DOE energy standards for residential use.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 32.25" (82 cm) | Shelf Type | Wire |
| Nominal Width | 24.0" (61 cm) | Shelf Qty | 3 |
| Width | 23.75" (60 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 24.0" (61 cm) | Thermostat Type | Dial |
| Depth | 23.25" (59 cm) | Fan Type | Exterior |
| Depth with Handle | 25.25" (64 cm) | Refrigerant Type | R600a |
| Depth with door at 90° | 45.5" (116 cm) | Refrigerant Amount | 0.64oz. |
| Capacity | 5.5 cu.ft. (156 L) | High Side PSI | 180.0 |
| Defrost Type | Automatic | Low Side PSI | 80.0 |
| Door | Stainless Steel | Level Legs Qty | 4 |
| Cabinet | Stainless Steel | Interior Light | Yes |
| US Electrical Safety | ETL |
Dimensions
|
|
|---|---|---|---|
| Canadian Electrical Safety | ETL-C | Interior Height | 27.75" (70 cm) |
| Sanitation | ETL-S | Interior Width | 20.0" (51 cm) |
| Amps | 1.4 | Interior Depth | 17.5" (44 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 7.0" (18 cm) |
| Weight | 100.0 lbs. (45 kg) | Compressor Step Width | 20.0" (51 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 6.0" (15 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101072586 | ||
|
ASSEMBLY DRAWING |
| SUPPORT |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
