Summit FF6LWBI7SSHHADA 24″ Wide ADA-Height Built-In All-Refrigerator – Stainless Steel Door, 5.5 cu ft
Customer service
Features
- SKU SA-FF6LWBI7SSHHADA
Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF6BI7ADA Series features 24" wide all-refrigerators designed for built-in undercounter use in ADA compliant settings.

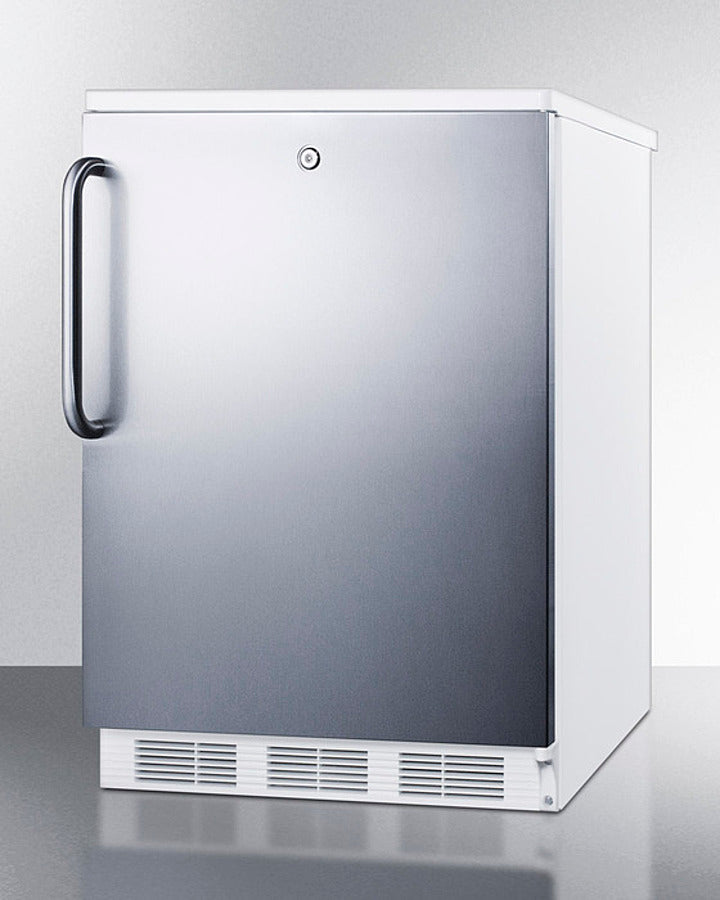

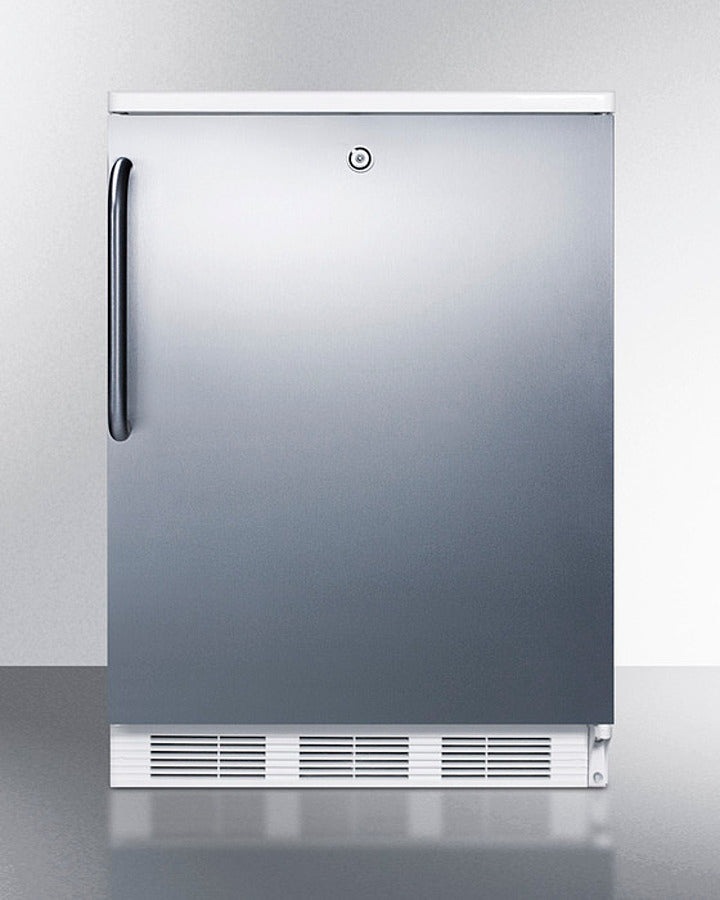

The FF6LWBI7SSHHADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a white cabinet with a reversible stainless steel wrapped door. A thin handle is mounted horizontally for a sleek, modern look and a factory installed front lock offers convenient security.

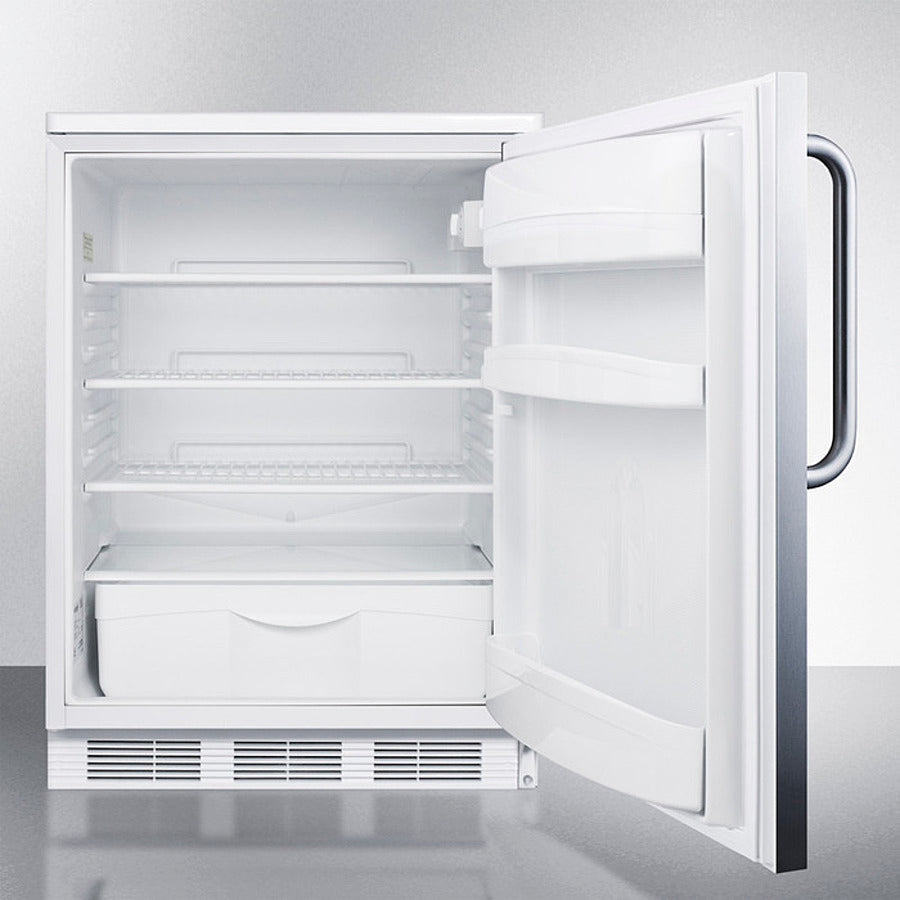

Inside, the FF6LWBI7SSHHADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior. Adjustable wire shelves allow users to reconfigure the interior for optimum storage. Additional features include automatic interior lighting, door storage, and a crisper drawer. This unit includes an adjustable dial thermostat.
The FF6LWBI7SSHHADA is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF6BI7ADA Series.
NOTE: This unit is designed for general purpose or commercial applications and does not meet DOE energy standards for residential use.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.25" (82 cm) | Crisper Qty | 1 |
| Nominal Width | 24.0" (61 cm) | Crisper Finish | Opaque |
| Width | 23.63" (60 cm) | Crisper Cover | Glass |
| Nominal Depth | 24.0" (61 cm) | Shelf Type | Wire |
| Depth | 23.5" (60 cm) | Shelf Qty | 3 |
| Depth with Handle | 25.13" (64 cm) | Full Door Shelf Qty | 3 |
| Depth with door at 90° | 46.0" (117 cm) | Adjustable Shelves | Yes |
| Capacity | 5.5 cu.ft. (156 L) | Thermostat Type | Dial |
| Defrost Type | Automatic | Fan Type | Exterior |
| Door | Stainless Steel | Refrigerant Type | R600a |
| Cabinet | White | Refrigerant Amount | 0.64oz. |
| US Electrical Safety | ETL | High Side PSI | 180.0 |
| Canadian Electrical Safety | ETL-C | Low Side PSI | 80.0 |
| Sanitation | ETL-S | Level Legs Qty | 4 |
| Amps | 1.4 | Interior Light | Yes |
| Voltage/Frequency | 115 V AC/60 Hz |
Dimensions
|
|
|---|---|---|---|
| Weight | 100.0 lbs. (45 kg) | Interior Height | 27.75" (70 cm) |
| Parts & Labor Warranty | 1 Year | Interior Width | 20.0" (51 cm) |
| Compressor Warranty | 5 Years | Interior Depth | 17.5" (44 cm) |
| UPC | 761101071565 | Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 20.0" (51 cm) | ||
| Compressor Step Depth | 6.0" (15 cm) | ||
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
