Summit FF7BKBIIFADA 24″ Wide ADA-Height Panel-Ready All-Refrigerator
Customer service
Features
- SKU SA-FF7BKBIIFADA
Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7BIADA Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters.

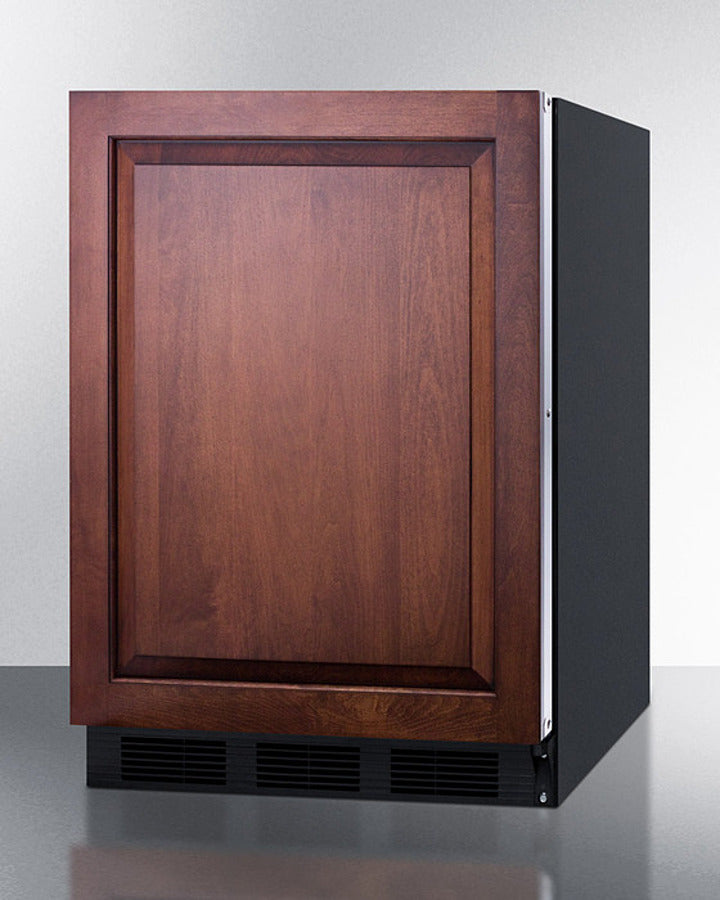

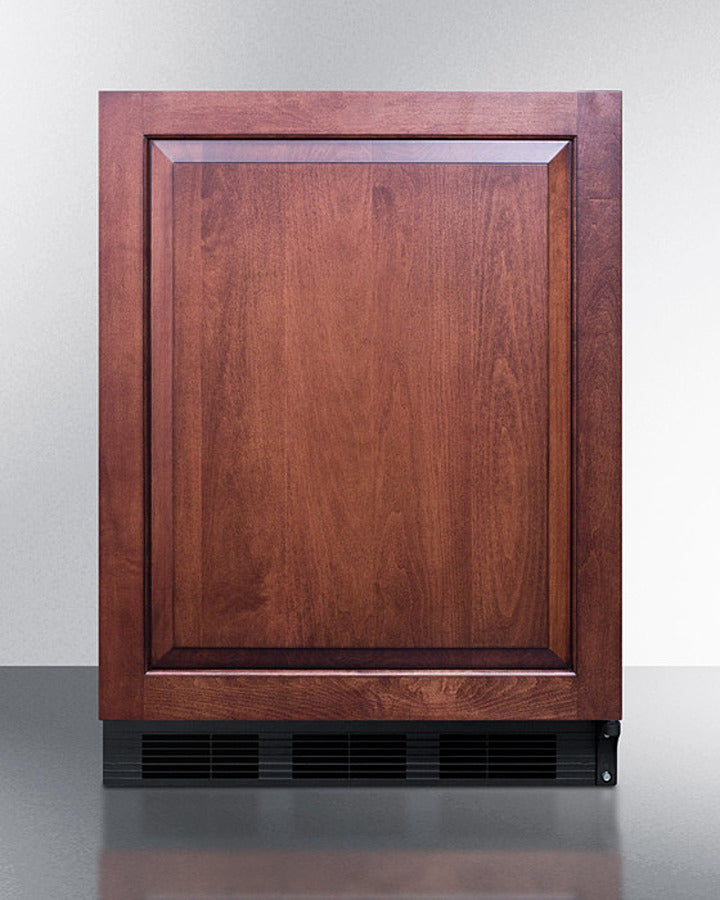

The FF7BKBIIFADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a black cabinet. The door includes an integrated stainless steel frame to accept overlay panels for a custom look. Users provide their own handle.

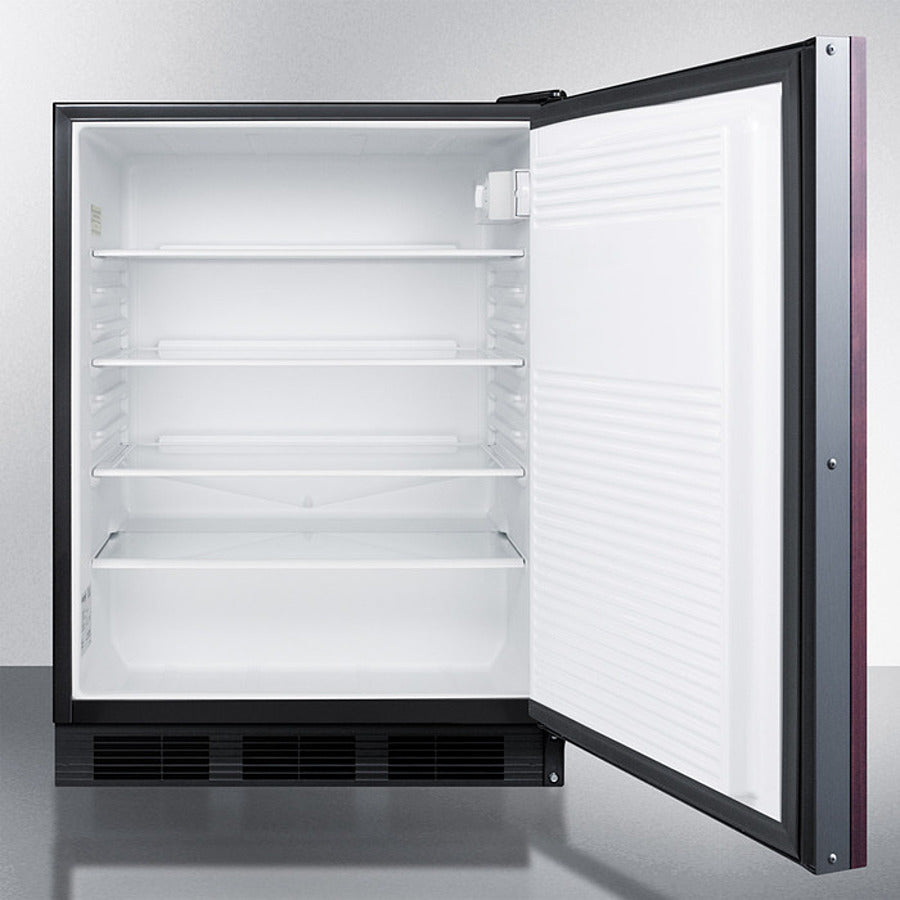

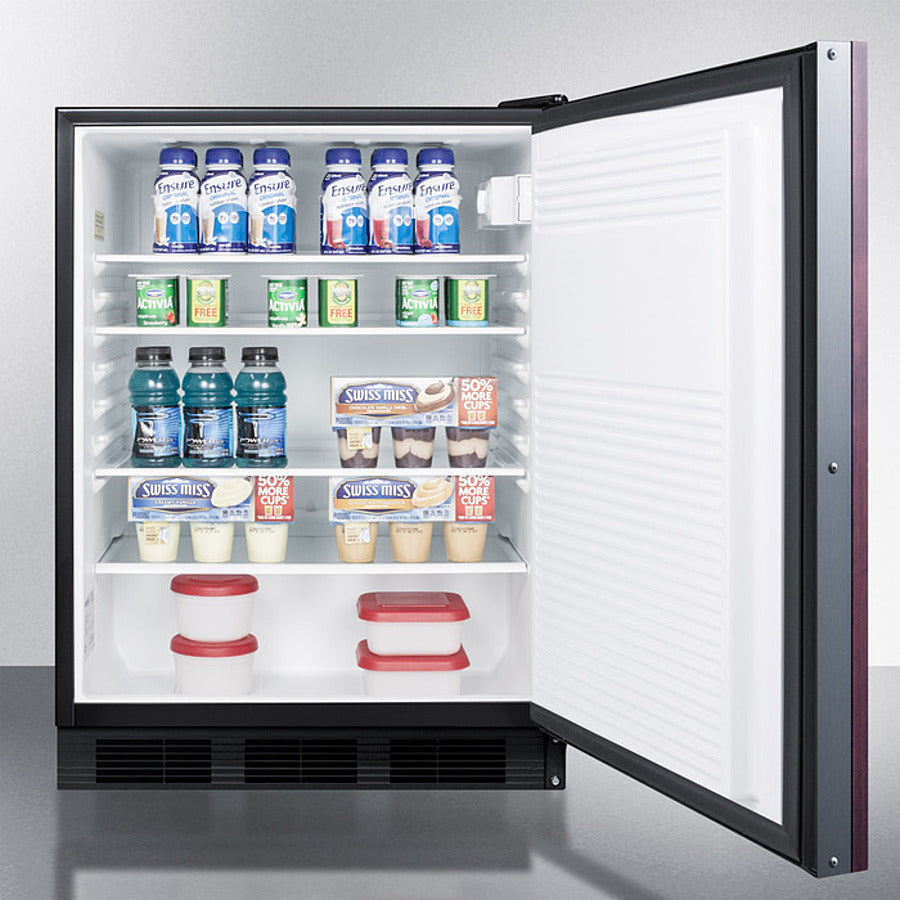

Inside, the FF7BKBIIFADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.
The FF7BKBIIFADA is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF7BIADA Series.
NOTE: This unit is designed for general purpose or commercial applications and does not meet DOE energy standards for residential use.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 32.25" (82 cm) | Shelf Type | Glass |
| Nominal Width | 24.0" (61 cm) | Shelf Qty | 3 |
| Width | 23.63" (60 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 24.0" (61 cm) | Thermostat Type | Dial |
| Depth | 23.5" (60 cm) | Fan Type | Exterior |
| Depth with door at 90° | 45.63" (116 cm) | Refrigerant Type | R600a |
| Capacity | 5.5 cu.ft. (156 L) | Refrigerant Amount | 0.64oz. |
| Defrost Type | Automatic | High Side PSI | 180.0 |
| Door | Panel-Ready | Low Side PSI | 80.0 |
| Cabinet | Black | Level Legs Qty | 4 |
| US Electrical Safety | ETL | Interior Light | Yes |
| Canadian Electrical Safety | ETL-C |
Dimensions
|
|
|---|---|---|---|
| Sanitation | ETL-S | Interior Height | 26.25" (67 cm) |
| Amps | 1.4 | Interior Width | 21.0" (53 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Interior Depth | 17.75" (45 cm) |
| Weight | 100.0 lbs. (45 kg) | Compressor Step Height | 5.5" (14 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Width | 21.0" (53 cm) |
| Compressor Warranty | 5 Years | Compressor Step Depth | 5.5" (14 cm) |
| UPC | 761101072814 | ||
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
